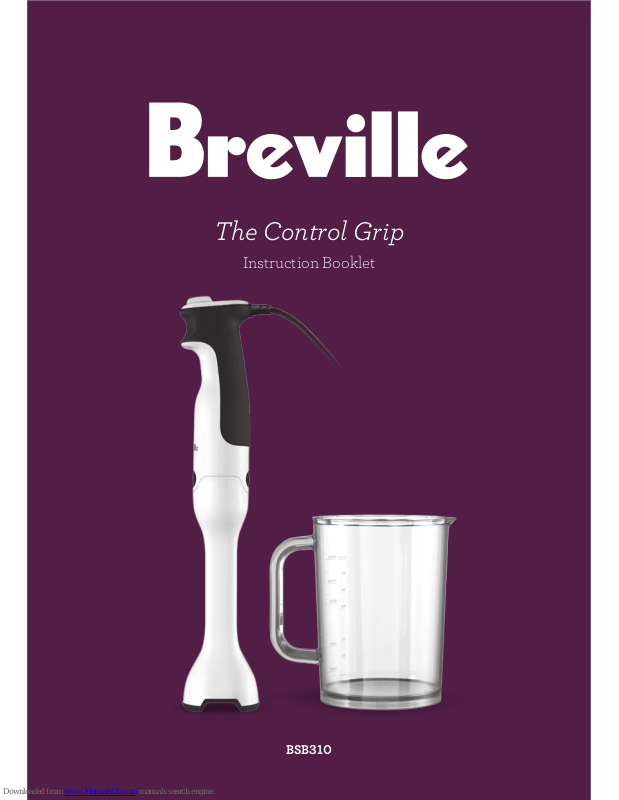

Breville BSB310 Instruction Booklet

Page 1
BSB310
The Control Grip
Instruction Booklet
Page 2
CONGRATULATIONS
on the purchase of your new Breville
The Control Grip
Page 3
CONTENTS
4 Breville recommends safety first
6 Know your Breville
Control Grip Stick Mixer
8 Operating your Breville
Control Grip Stick Mixer
12 Care, cleaning & storage for your
Breville Control Grip Stick Mixer
14 Food preparation guide for your
Breville Control Grip Stick Mixer
16 Recipes
Page 4
4
BREVILLE RECOMMENDS SAFETY FIRST
At Breville we are very safety conscious. We design and manufacture consumer products with the safety of you, our valued customer, foremost in mind. In addition we ask that you exercise a degree of care when using any electrical appliance and adhere to the following precautions.
READ ALL INSTRUCTIONS BEFORE USE AND SAVE FOR FUTURE REFERENCE
• Remove any packaging material and
promotional stickers before using the stick mixer for the first time.
• Do not place the stick mixer near
the edge of a bench or table during operation. Ensure the surface is level, clean and free of water, flour, etc.
• Do not place the stick mixer on or near
a hot gas or electric burner, or where it could touch a heated oven.
• If using the stick mixer to blend hot
food in a saucepan over heat, remove the saucepan from the heat source and ensure the power cord and body of appliance are also kept away from any heat source.
• Handle the stick mixer and
attachments with care – remember the blade is very sharp and should be kept out of reach of children.
• Always make sure the stick mixer is
completely and properly assembled before operating.
• Ensure the Stick mixer is turned off
at the trigger switch, the power is switched off at the power outlet and the cord is unplugged from the power outlet before attempting to attach any of the accessories.
• Always ensure the Blending Leg is
securely fitted onto the blender motor body before operating.
• Do not use attachments other than those
provided with the Stick mixer..
• Do not attempt to operate the stick
mixer by any method other than those described in this booklet.
• Do not process hot or boiling liquids in
the chopping bowl – allow liquids to cool before placing into the chopper bowl.
• Do not operate the appliance
continuously for more than 1 minute. Allow the motor to rest for 1 minute between each use.
• Never mix dry, thick or heavy mixtures
for more than 30 seconds. Stop the operation and stir the ingredients before continuing. Allow the motor to rest for 1 minute between each use.
• When using heavy loads, the appliance
should not be operated for more than 30 seconds.
• Recipes in this instruction booklet are
not considered heavy loads.
• Always ensure the Stick mixer is turned
off, the power is switched off at the power outlet and the cord is unplugged from the power outlet before attempting to move the appliance, when not in use, if left unattended and before disassembling, cleaning or storing.
• If food becomes lodged around the
processing blade or in the blade guard, release the ON button, switch the power off at the power outlet and unplug the cord. Use a spatula to dislodge the food. Do not use fingers as the blades are sharp.
• To protect against electric shock do not
immerse the motor body, cord or power plug in water or any other liquid.
IMPORTANT SAFEGUARDS
Page 5
5
5
BREVILLE RECOMMENDS SAFETY FIRST
• Do not remove the stick mixer from
ingredients during operation. Ensure the appliance is switched off and has stopped turning before removing, to avoid contact with moving blade or whisk.
• Do not leave the stick mixer unattended
when in use.
• Keep the appliance clean. Follow
the cleaning instructions provided in this book.
• Do not use the stickmixer/stick blender
with wet hands.
IMPORTANT SAFEGUARDS FOR ALL ELECTRICAL APPLIANCES
• Unwind the cord fully before use.
• Do not let the cord hang over the edge of
a table or counter, touch hot surfaces or become knotted.
• This appliance is not intended for use
by young children or infirm persons without supervision.
• Young children should be supervised
to ensure that they do not play with the appliance.
• It is recommended to regularly inspect
the appliance. Do not use the appliance if power supply cord, plug or appliance becomes damaged in any way. Return the entire appliance to the nearest authorised Breville service centre for examination and/or repair.
• Any maintenance, other than cleaning,
should be performed at an authorised Breville Service Centre.
• This appliance is for household use
only. Do not use this appliance for anything other than its intended use. Do not use in moving vehicles or boats. Do not use outdoors.
• The installation of a residual current
device (safety switch) is recommended to provide additional safety protection when using electrical appliances. It is advisable that a safety switch with a rated residual operating current not exceeding 30mA be installed in the electrical circuit supplying the appliance. See your electrician for professional advice.
SAVE THESE INSTRUCTIONS
Page 6
KNOW
your Breville Control Grip
Page 7
7
KNOW YOUR BREVILLE CONTROL GRIP STICK MIXER
A. Motor Body B. Speed Control Dial C. Easy Grip Trigger Switch
D. Detachable blending leg E. Stainless steel blending blade F. Blending Jug
E
D
A
B
C
F
Page 8
ASSEMBLY & OPERATION
of your Breville Control Grip
Page 9
9
ASSEMBLY & OPERATION
BEFORE FIRST USE
Remove any packaging material and promotional labels. Remove the blending leg from the mixer motor body and wash it in warm soapy water (refer to assembly instructions in this booklet). Rinse and dry thoroughly. Ensure no water remains inside the blending leg to avoid water running into the motor body when reattached.
Disassemble and wash the blending jug in warm soapy water, rinse and dry thoroughly.
NOTE
The detachable blending leg, and blending jug can be washed in the dishwasher. The motor body is not dishwasher safe – see the care and cleaning section of this booklet for cleaning instructions of these parts.
This stick mixer is a versatile appliance that can be attached to:
• The blending leg– for use as a stick
mixer
TO ATTACH THE BLENDING LEG
Hold the blending leg with the blades down, and align the top end of the blending leg with the corresponding end of the motor body and push until the blending leg ‘clicks’ and locks onto the motor body.
Always ensure blending leg is dry, and no water left inside, before reattaching.
USING AS A STICK MIXER
Ensure the blending leg is assembled to the motor body as detailed above.
1. Place food to be processed into the
blending jug provided (or a sufficiently large mixing bowl or saucepan). The jug provided should be only be ½ full or less when blending liquids or when making a puree of fruit and/or vegetables.
2. Insert the plug into a 230/240V power
outlet and turn the power on.
3. By turning the dial at the top of motor
body, select a speed between low and high.
NOTE
If selecting a high speed, it is recommended that you start with a slow speed and gradually increase to the higher speed to avoid splattering and over-processing.
4. Place the blending leg as deeply as
possible into the jug and press the trigger switch to turn the stick mixer on. The button must be held for the required duration of operation.
Page 10
10
ASSEMBLY & OPERATION
1. Work through the ingredients in
the jug with a gentle raising and lowering motion.
2. Switch off the motor by releasing the
trigger switch
3. Ensure the motor has completely
stopped before lifting the blender out of the jug.
4. When processing has finished, switch
off at the power outlet and remove the power plug.
TO DETACH THE BLENDING LEG
Ensure the trigger switch is released, the power is turned off at power point and the appliance is unplugged.
Hold the motor body with one hand, and using thumb and finger of the other hand, press on the two EJECT buttons on either side of the motor body. Pull the motor body away from the blending leg to detach.
RECOMMENDATIONS WHEN USING AS A STICK MIXER
• The stick mixer blends foods and liquids
rapidly, therefore it is easy to over­process. Remember when using the blending leg to stop the stick mixer and check food throughout the operation.
• Allow food to cool before blending.
(under 80˚C).
• Ensure the body of the appliance and
power cord are kept away from any heat source.
• When pureeing and blending, cut food
into uniform sizes. This will ensure smooth and consistent results.
• Warm all liquids to be added to
soups and purees, this will ensure even blending.
• Do not operate the appliance
continuously for more than 1 minute. Allow the motor to rest for 1 minute between each use.
If food becomes lodged around the processing blade or in the blade guard, follow the following safety instructions:
1. Release the Trigger switch the power off
at the power outlet and unplug the cord.
2. Use a spatula to carefully dislodge the
food. Do not use fingers as the blades are sharp.
3. After the food has been removed and
blades are clear, plug the appliance back into the power supply, switch the power on and continue blending.
Page 11
11
Page 12
CARE, CLEANING
& STORAGE
of your Breville Control Grip
Page 13
13
CARE, CLEANING & STORAGE
MOTOR BODY
To remove any food residue wipe the motor body and cord with a damp cloth only. Do not use abrasive cleaners or steel wool. Never immerse the motor body in water or any other liquid.
BLENDING LEG
Before cleaning, turn the power off at the power outlet and then remove the plug. Remove the motor body from the blending leg. The blending leg can be hand washed in hot soapy water, rinsed and dried thoroughly after each use. Alternatively, the blending leg can also be washed in the dishwasher. Do not use abrasive cleaners or steel wool.
QUICK WASH: Between each processing task, with the motor body attached and turned on at the power outlet, place the blending leg and blade assembly only in to a jug of water and press the trigger switch to turn on for 5 seconds. This will remove any food on the blade and blending leg and allow you to continue onto the next processing task.
BLENDING JUG
The blending jug can be hand washed in hot soapy water, rinsed and dried thoroughly after each use. Alternatively, the blending jug can also be washed in the dishwasher. Do not use abrasive cleaners or steel wool.
STORAGE
Before storage, turn the power off at the power outlet and then remove the plug. Ensure the appliance is clean and completely dry.
Page 14
FOOD PREPARATION
GUIDE
for your Breville Control Grip
Page 15
15
FOOD PREPARATION GUIDE
FOOD PREPARATION GUIDE
Milkshakes, smoothies, cocktails, fruit frappes
Use Chilled milk. Blend until desired consistency is cocktails, fruit frappes achieved. Use mid to maximum speed for 30 seconds.
Soups, dips, baby food Blend until smooth, Use mid to maximum
speed for 30 seconds.
Red meat, chicken fillets, fish fillets, (maximum weight, 250g, pre-cut into 2cm cubes)
Use mid to maximum speed with fish fillets.
Page 16
RECIPES
Page 17
17
SOUP
MEDITERRANEAN SOUP
Serves 4-6
INGREDIENTS
2 tablespoons olive oil 2 large Spanish onions, chopped 2 eggplants (500g), chopped 5 zucchinis, chopped 500g tomatoes, chopped 3 cloves garlic 3 red capsicum, seeded and chopped 2 green capsicum, seeded and chopped 1 tablespoon pesto paste 6 cups chicken stock Pepper, to taste
METHOD
1. Heat oil in a large saucepan over
medium heat, sauté onions until slightly golden.
2. Add remaining ingredients and bring to
the boil, then reduce heat to simmer.
3. Simmer until vegetables are tender.
4. Remove from heat, cool slightly.
5. Place Stick Mixer into saucepan and
blend until soup is smooth.
Serve with crusty Italian bread.
PUMPKIN AND KUMERA SOUP
Serves 4-6
INGREDIENTS
2 tablespoons light olive oil 2 cloves garlic, crushed 2 large leeks, washed and thinly sliced
1.5kg pumpkin, peeled and chopped 750g kumera (sweet potato), peeled and chopped 6 cups chicken stock 2 teaspoons ground cumin Pepper, to taste 1 cup light sour cream
METHOD
1. Heat oil in a large saucepan over
medium heat, sauté garlic and leeks until transparent and golden.
2. Add the next 4 ingredients, bring to the
boil, and then reduce heat to simmer.
3. Simmer until vegetables have softened.
4. Remove from heat, cool slightly.
5. Place Stick Mixer into saucepan and
blend until soup is smooth. Fold in the remaining ingredients.
Serve.
Page 18
18
SOUP
ZUCCHINI AND POTATO SOUP
Serves 4-6
INGREDIENTS
2 tablespoons olive oil 2 leeks, thinly sliced 500g washed potatoes, peeled and chopped 8 zucchinis, chopped 8 cups chicken stock Pepper, to taste 1 cup cream
METHOD
1. Heat oil in a large saucepan over
medium heat, sauté leeks until they have softened.
2. Add the next 3 ingredients.
3. Bring to the boil, and then reduce heat
to simmer.
4. Simmer until vegetables have softened.
5. Stir in cream and bring to the boil.
6. Remove from heat, cool slightly.
7. Place Stick Mixer in the saucepan and
blend until soup is smooth.
Serve.
SWEET COCONUT AND SPINACH SOUP
Serves 4-6
INGREDIENTS
2 tablespoons olive oil 2 cloves garlic, crushed 3 leeks, thinly sliced 1 tablespoon red curry paste 1 teaspoon ground cumin 800g English spinach, chopped 600ml chicken stock 200g kumara, peeled and chopped 3 Kaffir lime leaves or 1 teaspoon grated
lime rind
METHOD
1. Heat oil in a large saucepan over
medium heat, sauté garlic and leeks until lightly softened.
2. Add the curry paste and cumin; cook,
stirring regularly over a high heat for 1 minute, add remaining ingredients.
3. Bring to the boil, and then reduce heat
to simmer.
4. Simmer until all vegetables have
softened.
5. Remove from heat, cool slightly.
6. Place Stick Mixer in the saucepan and
blend soup until smooth.
Serve.
Page 19
19
SOUP
Variations
MOROCCAN PUMPKIN SOUP
Add the following spices to the onion when sautéing.
Serve with coriander leaves and yoghurt.
1 teaspoon ground cumin 1 teaspoon garam marsala 1 teaspoons paprika ½ teaspoon ground white pepper
CURRIED PUMPKIN SOUP
Add 1 tablespoon curry powder to the onions when sauteing.
CREAMY PUMPKIN SOUP
Add ½ cup cream when adding the stock.
THAI STYLE PUMPKIN SOUP
Add 2 small fresh red chillies and 1 tablespoon chopped lemon grass to the onion mixture. Add ½ cup/125ml coconut milk before pureeing the mix.
PUMPKIN AND RED LENTIL SOUP
Add ½ cup thoroughly washed red lentils when adding the chicken stock to the saucepan. You may need to add a little more water to thin if mixture becomes to thick.
PUMPKIN SOUP
Serves 2-4
INGREDIENTS
2 tablespoons oil 1 brown onion, peeled and diced 2 cloves garlic, peeled and crushed 400g butternut pumpkin, peeled and diced 4 cups/1 liter chicken stock
METHOD
1. Heat oil in a large saucepan; add onion
and garlic, sauté for 5 minutes.
2. Add the pumpkin to the pan and stir to
coat with the onion mix, and then add the stock, bring the mixture to the boil.
3. Reduce to a simmer for 20 minutes,
cook with the lid on until the pumpkin is cooked.
4. Allow the mix to cool slightly.
5. Place Stick mixer into saucepan and
blend until soup is smooth.
Serve.
Page 20
20
DIPS & SAUCES
GUACAMOLE
Makes approx. 1¼ cups
INGREDIENTS
1 large avocado, peeled, de-stoned and chopped 3 tablespoons lemon juice ½ cup sour cream 1 teaspoon minced garlic 1 teaspoon chilli
METHOD
1. Place all ingredients into the chopper
bowl
2. Assemble Stick Mixer and pulse until
mixture is combined.
Serve with tacos, burritos or with carrot and celery sticks
PESTO DIP
Makes approx. 1½ cups
INGREDIENTS
1 cup fresh basil leaves 1 clove garlic, peeled and chopped 2 tablespoons lemon juice ¼ cup pine nuts ¼ cup olive oil ½ cup cottage cheese ¼ cup grated fresh Parmesan cheese
1. Place basil leaves, garlic, lemon juice
and pine nuts into blender jug and blend using speed 2 until finely chopped.
2. With motor running, remove the inner
measuring cup, slowly pour in oil and blend until smooth.
3. Remove mixture, stir in cheeses, cover
and chill until ready to use.
Serve with toasted Turkish bread
TOMATO AND RED PEPPER DIP
Makes approx. 1¼ cups
INGREDIENTS
2 tablespoons olive oil 4 red capsicums, roasted, seeded and peeled 1 Spanish onion, chopped 3 cloves garlic, crushed 100g sundried tomatoes, drained 2 teaspoons sweet paprika 2 small red chillies
METHOD
4. Place all ingredients into the blending
jug or a large mixing bowl.
5. Place the Stick Mixer into the
ingredients and blend until smooth.
Page 21
21
DIPS & SAUCES
BASIC BECHAMAL SAUCE
Makes approx. 1 ½ cups
INGREDIENTS
3 tablespoons butter 3 tablespoons plain flour 1¼ cups milk Pepper and salt, to taste
METHOD
1. Melt butter in a small saucepan over
medium heat.
2. Stir in flour and cook for a 1 minute.
3. Remove from heat.
4. Gradually add the milk, using the Stick
Mixer to blend the ingredients.
5. Return to the heat and continue
blending mixture until sauce starts to bubble gently and thickens.
6. Season with pepper and salt, if desired.
Variations:
CHEESE SAUCE
1 cup grated Cheddar cheese 1 teaspoon English mustard Herb sauce 3 shallots, thinly sliced 3 tablespoons parsley, chopped 1 tablespoon dill, finely chopped
SPICY TOMATO & BACON PASTA SAUCE
Makes approx. 1½ cups
INGREDIENTS
15 Roma Italian tomatoes, chopped 2 Spanish onions, chopped 3 tablespoons extra virgin olive oil 2 cloves garlic, crushed 6 rashers bacon, finely chopped and lightly fried ¼ cup sweet Thai chilli sauce ¼ cup balsamic vinegar Freshly ground black pepper
METHOD
1. Place all ingredients into the blending
jug a large mixing bowl.
2. Place the Stick Mixer into the
ingredients and blend until smooth.
3. Stir through cooked pasta and serve with
shavings of fresh parmesan.
Page 22
22
DIPS & SAUCES
SMOKED SALMON & DILL PASTA SAUCE
Makes approx. 2 cups
INGREDIENTS
300g smoked salmon 2 tablespoons dill, chopped 1 teaspoon lemon rind, grated 300ml sour cream 1 tablespoon lemon juice 200g light cream cheese 2 teaspoons French mustard
METHOD
1. Place all ingredients into a large mixing
bowl.
2. Place the Stick Mixer into the
ingredients and blend until smooth.
3. Serve with fresh pasta.
BASIC MAYONNAISE
INGREDIENTS
2 x 60g eggs ½ teaspoon salt 1-2 teaspoons mustard (optional) ½ teaspoon sugar Pinch cayenne pepper 3 tablespoons lemon juice 1 ½ cup vegetable oil
METHOD
1. Place all ingredients except oil into the
blending jug or a medium mixing bowl.
2. Place the Stick Mixer into the
ingredients and blend for 10 seconds or until well combined.
3. With Stick Mixer still blending,
gradually drizzle oil into egg mixture; blend until thick and smooth.
Flavour variations for mayonnaise
2 tablespoons freshly prepared pesto Or 2 tablespoons sundried tomatoes, finely diced 1 tablespoon freshly snipped chives Or 1 teaspoon tandoori paste 1 tablespoon mango chutney Or ½ cup corn relish Or 3-4 garlic cloves, roasted, peeled
1. Blend in a selected flavour variation when the mayonnaise is thick and smooth.
Page 23
23
DIPS & SAUCES
SPICY TARTARE SAUCE
Makes approx. 2 cups
INGREDIENTS
300ml egg mayonnaise 2 tablespoons lime juice 2 small red chillies, chopped 1 teaspoon lime rind, grated 3⁄4 cup pickled gerkins, chopped 2 tablespoons chives, chopped 2 tablespoons capers, drained
METHOD
1. Place all ingredients into the blending
jug or a medium mixing bowl.
2. Place the Stick Mixer into the
ingredients and blend until smooth.
3. Serve with seafood, fish or steak.
CITRUS AND CORIANDER DRESSING
Makes approx. 1 ¼ cups
INGREDIENTS
3⁄4 cup orange juice, freshly squeezed 2 tablespoons lime juice 3 tablespoons sweet Thai chilli sauce 2 tablespoons coriander leaves 2 tablespoons rice wine vinegar 2 tablespoons extra virgin olive oil
METHOD
1. Place all ingredients into the blending
jug or a medium mixing bowl.
2. Place the Stick Mixer into the
ingredients and blend until smooth.
3. Serve over salad.
SPICY SATAY SAUCE
INGREDIENTS
2 cups shelled peanuts (500g) 3 tablespoons lemon juice 1 cup chicken stock 250ml coconut cream ¼ cup sweet Thai chilli sauce ¼ cup fruit chutney 1 tablespoon Mussaman curry paste
METHOD
1. Place all ingredients into a medium
mixing bowl.
2. Place the Stick Mixer into the
ingredients and blend until smooth.
3. Serve with barbecued steak, chicken
or lamb.
CUCUMBER AND MINT RAITA
INGREDIENTS
600ml thick Greek style yogurt 2 Lebanese cucumbers, seeded, chopped 1 teaspoon flaked sea salt 1 teaspoon ground cumin ⅓ cup mint leaves
METHOD
1. Place all ingredients into the blending
jug or a medium mixing bowl.
2. Place the Stick Mixer into the
ingredients and blend until smooth.
3. Serve as an accompaniment with curries.
Page 24
24
DRINKS
VANILLA MILKSHAKE
INGREDIENTS
1 cup chilled milk 2 scoops vanilla ice cream ¼ teaspoon vanilla essence
METHOD
1. Place all ingredients into jug.
2. Place the Stick Mixer into the
ingredients and blend until smooth and frothy (about 30 seconds).
3. Flavour variations
Flavour variations
CHOCOLATE
Add 1 tablespoon chocolate syrup Or ½ tablespoon cocoa and ½ tablespoon malt.
STRAWBERRY
Add 5 fresh strawberries and 1 tablespoon strawberry syrup.
STRAWBERRY SMOOTHIE
5 fresh strawberries, washed, hulled 50g natural yoghurt 1 scoop vanilla ice cream 1 cup chilled milk 1 tablespoon honey
1. Place all ingredients into the
blending jug.
2. Place the Stick Mixer into the
ingredients and blend until thick and smooth (about 30 seconds)
Strawberries can be substituted with seasonal fruit of your choice; mangoes, blueberries, raspberries or bananas
GET UP AND GO BREAKFAST SHAKE
½ cup chilled milk ½ cup chilled fruit juice 1 x 60g egg 1 tablespoon honey
1. Place all ingredients into the
blending jug.
2. Place the Stick Mixer into the
ingredients and blend until smooth and creamy (about 30 seconds)
Page 25
25
EASY CAKES & DESSERTS
CREPE BATTER
Makes approx. 8-10 crepes
INGREDIENTS
1½ cups plain flour Pinch salt 2 x 60g eggs 1½ cups milk 1 tablespoon oil
METHOD
1. Place all ingredients into a medium
mixing bowl.
2. Place the Stick Mixer into the
ingredients and blend until just combined (about 40 seconds).
3. Pour ¼ cup of mixture into a preheated
and lightly greased fry pan. Cook until light golden brown, turn and cook other side. Remove, keep warm. Repeat with remaining mixture.
4. Serve hot drizzled with lemon juice and
sprinkled with castor sugar.
PANCAKES
Makes approx. 8-10 pancakes
INGREDIENTS
1 cup/150g plain flour ¼ teaspoon salt 1 x 60g egg 1¼ cups/312ml milk 2 tablespoons butter, softened
METHOD
1. Combine the flour, salt, egg and milk
in the blender jug, mix on speed 4 with the lid firmly held in position, to form a smooth batter.
2. Heat a small greased frying pan over a
moderate heat; pour a small quantity of batter into frying pan to cover base of pan.
3. Cook until bubbles come to the surface
and break.
4. Carefully turn the pancake over and
cook until golden brown. Remove from pan.
Repeat with remaining batter mixture.
Serve with maple syrup and ice cream.
Page 26
26
BABY FOOD
VEGETABLE BLEND
INGREDIENTS
1 cup steamed vegetables; carrots, pumpkin, potato, cauliflower
METHOD
1. Place vegetables into the blending jug.
2. Place the Stick Mixer into vegetables
and blend until smooth (about 30 seconds)
Liquids (for example milk, formula or water) may be added to thin the mixture down depending on the age of the child.
TIP: Freeze single serve baby food portions in ice cube trays.
Page 27
27
NOTES
Page 28
www.breville.com.au
Breville is a registered trademark of Breville Pty. Ltd. A.B.N. 98 000 092 928.
Copyright Breville Pty. Ltd. 2010.
Due to continued product improvement, the products illustrated/photographed
in this brochure may vary slightly from the actual product.
BSB310 Issue - A10
Australian Customers Mail: PO Box 22
Botany, NSW, 2019 AUSTRALIA
Phone: 1300 139 798 Fax: (02) 9384 9601 Email:
Customer Service:
New Zealand Customers Mail: Private Bag 94411
Greenmount, Auckland NEW ZEALAND
Phone:
0800 273 845
Fax: 0800 288 513 Email:
Customer Service:
Breville Customer Service Centre
Loading...
