EVER Cart

User Guide

Models

T30C-P-AC-US

T45C-P-AC-US
T30C-P-DC-US
T45C-P-DC-US

®

EVER Cart - User Guide 1 of 23

How To Use This Guide

This User Guide is a resource to provide you guidelines and best practices as you begin using your new
Bretford product. It is divided into the following Sections:

About Your Product - General information about your new Bretford product. It includes details such as

product specifications and what will arrive inside the box.
Product Setup - Information regarding the installation of your product including tools and setup

instructions required to begin using new product as quickly as possible.
Using Your Product - A collection of articles, photos and videos showing how to use your Bretford

product.
Important Information - Information regarding safe use, special certifications and regulatory details for

your Bretford product.
Additional Resources - Information regarding how to contact and receive support for your Bretford

product.

If you have questions regarding a topic not covered in this User Guide, please contact our Customer Care

team.

EVER Cart - User Guide 2 of 23

Product Overview

About your new EVER Cart with MiX Module System

EVER Cart™ has the unique ability to be updated rather than replaced like traditional charging carts and a
single EVER Cart can support USB and AC powered devices instead of having multiple carts to charge tablets
and laptops separately.

Front

1. Double-Hinge Doors - Unique 270 hinges allow the front doors to fold back against the cabinet, and

out of the way.

2. Directional Locking Casters - Maximum control, while ensuring easy mobility through your facility with

directional locking casters.

3. Power Cord - Power all your devices from one 15 A circuit. When not in use, power cord wraps around

cord minder for easy transport.

4. Power Switch - Power switch, located in the Power Cord Shroud.

5. Door Lock Shroud - Inset design protects the padlock and handle during transport.

6. Durable Top - The durable top provides a soft, skid-resistant platform for objects weighing a combined

25 lbs. or less.

7. Cord-Pass Thru - Allows devices to be powered on top of the cart, while their power cords are plugged

inside the cart.

EVER Cart - User Guide 3 of 23

Rear

1. Rear Security Panel - Securely held in place with security bolts. Panel easily lifts off to expose the back

of the cart, where the adapters and cord sets are kept in cable bins.

EVER Cart - User Guide 4 of 23

MiX Module

Unlike any other carts, carts with the MiX Module System offer longevity. As devices become obsolete, there’s
no need to replace the cart. Simply swap out a MiX Module to support the latest devices.

1. Slot Numbering Bar - The slot numbering bar allows for device organization and management.

2. Adjustable Slots - Adjust from 1 to 1.25 to 1.5 inches, increasing and decreasing shelf capacity from

15 devices to 10 devices.

3. Hanging Dividers - Hanging shelves allow for easy reconfiguration, and support learning devices from

the top.

EVER Cart - User Guide 5 of 23

Technical Specifications

Size and Weight

Model T30 T45

Dimensions 33.5 x 26.0 x 44.5 in

85.1 x 66.0 x 113.03 cm

33.5 x 26.0 x 44.5 in

85.1 x 66.0 x 113.03 cm

Weight 176 lb

79.8 kg

190 lb

86.2 kg

Electrical and Operating Requirements

100 -125V ac, 12A, 50/60Hz
220-240V ac, 8A, 50/60Hz
Optional USB output; 5V dc, 2.4A

EVER Cart - User Guide 6 of 23

What's in the Box

T30C-P-AC-US

1 EVER Cart
2 AC MiX Modules
1 Warranty hang-tag
1 Combination padlock

T45C-P-AC-US

1 EVER Cart
3 AC MiX Modules
1 Warranty hang-tag
1 Combination padlock

T30C-P-DC-US

1 EVER Cart
2 USB MiX Modules
1 Warranty hang-tag
1 Combination padlock

T45C-P-DC-US

1 EVER Cart
3 USB MiX Modules
1 Warranty hang-tag
1 Combination padlock

EVER Cart - User Guide 7 of 23

Before You Begin

Important Safety Notice

CAUTION: Do not block the ventilation holes on the unit. Proper air flow is required for safe operation of

equipment.

Additional safety information can be found in the Safety section of this User Guide.

Product Registration

Please take a few minutes to register your product with Bretford. With registration, you will be able to:

Order replacement screws
Receive product updates and support

EVER Cart - User Guide 8 of 23

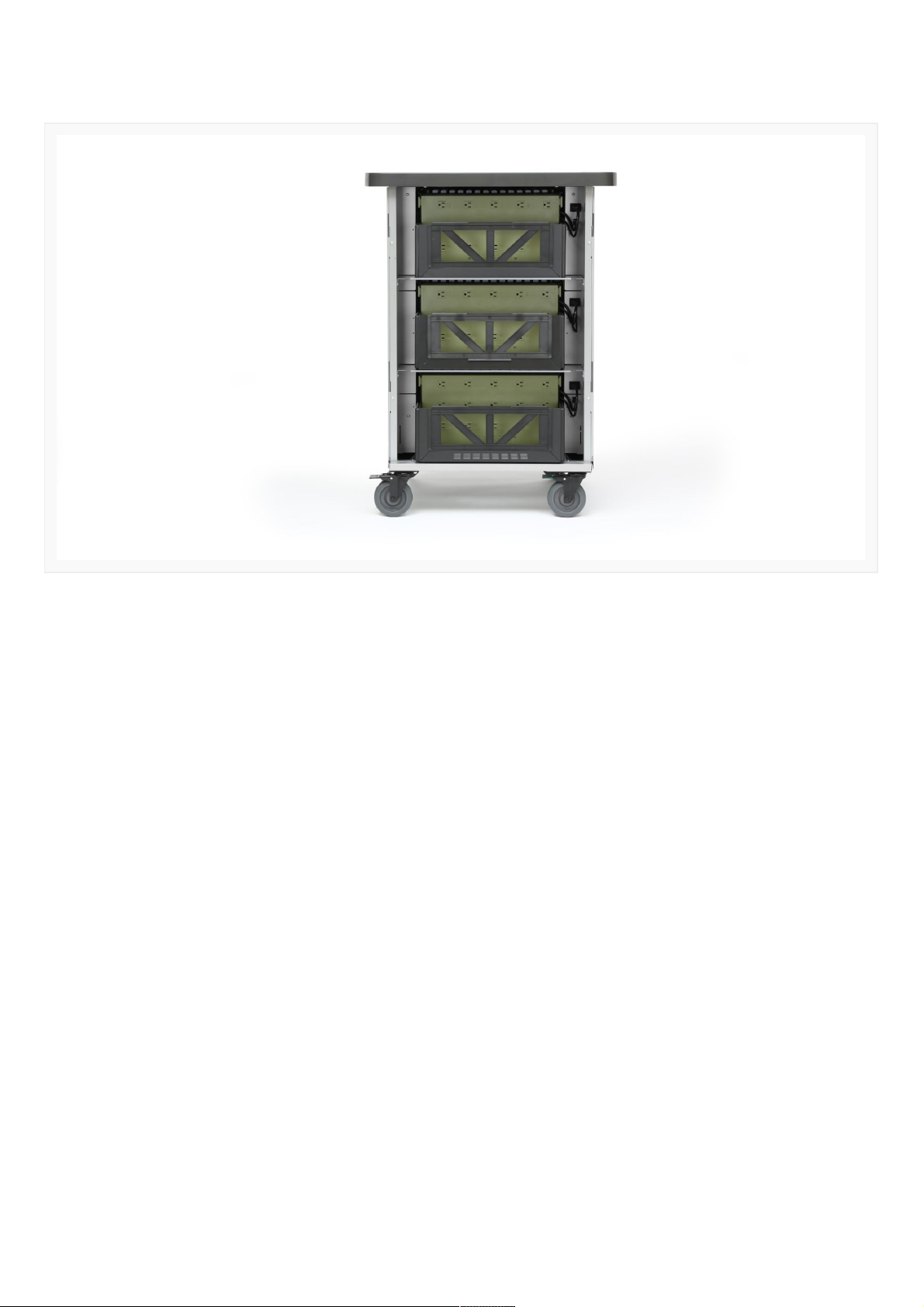

Removing the MiX Module

Step-By-Step

1. Remove devices from the front of the cart and place them in a safe location, away from harm.

2. From the front of the cart, reach in under the MiX Module dividers and slide the left and right locking

tabs away from the cart’s interior side wall to release the MiX Module from the shelf.

3. From the rear of the cart, unscrew the two security screws holding the back panel to the chassis.

4. Lift the back panel off of the chassis to expose the rear of the MiX modules.

5. Unplug the power cord and CAT6 cable from the cart. The MiX module is now ready to be lifted out of
the cart.

6. Using the built-in handles, lift the MiX module out of the cart and set it on a work surface.

EVER Cart - User Guide 9 of 23

Reinserting the MiX Module

Step-By-Step

1. From the rear of the cart, using the built-in handles, carefully set the MiX module into the cart.

2. Plug-in the power cord and CAT6 cable back into the MiX module.

3. Gently slide the MiX module along the shelf until it slips into position.

4. From the front of the cart, reach in under the MiX Module dividers and slide the left and right locking

tabs toward the cart’s side wall to lock the MiX Module to the shelf.

5. Confirm the shelf is locked by trying to gently slide the module along the shelf. If the module moves,
unlock the tabs, reposition the module and try again.

6. Repeat for any additional MiX modules.

7. When ready, lift the back panel onto the chassis at the rear of the cart.

8. Screw the two security screws to secure the back panel to the chassis.

EVER Cart - User Guide 10 of 23

Adjusting Slot Width

Step-By-Step

1. Remove the MiX module from the cart.

2. Set the MiX module on a comfortable work surface.

3. Release each of the dividers by pinching the white tabs on top of the Mix Module.

4. Set each divider in a safe place and out of your way.

5. From the front of the MiX Module, locate the locking buttons, little square buttons on either side of the
MiX Module. When depressed in, the top of the MiX Module will be able to slide forward along its rails.

6. Slide forward and lift the top of the module up (as pictured below).

7. Using the white knobs to guide you, reinsert the dividers into the row of holes matching your desired slot
width.

8. When complete, lower the module top back down and slide it back along the rail until it locks back into
place.

EVER Cart - User Guide 11 of 23

Important

NOTE: When reinserting the dividers for either 1.25” or 1.50” wide slots, the dividers get turned 180

degrees so that they will fit into the pattern.
This process is identical for both 1.25” and 1.50” slot widths.

EVER Cart - User Guide 12 of 23

Adjusting Slot Height

Step-By-Step

1. Remove the MiX module from the cart.

2. Set the MiX module on a comfortable work surface.

3. Release two dividers from each side of the MiX module by pinching the white tabs on top of the Mix
module.

4. Set each divider in a safe place and out of your way.

5. From the front of the MiX Module, locate the locking buttons, little square buttons on either side of the
MiX Module. When depressed in, the top of the MiX Module will be able to slide forward along its rails.

6. Slide forward and lift the top of the module up (as pictured below).

7. Locate and remove the hollow circular caps on either side of the module.

8. Slide the top assembly up (or down) until the desired adjustment hole lines up with the cap hole.

9. Reinsert the circular caps into the proper cap holes to lock the adjustment in place.

10. When complete, lower the module top back down and slide it back along the rail until it locks back into
place.

11. Finally, remove the Safety Tabs that are in front of the rail locks. Relocate them in front of the rail locks
for the new height setting. These tabs assure that the top assembly stays in place on the rail.

EVER Cart - User Guide 13 of 23

EVER Cart - User Guide 14 of 23

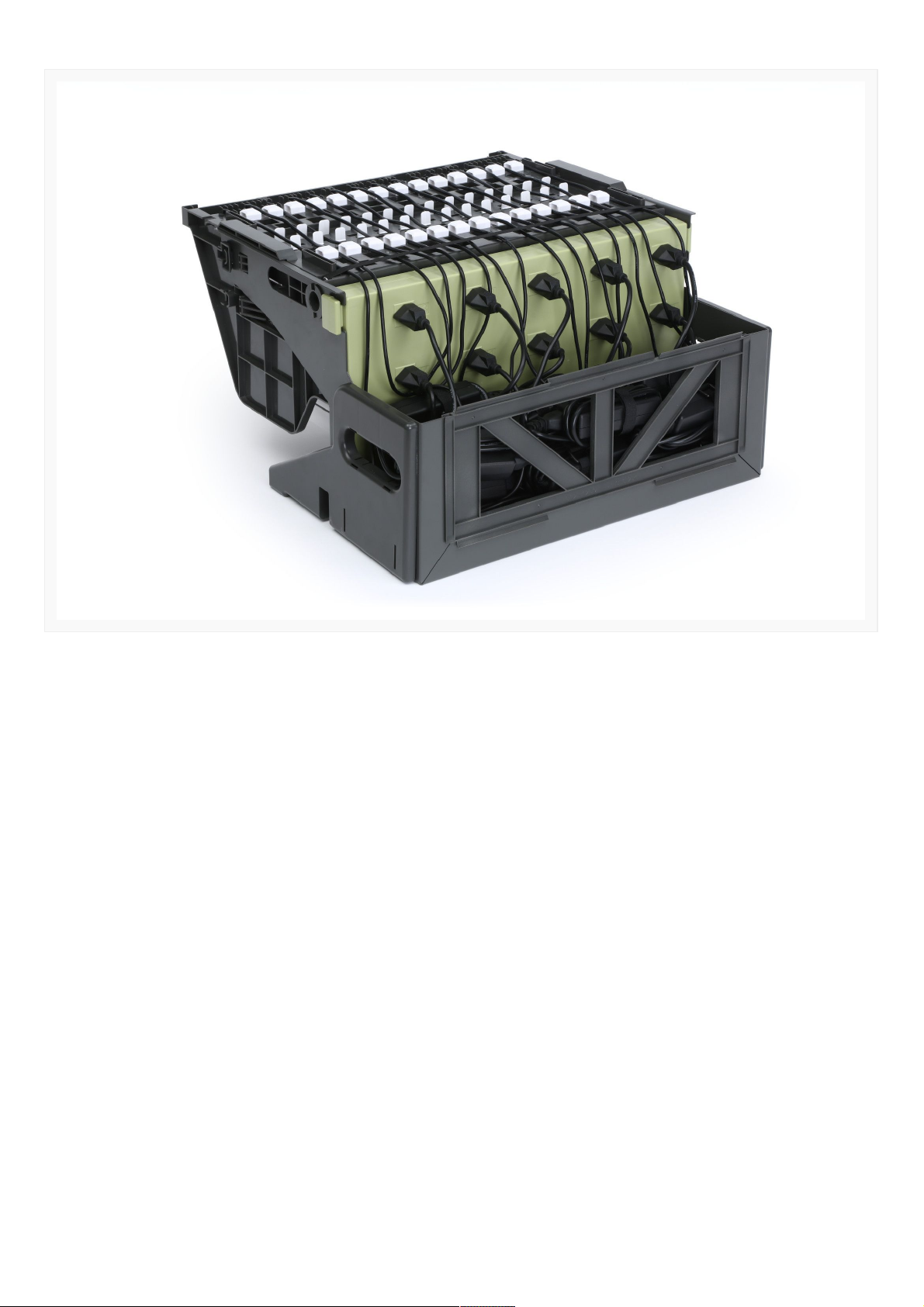

Wiring the MiX Module

Step-By-Step

1. Remove the MiX module from the cart.

2. Set the MiX module on a comfortable work surface.

3. Route the AC power cable between the divider release clips (as pictured above) and under the elastic
bands at the front and rear of the module so it lays loosely across the top of the MiX module.

4. Feed the computer plug from the AC adapter cable behind the slot number plate.

5. Plug the adapter into the rear of the MiX module.

6. Wrap up the remaining cable and tuck the AC adapter into the bin at the back of the MiX module.

7. Repeat this process for each of your AC adapters until you've finished cabling the MiX module.

8. Reinsert the MiX module inside the EVER Cart.

EVER Cart - User Guide 15 of 23

EVER Cart - User Guide 16 of 23

Programming Your Padlock

Step-By-Step

1. Open the padlock using the default combination “0000”

2. Insert the included programming key and turn 90 degrees

3. Set your desired combination

4. Remove the programming key

EVER Cart - User Guide 17 of 23

Product Warranty

Bretford Manufacturing, Inc. ("Bretford") designs and manufactures its products to provide dependable
operation. Therefore, Bretford warrants that all products it manufactures are at date of shipment — free from
defects in material or workmanship. Any product which under normal use fails to function within the time
periods specified below, and found defective in material or workmanship by Bretford's inspection, will, at
Bretford's option be either repaired or replaced with the same or functionally equivalent product, without
charge to you, the end customer.

This warranty is inapplicable where, in the judgement of Bretford, the defect is attributable to abnormal wear,
misapplication, abuse, accident, misuse, modification or damage after shipment from Bretford's facility,
including damage caused by your failure to properly maintain the item.

TO THE EXTENT PERMITTED BY APPLICABLE LAW: (A) BRETFORD IS NOT LIABLE FOR ANY DIRECT,
INDIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OR SERVICE OF
THE PRODUCT; (B) THE WARRANTY AND REMEDIES DESCRIBED ABOVE ARE EXCLUSIVE AND IN LIEU
OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED. TO THE EXTENT PERMITTED BY LAW, BRETFORD
DISCLAIMS ALL IMPLIED AND STATUTORY WARRANTIES, INCLUDING THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. IF IMPLIED WARRANTIES CANNOT BE
DISCLAIMED UNDER APPLICABLE LAW, THEN SUCH WARRANTIES ARE LIMITED IN DURATION TO THE
APPLICABLE DURATION OF THIS WARRANTY. NOTE THAT YOU MAY HAVE OTHER RIGHTS PROVIDED
BY LAW.

Warranty Download

You can download a PDF of the product warranty here.

Freight and Delivery Damage

Damaged, lost or shorted shipments are the responsibility of the motor carrier. Please inspect all
shipments promptly and report damage to the delivery carrier immediately. Carriers require such reports
within 15 days of delivery. Losses due to the failure to timely report damage or loss is your responsibility.
Product leaving an Apple Inc. warehouse en route to the end customer is not the responsibility of
Bretford. Apple shall assume full responsibility for filing all such claims.

Making Warranty Claims

Warranty claims should be processed by the end customer contacting the Bretford Customer Support

Team. Prior to contacting Bretford, please have ready the model number, serial number, and date of

manufacture of the unit you are making the claim on.
Model number, serial number, and date of manufacture can all be found on the Bretford label inside the
product.

Bretford's Customer Support Team can be contacted by one of the following ways:

Hours of Operation: M-F, 8:00 AM - 4:30 PM CST

Telephone: [phone]

Email: [e-mail]

EVER Cart - User Guide 18 of 23

Safety

Safe Use Instructions

WARNING: Relocating audio and/or video devices to a cart not specifically designed to support audio and/or

video devices may result in death or serious injury.

WARNING: Death or serious injury may occur when the cart is climbed on.

WARNING: This cart is not intended to hold items on the top surface. Do not place items weighing more than a

combined 8 pounds on the top of cart to avoid damage.

The socket outlet shall be installed near the cart and shall be easily assessable.
Make sure all devices do not exceed the maximum load rating of 12Amps.
Power strips inside cart are intended only for charging compatible devices. Any other use may cause
overload.
Do not move cart by pulling the power cord. Before moving cart from one room to the next, wrap power
cord around the cord winder located on the side of the cart.
Do not plug the cart in if the switch, receptacle(s), or power cord has been damaged. Contact Bretford
Customer Care or a qualified electrician before attempting to make any type of electrical repair or parts
replacement.
Engage locking casters when cart is not in transit.
Do not block ventilation holes on cart. Proper air flow is required for safe operation.
Cart is not designed to be operated by a child or student.
Adult operation and supervision is recommended at all times.
Liquids should not be stored in, set on or placed inside the cart.
Only clean the surfaces of cart with soft dry cloth.
Do not use liquid, spray or abrasive cleansers.
Use only disinfecting wipes containing no bleach.
For indoor use only.
Up to 36 devices may be charged at one time.
Turn power switch off before plugging-in devices and unplugging cart.
Do not pull the cart. Always push cart using the handles.
Use extra caution on ramps and thresholds.
Do not plug in the power cord into an extension cord.
Ensure casters are in the locked position before opening cart doors.
Do now allow children under 16 to move the cart.
Move the cart slowly.
Apply moving force on the narrow dimensions.
Push cart using the handles.
Do not pull cart.
Engage the directional lock casters when moving the cart for added stability and safety.

EVER Cart - User Guide 19 of 23

Certifications

Certification T30 T45

UL Listed ✓ ✓

EVER Cart - User Guide 20 of 23

Regulatory

UL Listing

EVER Carts have been LISTED to UL 60950-1 Safety of Information Technology Equipment. For a copy of our
Certificate of Compliance, please contact Bretford Customer Care.

FCC Compliance

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)
this device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.

THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY
UNAUTHORIZED MODIFICATIONS OR CHANGE TO THIS EQUIPMENT. ANY CHANGES OR
MODIFICATIONS MADE TO THIS DEVICE THAT ARE NOT EXPRESSLY APPROVED BY THE
MANUFACTURER MAY VOID THE USER'S AUTHORITY TO OPERATE THE EQUIPMENT.

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to
part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a commercial or business environment. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:

Reorient or relocate the receiving antenna
Increase the separation between the equipment and receiver
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help

EVER Cart - User Guide 21 of 23

Technical Support

Contact Support

Support for EVER Cart is available online via this website (registration required) or by calling Bretford
Customer Care at [phone].

Hours of Operation: M-F, 8:00 AM - 4:30 PM CST (-0600 GMT)

Telephone: [phone]

Email: [e-mail]

Bretford, EVER Cart, MiX Module, and the B design are trademarks or registered marks of Bretford
Manufacturing, Inc. Patents pending. All rights reserved. ©2018 Bretford Manufacturing, Inc. All rights
reserved. All other referenced product names and logos are trademarks of their respective owners.

EVER Cart - User Guide 22 of 23

11000 Seymour Avenue
Franklin Park, Illinois 60131 USA

Toll Free Phone: [phone]

Phone: [phone]

Toll Free Fax: [phone]

Fax: [phone]

EVER Cart - User Guide 23 of 23
