Bretford LAP30EULBA User Manual

LAP30EULBA LAP30EULFR
NOTEBOOK CART ASSEMBLY
WITH TIMER
Assembly Instructions for:
INTERIOR E-UNIT
REPOSITIONING / REPLACEMENT
AND
Parts List
Qty. Part No. Description 1 LAP30EULBA Cart Assembly, e-units at back
LAP30EULFR Cart Assembly, e-units at front
LAP30EULBA
CAUTION: RISK OF ELECTRICAL SHOCK.
DO NOT PLUG INTO ANOTHER RELOCATABLE POWER TAP.
NO TV/MONITOR TO BE USED ON TOP OF CART
T ools Required
Philips screwdriver
The socket-outlet to be installed near the equipment and to be easliy accessible. Do not load each electrical unit with more than 12 A and do not load any
recepticle with more than 12 A.
MAXIMUM WEIGHT OF ACCESSORIES ON TOP OF CART: 25 LBS.
NOTE: UNPLUG CART (TIMER) POWER CORD FROM POWER SOURCE BEFORE STARTING
E-UNIT REPOSITIONING: 'FRONT TO REAR'
LAP30EULFR
SEE DET AIL 'B'
bottom shelf
SEE DET AIL 'A'
Step 1

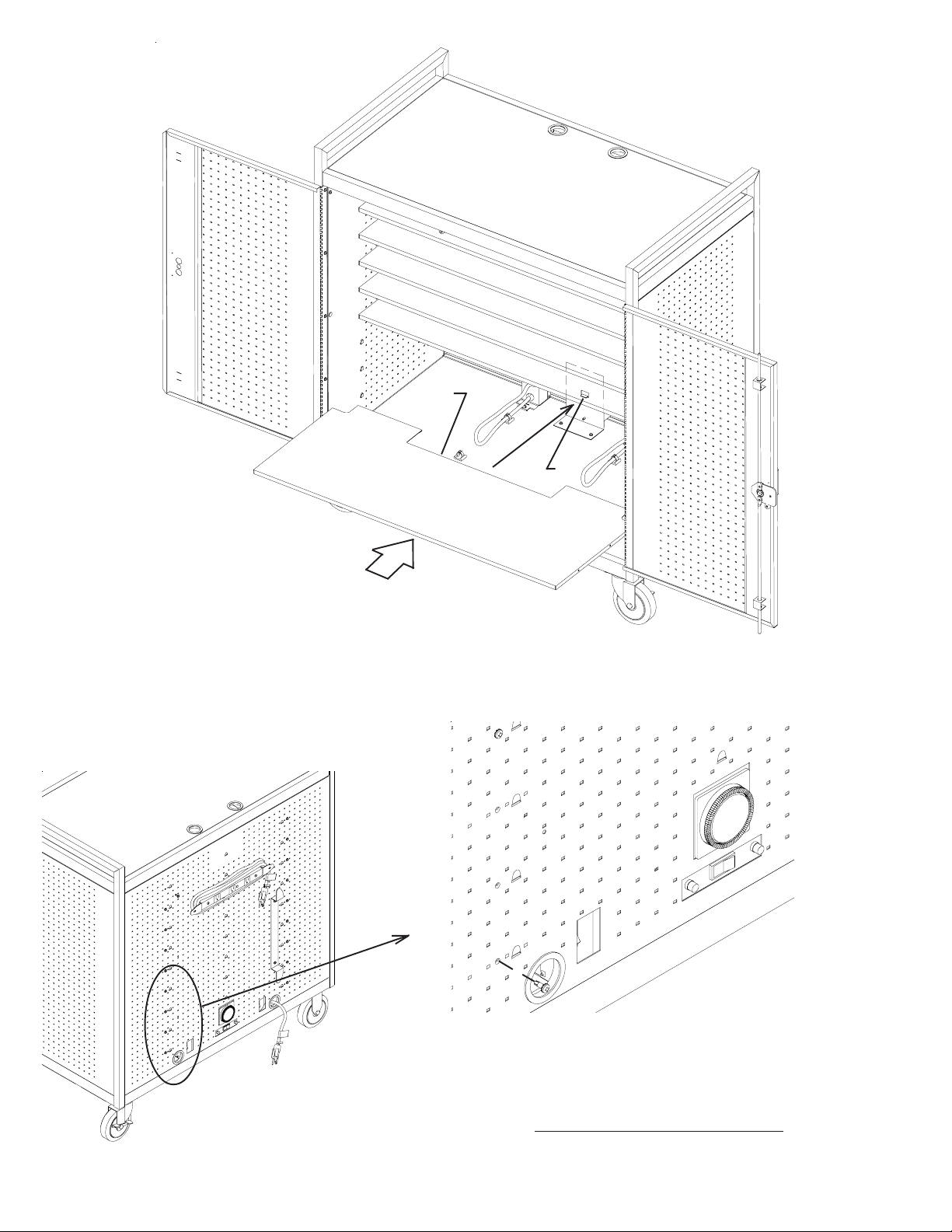

Open both front doors of cart to access E-Units. From underneath the bottom shelf, carefully unplug the power cords of the E-Units from the timer assembly (see Front View) and unclip the power cords from the 4 clips located at the bottom panel of the cart. Loosen the screw holding the E-Unit bracket assembly and remove all 4 bracket assemblies (see DET AILS 'A' and 'B').
bottom shelf
timer assembly
Front View
E-Unit power cord
clip
DET AIL 'A'
bracket assembly
bracket assembly
DET AIL 'B'
front-left
front-right
Step 2
Remove front-left E-Unit by griping the top and tilt it side ways until it clears the underside of the cart interior shelf channel and set it aside. Remove front-right E-Unit by griping the top and tilt it side ways until it clears the underside of the cart interior shelf channel and set it aside.
DET AIL 'C'
Step 3
Remove 18 screws (2 per shelf) from rear panel that secure the 9 interior shelves (see DET AIL 'C').
mounting tab
DET AIL 'D'
Step 4
Remove each interior shelf by carefully pushing upward (to release shelf from mounting tabs) shown in Detail 'D', then carefully sliding out. Set each shelf aside.
cutout window
clip-rear
Step 5
Reinstall the E-Units (set aside from being removed from the front) as follows:
1. Rotate the E-Unit 180 degrees (from original position).
2. Cross over to the rear of cart.
3. Tilt in and set bottom in back, in front of rear p anel cutout window .
4. Grip the top and tilt to the upright position, underneath top panel bracket.
When repositioned correctly , the E-Unit power switch should be visible from rear panel cutout window . Reinstall the E-Unit bracket assemblies (make sure that the top flange of the E-unit is aligned with the slot in the bracket assembly) and tighten screws securely . Plug in the E-Units power cords into the bottom outlets of the timer assembly. Press each E-Unit power cord into the single wire clip located at the rear/bottom of the cart only . Fold the power cords into a 'c' pattern loop on the bottom surface (see view in Step 6).
Reinstall the 9 interior shelves as follows:
1. Carefully slide in the shelf with notch, at the bottom position (the notch will rest on the bracket tab). (Make sure that the shelf flanges are ALL seated into the mounting tabs.)
2. Slide in all remaining shelves into position as the bottom shelf.
tab
notch
Step 6
DET AIL 'E'
Step 7
Reinstall 18 screws to rear panel that will secure the 9 interior shelves (see DET AIL 'E). DO NOT OVER TIGHTEN SCREWS.
Installation is now complete and ready for use.
NOTE: UNPLUG CART (TIMER) POWER CORD FROM POWER SOURCE BEFORE STARTING
E-UNIT REPOSITIONING: 'REAR TO FRONT'
DET AIL 'A'
Step 1

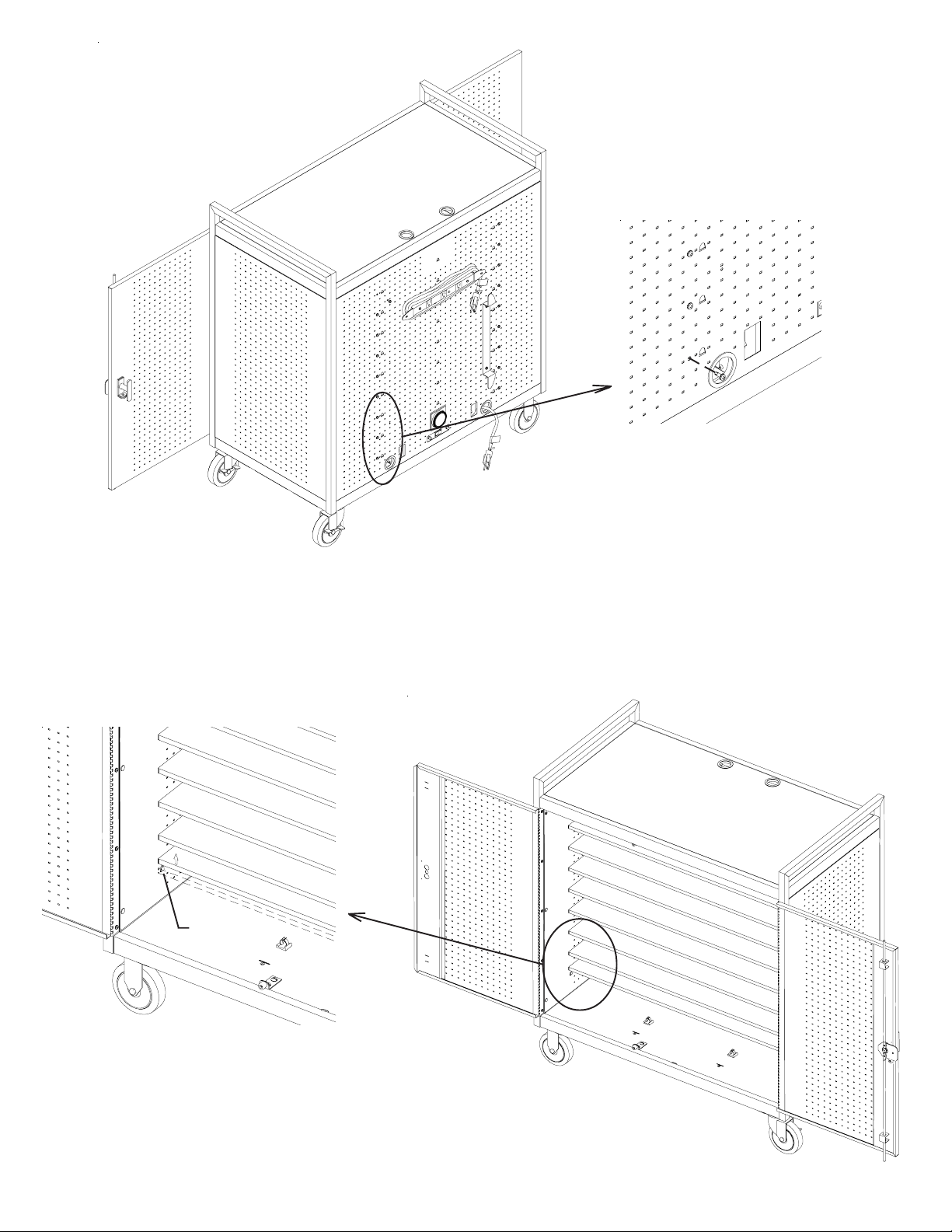

Remove 18 screws (2 per shelf) from rear panel that secure the 9 interior shelves (see DET AIL 'A').
mounting tab
DET AIL 'B'
Step 2
With both doors open, remove each interior shelf by carefully pushing upward (to release shelf from mounting tabs) shown in Detail 'B', then carefully sliding out. Set each shelf aside.
E-Unit power
timer assembly
cord
Front View

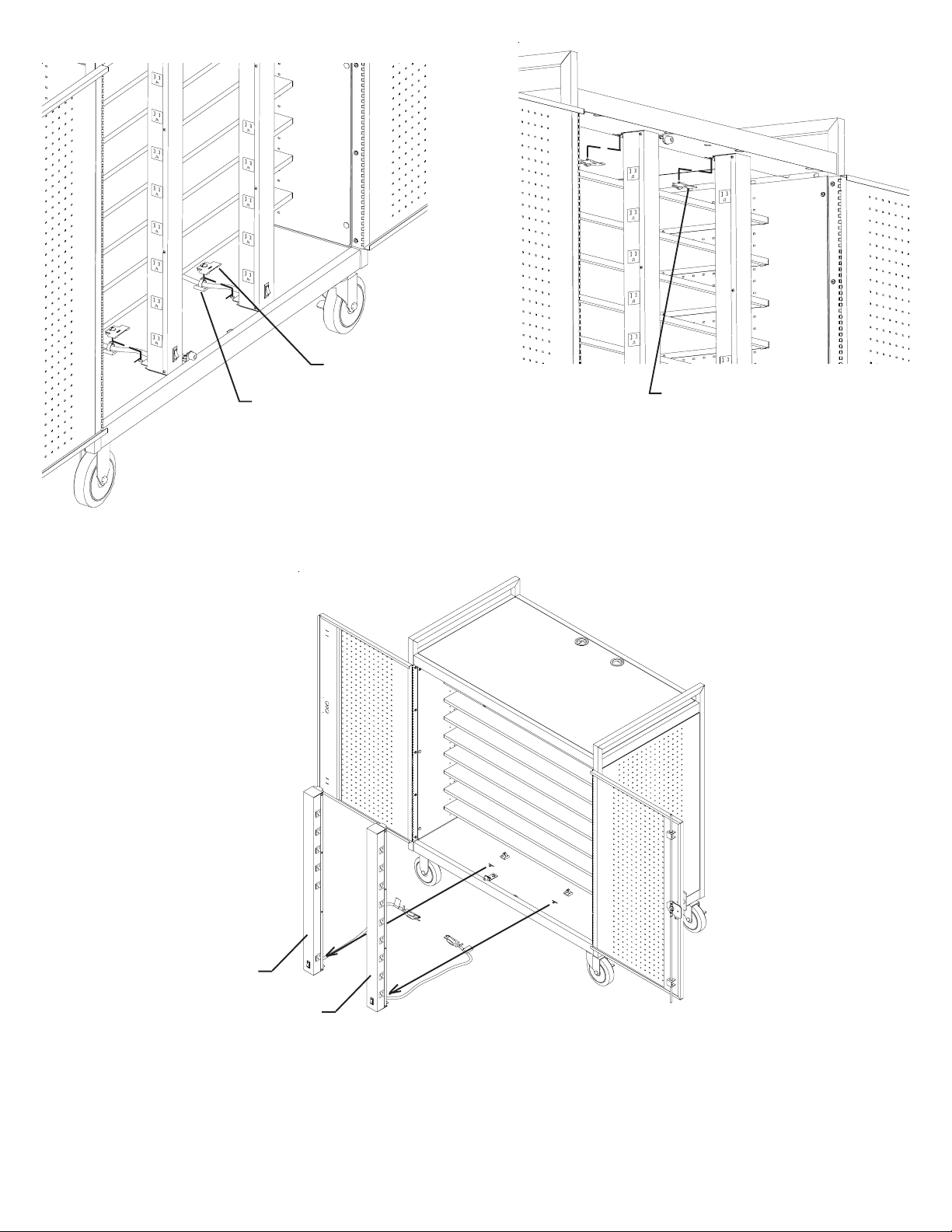

Carefully unplug the power cords of the E-Units from the timer assembly (see Front View) and unclip the power cords from the clips at the rear of cart. Loosen the screw holding the E-Unit bracket assembly and remove all 4 bracket assemblies (see DET AILS 'C' and 'D').
DET AIL 'C' DET AIL 'D'
rear-left
rear-right
Step 3
Remove rear-left E-Unit by griping the top and tilt it side ways until it clears the underside of the cart interior shelf bracket and set it aside. Remove rear-right E-Unit by griping the top and tilt it side ways until it clears the underside of the cart interior shelf bracket and set it aside.
Reinstall the 9 interior shelves as follows:
1. Carefully slide in the shelf with notch at the bottom position (the notch will rest on the bracket tab). (Make sure that the shelf flanges are ALL seated into the mounting tabs.)
2. Slide in all remaining shelves into position as the bottom shelf.
notch
tab
Step 4
DET AIL 'F'
Step 5
Reinstall 18 screws to rear panel that will secure the 9 interior shelves (see DETAIL 'F'). DO NOT OVER TIGHTEN SCREWS.
offset
Step 6
Reinstall the E-Units (set aside from being removed from the rear) as follows:
clip
1. Rotate the E-Unit 180 degrees (from original position).
2. Cross over to the front of cart.
3. Tilt in and set against offset of bottom panel (of cart).
4. Grip the top and tilt to the upright position.
When repositioned correctly , the E-Unit power switch should face the front. Reinstall the E-Unit bracket assemblies (make sure that the top flange of the E-unit is aligned with the slot in the bracket assembly) and tighten screws securely . Plug in the E-Units power cords into the bottom outlets of the timer assembly. Press each E-Unit power cord into the two wire clips located (in line, behind E-Unit) on the bottom of cart.
Installation is now complete and ready for use.
NOTE: UNPLUG CART (TIMER) POWER CORD FROM POWER SOURCE BEFORE STARTING
E-UNIT REPLACEMENT: 'REAR LOCATION'
DET AIL 'A'
Step 1
Remove 18 screws (2 per shelf) from rear panel that secure the 9 interior shelves (see DET AIL 'A').
mounting tab
DET AIL 'B'
Step 2
With both doors open, remove each interior shelf by carefully pushing upward (to release shelf from mounting tabs) shown in Detail 'B', then carefully sliding out. Set each shelf aside.
E-Unit power
timer assembly
cord
Front View
Carefully unplug the power cord(s) of the E-Unit(s) from the timer assembly (see Front View) and unclip the power cord(s) from the clip(s) at the rear of cart. Loosen the screw holding the E-Unit bracket assembly and remove each bracket assembly (see DET AILS 'C' and 'D').
DET AIL 'C' DET AIL 'D'
rear-left
rear-right
Step 3
Remove E-Unit(s) by griping the top and tilt it side ways until it clears the underside of the cart interior shelf bracket and set it aside.
rear-left
cutout window
rear-right
clip
Step 4
Carefully install replacement E-Unit(s) into position by placing bottom in first and tilting in sideways to the top. When repositioned correctly , the E-Unit(s) power switch should be visible from rear panel cutout window. Reinstall the E-Unit bracket assemblies (make sure that the top flange of the E-unit is aligned with the slot in the bracket assembly) and tighten screws securely . Plug in the E-Unit(s) power cord(s) into the bottom outlet(s) of the timer assembly . Press E-Unit power cord(s) into the wire clip(s) located at the rear/bottom of the cart. Fold the power cords into a 'c' pattern, on the bottom surface (see view in Step 5).
Reinstall the 9 interior shelves as follows:
1. Carefully slide in the shelf with notch, at the bottom position (the notch will rest on the bracket tab). (Make sure that the shelf flanges are ALL seated into the mounting tabs.)
2. Slide in all remaining shelves into position as the bottom shelf.
tab
notch
Step 5
DET AIL 'E'
Step 6
Reinstall 18 screws to rear panel that will secure the 9 interior shelves (see DET AIL 'E). DO NOT OVER TIGHTEN SCREWS.
Installation is now complete and ready for use.
NOTE: UNPLUG CART (TIMER) POWER CORD FROM POWER SOURCE BEFORE STARTING
E-UNIT REPLACEMENT: 'FRONT LOCATION'
bottom shelf
SEE DET AIL 'B'
SEE DET AIL 'A'
Step 1
Open both front doors of cart to access E-Unit(s). From underneath the bottom shelf, carefully unplug the power cord of the E-Unit(s) from the timer assembly (see Front View) and unclip the power cord(s) from the bottom of cart. Loosen the screw holding the E-Unit bracket assembly and remove (2) bracket assemblies of the E-Unit(s) to be replaced (see DET AILS 'A' and 'B').
bottom shelf
timer assembly
Front View
E-Unit power cord
clip
DET AIL 'A'
bracket assembly
bracket assembly
DET AIL 'B'
front-left
front-right
Step 2

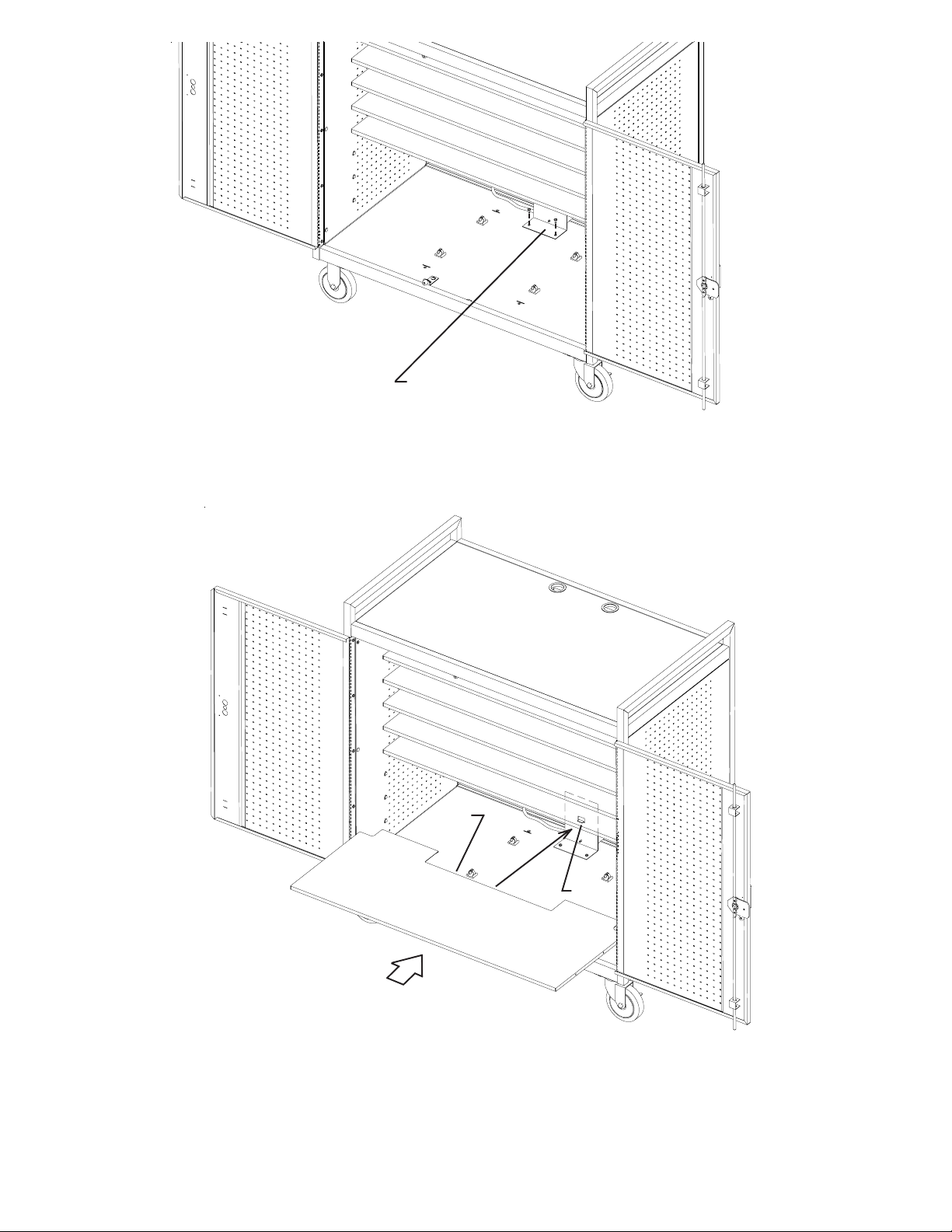

Remove E-Unit(s) by griping the top and tilt it side ways until it clears the underside of the cart interior shelf channel and set it aside.
front-left
front-right
bottom shelf
Step 3
Carefully install replacement E-Unit(s) into position by placing bottom in first and tilting it in sideways to the top. When repositioned correctly , the E-Unit(s) power switch should face the front. Reinstall the E-Unit bracket assemblies (make sure that the top flange of the E-unit is aligned with the slot in the bracket assembly) and tighten screws securely . Plug in the E-Unit power cord(s) into the bottom outlet(s) of the timer assembly (located underneath bottom shelf). Press E-Unit power cord(s) into the two wire clips located [in line, behind E-Unit(s)] on the bottom of cart.
Installation is now complete and ready for use.
NOTE: UNPLUG CART (TIMER) POWER CORD FROM POWER SOURCE BEFORE STARTING
TIMER REPLACEMENT: 'E-UNIT AT REAR LOCATION'
DET AIL 'A'
Step 1

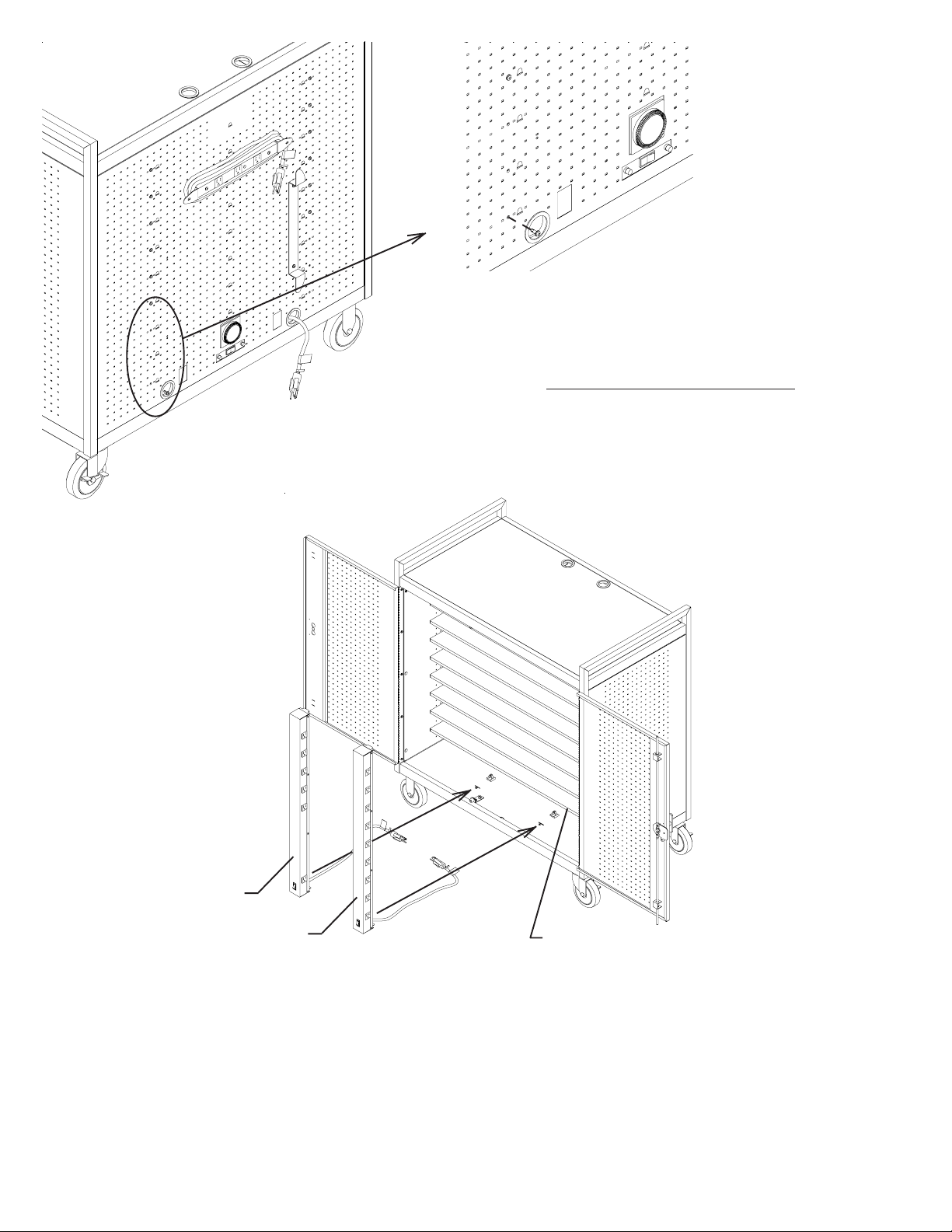

Remove 6 screws (2 per shelf) from rear panel that secure the 3 bottom interior shelves (see DET AIL 'A').
mounting tab
DET AIL 'B'
Step 2
With both doors open, remove the 3 bottom interior shelves by carefully pushing upward (to release shelf from mounting tabs) shown in Detail 'B', then carefully sliding out. Set each shelf aside.
E-Unit power
timer assembly
Front View
Carefully unplug the power cords of the E-Units from the timer assembly (see Front View).
cord
E-Unit bracket assembly
bottom flange­timer/bracket
Step 3
Remove 2 screws from bottom flange (securing bracket to bottom of cart) and remove timer/bracket assembly . The E-Unit bracket assembly shown above, will need to be removed (with a philips screwdriver) to allow the E­Unit to swing back. This will allow the timer cord plug to pass between the E-Unit and rear panel.
Step 4

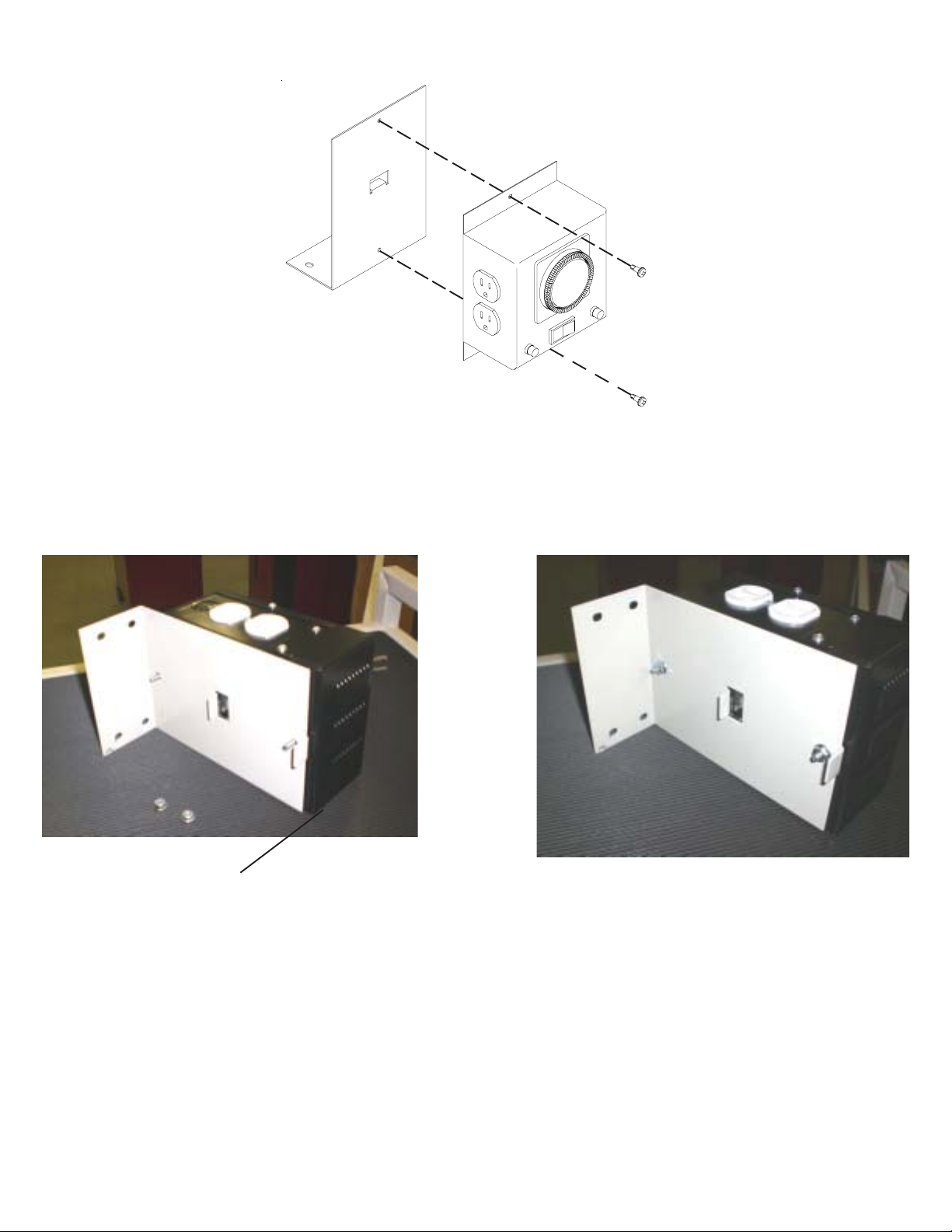

Remove 2 screws that secure timer to bracket.
Timer vents & bracket must be attached as shown.
Install bracket to replacement timer with 2 nuts. Adjust timer dial to current time. If necessary, adjust timer charging times to match the original timer.
Step 5
E-Unit bracket assembly
bottom flange­timer/bracket
Step 6
Install replacement timer/bracket assembly onto bottom, rear of cart with 2 screws. Feed the power cord from the timer out the grommeted hole (with cord wrap bracket located above cutout). Make sure timer face is aligned with rear panel cutouts. Swing the E-Unit back into position and reinstall bracket assembly. Plug in the E-Units power cords into the bottom outlets of the timer assembly.
Reinstall the 3 interior shelves as follows:
1. Carefully slide in the shelf with notch at the bottom position (the notch will rest on the bracket tab). (Make sure that the shelf flanges are ALL seated into the mounting tabs.)
2. Slide in remaining 2 shelves into position as the bottom shelf.
notch
tab
Step 7
DET AIL 'C'
Step 8
Reinstall 6 screws to rear panel that will secure the 3 interior shelves (see DET AIL 'C'). DO NOT OVER TIGHTEN SCREWS.
Installation is now complete and ready for use.
NOTE: UNPLUG CART (TIMER) POWER CORD FROM POWER SOURCE BEFORE STARTING
TIMER REPLACEMENT: 'E-UNIT AT FRONT LOCATION'
bottom shelf
SEE DET AIL 'B'
SEE DET AIL 'A'
Step 1
Open both front doors of cart to access E-Units. From underneath the bottom shelf, carefully unplug the power cords of the E-Units from the timer assembly (see Front View) and unclip the power cords from the 4 clips located at the bottom panel of the cart. Loosen the screw holding the E-Unit bracket assembly and remove all 4 bracket assemblies (see DET AILS 'A' and 'B').
bottom shelf
timer assembly
Front View
E-Unit power cord
clip
DET AIL 'A'
bracket assembly
bracket assembly
DET AIL 'B'
front-left
front-right
Step 2
Remove front-left E-Unit by griping the top and tilt it side ways until it clears the underside of the cart interior shelf channel and set it aside. Remove front-right E-Unit by griping the top and tilt it side ways until it clears the underside of the cart interior shelf channel and set it aside.
DET AIL 'A'
Step 3
Remove 6 screws (2 per shelf) from rear panel that secure the 3 bottom interior shelves (see DET AIL 'A').
mounting tab
DET AIL 'B'
Step 4
With both doors open, remove the 3 bottom interior shelves by carefully pushing upward (to release shelf from mounting tabs) shown in Detail 'B', then carefully sliding out. Set each shelf aside.
bottom flange­timer/bracket
Step 5
Remove 2 screws from bottom flange (securing bracket to bottom of cart) and remove timer/bracket assembly .
Timer vents & bracket must be attached as shown.
Step 6
Remove 2 screws that secure timer to bracket.
Step 7
Install bracket to replacement timer with 2 nuts. Adjust timer dial to current time. If necessary, adjust timer charging times to match the original timer.
bottom flange­timer/bracket
Step 8
Install replacement timer/bracket assembly onto bottom, rear of cart with 2 screws. Feed the power cord from the timer out the grommeted hole (with cord wrap bracket located above cutout). Make sure timer face is aligned with rear panel cutouts.
notch
Reinstall the 3 interior shelves as follows:
1. Carefully slide in the shelf with notch at the bottom position (the notch will rest on the bracket tab). (Make sure that the shelf flanges are ALL seated into the mounting tabs.)
2. Slide in remaining 2 shelves into position as the bottom shelf.
tab
Step 9
DET AIL 'C'
Step 10
Reinstall 6 screws to rear panel that will secure the 3 interior shelves (see DET AIL 'C'). DO NOT OVER TIGHTEN SCREWS.
front-left
front-right
bottom shelf
Step 11
Carefully reinstall E-Units into position by placing bottom in first and tilting it in sideways to the top (underneath the channel bracket of the cart top panel). When repositioned correctly , the E-Units power switch should face the front. Reinstall the E-Unit bracket assemblies (make sure that the top flange of the E-Unit is aligned with the slot in the bracket assembly) and tighten screws securely . Plug in the E-Unit power cords into the bottom outlets of the timer assembly (located underneath bottom shelf). Press E-Unit power cords into the two wire clips located (in line, behind E-Units) on the bottom of cart.
Installation is now complete and ready for use.
LABEL INSTALLATION:
AUX. 1
AUX. 2
AUX. 3
AUX. 4
peel off and attach corresponding labels to shelves and E-Units.
1
suggested installation of labels
AUX. 5 AUX. 6
3
7 11 15 19 23 27
1
4 8 12 16 20 24 28
1
1
5 9 13 17 21 25 29
2
6 10 14 18 22 26 30
1
suggested label direction
E-Unit
1
1
22
E-Unit at front
shelf
E-Unit
1
1
2
2
E-Unit at rear
PAD LOCK - DOOR:
Open Lock The First Time
1) Set the combination to 0-0-0-0
2) Depress shackle and pull open.
To Set You Own Combination
**REMEMBER: Combination can only be set when lock is open.
1) Insert “reset” tool (included in package) in hole on side of lock.
2) Push key in and turn key 90 degrees in either direction. (Key automatically stays in this position). Failure to exert force while pushing key in will result in a failed attempt to set or reset combination.
3) Set wheels to desired combination.
4) Turn and remove reset tool. Lock is now set to new combination. **BE SURE TO RECORD YOUR COMBINA TION.
5) T o lock scramble the wheels and close the shackle.
6) To reopen dial your combination and depress shackle.
Bretford Bretford Ltd.
11000 Seymour Avenue Technology House Franklin Park, IL 60131 2 Etongate, 110 Windsor Road TEL: 847.678.2545 Slough, Berkshire SL1 2JA England
800.521.9614 TEL: 01753 53 99 55
FAX: 847.678.0852 FAX: 01753 53 94 78
800.343.1779
www.bretford.com
Part #031-6567 Rev. 12.22.08 CZ
