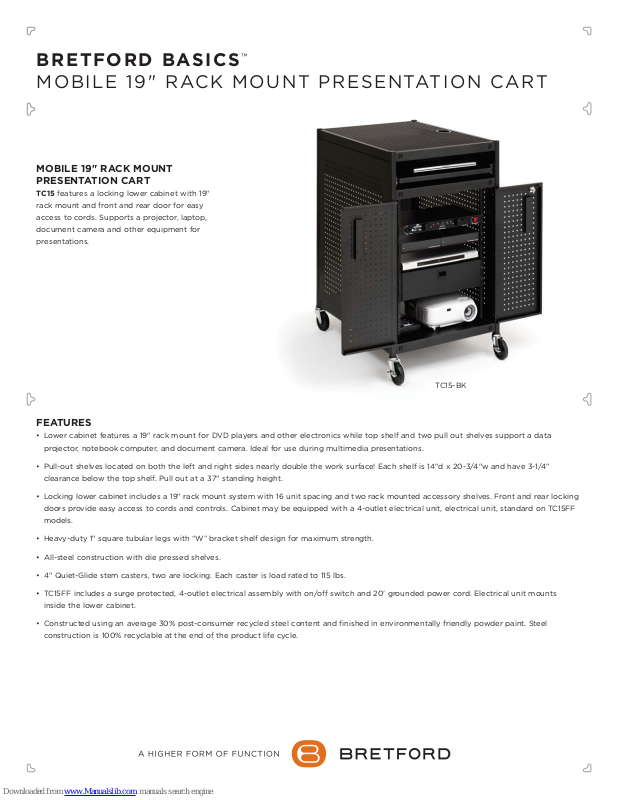

Bretford BASICS TC15-BK, BASICS TC15FF-BK Specifications

BRETFORD BASICS

™

MOBILE 19" RACK MOUNT PRESENTATION CART

MOBILE 19" RACK MOUNT
PRESENTATION CART

TC15 features a locking lower cabinet with 19"

rack mount and front and rear door for easy

access to cords. Supports a projector, laptop,

document camera and other equipment for

presentations.

TC15-BK

FEATURES

• Lower cabinet features a 19" rack mount for DVD players and other electronics while top shelf and two pull out shelves support a data

projector, notebook computer, and document camera. Ideal for use during multimedia presentations.

• Pull-out shelves located on both the left and right sides nearly double the work surface! Each shelf is 14"d x 20-3/4"w and have 3-1/4"

clearance below the top shelf. Pull out at a 37" standing height.

• Locking lower cabinet includes a 19" rack mount system with 16 unit spacing and two rack mounted accessory shelves. Front and rear locking

doors provide easy access to cords and controls. Cabinet may be equipped with a 4-outlet electrical unit, electrical unit, standard on TC15FF

models.

• Heavy-duty 1" square tubular legs with “W” bracket shelf design for maximum strength.

• All-steel construction with die pressed shelves.

• 4" Quiet-Glide stem casters, two are locking. Each caster is load rated to 115 lbs.

• TC15FF includes a surge protected, 4-outlet electrical assembly with on/off switch and 20’ grounded power cord. Electrical unit mounts

inside the lower cabinet.

• Constructed using an average 30% post-consumer recycled steel content and finished in environmentally friendly powder paint. Steel

construction is 100% recyclable at the end of the product life cycle.

DIMENSIONS

TC15 Overall: 32"w x 24"d x 42"h

Storage Cabinet: 30"w x 23"d x 27"h

Storage Cabinet Doors: 21-3/4"w x 25"h

Pull Out Shelves: 14"d x 20-3/4"w

Pull Out Shelves to Floor: 37"h

Pull Out Shelves Clearance to Top Shelf: 3-1/4"h

COLOR & FINISH

Black (-BK) powder paint

WEIGHT, FREIGHT CLASS AND UPC CODE

TC15-BK: 154 lbs., Freight class 70

0 96633 27650 9

TC15FF-BK: 158 lbs., Freight class 70

0 96633 27651 6

Both ship ready to assemble in one (1) carton pack and are available

to ship via LTL Truck.

CARTON DIMENSIONS

TC15 & TC15FF: 40"l x 33"w x 10-1/2"d

ACCESSORIES

CFPS - 4 Outlet Electrical Unit (inc. on FF models) - 0 96633 10076 7

UCSE10 - 10 Outlet Electrical Unit - 0 96633 11038 4

MADE IN THE USA

TC series carts are made at Bretford’s Chicago area manufacturing

facility using union labor.

CART ASSEMBLY SPECIFICATIONS

TC15 19" Rack Mount Technology Carts has one (1) 32"w x 24"d, 18-

gauge steel top shelf with 20-gauge steel stiffener, one (1) 32"w x

24"d middle shelf, and one (1) 32"w x 24"d bottom shelf. All shelves

have open corners so the sides of the shelf do not connect. The leg

assembly fits flush to each shelf and attach with a 13-gauge steel “W”

bracket design that interlocks the legs and shelves for maximum

strength and stability. Leg assemblies are 1" square tubular 18-gauge

steel and run the height of the cart and form the corners of the lower

cabinet. Door assemblies allow access to both sides of the cabinet

and lock using a key lock, four (4) keys included. Cabinet side panels

and doors are perforated 20-gauge steel to ventilate equipment.

Cabinet interior is 23"w x 30"d, cabinet doors are 21-3/4"w x 25"h. A

19" rack mount assembly is installed inside the cabinet with 16 unit

spacing for rack mount equipment. Two (2) 19" rack compatible

accessory shelves are included. Each lower leg has a hard plastic

caster insert mounted in the bottom of the tube. Includes two (2)

14"d x 20-3/4"w, 18-gauge steel pull-out shelves that extend off the

left and right sides. Shelves are set at 37" standing height and there

is 3-1/4" clearance under the top shelf when shelves are pushed in.

Model TC15FF includes a surge protected 4-outlet electrical assembly

with on/off switch and 20' 3-wire cord and two (2) 3⁄16" diameter

machine screws with nuts for attaching unit to the inner cabinet.

Constructed with “prime” steel which has a 25% to 35% post-

consumer recycled content. Stem casters are mar-resistant, hard

black rubber, 4" in diameter. Each caster assembly has ball bearing

swivel capabilities, steel construction and is load rated for 115 lbs

each. Two (2) have locking brakes. Finished in Black (-BK) powder

paint. Ships knocked down (KD) via LTL truck class 70.

Locking front and rear doors provide easy access to

19" rack mounted equipment
