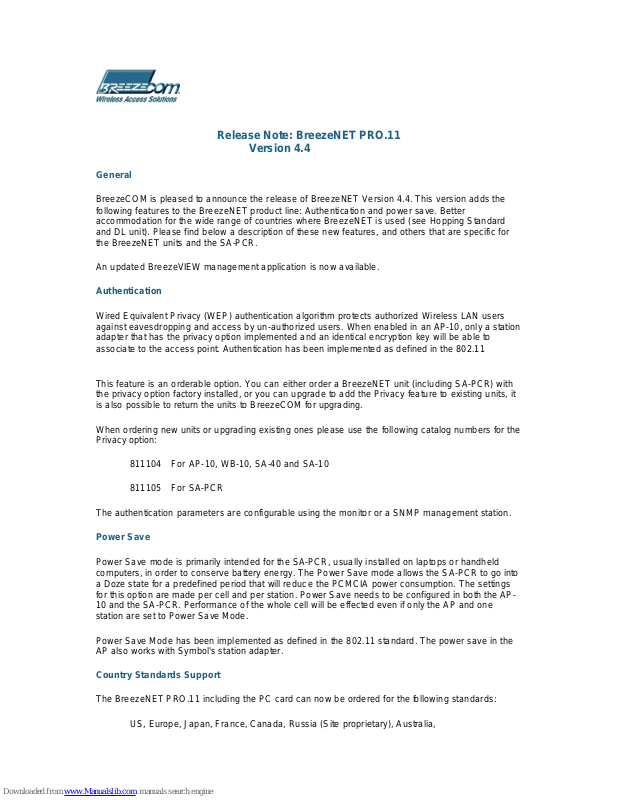

Release Note: BreezeNET PRO.11
Version 4.4
General
BreezeCOM is pleased to announce the release of BreezeNET Version 4.4. This version adds the
following features to the BreezeNET product line: Authentication and power save. Better
accommodation for the wide range of countries where BreezeNET is used (see Hopping Standard
and DL unit). Please find below a description of these new features, and others that are specific for
the BreezeNET units and the SA-PCR.
An updated BreezeVIEW management application is now available.
Authentication
Wired Equivalent Privacy (WEP) authentication algorithm protects authorized Wireless LAN users
against eavesdropping and access by un-authorized users. When enabled in an AP-
10, only a station
adapter that has the privacy option implemented and an identical encryption key will be able to
associate to the access point. Authentication has been implemented as defined in the 802.11
This feature is an orderable option. You can either order a BreezeNET unit (including SA-PCR) with
the privacy option factory installed, or you can upgrade to add the Privacy feature to existing units, it
is also possible to return the units to BreezeCOM for upgrading.
When ordering new u
nits or upgrading existing ones please use the following catalog numbers for the
Privacy option:
811104 For AP-10, WB-10, SA-40 and SA-10
811105 For SA-PCR
The authentication parameters are configurable using the monitor or a SNMP management station.
Power Save
Power Save mode is primarily intended for the SA-PCR, usually installed on laptops or handheld
computers, in order to conserve battery energy. The Power Save mode allows the SA-PCR to go into
a Doze state for a predefined period that will reduce the PCMCIA power consumption. The settings
for this option are made per cell and per station. Power Save needs to be configured in both the AP10 and the SA-PCR. Performance of the whole cell will be effected even if only the AP and one
station are set to Power Save Mode.
Power Save Mode has been implemented as defined in the 802.11 standard. The power save in the
AP also works with Symbol's station adapter.
Country Standards Support
The BreezeNET PRO.11 including the PC card can now be ordered for the following standards:
US, Europe, Japan, France, Canada, Russia (Site proprietary), Australia,
Netherlands, Israel, Spain, Korea
BreezeVIEW PC
An updated version of BreezeVIEW PC is released, which will work on version 4 or 5 of SNMPc. In
this release support has been added for SNMP variables that were added in the BreezeNET PRO.11
product family. This version also supports BreezeNET PRO products.
SNMPc version 5 (workgroup edition) operates on Windows 98/NT only. To purchase SNMPc and for
more information on this platform please refer to www.castlerock.com .
BreezeNET PRO.11 (AP-10 SA-10/40 WB-10) Release 4.4 Details
Firmware = 4.41
MIB = 2.6a
Authentication, Power Save and Country Standard Support
See details above
DL Model
The power level in a DL unit is set to Low Power, and cannot be changed to High Power. The power
level is not reset by Set Factory Default at any level. This model is targeted for ETSI-compliant
installations using high gain antennas.
The catalo g numbers are as follows:
811150P - AP-10DL PRO.11
811151P - SA-10DL PRO.11
811152P - SA-40DL PRO.11
811153P - WB-10DL PRO.11
VLAN Support
There is now support for VLAN (802.1Q). The support for VLAN is transparent support, that is VLAN
traffic will be transferred over BreezeNET equipment without interference but will not actively take
part in this protocol.
MIB
There is now a new version to the BreezeCOM MIB. There are new instances for the setting and
configuration of Power Save mode and Authentication.
To upgrade to version 4.4 , the upgrade package, is obtainable from Technical Support area on the
BreezeCOM web site.
SA-PCR PRO.11 Release 4.4 Details
SA-PCR C/S = H2
