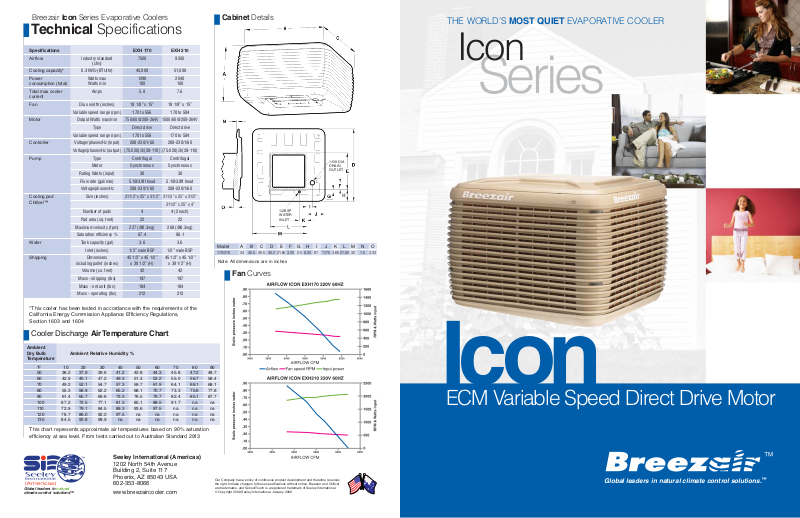

Breeze Air Eh210 Specification Data

Technical Specifications
Breezair Icon Series Evaporative Coolers
Cabinet Details
Cooler Discharge Air Temperature Chart
*This cooler has been tested in accordance with the requirements of the California Energy Commission Appliance Efficiency Regulations, Section 1603 and 1604
This chart represents approximate air temperatures based on 90% saturation efficiency at sea level. From tests carried out to Australian Standard 2913
Ambient Dry Bulb Temperature
Ambient Relative Humidity %
°F 10 20 30 40 50 60 70 80 90 50 36.2 37.9 39.6 41.2 42.8 44.3 45.8 47.2 48.7 60 42.9 45.1 47.2 49.3 51.3 53.2 55.0 56.7 58.4 70 49.2 52.1 54.7 57.3 59.7 61.9 64.1 66.1 68.1 80 55.3 58.9 62.2 65.2 68.1 70.7 73.3 75.6 77.8 90 61.4 65.7 69.6 73.3 76.5 79.7 82.4 85.1 87.7 100 67.2 72.5 77.1 81.3 85.1 88.5 91.7 na na 110 72.9 79.1 84.5 89.3 93.6 97.5 na na na 120 78.7 86.0 92.2 97.5 na na na na na 130 84.5 92.8 99.9 na na na na na na
Seeley International (Americas)
1202 North 54th Avenue Building 2, Suite 117 Phoenix, AZ 85043 USA 602-353-8066
www.breezaircooler.com
Global leaders in natural climate control solutions
1-5/8 DIA DRAIN OUTLET
1/2BSP WATER INLET
Note: All dimensions are in inches
Model A B C D E F G H I J K L M N O
170/210 34 45.5 45.5 45.2 21.65 3.25 2.5 8.25 81 11.75 3.66 21.65 32 1.5 3.33
Fan Curves
Specifications EXH 170 EXH 210
Airflow Industry standard 7500 9500
(cfm)
Cooling capacity* 0.3 IWG-(BTU/hr) 45,000 51,000
Power Watts max 1290 2040 consumption (total) Watts min 100 100
Total max cooler Amps 5.8 7.6 current
Fan Dia x width (inches) 18 1/8” x 15” 18 1/8” x 15”
Variable speed range (rpm) 170 to 556 170 to 584
Motor Output Watts max/min
750/60 @200-264V 1500/60 @200-264V
Type Direct drive Direct drive
Variable speed range (rpm) 170 to 556 170 to 584
Controller Voltage/phases/Hz (input) 208-230/1/60 208-230/1/60
Voltage/phases/Hz (output) (75-220)/3/(28-110) (75-220)/3/(28-110)
Pump Type Centrifugal Centrifugal
Motor Synchronous Synchronous
Rating Watts (input) 30 30
Flow rate (gal/min) 5.1@3.9ft head 5.1@3.9ft head
Voltage/phases/Hz 208-230/1/60 208-230/1/60
Cooling pad Size (inches)
311/2” x 25” x 3 1/2” 311/2” x 25” x 3 1/2”
Chillcel™
311/2” x 25” x 4”
Number of pads 4 4 (2 each)
Pad area (sq. feet) 22 22
Maximum velocity (fpm) 227 (@0.3wg) 268 (@0.3wg)
Saturation efficiency % 87.4 86.1
Water Tank capacity (gal) 3.6 3.6
Inlet (inches) 1/2” male BSP 1/2” male BSP
Shipping Dimensions 45 1/2” x 45 1/2” 45 1/2” x 45 1/2”
including pallet (inches) x 38 1/2” (H) x 38 1/2” (H)
Volume (cu. feet) 42 42
Mass - shipping (lbs) 197 197
Mass - net unit (lbs) 184 184
Mass - operating (lbs) 212 212
Our Company has a policy of continuous product development and therefore reserves the right to make changes to these specifications without notice. Breezair and Chillcel are trademarks, and SensorTouch is a registered trademark of Seeley International. © Copyright 2008 Seeley International. January 2008
Global leaders in natural climate control solutions.
THE WORLD’S MOST QUIET EVAPORATIVE COOLER
Series
Icon
ECM Variable Speed Direct Drive Motor
Icon
How
evaporative cooling works
Evaporative cooling takes place when water and warm air converge. The simple process of evaporation cools the air by several degrees.
The healthy advantage
Evaporative cooling is an economical and remarkably efficient way to cool a large area, such as your home or business.
Doors and windows are kept open – and they actually contribute to the cooling efficiency. The result: 100% fresh air, with no recirculated fumes, germs or odors.
Even better, as the surrounding temperature rises, the cooler it becomes inside – and the benefits don’t stop there!
How do Breezair evaporative coolers operate?
All Breezair coolers contain large Chillcel™ cooling pads. When the cooler is operating, the media is kept consistently wet. The quiet, powerful fan in the Breezair cooler draws hot, ambient air into the water-soaked Chillcel™ pads. The water absorbs much of the heat through the natural evaporation process – resulting in a cool, refreshing breeze.
The combination of a reduced temperature and constant air flow produces a more comfortable environment – at work or at home.
Keep your cool – as you keep your energy bills down.
A Breezair system can use up to 90% less energy than conventional air conditioning. That contributes to a tremendous savings on your monthly summer cooling bills!
The advantages to the environment are obvious with this green, environmentally conscious alternative. The advantages to your budget are obvious right away.
Our cutting-edge technology is very cool.
The intelligent choice for large and small spaces
For more than 30 years, the secret of Breezair’s energy-efficient performance has been state-of-the-art technology, innovative design and superior cooling.
It is a proven fact! For what it costs to operate a single light bulb, you can cool your entire home with a Breezair Icon. The Icon is:
• Energy efficient
• Cleaner and healthier
• Easier and less expensive to install
• Productivity enhancing
• Environmentally friendly
• Simple to maintain
New Icon Series Direct Drive Motor/Fan
• Combined motor and fan
• Ultra quiet centrifugal fan
• Responsive to duct sizing & back pressure
• Designed to deliver optimum air output
Harmony SensorTouch
®
Wall Controller
• Variable speed
• Programmable climate control
• Auto mode, manual mode, timer
• Drain function
Horizon SensorTouch
®
Remote Control
• Variable speed
• Programmable climate control
• Auto mode, manual mode, timer
• Drain function
Control Power Module
• Advanced electronic controls ensure that the Icon operates at optimum efficiency at all times
• Smart, reliable & durable
Water Manager and Auto Drain Function
• Monitors water quality by sensing total dissolved solids in cooler sump
• Automatic water draining when cooler is not in use
• Prevents algae growth
• Drain option setting
Long Life Chillcel
TM
Cooling Pads
• Breezair unique Chillcel™ pads provide maximum cooling
• Honeycomb design with water distribution header block optimizes the cooling effect
• Durable design outlasts competitive products
Non-clogging Water Distribution System
• Unique water flow distributor (patented worldwide by Breezair)
• Fully balanced and continuous water distribution to all Chillcel
TM
cooling pads
• Maintains perfect pad saturation, maximizing cooling efficiency
The Only Cabinet with a 25-year Warranty!
• Injection molded
• High-strength structural polymer
• UV resistant
• Non-rusting
Air passes through watersoaked Chillcel™ cooling pads
Hot outside air is drawn in by a powerful and quiet fan
Water absorbs heat by the natural evaporation process. Cool, fresh air is produced
The Breezair Icon is a new generation of centrifugal fan evaporative coolers. It incorporates electronically commutated (ECM) direct drive motor technology. The result is a more economical, reliable, efficient cooling choice that requires less frequent maintenance.
The Icon series has all of the features of the traditional Breezair coolers – plus many more. The Auto Drain, the Tornado water pump and the long life Chillcel™ pads are features incorporated within the Icon cooler.
Using the revolutionary ECM direct drive variable speed motor technology, the Icon employs an efficient centrifugal fan. These well-designed advantages contribute to make the Breezair Icon the world’s most quiet ducted evaporative cooling system.
Advanced electronic controls manage and monitor the motor. This ensures that the system operates at its optimum efficiency at all times.
The Icon adjusts its motor speed automati­cally to accommodate different ducting systems and back pressures.
The cooler’s quiet operation makes it suitable for all commercial and residential installations where fan or motor noise may be a problem.
Exclusive Breezair ECM Direct Drive Motor
• Super efficient over operating range
• Electronically commutated for optimum efficiency
• Corrosion-resistant construction
• Reduced energy use
• Variable speed
• Unsurpassed reliability
• Quietness beyond belief
Tornado Water Pump
• Impact start
• Fully encapsulated motor windings
• Thermal overload protectors
• Top and bottom ball bearings
• Pumps in 1/2” water
Integrated Diagnostics Module
• Automatically monitors cooler operations and provides self diagnostics
Microprocessor
• Constantly analyzes water quality, water consumption and power output
The Breezair Icon Series is the world’s most quiet evaporative cooler
Cool your
whole home from
as little as running
a light bulb.
Breezair Icon offers these built-in safety features!
• Circuit breaker
• Thermally-protected variable speed motor and pump
• On-board isolation switch
