Breeze Embedded Computing Terminal
User’s Guide
..an embedded design lab
2
Disclaimer
This Manual has been reviewed and validated for accuracy. The descriptions it contains are
accurate for Breeze Embedded Computing Terminal. Breeze Innovation Pvt. Ltd. assumes no
liability for damages incurred directly or indirectly from errors, omissions or discrepancies that
may appear in this manual including the product and the software described in it. It may also
be noted that this Manual is subject to change without notice.
Trademarks
All Trademarks and Brand names appearing in this Manual may or may not be Registered
Trade Marks or Brand names of the respective companies and are used only for identification
and explanation to the benefit of the user.
Doc No: UG04081604
..an embedded design lab
3
Contents
1. INTRODUCTION .................................................................................................................................... 4
2. INSTALLATION ...................................................................................................................................... 5
2.1 Box Contents ..................................................................................................................................... 5
2.2 Do’s and Don’ts ................................................................................................ ................................ 5
2.3 Connecting the Cables to Terminal ................................................................................................... 5
2.4 Switching On the Terminal ............................................................................................................... 6
3. BREEZE ECT CONFIGURATION ....................................................................................................... 7
3.1 Configuring the terminal ................................................................................................................... 7
3.2 Terminal Screen Shortcut keys ......................................................................................................... 8
4. USER CONFIGURATION ................................................................................................................... 11
4.1 Profile Manager .............................................................................................................................. 11
4.2 Menu ............................................................................................................................................... 12
4.3 Profile Manager .............................................................................................................................. 13
4.3.1 Navigating the Settings in Menu ................................................................................................. 13
4.3.2 Save Settings ............................................................................................................................... 13
4.3.3 Menu – a comprehensive List ..................................................................................................... 14
4.3.4 Options Category ........................................................................................................................ 15
4.3.5 Video Menu ................................................................................................................................ 17
4.3.6 Keyboard Menu .......................................................................................................................... 18
4.3.7 SerialPort1 Menu ........................................................................................................................ 21
4.3.8 SerialPort2 Menu ........................................................................................................................ 23
4.3.9 Print Settings Menu..................................................................................................................... 24
4.3.10 Term. Emul. Menu ...................................................................................................................... 26
4.3.11 Profile Config ............................................................................................................................. 27
4.4 Reset ............................................................................................................................................... 28
4.5 Power off......................................................................................................................................... 29

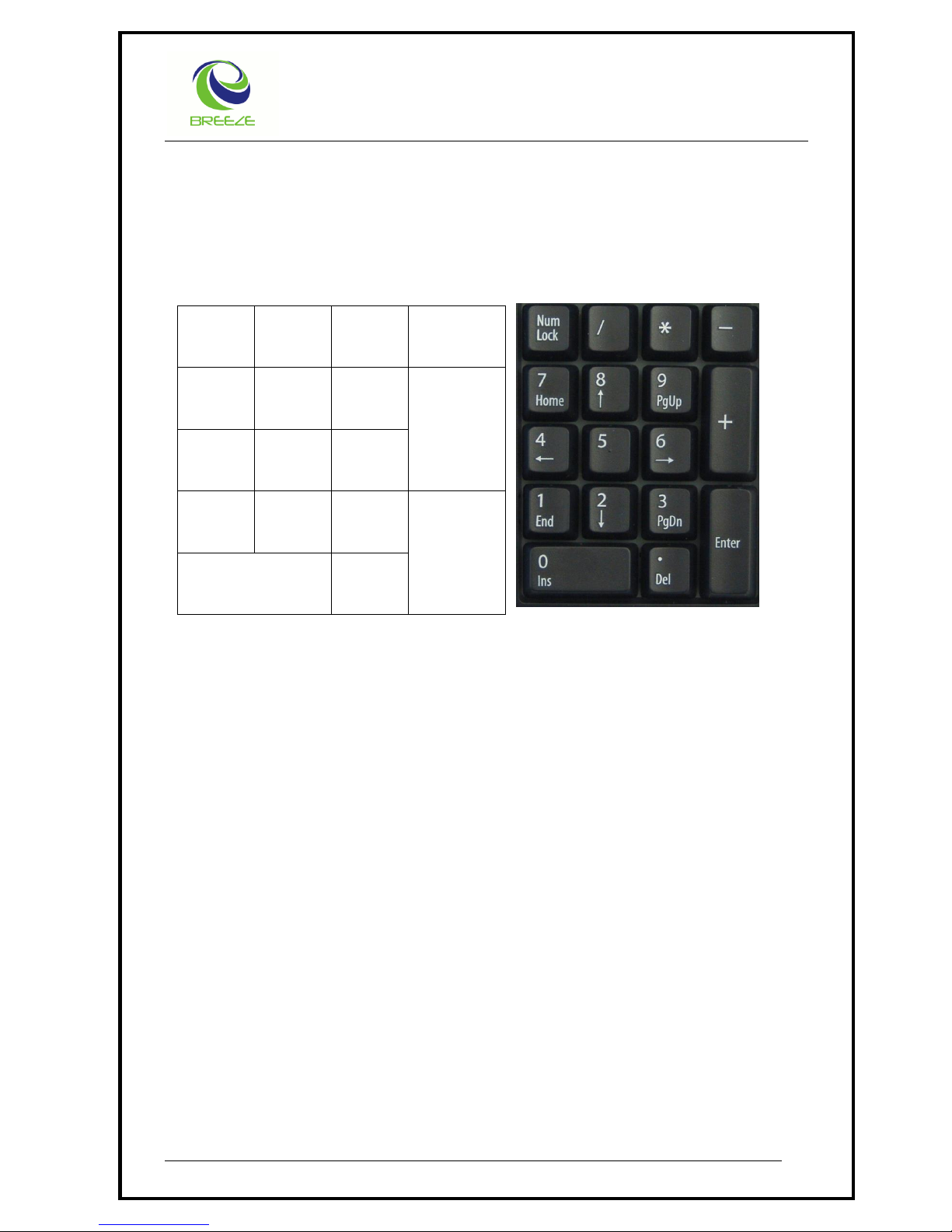

5. ECT KEYBOARD LAYOUT ................................................................................................................ 30

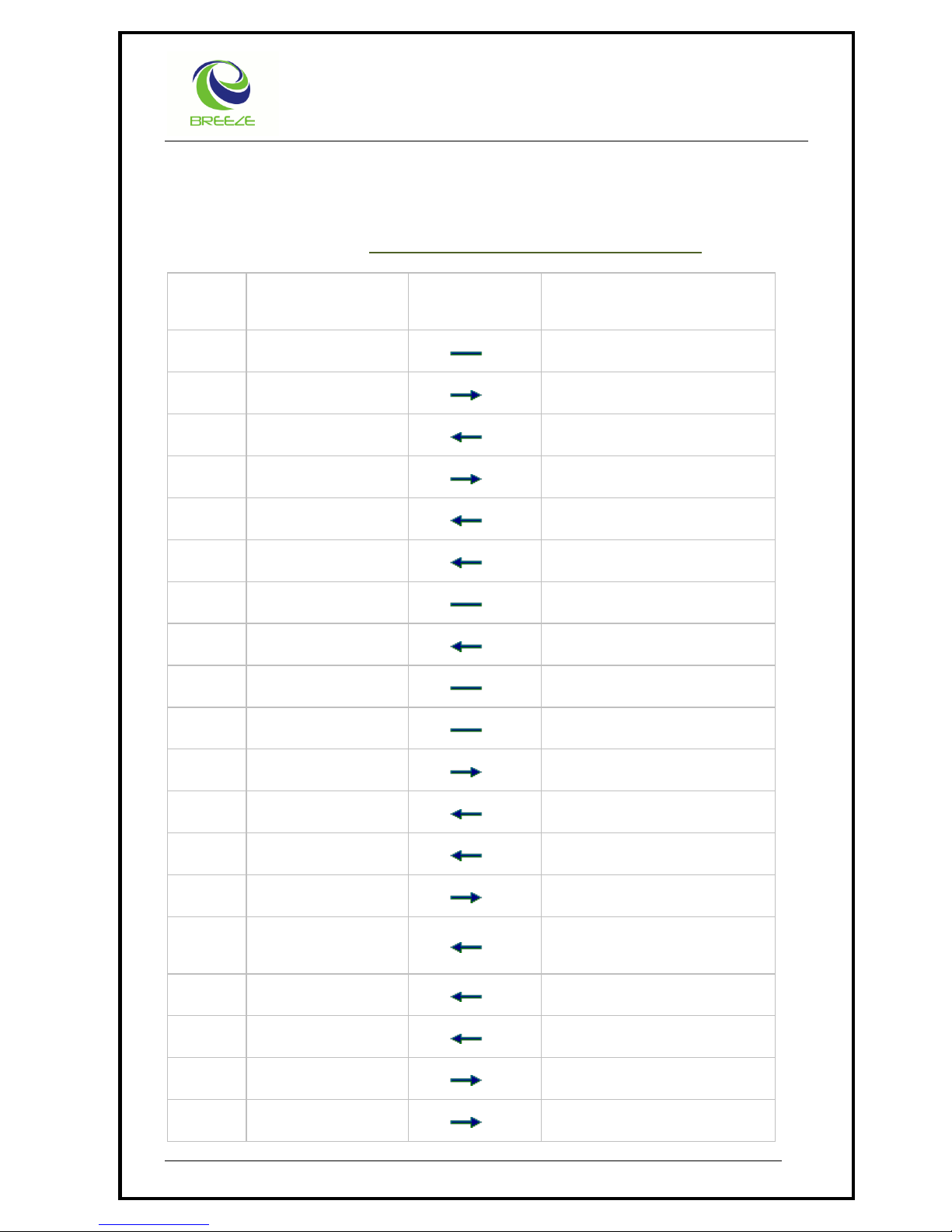

6. SERIAL PORT (RS-232 9 PIN ) INTERFACE ................................................................................. 32
7. SERIAL PORT (RS-232 25 PIN ) INTERFACE ............................................................................... 33
8. PARALLEL PORT INTERFACE ........................................................................................................ 35
9. GLOSSARY .......................................................................................................................................... 36
..an embedded design lab
4
INTRODUCTION
Breeze ECT is a standalone terminal used to connect to Railway Application servers through Serial
port or through LAN for performing various activities related to Railways Ticketing applications
This can be used as a Dumb Terminal or Client of a Server based Computing System wherein all
applications and data are deployed, managed and supported on the Server. In addition, the entire
execution of the application takes place on the server. As the application logic is separated from the
user interface i.e., screen updates at the server and transported to the client, the Bandwidth occupied
is very less.
The Breeze ECT is a DEC VT320 Compatible data communication display terminal with many
advanced features. It consists of Three Modules. They are Display unit, Control Unit, and Keyboard
Unit. The Keyboard is Detachable.
This manual is intended for the users of ECT and provides the information needed to install and
operate the ECT. Screenshots have been used wherever possible to improve understanding.
Breeze ECT Features
Customized Embedded Linux OS.
Hindi language (ISCII 83/88) Printing Support.
Password Protected Setup for Local Terminal Configuration.
VT320 Terminal Emulation support with answerback.
Fully Compatible with DEC VT320 terminals.
IBM PC Keyboard Support.
A User Programmable Setup to configure the terminal’s Operating Parameters.
80 Column and 132 Column display.
Additional Status Line indicating cursor row/column and time.
Support for Centronics Parallel Printers and Serial Printers.
Telnet connectivity to Unix/Linux through LAN.
Profile configuration for choosing interfaces and server.
Ports / Interfaces
Two (RS232C) Serial Ports - One 9pin & 25Pin D type each
One 25 pin D-type Enhanced Parallel Port
Six USB ports.
Two PS2 Ports
One 10 /100 Mbps RJ45 Ethernet port.
SVGA Video output.
DC 12V Power Connector.
Kensington Lock.
..an embedded design lab
5
INSTALLATION
This chapter provides instructions to install and turn on ECT. Perform each step in order.
2.1 Box Contents
The ECT comes with the following items. Unpack the carton box and Check to make sure that you
have the following items.
i. ECT (Terminal Unit)
ii. 12V DC Adapter along with power cord
iii. User's Manual CD.
2.2 Do’s and Don’ts
Do’s and don’ts that needs to be taken care while installing the terminal is as follows
Do not place the terminal where it is subjected to a great deal of shock or vibration.
Do not use or place the terminal where there is excessive dust or heat.
Locate the terminal as far as possible from noisy electromechanical devices and avoid
locations that are characterized by strong magnetic fields.
Avoid placing objects on or around the terminal that will restrict the airflow through its
ventilation slots.
Place the terminal on a flat hard surface allowing 5 inches on all sides for ventilation.
Always use a grounded AC power outlet for powering the terminal.
Place the terminal sufficiently near the AC outlet for power connection to avoid any strain
on the AC power cord.
2.3 Connecting the Cables to Terminal
CAUTION: Do not force the connectors into the socket. If any resistance is encountered, ensure
that the connector is oriented correctly to the socket.
Before connecting the cables, ensure that the cables are of the correct lengths. Before applying power
to the terminal ensure the following:
Ensure that the Power ON Switch Located at the Front Side of the terminal is switched
off before connecting the connectors. The LED should not be glowing in the terminal.
Place the keyboard in front of the Monitor and connect the keyboard to PS/2 port on the
back side.
In case of using a RS232 Connector, Connect console cable from LANSTERM to the
Terminal to DB25 connector in the rear side. In case of using DB9 console cable connect
to the DB9 terminal Serial port.
In case of using a network connection, connect a 10/100 Base – T twisted pair network
cable to the network connector.
Depending on the configuration needs, connect a printer to the parallel port
Connect the video signal cable from the monitor to the 15 pin D type female connector at
the rear side of the Terminal. Secure the cable firmly by tightening the screws available
in the video signal cable.
Plug the Power Cord in to a 230V AC Grounded AC Outlet
..an embedded design lab
6
2.4 Switching On the Terminal
Connect the Power cord to the DC Adapter
Plug the DC adapter Outlet to the socket in the Terminal.
Connect the monitor to the Power source and switch on the monitor.
Press the power on switch provided in the front side of the Terminal to turn on the
terminal. The power on LED indicator located at the front will glow.
When the terminal turns on, boot messages will appear on the screen and all LEDs in
the keyboard turn on and off.
..an embedded design lab
7
BREEZE ECT CONFIGURATION
3.1 Configuring the terminal

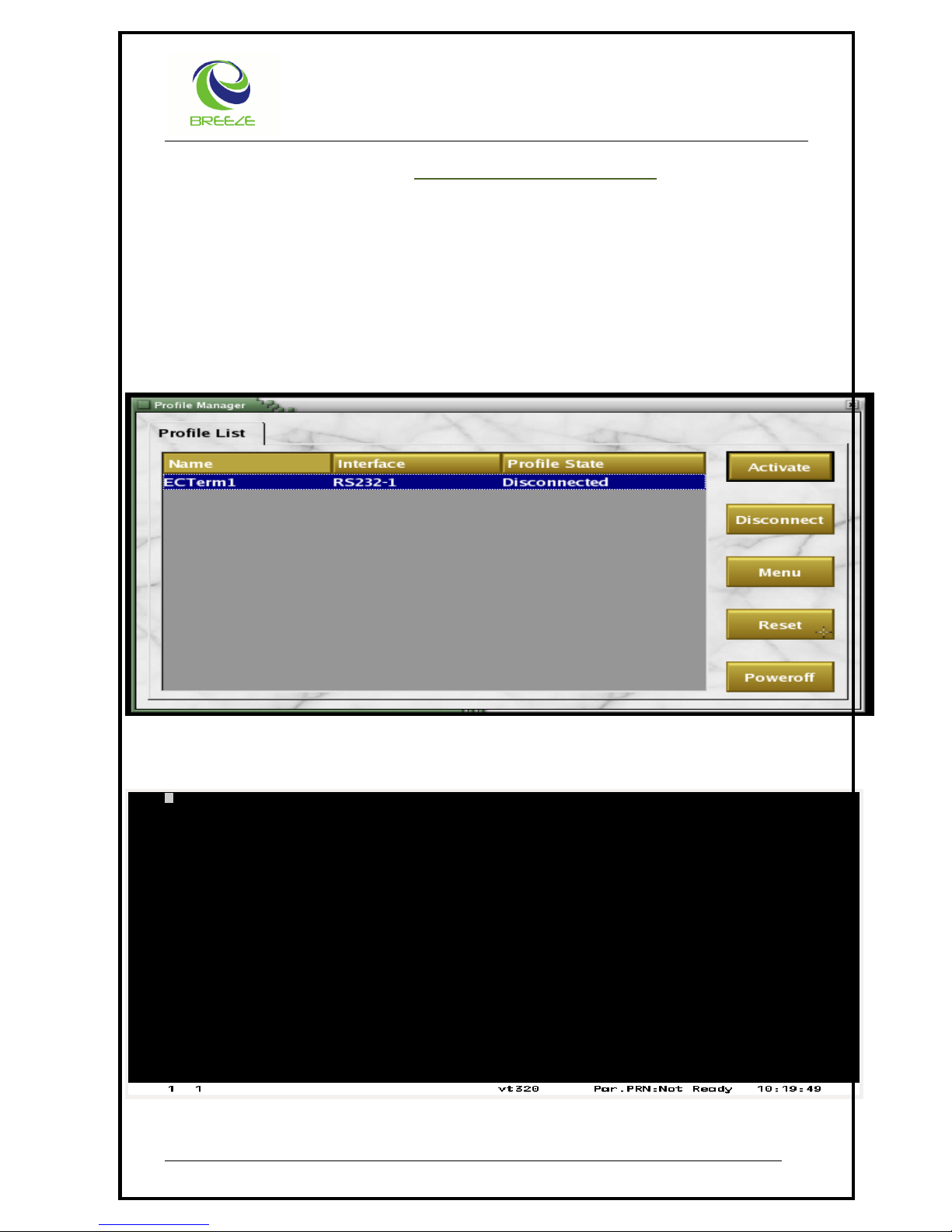

Once the terminal is switched on, the Profile manager Dialog will appear
Press the Tab key in the Keyboard, So that the “Activate” button is highlighted or
selected. Then Press “Space” key Or “Enter” key to start the profile connection
By Default the profile is connected to Serial port 1.
To change any settings Press F3 in Profile screen or using Menu Button in the Profile
manager.
Figure 1
Once the activate button is pressed the terminal screen is opened as shown below
Figure 2
..an embedded design lab
8
3.2 Terminal Screen Shortcut keys
The below shortcut keys can be activated once the profile is activated
Switching between Active Profile and Profile manager – Ctrl + up Arrow
Menu
Invoke Menu – F3
Quit Menu – F3 / Alt
Activate Menu Item – Underlined Letter
Select item - Underlined Letter / Enter Key
Navigate Menu – Up / Down Arrow / Tab
Navigate inside menu – Right arrow / Left Arrow
Go to Parent Menu - ESC

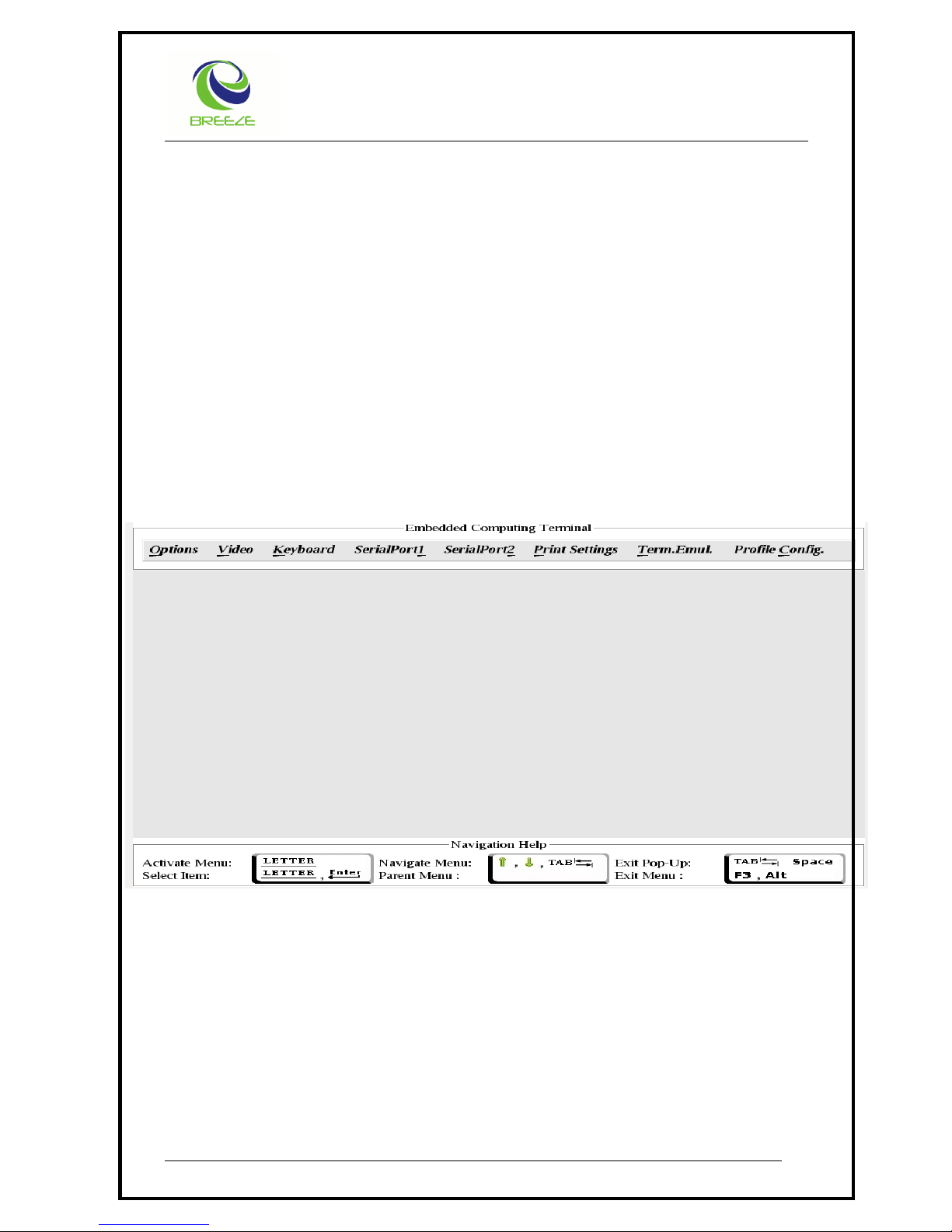

The menu screen will appear as shown below
Figure 3
Press F3/ Alt in the parent menu to quit.
..an embedded design lab
9

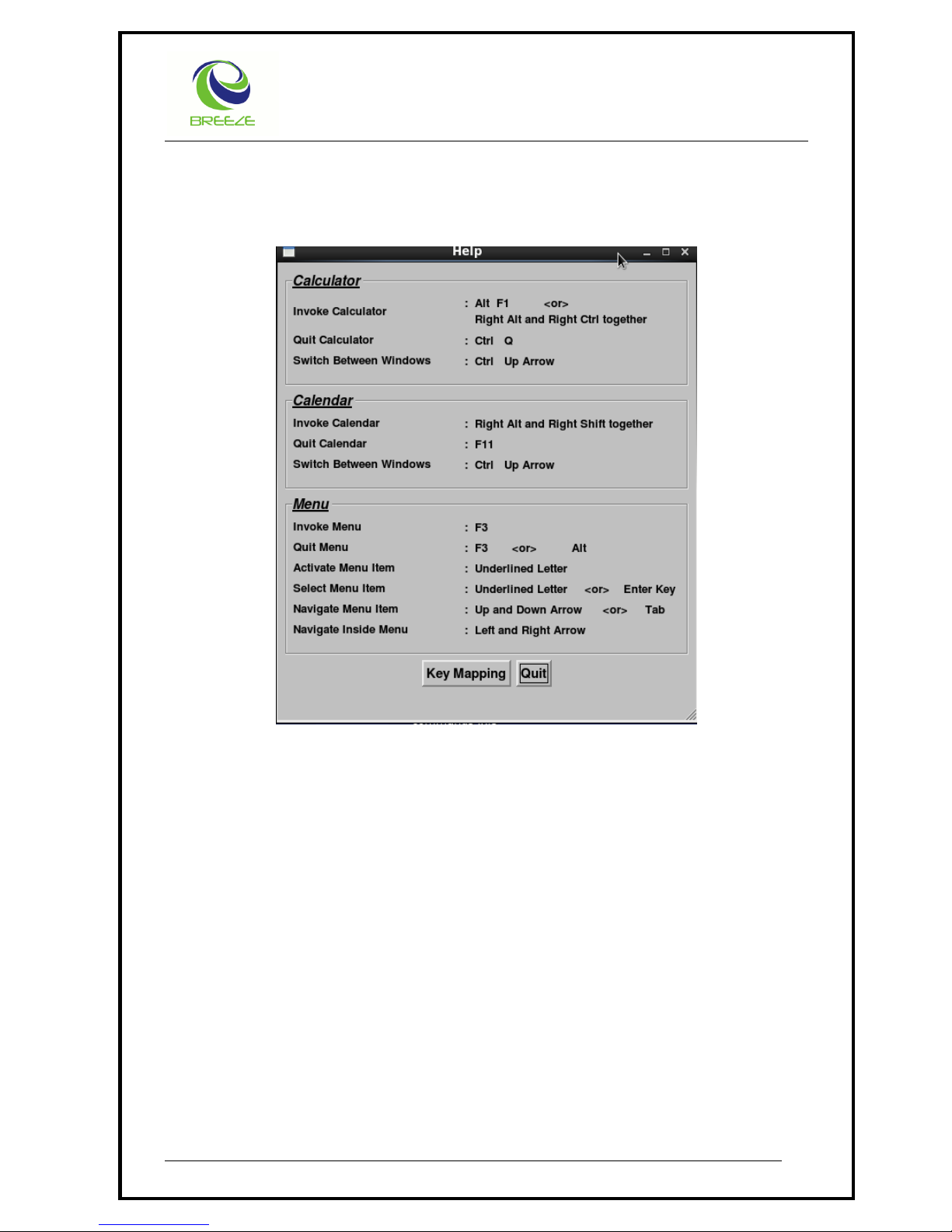

Help
Invoke Help – Alt + F5
Help screen is displayed as shown
..an embedded design lab
10
Calendar
Invoke Calendar – Right ALT + Right SHIFT
Calendar Help - F6
Quit calendar – F11

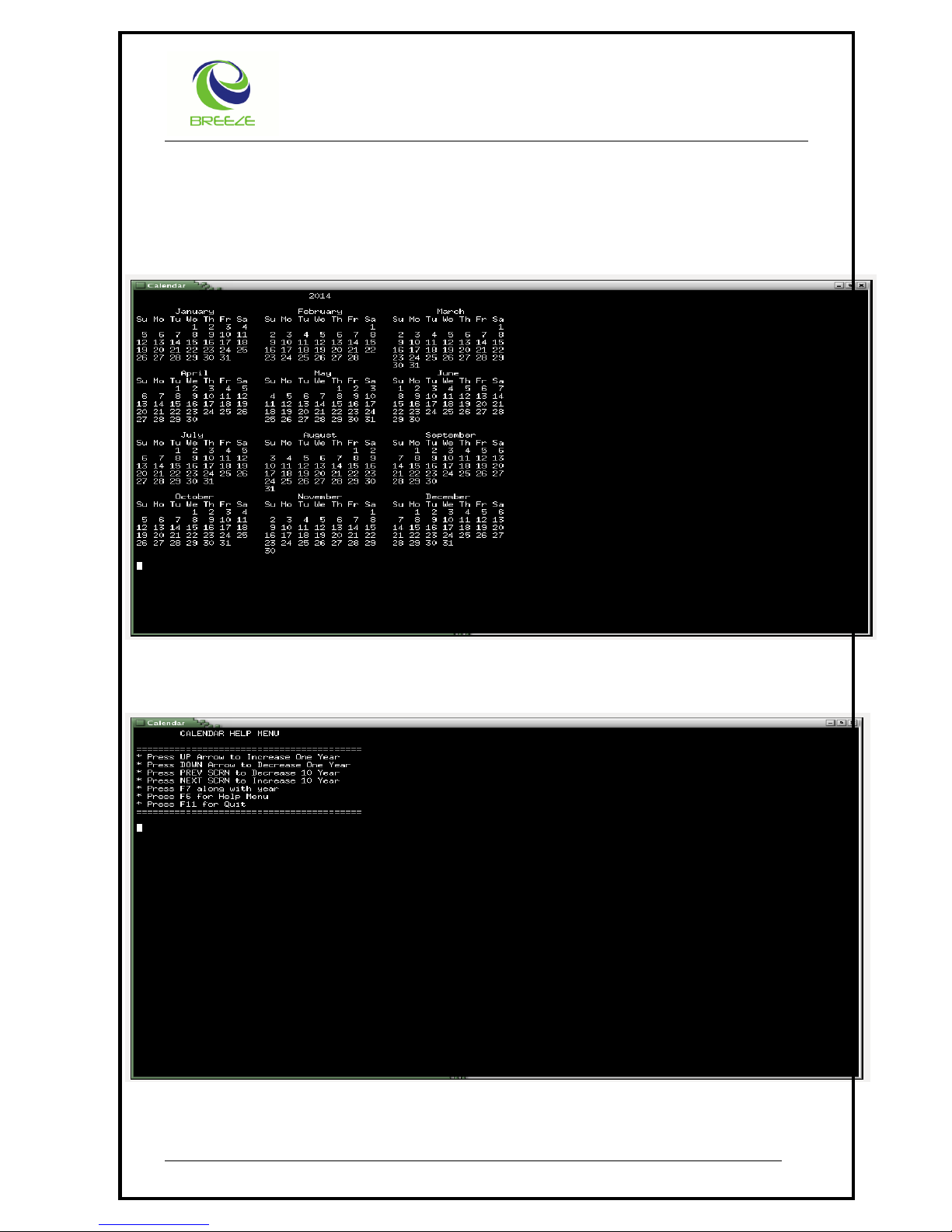

Calendar screen is displayed as shown.
Figure 4
In Calendar Screen press F6 for help, to show the options as shown.
Figure 5
..an embedded design lab
11

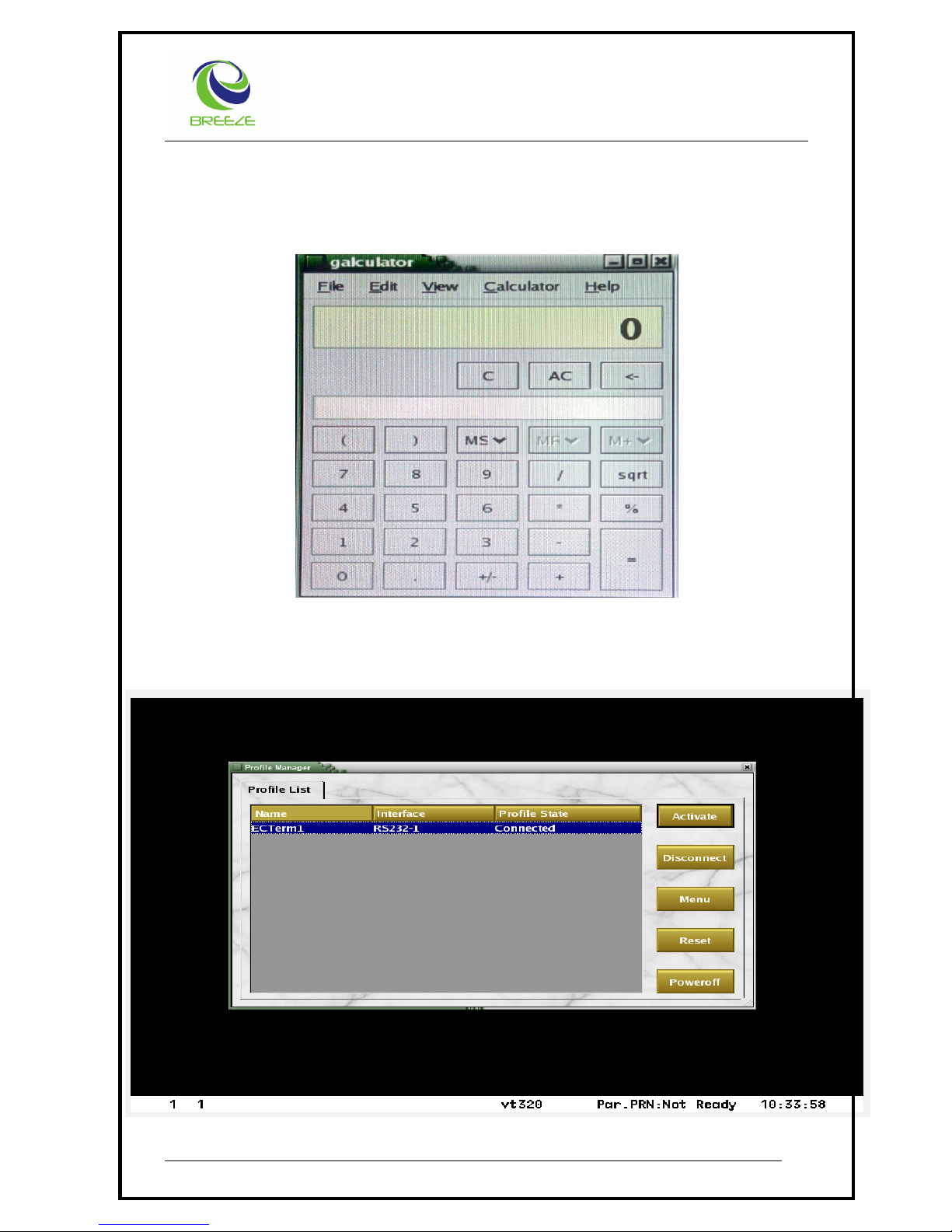

Calculator
Invoke Calculator – Right ALT + Right CTRL or
Alt + F1
Quit calculator – Ctrl + Q
Figure 6
In order to switch between Profile manager and the Terminal Profile use the Ctrl + Up Arrow key.
Figure 7
..an embedded design lab
12
USER CONFIGURATION

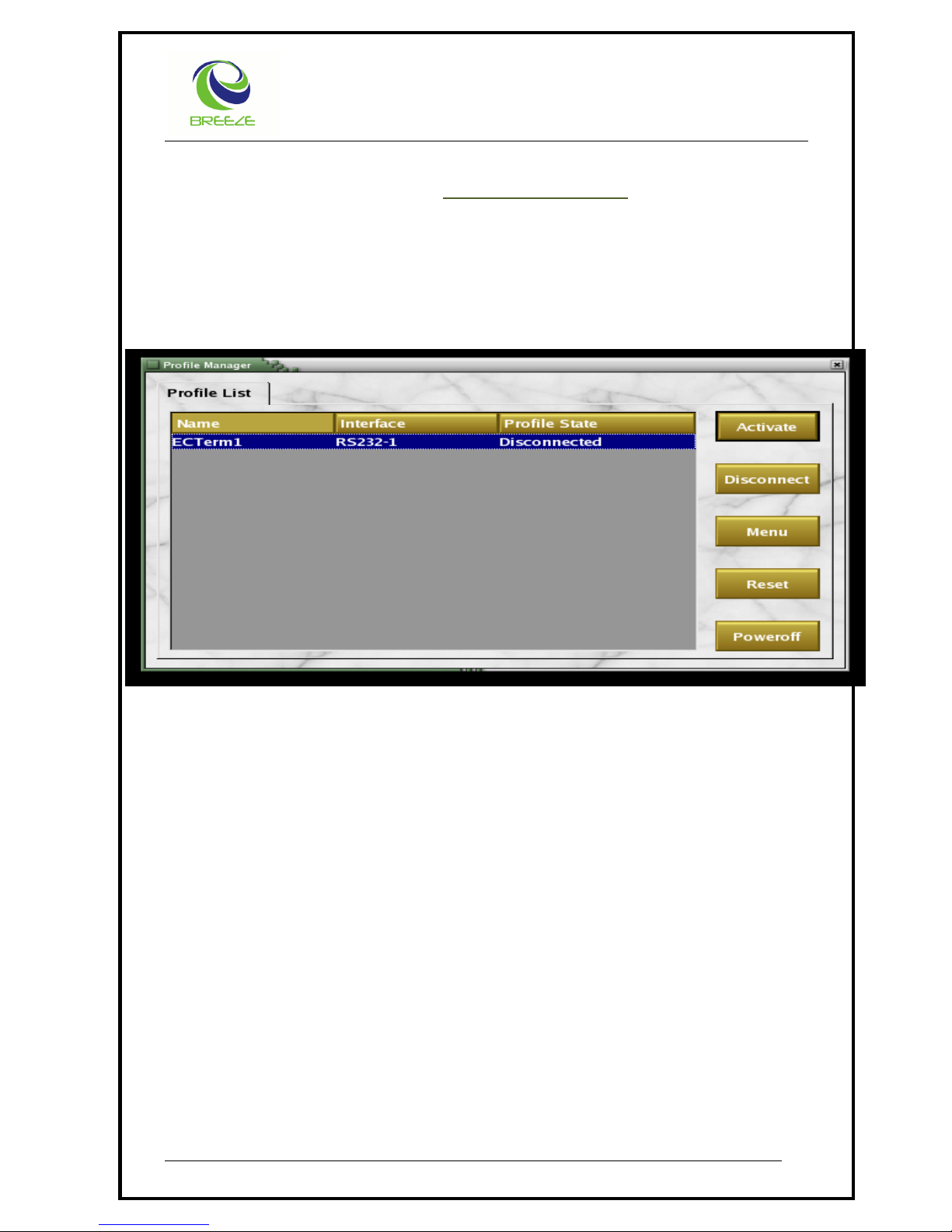

4.1 Profile Manager
The Profile Manager lists the connections/ Profiles which can be configured by the user for a specific
setting and can be later activated to connect to a Server through LAN / serial port through the preconfigured profile.
Figure 8
Name : Displays the name of the profile (session)
Interface : Displays Interface name
Profile Status : Displays status of a session (Connected / Disconnected)
Users can select the following options in the profile manager.
Activate : Select to activate the selected profile
Disconnect : Select to close the selected active profile session
Menu : Select to modify the settings related to terminal.

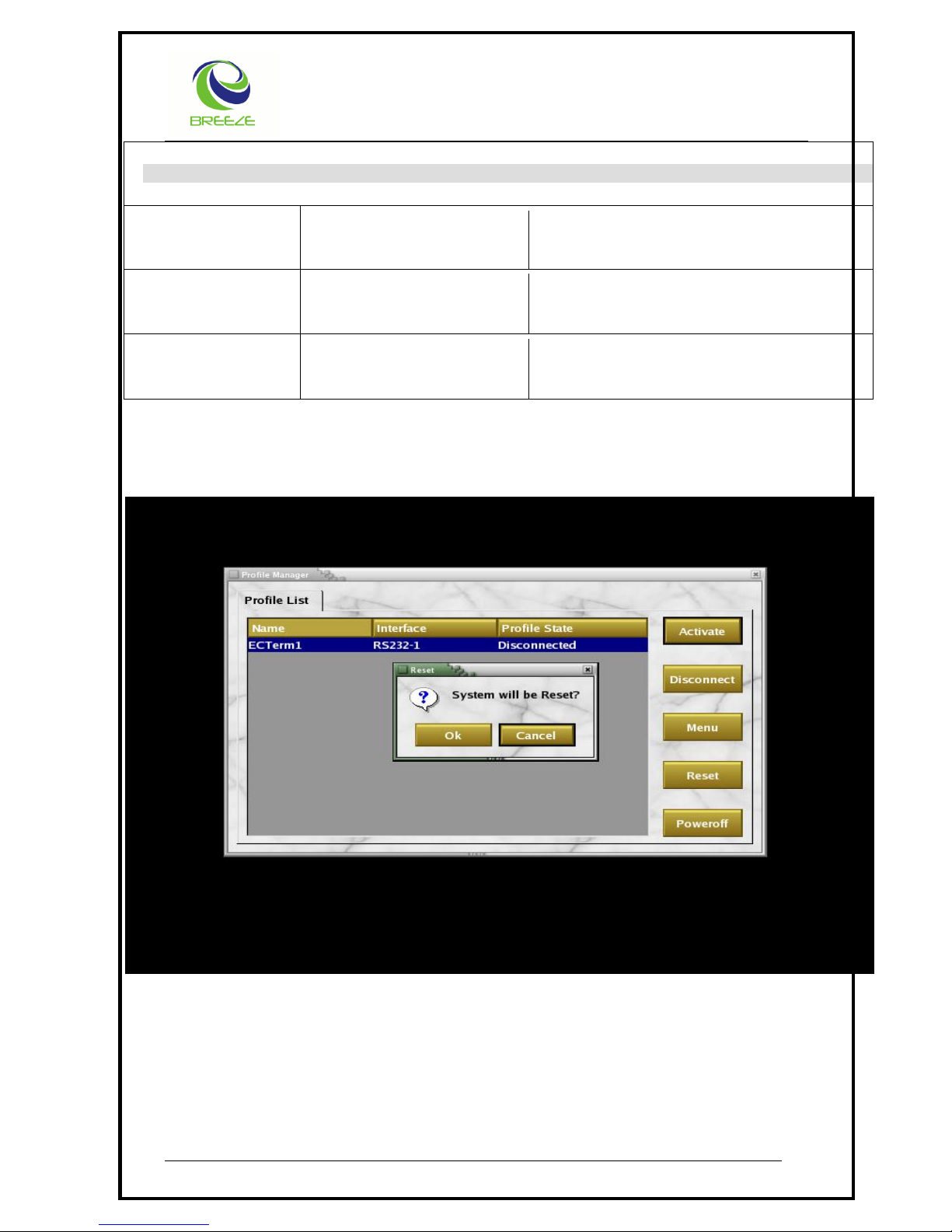

Reset : Select to reset the terminal

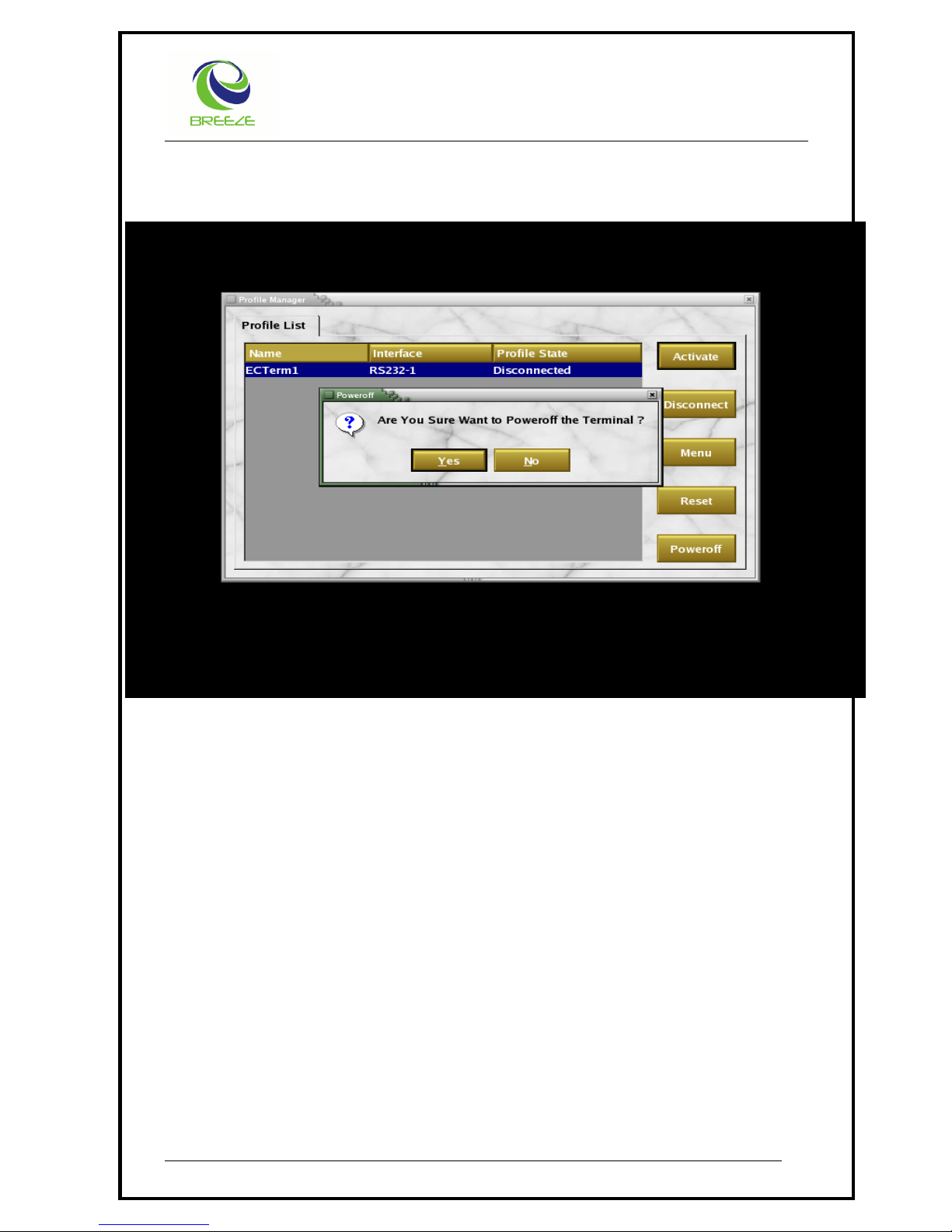

Power off : Select to switch off the terminal
..an embedded design lab
13

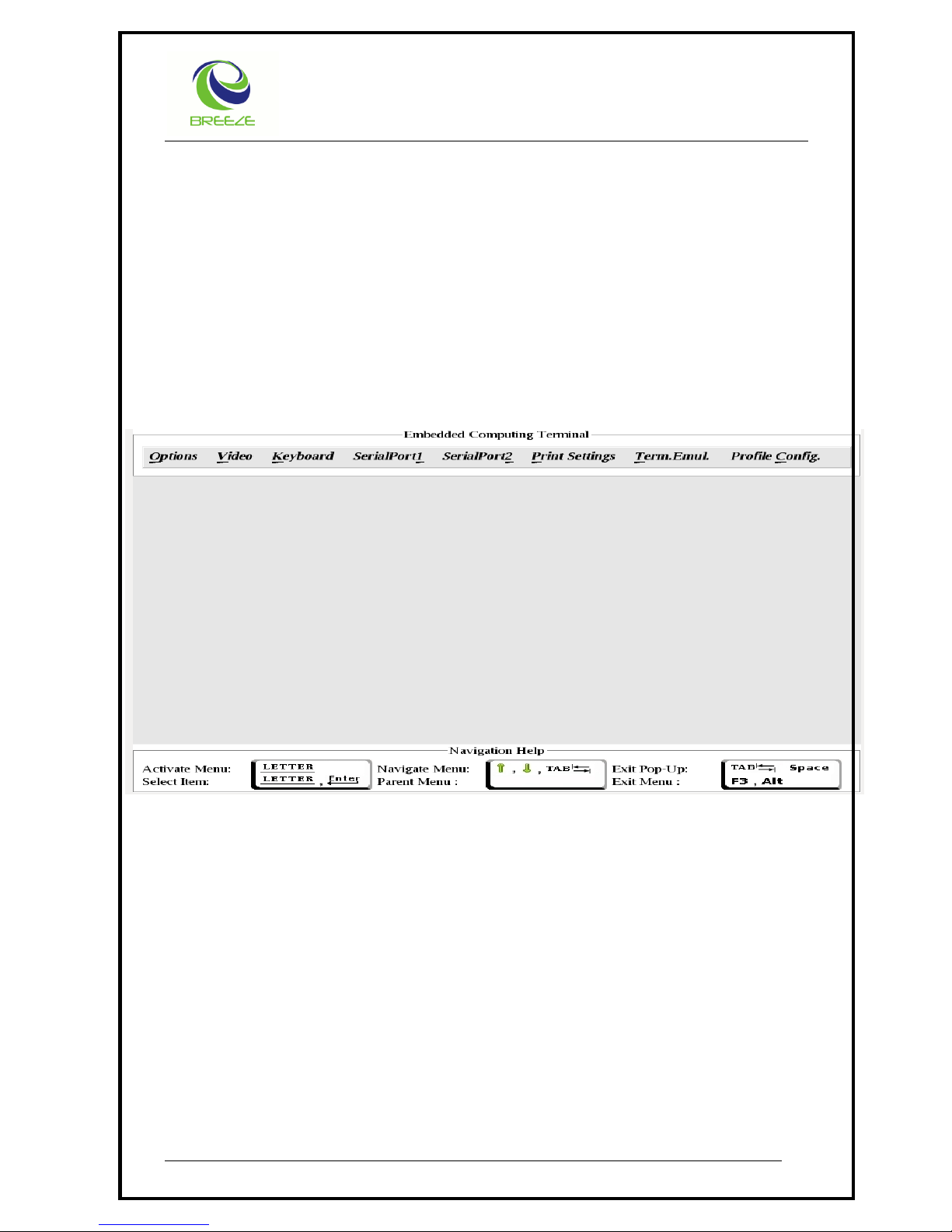

4.2 Menu
The Menu Screen has eight categories that list the settings for the terminal's operating features.
Options
Video
Keyboard
Serial Port1
SerialPort2
Print Settings
Term. Emulation
Profile Configuration
Figure 9
Each menu option contains sub categories which can be used for modifying the settings of the
terminal using the Keyboard. The following sections will describe the various menu options and how to
change settings.
Many of the menu options are initially set to a factory-default setting that works with serial port deices.
The factory-default settings are permanently stored. If you change settings, you can use set-up to
reset the terminal to the factory-default settings.
You can also select and save settings to match your host system. The ECT saves your selections in
Flash memory, along with the factory-default settings. When the ECT is shut down, you do not lose
your saved settings.
..an embedded design lab
14
4.3 Profile Manager
To enter or exit set-up, you press the F3 key while in the Terminal Screen or Press Menu Option in
the Profile Manager. When you enter Menu, The profile manager or the Terminal screen is replaced
by the Menu Screen. When you exit Menu, the Terminal screen or the Profile Manager screen
reappears.
4.3.1 Navigating the Settings in Menu
Use the Underlined Letter to bring down the drop down menu in each category. Use Tab / Up Arrow /
Down Arrow to Navigate inside the drop down list. Each Option may have two or more possible
settings. Press the Enter key or the Underlined Letter to select the specific setting.
Invoke Menu – F3
Quit Menu – F3 / Alt
Activate Menu Item – Underlined Letter
Select item - Underlined Letter / Enter Key
Navigate Menu – Up / Down Arrow / Tab
Navigate inside menu – Right arrow / Left Arrow
Go to Parent Menu - ESC
Example:
This example shows how to change the screen display from 80 to 132 columns.
Press F3 to enter Menu Screen.
Press “V” to display the video category list.
Use the arrow keys to move the cursor to "80 Columns". Press Enter to change the setting
to "132 Columns".
Press Menu to leave set-up.
4.3.2 Save Settings
To save the settings Select Options-> Save Settings to permanently save the settings in the Terminal.
..an embedded design lab
15
4.3.3 Menu – a comprehensive List
A comprehensive list of menu categories available
Menu Categories
Options
Video
Keyboard
a) Reset Terminal
b) Clear Communication
c) Clear Display
d) Restore Settings
e) Factory Settings
f) Modify Password
g) Save Settings
h) Auto Answer Back
i) Answer Back Conceal
j) Answer Back Message
k) NewLine
l) User Features Lock
m) Set Time
n) Exit
Column Width
Background Color
Cursor Style
Cursor Display
Cursor Coords Display
Status Line Display
Auto Wrap
Status Line Position
a) Clear All Tabs
b) Set Default Tabs(8)
c) Auto Repeat
d) Keymap
e) Lock Status
f) Desktop Utility Map
g) F1-F5 Lock
Serial Port1
Serial Port2
Print Settings
a) Baud Rate
b) Parity
c) Parity Check
d) Data Bits
e) Stop Bits
f) Local Echo
g) Host Interface
h) Flow Control
i) Terminal Code
Baud Rate
Parity
Parity Check
Data Bits
Stop Bits
Flow Control
a) Mode
b) Terminator
c) ISCII Options
d) Print Port
Term.Emul.
a) VT320/220
Profile Config.
a) Add/Modify Profile
b) Network Config
..an embedded design lab
16
4.3.4 Options Category
The Options Category lets you modify general features related to the terminal such as clear display,
clear communication etc.
List of Features – Options
Categories
Choice
Functionality
a) Reset Terminal
Resets many VT320 operating features to a default
setting.
b) Clear Display
Clears the Display screen, after exiting from the menu.
c) Clear Communication
Clears communication as follows.
Stops printer controller mode and returns to
normal print mode.
d) Restore Settings
Resets all set-up features to their saved values. Clears
the screen.
e) Factory Settings
Restores all set-up features to their previous factory
values. Clears the screen.
f) Change Password
The Settings is password protected. The user can
change the password using this option in the menu.
g) Save Settings
Saves all current feature settings that have been
modified in the current menu screen.
h) Auto –Answer Back
Disabled
i) Answer Back Conceal
Disabled
j) Answer Back Message
Disabled
k) New Line
Selects whether or not the Return key moves the
cursor to a new line.
The Return key sends a carriage return only.
..an embedded design lab
17
List of Features – Options
Categories
Choice
Functionality
Off
On
The Return key sends a carriage return and a line feed.
l) User Features Lock
Off
On
Selects whether or not the host system can change
your settings for the following features.
Auto Repeat
Smooth/Jump Scroll
Light/Dark Screen
Tab stops
Keyboard lock
Lets the host change user features.
Prevents the host from changing features.
m) Set Time
Modify the Time displayed in the Status Line
n) Exit
Exit the menu screen
..an embedded design lab
18
4.3.5 Video Menu
The Video Category lets you modify video related features such as 80 or 132 columns, smooth or
jump scrolling, and a block or underline cursor.
List of Features – Video
Categories
Choice
Functionality
a) Column Width
80
132
Selects an 80 or 132-column screen display for text.
80 column mode
132 column mode
b) Background Color
Normal
Reverse
Selects a normal or reverse video display.
Selects a normal screen display (light text on dark
background).
Selects a reverse video display (dark text on light
background).
c) Cursor Style
Bar
Line
Caret
Block
Rectangle
Selects any one of the Cursor style options such as
blinking block or blinking underline cursor, etc.
d) Cursor Display
Off
On
Selects whether or not to display the text cursor.
e) Cursor Coords Display
Off
On
Selects whether or not to display the cursor coordinates in the status line.
f) Status Line Display
Off
On
Selects whether or not to display the status line at the
bottom of the screen.
g) Auto Wrap
Off
On
Selects whether or not text automatically wraps to
the next line when you reach the right margin.
When the cursor reaches the margin, the VT320
displays each new character in the last column of
the line. Each new character overwrites the previous
character.
When the cursor reaches the margin, the VT320
displays new characters on the next line.
..an embedded design lab
19
List of Features – Video
Categories
Choice
Functionality
h) Clock Display
Off
On
Selects whether or not to display the clock.
i) Status Line Position
Default
Top
Bottom
Selects where to display the status line in the screen.
4.3.6 Keyboard Menu
The Keyboard menu screen lets you modify settings related to keyboard.
List of Features – Keyboard
Categories
Choice
Functionality
a) Clear All Tabs
Clears all tabs previously set.
b) Set Default Tabs(8)
Automatically sets tab every 8 columns, starting with
column 9.
c) Auto Repeat
Off
On
Selects whether or not a key sends its character
repeatedly when you hold the key down.
d) Keymap
Del/Shift Del
Selects which character <x] key sends.
Del / Del - The <x] key sends a DEL character
when shifted or unshifted.
Del / Backspace - The <x] key sends a DEL
character when unshifted and a Backspace (BS)
character when shifted.
Backspace / Del - The <x] key sends a
Backspace (BS) character when unshifted and a
DEL character when shifted.
Backspace / Backspace - The <x] key
sends a Backspace (BS) character when shifted
or unshifted.
`/~ Key
Selects which character the tilde key sends.
..an embedded design lab
20
List of Features – Keyboard
Categories
Choice
Functionality
`/~ - The tilde key sends a ` when unshifted
and a ~ when shifted.
Escape - The tilde key sends an escape
(ESC) character.
-/_ Key
Selects which characters the minus (-) and
underscore (_) keys send.
-/_ -The minus (-) and underscore (_) key sends
a minus when unshifted and an underscore
character when shifted.
_/- -The minus (-) and underscore key (_) sends
an underscore when unshifted and a minus
character when shifted.
=/+ Key
Selects which characters the = and + keys send.
=/+ - The = and + key sends a = when unshifted
and an + character when shifted.
+/= -The = and + sends an + when unshifted
and an = when shifted.
</>Key
</> - The angle bracket key sends a comma
when shifted or unshifted.
`/~ - The angle bracket key sends a ` when
unshifted and a ~ when shifted.
,/,Key
,/, -The comma key sends a comma when
unshifted or shifted.
,/< -The comma key sends a comma when
unshifted and a < character when shifted.
./.Key
./. -The period key sends a period when
unshifted or shifted.
./> - The period key sends a period when
unshifted and a > character when shifted.
e) Lock Status
Caps Locks
Selects the function of the Lock key.
After you press Lock down, the alphabetic keys
send their uppercase character. Other keys still
..an embedded design lab
21
List of Features – Keyboard
Categories
Choice
Functionality
Shift Locks
send the bottom character on their keycap.
After you press Lock down, all keys send the top
character on their keycap.
f) Desktop Utility Map
Disabled
Enabled
Selects whether Desktop Utility Map is to be
disabled or not.
g) F1-F5 Lock
Off
On
Selects whether F1 - F5 local keys will be locked or
not.
..an embedded design lab
22
4.3.7 SerialPort1 Menu
The SerialPort1 menu screen lets you modify settings related to Serial Port 1.
List of Features – Serial Port1
Categories
Choice
Functionality
a) Baud Rate
75
110
134.5
150
300
600
1200
1800
2000
2400
4800
9600
19200
38400
57600
115200
Selects the baud rate for the terminal to send data
to the host system.
b) Parity
None
Odd
Even
Mark
Space
Selects the character format used to communicate
with the host system.
c) Parity Check
Off
On
Selects whether Parity Check should be On or Off.
d) Data Bits
8
7
Selects the number of data bits (8 or 7) used in the
character format.
e) Stop Bits
1
2
Selects the number of stop bits (1 or 2) used in the
character format.
Recommended 1 stop bit for most applications.
Use this setting for baud rates under 300.
f) Local Echo
Selects whether or not to send the characters you
type directly to the screen.
..an embedded design lab
23
List of Features – Serial Port1
Categories
Choice
Functionality
Off
On
Sends keyboard data to the host. The host may or
may not send the data back to the screen.
Sends keyboard data to the screen and to the host.
g) Host Interface
RS232
Data Leads
RS232
Modem
Controls
Selects which cable connector you can use on the
rear of the VT320 to connect to the host system
Selects the 25-pin RS232 connector. Use this setting
if you do not have a modem.
Selects the 25-pin RS232 connector. Use this setting
if you have a modem requiring EIA modem control.
h) Flow Control
None
XON/XOFF
RTS/CTS
Selects the type of flow control be used with the host
system.
i) Terminal Code
This option allows the user to provide a terminal code
for this terminal.
..an embedded design lab
24
4.3.8 SerialPort2 Menu
The SerialPort2 menu screen lets you modify settings related to Second Serial Port in the terminal.
List of Features – Serial Port2
Categories
Choice
Functionality
a) Baud Rate
75
110
134.5
150
300
600
1200
1800
2000
2400
4800
9600
19200
38400
57600
115200
Selects the baud rate for the terminal to
send data to the host system.
b) Parity
None
Odd
Even
Mark
Space
Selects the character format used to
communicate with the host system.
c) Parity Check
Off
On
Selects whether Parity Check should be On
or Off.
d) Data Bits
8
7
Selects the number of data bits (8 or 7)
used in the character format.
e) Stop Bits
1
2
Selects the number of stop bits (1 or 2)
used in the character format.
Recommended 1 stop bit for most
applications.
Use this setting for baud rates under 300.
f) Flow Control
None
Selects the type of flow control be used with
..an embedded design lab
25
List of Features – Serial Port2
Categories
Choice
Functionality
XON/XOFF
RTS/CTS
XON/XOFF#RTS/CTS
the host system.
4.3.9 Print Settings Menu
The Print settings menu screen lets you modify settings related to Printer settings such as printer port
selection, driver selection, etc.
List of Features – Print Settings
Categories
Choice
Functionality
a) Mode
Normal
Auto
Controller
Selects the baud rate for the terminal to
send data to the host system.
b) Terminator
None
Form Feed
Selects the character format used to
communicate with the host system.
c) ISCII Options
Printer Driver
This option allows the user to select any
one of the below Printer Drivers
None –
Epson –
IBM –
LQ –
LIPI –
PRINTRONIX –
PIN24 –
Language
HINDI
Print Size
This option allows the user to select any
one Print Size
Big –
Small –
ISCII Standard
This option allows the user to select any
one ISCII Standard
..an embedded design lab
26
List of Features – Print Settings
Categories
Choice
Functionality
ISCII 83 –
ISCII 88 –
Bit Encoding
This option allows the user to select
any one the Bit Encoding
7 Bit –
8 Bit –
Draft
This option allows the user to enable or
disable the Draft Option.
Off
On
Compress
This option allows the user to enable or
disable the Compression in printing
Off
On
PIN 24 Type
This option allows the user to select the
PIN24 Type driver to be used
Epson
Fujitsu
Bi-Directional Printing
This option allows the user to enable or
disable the Bi-Directional printing
Disable
Enable
d) Print Port
Parallel
Serial Port1
Serial Port2
None
Allows the user to select which port to
be used for sending data to the Printer
..an embedded design lab
27
4.3.10 Term. Emul. Menu
The Term. Emul. screen lets you modify settings related to terminal emulation controls and keypad
related control character settings.
List of Features – Term. Emul.
Categories
Choice
Functionality
a) VT320/220
Controls
Selects the terminal's controls character
selection and VT320 mode
8 Bit Controls - Lets the terminal use all
VT320 features in an 8-bit environment
with 8-bit control characters. Select this
mode for all VT200 applications that use
8-bit control characters. This mode is the
most efficient, but not yet supported by
many applications.
7 Bit Controls - Lets the terminal use all
VT320 features. This mode supports 8bit graphic display characters and 7-bit
control characters. Select this mode for
all VT200 applications.
Numeric Keypad
Selects whether the numeric keypad
keys send the characters on their
keycaps or programming functions.
Normal - The keypad keys send the
characters on their keycaps (using ASCII
character codes).
Application - The keypad keys send
programming functions defined by an
application
Cursor Keypad
Selects whether the arrow keys control
cursor movement or send application
control functions.
Normal - The arrow keys move the
cursor up, down, left, right (using ANSI
cursor control sequences).
Application - The arrow keys send
application control functions.
..an embedded design lab
28
4.3.11 Profile Config
The Profile Config screen lets you modify settings related to configuration of new profile, modification
and also network related settings.
List of Features – Profile Config.
Categories
Choice
Functionality
a) Add/Modify
Profile
New Profile
This option allows the user to add a
new profile by providing New
Connection name and also choosing
the Interface type
RS232-1
RS232-2
LAN
Save settings to make it permanent.
Modify Profile Config.
This option allows the user to modify an
existing profile by renaming the
connection name and also modifying
the Interface type
Delete a Profile – Choose the
Connection Type as “None”
Default Profile – ECTerm1 cannot be
deleted.
b) Network Config.
System Information
Displays the System Information such
as Version, Client name, IP Address in
case of LAN Connection, MAC ID,
RAM Size and Flash Size, etc.
Network Configuration
This option allows the user to modify
network connection options such as
Client Name
IP Address
Netmask
Ping IP (For testing Client connectivity
to Server)
Use TAB within this screen for
navigation
SPACE Key to select the option.
DNS Configuration
This option allows the user to Add, Edit,
Save, Copy and Delete DNS IP
Address and also save the Domain
Name
..an embedded design lab
29
List of Features – Profile Config.
Categories
Choice
Functionality
Gateway Configuration
This option allows the user to Add, Edit,
Save, Copy and Delete Gateway IP
Address.
Local Host
Configuration
This option allows the user to Add, Edit,
Save, Copy and Delete a Valid Host
name and IP Address Pair.
4.4 Reset
The below window will appear when Reset button is pressed for resetting terminal.
Figure 10
Press Ok to Reset the terminal. Pressing cancel will stop the operation.
..an embedded design lab
30
4.5 Power off
The below window will appear when Power off button is pressed to switch off the terminal
Figure 11
Press “Yes” to switch off the terminal. Pressing “No” will cancel the poweroff.
Alternatively, Press the power button once to power off the ECT.
Abruptly powering off (without following the procedure mentioned above), is not advisable.
..an embedded design lab
31
ECT KEYBOARD LAYOUT
Function Keys corresponding to older Keyboard Layout:
Function
Key / Combination
F1
F2
F3
F4
F5
F6
F7
F8
F9
F10
F11
F12
F13
Ctrl + F5
F14
Ctrl + F6
HELP
Ctrl + F7
DO
Ctrl + F8
F17
Ctrl + F9
F18
Ctrl + F10
F19
Ctrl + F11
F20
Ctrl + F12
Numeric Keypad corresponding to older Keyboard Layout:
Function
Key / Combination
PF1
Num Lock
PF2
(/)SLASH
PF3
(*)STAR
PF4
Pause
Break
(-)Hyphen
(-)Hyphen
(,)Coma
(+)Plus
..an embedded design lab
32
Diagrammatic Representation:
PF1
PF2
PF3
-
7 8 9
,
4 5 6 1 2
3
Enter
0
.
..an embedded design lab
33
SERIAL PORT (RS-232 9 PIN ) INTERFACE
9 Pin
Signal Name
Dir
Description
1
DCD
Data Carrier Detect
2
RXD
Receive Data
3
TXD
Transmit Data
4
DTR
Data Terminal Ready
5
GND
System Ground
6
DSR
Data Set Ready
7
RTS
Request to Send
8
CTS
Clear to Send
9
RI Ring Indicator
Note: The serial port pin assignments are same as that of PC standard.
..an embedded design lab
34
SERIAL PORT (RS-232 25 PIN ) INTERFACE
25 Pin
Signal Name
Dir
Description
1
GND
Shield Ground
2
TXD
Transmit Data
3
RXD
Receive Data
4
RTS
Request to Send
5
CTS
Clear to Send
6
DSR
Data Set Ready
7
GND
System Ground
8
DCD
Data Carrier Detect
9
-
RESERVED
10
-
RESERVED
11
STF
Select Transmit Channel
12
SCD
Secondary Carrier Detect
13
SCTS
Secondary Clear to Send
14
STXD
Secondary Transmit Data
15
TCK
Transmission Signal Element
Timing
16
SRXD
Secondary Receive Data
17
RCK
Receiver Signal Element Timing
18
LL
Local Loop Control
19
SRTS
Secondary Request to Send
..an embedded design lab
35
20
DTR
Data Terminal Ready
21
RL
Remote Loop Control
22
RI
Ring Indicator
23
DSR
Data Signal Rate Selector
24
XCK
Transmit Signal Element Timing
25
TI
Test Indicator
..an embedded design lab
36
PARALLEL PORT INTERFACE
Pin
Name
Dir
Description
1
STROBE
Strobe
2
D0 Data Bit 0
3
D1 Data Bit 1
4
D2 Data Bit 2
5
D3 Data Bit 3
6
D4 Data Bit 4
7
D5 Data Bit 5
8
D6 Data Bit 6
9
D7 Data Bit 7
10
ACK
Acknowledge
11
BUSY Busy
12
PE
Paper End
13
SEL Select
14
AUTOFD
Auto feed
15
ERROR
Error
16
INIT Initialize
17
SELIN Select In
18
GND Signal Ground
19
GND Signal Ground
20
GND Signal Ground
21
GND Signal Ground
22
GND Signal Ground
23
GND Signal Ground
24
GND Signal Ground
25
GND Signal Ground
GLOSSARY
..an embedded design lab
37
ASCII : American Standard Code for Information
Interchange
ANSI : American National Standards Institute
Auto print mode : It is a method of printing information directly from
the host system. The terminal sends a display line to
the printer after a carriage return or form feed character.
Character set : This is a group of graphic characters and control
characters stored as a unit in the terminal. Graphic
characters are characters displayed on the screen. Control
characters perform special functions.
Cursor : Cursor is an indicator that highlights the active
position on the screen. The terminal uses different cursor
characters which can be modified in menu.
Display : It is the information that appears on the screen.
Factory default : This is a standard setting for a feature. The terminal
uses factory-default settings, unless you select a new
setting. Many menu features have default settings.
Host system : The computer servers the user connects to the
terminal. If the user connects the terminal to two systems,
one is the primary host and one is the secondary host.
Menu : A set of display screens on the terminal that allows
the user to view and modify the settings of the terminal's
operating features.
Modem : Modulator - demodulator. A device used to convert
data from a computer or terminal into signals that can be
sent over a telephone line.
Modifier key : A key pressed in combination with another key, to
modify the code sent by that key. Ctrl is a modifier key.
National replacement character set : Seven-bit character sets for many European
languages. Each character set with 94 characters. NRC
sets are similar to the ASCII set, except for a few
characters.
Nonvolatile memory : Nonvolatile RAM (Random Access Memory). The
settings are not lost when the terminal is switched off.
Port : The logical route for data in or out of the controller
board on the terminal. Also, another term for connector.
One port can support one or more connectors.
Scrolling : Moving data between the margins of the page
currently displayed. Data scrolled past the margins is lost
from page memory, but usually not from the host system.
..an embedded design lab
38
Scrolling region : The area on the current page i.e. between the top,
bottom, left, and right page margins. The default scrolling
region is the complete page. Only a programmer can
change the page margins.
Session : An active connection between the terminal and
a host system. When user log-in to a computer from the
terminal a session is opened.
Status line : A display line that provides information about the
session's current operating state. The status line appears
at the bottom of the screen.
Terminal server : An intelligent unit that can connect a number of
asynchronous devices (terminals and printers) to a host
system.
Visual character attribute : A quality of a display character that highlights the
character, such as bold or underline.
Window : A specified area of the screen used to display
information from page memory. User can divide the screen
horizontally into two windows, to display information from
two sessions at the same time.
Loading...
