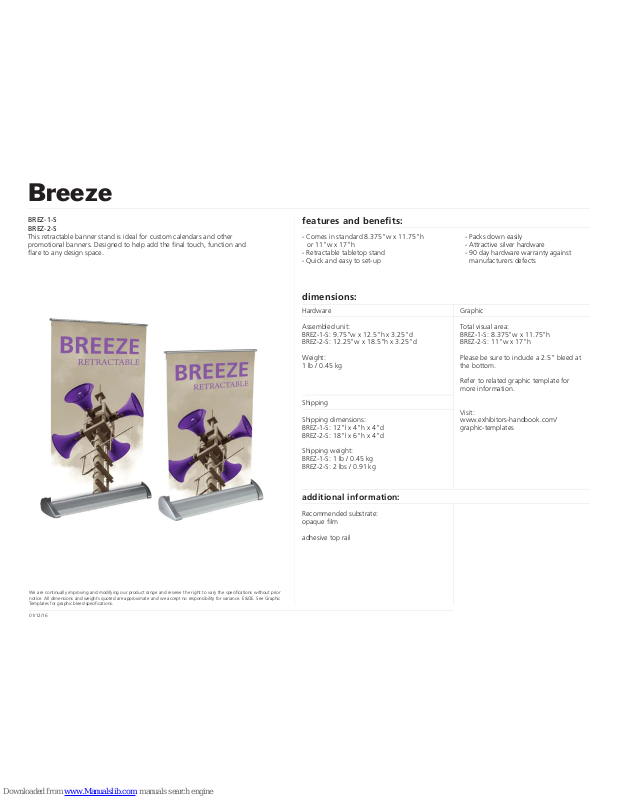

Page 1
Breeze
BREZ-1-S
BREZ-2-S
This retractable banner stand is ideal for custom calendars and other
promotional banners. Designed to help add the fi nal touch, function and
fl are to any design space.
- Comes in standard 8.375”w x 11.75”h
or 11”w x 17”h
- Retractable tabletop stand
- Quick and easy to set-up
features and benefi ts:
- Packs down easily
- Attractive silver hardware
- 90 day hardware warranty against
manufacturers defects
Shipping dimensions:
BREZ-1-S: 12”l x 4”h x 4”d
BREZ-2-S: 18”l x 6“h x 4”d
Shipping weight:
BREZ-1-S: 1 lb / 0.45 kg
BREZ-2-S: 2 lbs / 0.91 kg
Assembled unit:
BREZ-1-S: 9.75”w x 12.5”h x 3.25”d
BREZ-2-S: 12.25”w x 18.5”h x 3.25”d
Weight:
1 lb / 0.45 kg
Total visual area:
BREZ-1-S: 8.375”w x 11.75”h
BREZ-2-S: 11”w x 17”h
Please be sure to include a 2.5” bleed at
the bottom.
Refer to related graphic template for
more information.
Visit:
www.exhibitors-handbook.com/
graphic-templates
Recommended substrate:
opaque fi lm
adhesive top rail
dimensions:
Hardware
We are continually improving and modifying our product range and reserve the right to vary the specifi cations without prior
notice. All dimensions and weights quoted are approximate and we accept no responsibility for variance. E&OE. See Graphic
Templates for graphic bleed specifi cations.
Graphic
Shipping
additional information:
01/12/16
Page 2
Set-up
1
2
11
3
45
678910
12
Secure pole to base of stand.
Assemble pole.
Pull up graphic and secure to poles.
Remove the backing from the
adhesive on the rail.
Line up graphic with rail.
Apply graphic so that its even on both
sides.
Take the re-enforcing tape and apply
to the back of the banner and rail
making sure there is even coverage
between the two.
Have banner stand upside down. This
keeps leader strip from curling up.
Line up graphic with leader strip. Mount graphic to leader strip evenly
making sure there is one ½” of
overlap.
Apply tape to the bottom front of the
graphic for extra re-enforcement.
Unit is complete. Back view.
13
Unit is complete.
