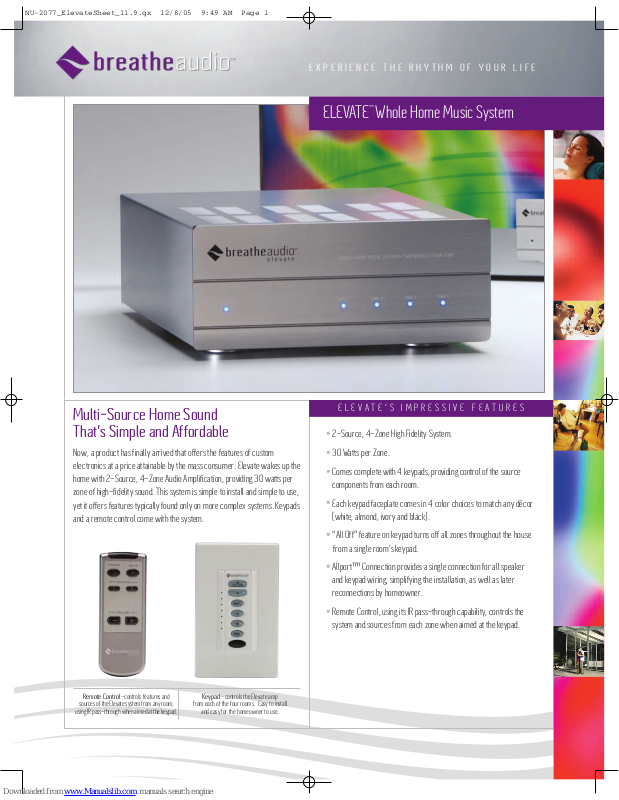

Page 1
Multi-Source Home Sound
That’s Simple and Affordable
Now, a product has finally arrived that offers the features of custom
electronics at a price attainable by the mass consumer. Elevate wakes up the
home with 2-Source, 4-Zone Audio Amplification, providing 30 watts per
zone of high-fidelity sound. This system is simple to install and simple to use,
yet it off
ers f
eatures typically f
ound only on more complex systems. Keypads
and a remote control come with the system.
•
2-Source, 4-Zone High Fidelity System.
•
30 Watts per Zone.
•
Comes complete with 4 keypads, providing control of the source
components from each room.
•
Each keypad faceplate comes in 4 color choices to match any décor
(white, almond, ivory and black).
•
“All Off” f
eature on keypad turns off all zones throughout the house
from a single room’s keypad.
•
Allport™ Connection provides a single connection for all speaker
and keypad wiring, simplifying the installation, as well as later
reconnections by homeowner.
•
Remote Control, using its IR pass-through capability, controls the
system and sources from each zone when aimed at the keypad.
ELEV
A TE’S IMPRESSIVE FEATURES
EXPERIENCE THE RHYTHM OF YOUR LIFE
ELEVATE™Whole Home Music System
Remote Control-
controls f
eatures and
sources of the Elevate system from any room,
using IR pass-through when aimed at the keypad.
Keypad -controls the Elevate amp
from each of the four rooms. Easy to install
and easy for the homeowner to use.
NU-2077_ElevateSheet_11.9.qx 12/8/05 9:49 AM Page 1
Page 2
Power Amplifier Section
Continuous Average Output Power 15W
Two channels driven, 30-20kHz @ 1% THD
Rated Distortion (1/2 power) 0.40%
Rated Impedance 8 Ohms
Damping F
actor
50+
F
requency Response (30-20kHz)
+/-3dB
Preamplifier Section
Input Impedance 50k
Input Sensitivity for rated power 330mV RMS
Input Overload 3V RMS
IR System
Source Outputs 2
Output Drive Current 100mA
Output Drive Voltage 12V
Compatible with single and dual emitters
Breathe reserves the right to change specifications without notice
P
ower Requirements
P
ower Supply
120V
AC/240V
AC 50/60Hz
P
ower Consumption all channels driven to full-r
ated power
190V
A (166W)
P
ower Consumption aver
age oper
ating conditions
88V
A (70W) 1/8 power
P
ower Consumption no signal
14V
A (10W)
USA
Saf
ety Listing
ANSI/UL
-6500
Physical Specifications
Unit Size Millimeters 89 x 216 x 325
Unit Size Inches 3.5 x 8.5 x 12.75
Shipping Size Millimeters 190 x 305 x 394
Shipping Size Inches 7.5 x 12 x 15.5
Unit Weight Kilograms 3.5
Unit Weight Pounds 7.8
Shipping Weight Kilograms 5
Shipping Weight Pounds 11.8
It’s as Easy as 1-2-3
Elev
ate from BreatheAudio lifts the entire home with pure, clean sound
that changes the whole nature of the audio experience. The purchase
and installation experiences are just as uplifting. Take a look:
Elevate’s system ships complete in one package with all of the
component parts needed for the electronics installation. (Wiring
and speakers are sold separ
ately.) Contents include the amp, f
our
keypads, color faceplates, Allport cable, IR emitters and remote control.
Elevate is easy on installers thanks to our patented Allport wiring
technology. And it’s easy f
or even the novice electronics consumer
to pick up and learn quickly. This eliminates a complicated learning curve
and reduces repeat calls to explain the system, making it easier on everyone.
All of this is av
ailable at an incredibly competitive price. At
BreatheAudio, we are dedicated to providing consumers with
high quality products that feature leading edge technology at amazingly
affordable prices.
Elev
ate from BreatheAudio provides everything the consumer needs
to experience the rhythm of their lives.
SPECIFICA
TIONS

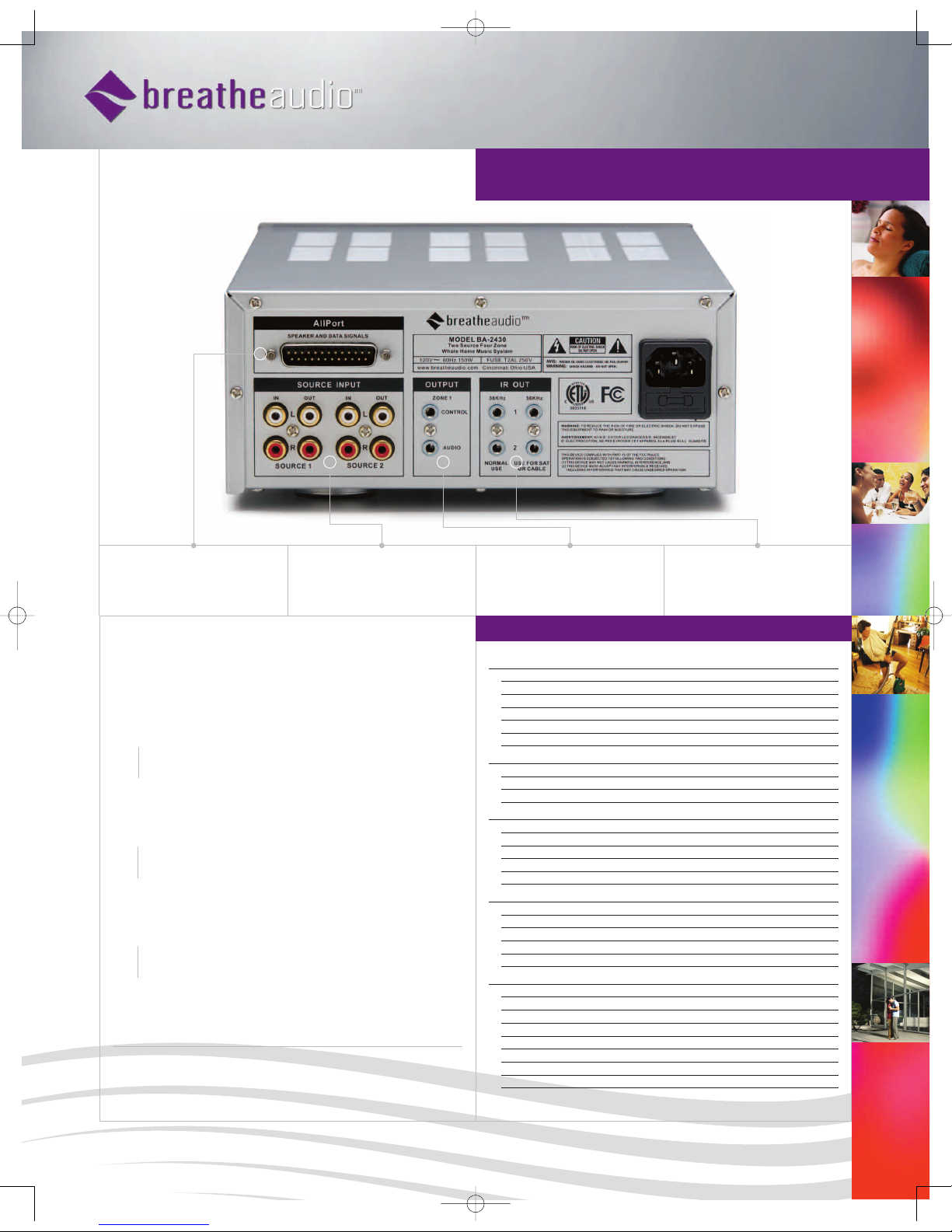

Allport™Connection provides
a single connection for both speaker
and keypad wiring.
Source Input Connect: Plug in up to
two individual audio sources and distribute them
to up to four separate rooms in the home.
Output:The Elevate System attaches easily to the
Breathe Pulse™stereo amplifier, to provide sound in
a larger area with multiple pairs of speak ers.
IR Out: Control all of your audio
source functions from each room with
a wireless remote control.
E
XPERIENCE THE RHYTHM OF YOUR LIFE
1
2
3
BTA-156-05 ©2005 BreatheAudio. All rights reserved.
ELEVATE®Whole Home Music System
