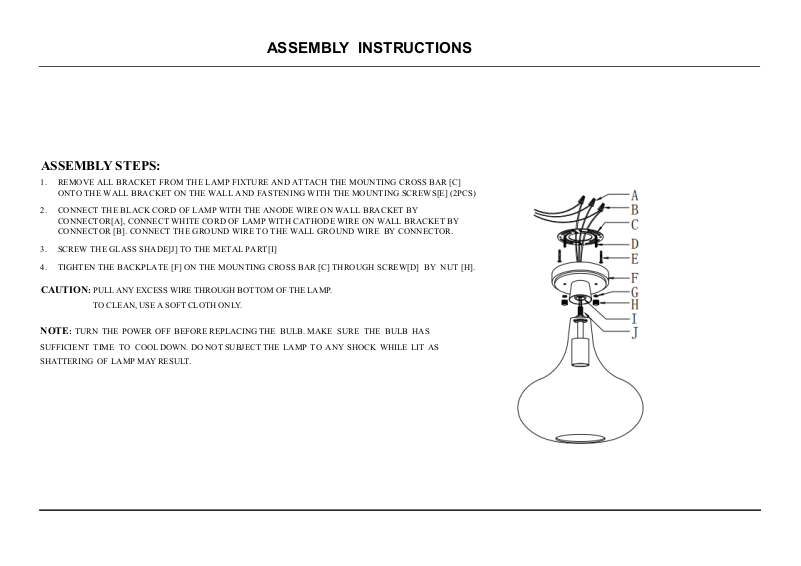

ASSEMBLY INSTRUCTIONS
ASSEMBLY STEPS:
1
. REMOVE ALL BRACKET FROM THE LAMP FIXTURE AND ATTACH THE MOUNTING CROSS BAR [C]
ONTO THE WALL BRACKET ON THE WALL AND FASTENING WITH THE MOUNTING SCREWS[E] (2PCS)
2. CONNECT THE BLACK CORD OF LAMP WITH THE ANODE WIRE ON WALL BRACKET BY
CONNECTOR[A], CONNECT WHITE CORD OF LAMP WITH CATHODE WIRE ON WALL BRACKET BY
CONNECTOR [B]. CONNECT THE GROUND WIRE TO THE WALL GROUND WIRE BY CONNECTOR.
3. SCREW THE GLASS SHADE]J] TO THE METAL PART[I]
4. TIGHTEN THE BACKPLATE [F] ON THE MOUNTING CROSS BAR [C] THROUGH SCREW[D] BY NUT [H].
CAUTION
: PULL ANY EXCESS WIRE THROUGH BOTTOM OF THE LAMP.
TO CLEAN, USE A SOFT CLOTH ONLY.
NOTE: TURN THE POWER OFF BEFORE REPLACING THE BULB. MAKE SURE THE BULB HAS
SUFFICIENT TIME TO COOL DOWN. DO NOT SUBJECT
SHATTERING OF LAMP MAY RESULT.
THE LAMP TO ANY SHOCK WHILE LIT AS
