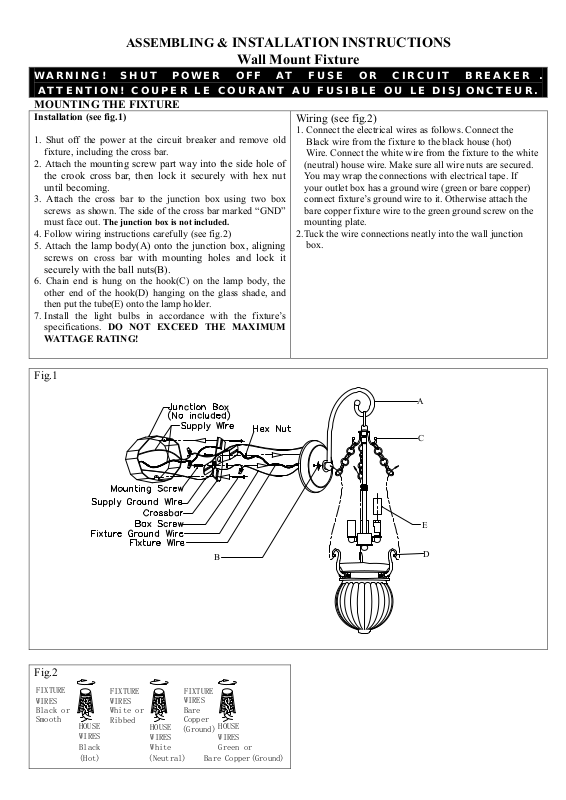

ASSEMBLING &
Wall
INSTALLATION INSTRUCTIONS
Mount Fixture
WARNING! SHUT POWER OFF AT FUSE OR CIRCUIT BREAKER .
ATTENTION! COUPER LE COURANT AU FUSIBLE OU LE DISJONCTEUR.
MOUNTING THE FIXTURE
Installation (see fig.1)
1. Shut off the power at the circuit breaker and remove old
fixture, including the cross bar.
2. Attach the mo
unting screw part way into the side hole of
the crook cross bar, then lock it securely with hex nut
until becoming.
3. Attach the cross bar to the junction box using two box
screws as shown. The side of the cross bar marked “GND”
must face out.
The junction box is not included.
4. Follow wiring instructions carefully (see fig.2)
5. Attach
the lamp body(A) onto the junction box, aligning
screws on
cross bar with mounting holes and lock it
securely with the ball nuts(B).
6. Chain end is hung on the hook(C) on the lamp body, the
other end of the hook(D) hanging on the glass shade, and
then put the tube(E) onto the lamp holder.
7. Install the light bulbs in accordance with the fixture’s
specifications. DO NOT EXCEED THE MAXIMUM
WATTAGE RATING!
Wiring (see fig.2)
1. Connect the electrical wires as follows. Connect the
Black wire from the fixture to the black house (hot)
Wire. Connect the white wire from the fixture to the white
(neutral) house wire. Make sure all wire nuts are secured.
You may wrap the connections with electrical tape. If
your outlet box has a ground wire (green or bare copper)
connect fixture’s ground wire to it. Otherwise attach the
bare copper fixture wire to the green ground screw on the
mounting plate.
2.Tuck the wire connections neatly into the wall junction
box.

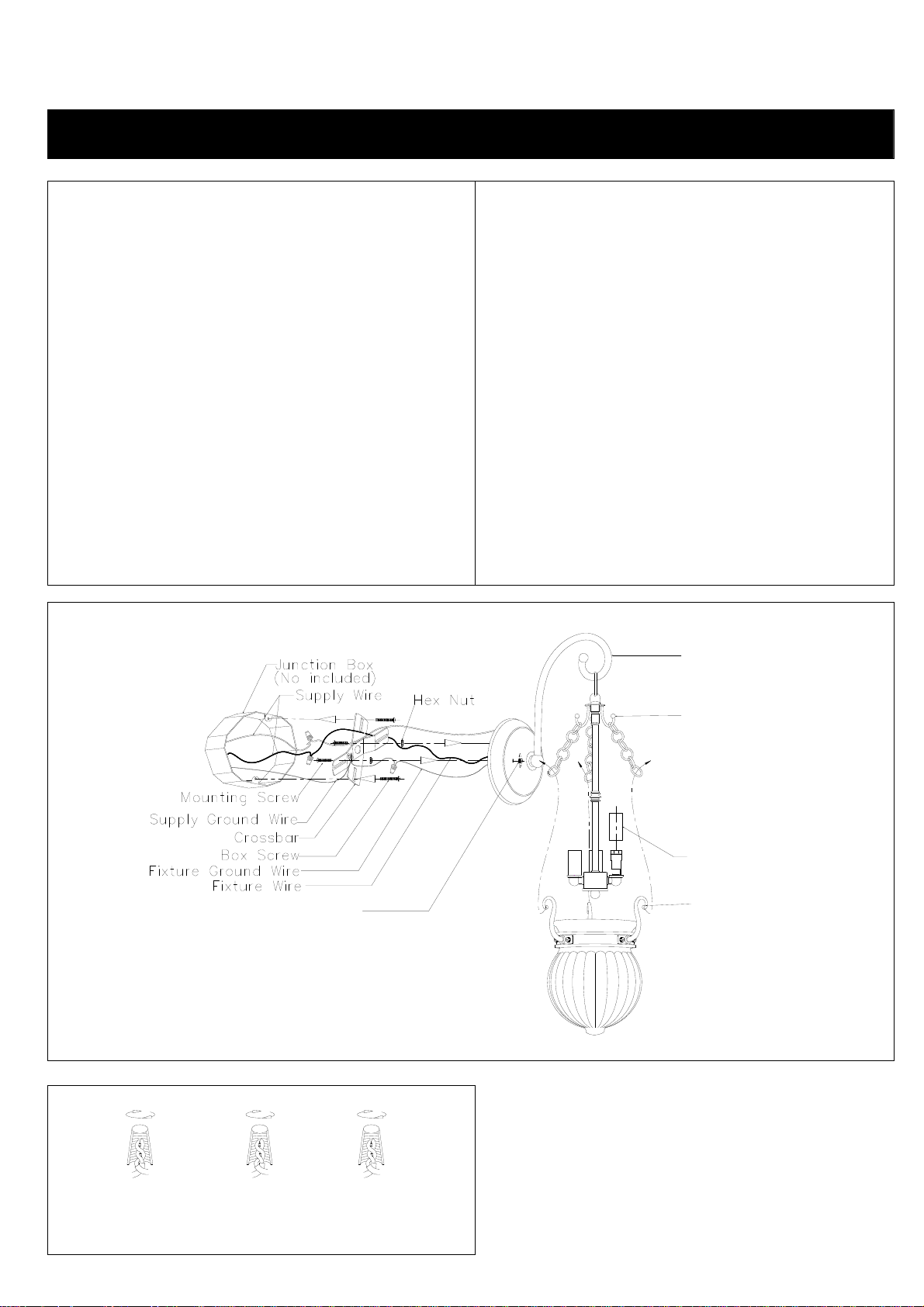

Fig.1
A
C
E
B
D
Fig.2
FIXTURE
WIRES
Black or
Smooth
HOUSE
WIRES
Black
(Hot)
FIXTURE
WIRES
White or
Ribbed
HOUSE
WIRES
White
(Neutral)
FIXTURE
WIRES
Bare
Copper
(Ground)
HOUSE
WIRES
Green or
Bare Copper(Ground)
