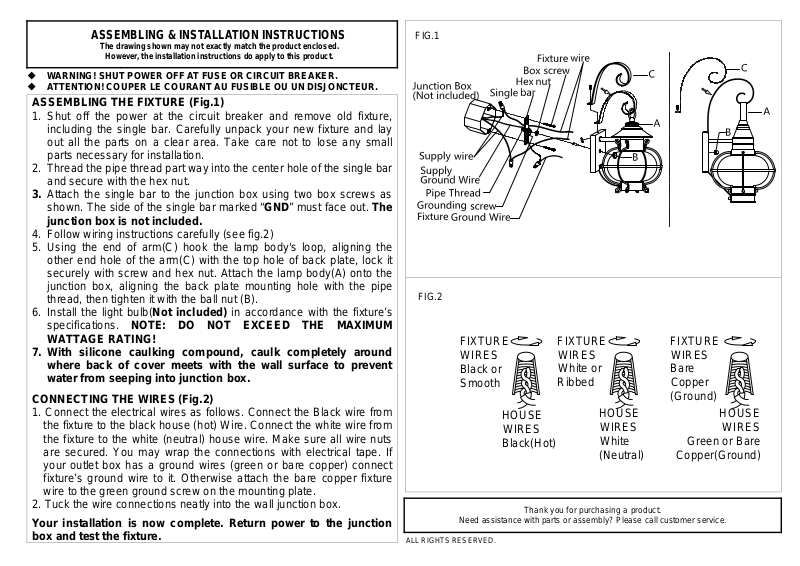

ASSEMBLING & INSTALLATION INSTRUCTIONS
The drawing shown may not exactly match the product enclosed.
However, the installation instructions do apply to this product.
WARNING! SHUT POWER OFF AT FUSE OR CIRCUIT BREAKER.
ATTENTION! COUPER LE COURANT AU FUSIBLE OU UN DISJ ON CTEUR.
ASSEMBLING THE FIXTURE (Fig.1)
1. Shut off the power at the circuit breaker and remove old fixture,
including the single bar. Carefully unpack your new fixture and lay
out all the parts on a clear area. Take care not to lose any small
parts necessary for installation.
2. Thread the pipe thread part way into the center hole of the single bar
and secure with the hex nut.
3. Attach the single bar to the junction box using two box screws as
shown. The side of the single bar marked “GND” must face out. The
junction box is not included.
4. Follow wiring instructions carefully (see fig.2)
5. Using the end of arm(C) hook the lamp body's loop, aligning the
other end hole of the arm(C) with the top hole of back plate, lock it
securely with screw and hex nut. Attach the lamp body(A) onto the
junction box, aligning the back plate mounting hole with the pipe
thread, then tighten it with the ball nut (B).
6. Install the light bulb(Not included) in accordance with the fixture’s
specifications. NOTE: DO NOT EXCEED THE MAXIMUM
WATTAGE RATING!
7. With silicone caulking compound, caulk completely around
where back of cover meets with the wall surface to prevent
water from seeping into junction box.
CONNECTING THE WIRES (Fig.2)
1. Connect the electrical wires as follows. Connect the Black wire from
the fixture to the black house (hot) Wire. Connect the white wire from
the fixture to the white (neutral) house wire. Make sure all wire nuts
are secured. You may wrap the connections with electrical tape. If
your outlet box has a ground wires (green or bare copper) connect
fixture’s ground wire to it. Otherwise attach the bare copper fixture
wire to the green ground screw on the mounting plate.
2. Tuck the wire connections neatly into the wall junction box.
Your installation is now complete. Return power to the junction
box and test the fixture.
FIG.1
FIG.2
FIXTURE
WIRES
Black or
Smooth
Need assistance with parts or assembly? Please call customer service.
ALL RIGHTS RESERVED.
FIXTURE
WIRES
White or
Ribbed
HOUSE
WIRES
Black(Hot)
Thank you for purchasing a product.
HOUSE
WIRES
White
(Neutral)
FIXTURE
WIRES
Bare
Copper
(Ground)
HOUSE
WIRES
Green or Bare
Copper(Ground)
