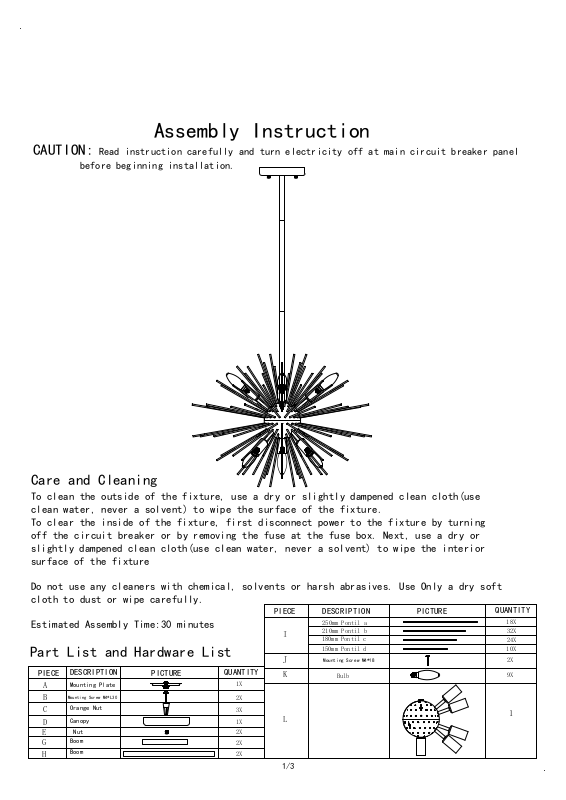

Page 1
Assembly Instruction
CAUTION: Read instruction carefully and turn electricity off at main circuit breaker panel
before beginning installation.
Care and Cleaning
To clean the outside of the fixture, use a dry or slightly dampened clean cloth(use
clean water, never a solvent) to wipe the surface of the fixture.
To clear the inside of the fixture, first disconnect power to the fixture by turning
off the circuit breaker or by removing the fuse at the fuse box. Next, use a dry or
slightly dampened clean cloth(use clean water, never a solvent) to wipe the interior
surface of the fixture
Do not use any cleaners with chemical, solvents or harsh abrasives. Use Only a dry soft
cloth to dust or wipe carefully.
DESCRIPTION
250mm Pontil a
210mm Pontil b
180mm Pontil c
150mm Pontil d
Mounting Screw M4*18
Bulb
Estimated Assembly Time:30 minutes
Part List and Hardware List
PIECE
A
B
C
D
E
G
H
DESCRIPTION
Mounting Plate
Mounting Screw M4*L30
Orange Nut
Canopy
Nut
Boom
Boom
QUANTITY
PIECE
I
J
K
1X
2X
3X
1X
2X
2X
2X
L
1/3
QUANTITY
18X
32X
24X
10X
2X
9X
1
Page 2
Installation
Step 1
Unpack all parts from cartons carefully.
Place the Canopy(D)onto the Boom(G)
Place the tube of Mounting Plate(A)into the theaded portion
Place the Mounting Screw(B)onto the
Nut(E)and fix it by turing the Boom(G)
clockwise till tight.
Attach the Boom(H) onto the Boom(G)
Step2
Tighten the Pontil (I) to lamp(J).
From Round 1 to Round
B
A
D
E
G
H
I
ROUND 1
ROUND 2
ROUND 3
ROUND 4
J
ROUND 4
ROUND 3
ROUND 2
ROUND 1
b
a
a
b
b b
a
BULB
c
b
a
c
c
b
c
d
b
BULB
b
c
a
b
b
c
d
d
b
a
BULB
c
c
d
c
BULB
c
a
b
b
a
c
d
b
b
a
c
(a b c d) is the holes for Pontil(I)
Remark BULB is for sockets.
From center to outer is one to one
correspondence Round 1 to Round 4.
2/3
Page 3
Step 3 Wire connection
Connect,Hot,Black or Red outlet Supply Wire to: Connect,Neutral,White Outlet Supply Wire to:
Black White
*Parallel Cord(round&smooth) *Parallel Cord(square&ridged)
Clear,Brown,Gold or Black without Tracer(colored stripes) Clear,Brwn,Gold or Black without Tracer(colored stripes)
Insulated Wire(not green)with copper metal conductor Insulated Wire(not green)with Silver metal conductor
*Note: When parallel wire(SPTI&SPTII)is used. The neutral wire is square shaped andridged
and the hot wire will be round in shape and smooth.(See illustration on left)
Grounding Instructions:
a) For installation in the United States: Wrap ground wire from outlet box around green ground screw on
mounting bracket, no less than 2" from wire end. Tighten ground screw. If fixture is supplied with a ground
wire, connect to outlet ground wire with a wire connector.
b) For installation in Canada: If fixture is supplied with ground wire, wrap ground wire around green
grounding screw on mounting bracket. Tighten ground screw.
A
Step 4
Seperate the Mounting Plate(A) from the Canopy(D)
anti-clockwise.
Step 5
Install the Mounting Plate(A) to the junction box with Mounting Screw (C)
Attach the Canopy(D) to the junction box and fix it clockwise
Insert the bulbs (K) into the Sockets
PLEASE USE TYPE "B" BULB MAX 40-WATT OR CFL BULB MAX 13-WATT OR LED BULB
MAX 9-WATT
THERE ARE 9PCS LED 4-WATT BULBS IN THE BOX
D
C
A
J
D
G
H
Step 6
Consult a qualified electrician to ensure correct branch
circuit conductor.
ENJOY YOUR LAMP
I
K
L
3/3
