AFTER A FEW DAYS OF ASSEMBLY, IT WILL HAVE ACCLIMATIZED TO THE ENVIRONMENT. PLEASE TIGHTEN ALL HARDWARE.NOTE:
STEP 1
QTY
HARDWARE LIST
NO
QTYPART LIST
NO

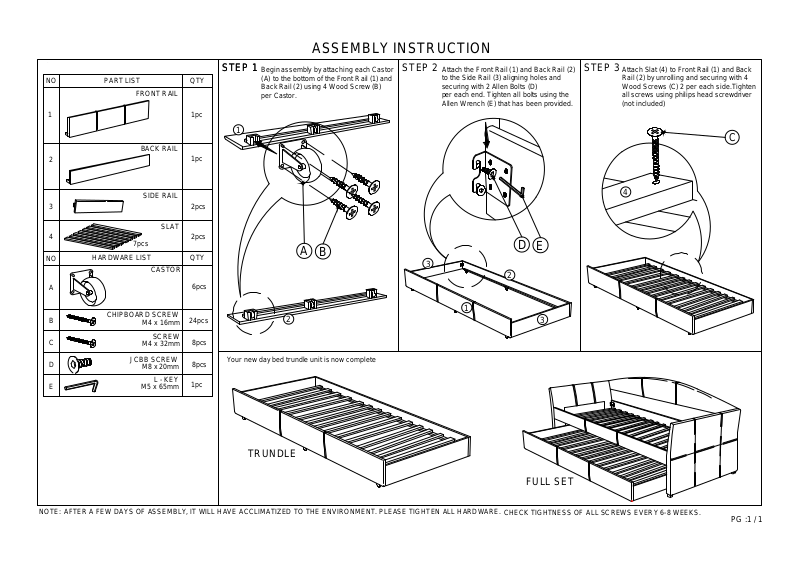

ASSEMBLY INSTRUCTION
BACK RAIL
FRONT RAIL
1pc
1pc
1
2
2pcs
3
SIDE RAIL
2pcs
4
SLAT
7pcs
FULL SET
TRUNDLE
PG :1 / 1
D
E
C
1pc
L - KEY
M5 x 65mm
JCBB SCREW
8pcs
M8 x 20mm
SCREW
8pcs
M4 x 32mm
B
A
6pcs
CASTOR
CHIPBOARD SCREW
24pcs
M4 x 16mm
STEP 1 STEP 3
1
2
3
3
STEP 2
1
2
A
B
Begin assembly by attaching each Castor
(A) to the bottom of the Front Rail (1) and
Back Rail (2) using 4 Wood Screw (B)
per Castor.
D
E
C
4
Attach the Front Rail (1) and Back Rail (2)
to the Side Rail (3) aligning holes and
securing with 2 Allen Bolts (D)
per each end. Tighten all bolts using the
Allen Wrench (E) that has been provided.
Attach Slat (4) to Front Rail (1) and Back
Rail (2) by unrolling and securing with 4
Wood Screws (C) 2 per each side.Tighten
all screws using philips head screwdriver
(not included)
Your new day bed trundle unit is now complete
MODEL : Day Bed - TRUNDLE
CHECK TIGHTNESS OF ALL SCREWS EVERY 6-8 WEEKS.
