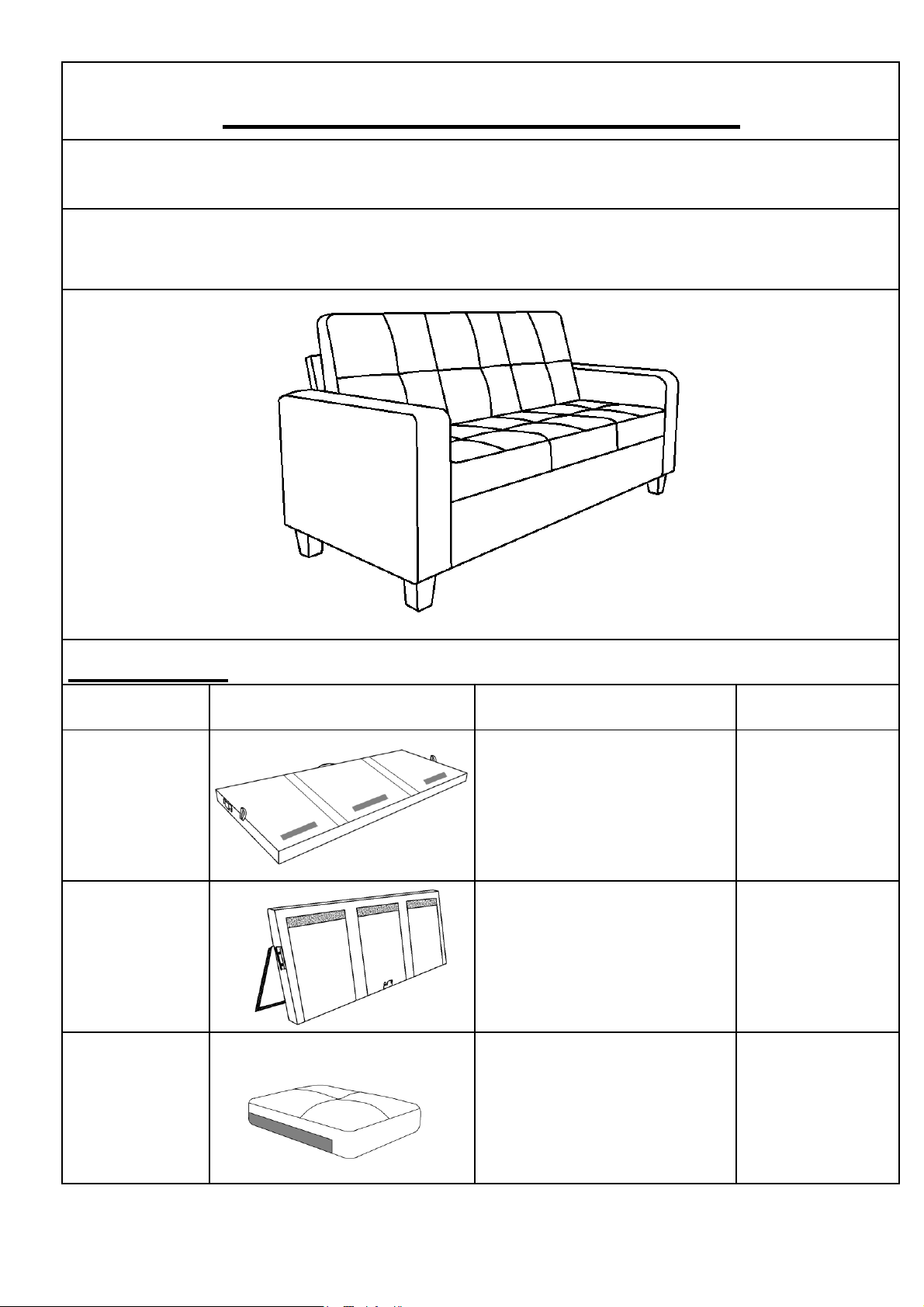

Label Picture Description QTY(pc)
A Seat Base 1
B Backrest 1
C Seat Cushion 2
Assembly Instructions
Caution: You must read this before you proceed
Sofa
Parts List
Page 1 OF 11
D Back Cushion 2
E Left Arm 1
F Right Arm 1
G Front Seat Board 1
H Back Seat Board 1
I
Wooden Leg with 1
plastic gasket
4
Page 2 OF 11
J
Middle Leg with 1
Plastic Gasket
1
①
Plastic Gasket 3
②
Allen Key 1
Before
Begining
Assembly:
Hardware List
Assembly Preparation
Page 3 OF 11
Step 1
Assembly Steps

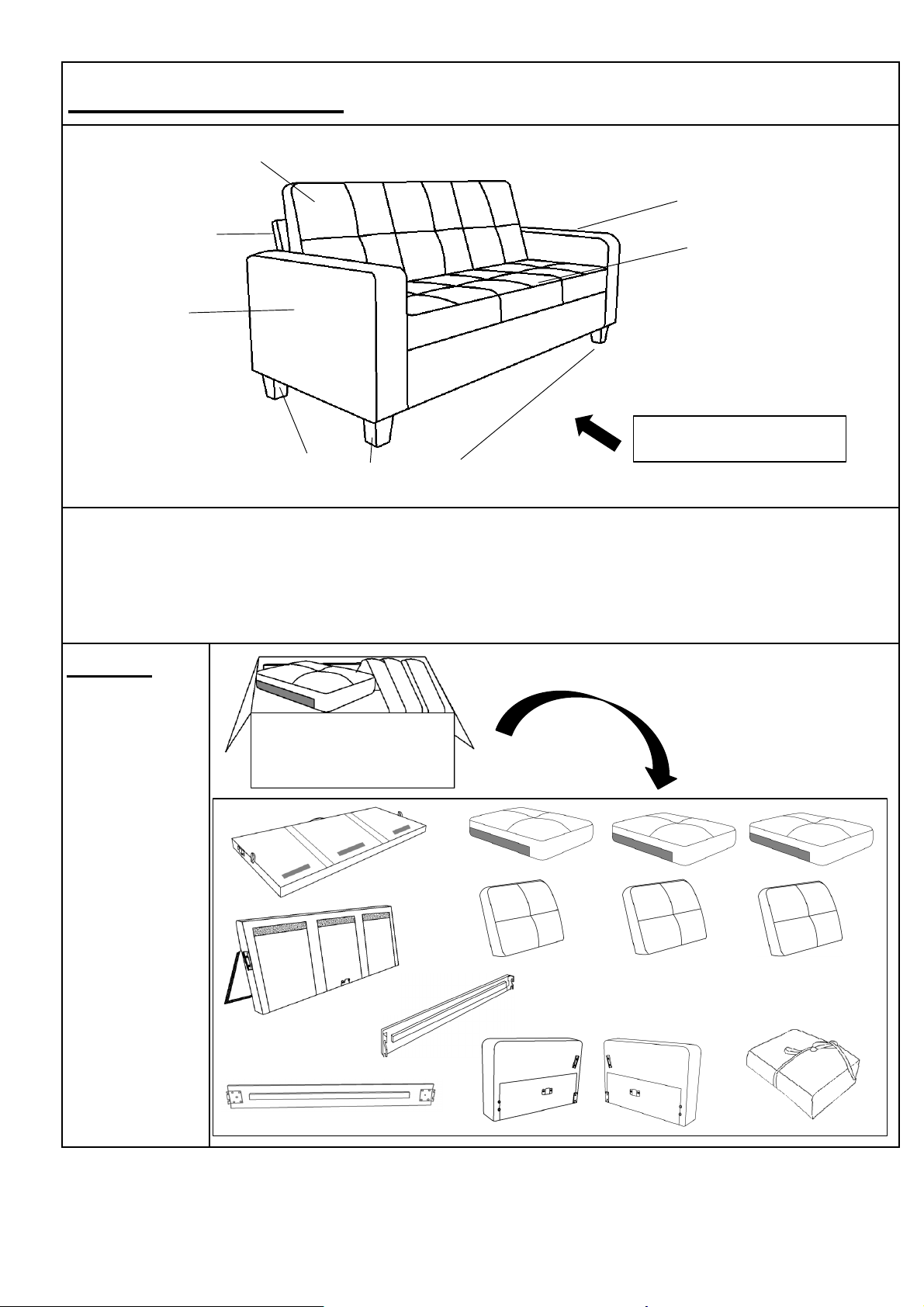

This Sofa has multiple parts and may require about 30 minutes to assemble. To give you
an overview of the sofa parts, the above picture is to help you put the various parts into
perspective. Please read through the instructions below to familiarise yourself with the
parts and steps before assembly.
FRONT FACING
Backrest(B)
Seat Cushion(C)
Right Arm (F)
Back Cushion(D)
Wooden Leg with 1 plastic gasket
Left Arm (E)
G
Small Carton
Front Seat Board(G)
A
B
C
C
C
D
D
D
F
Caton Package
H
E
Page 4 OF 11
Step 2
Step 3

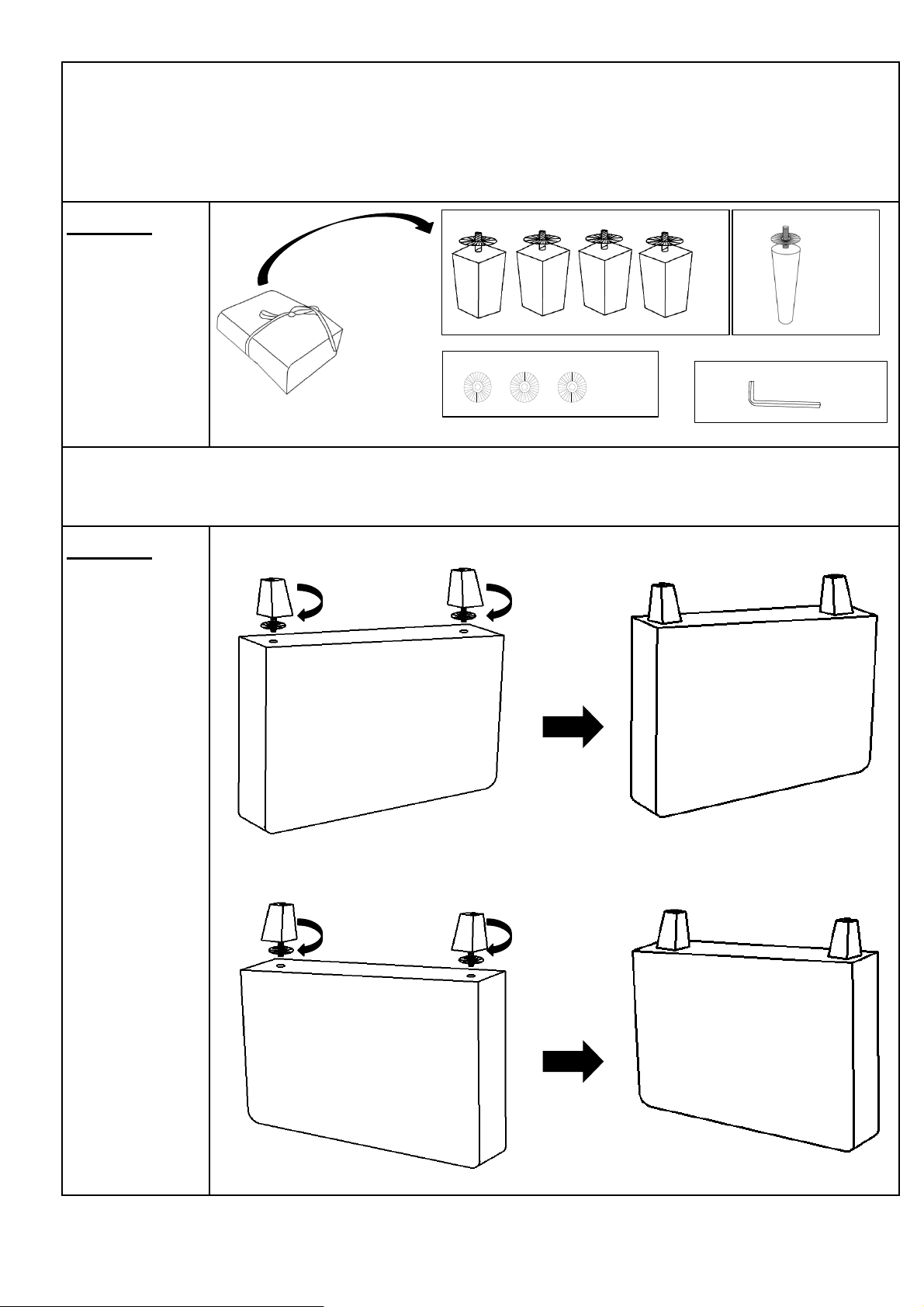

Open the Small Carton to take out the Wooden Leg with 1 Plastic Gaskets(I), Middle Leg
with 1 Plastic Gasket(J) ,Plastic Gasket(①) and Allen Key(②).
Take the Seat Base(A), Backrest(B), Seat Cushion(C), Back Cushion(D), Left Arm
Board(E), Right Arm Boad(F), Front Seat Board(G), Back Seat Board(H) and Small
Bubble Pack out from the carton and place them on a clean, non-marring surface.
J
I
I
I
I
E
F
Bubble Pack
①
②
I
E
F
Page 5 OF 11
Step 4
Carefully install the Legs with 1 Plastic Gaskets(①) at the bottom of Left Arm(E) and Right
Arm(F).
Insert threaded stem into the mounting position at the corner of Left Arm(E) and Right
Arm(F), Tighten by turning the Legs clockwise.
Take care of the shape of the Legs and ensure they in the correct postions.
Note:The use of Gaskets are OPTIONAL and are especially useful to help alleviate slight
wobbleness. Some Legs may need more than one gasket while some legs may not need
anyny.

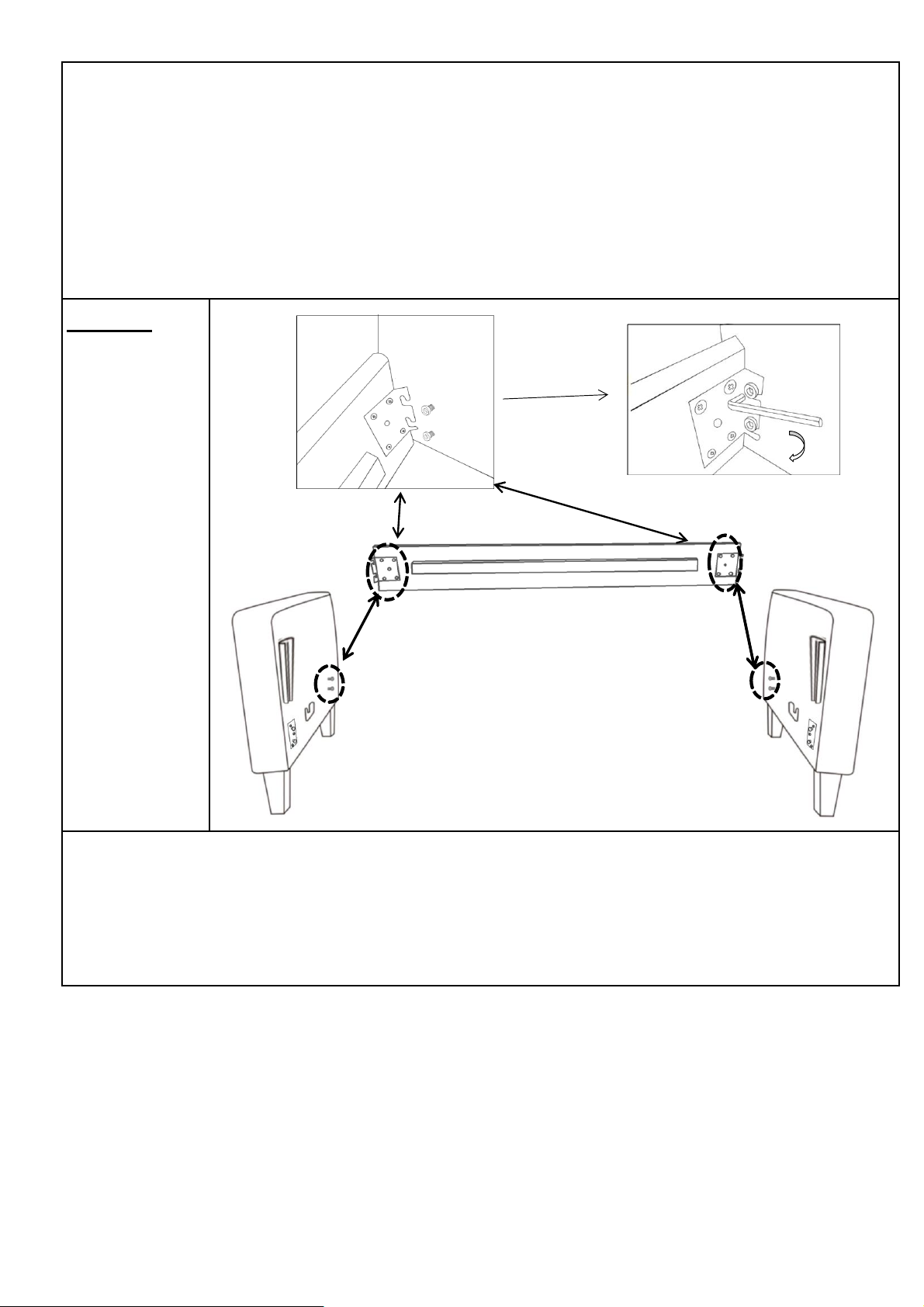

With assistance from your adult partner, postion the Left Arm (E) and Right Arm (F) as
picture, hold up the Front Seat Board(G) and stand front the both Arms, assemble the
Front Seat Board(G) by putting the metal hook on the two raised screws on the front side
of both arms and push down make sure to the right position, then by tighten with Allen
Key(②). do it one by one and make sure into position.
G
F
E
G
G
②
Page 6 OF 11
Step 5

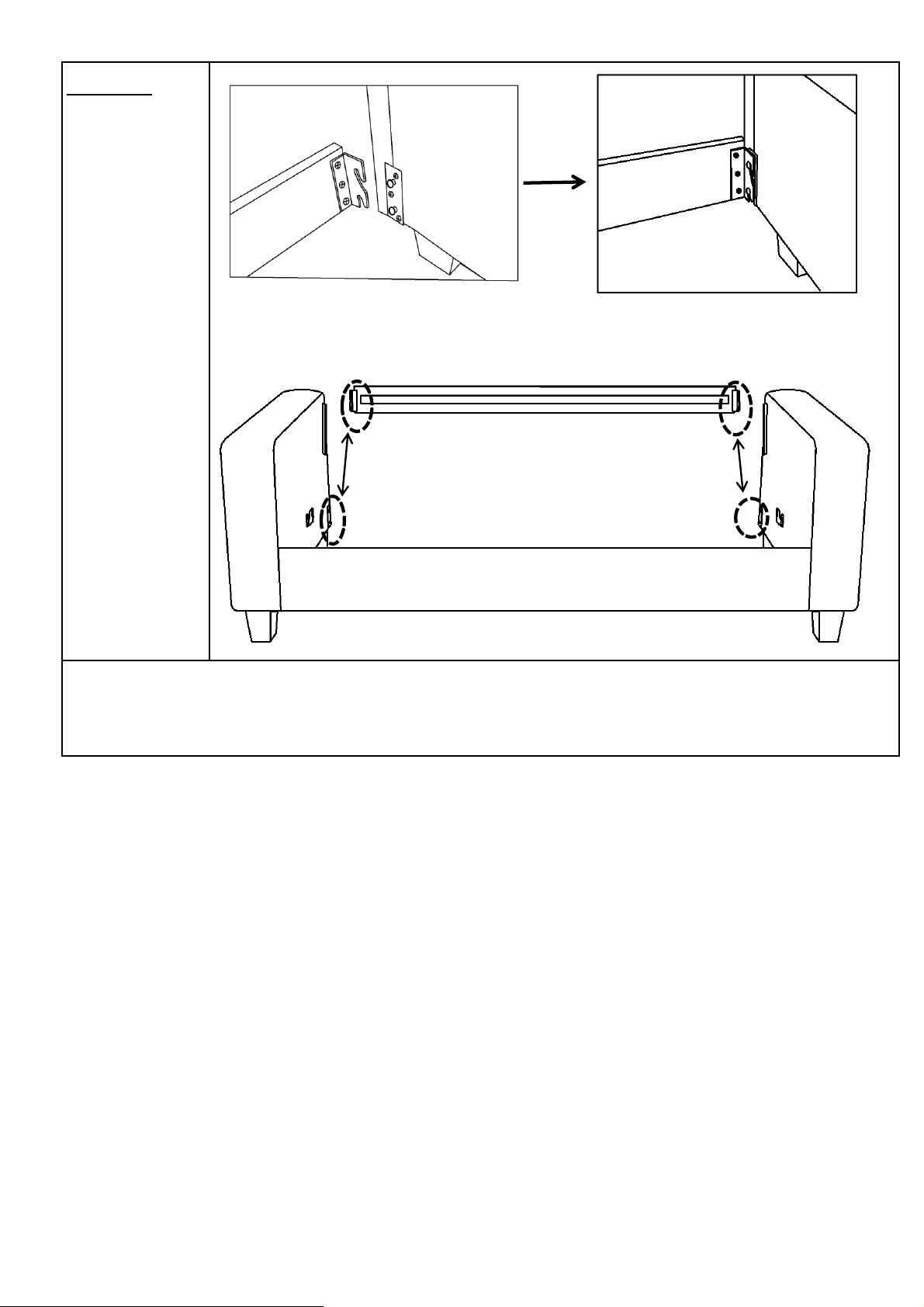

As to the Step 4, assemble the Hind Seat Board(H) at the behind of Left Arm(E) and Right
Arm(F) as picture,don't need to tight with Allen Key.
F
H
G
E
H
H
F
F
Page 7 OF 11
Step 6
With assistance from your adult partner, hold up the Backrest(B), while standing behind
the Seat Base(A).
Align the mounting brackets on both sides of the Backrest(B) with those on the hind of Left
Arm (E) and Right Arm (F).
Then slide Backrest(B) downward to make sure it locks into place as pictured
upward hook slot
B
B
E
F
G
Page 8 OF 11
Step 8

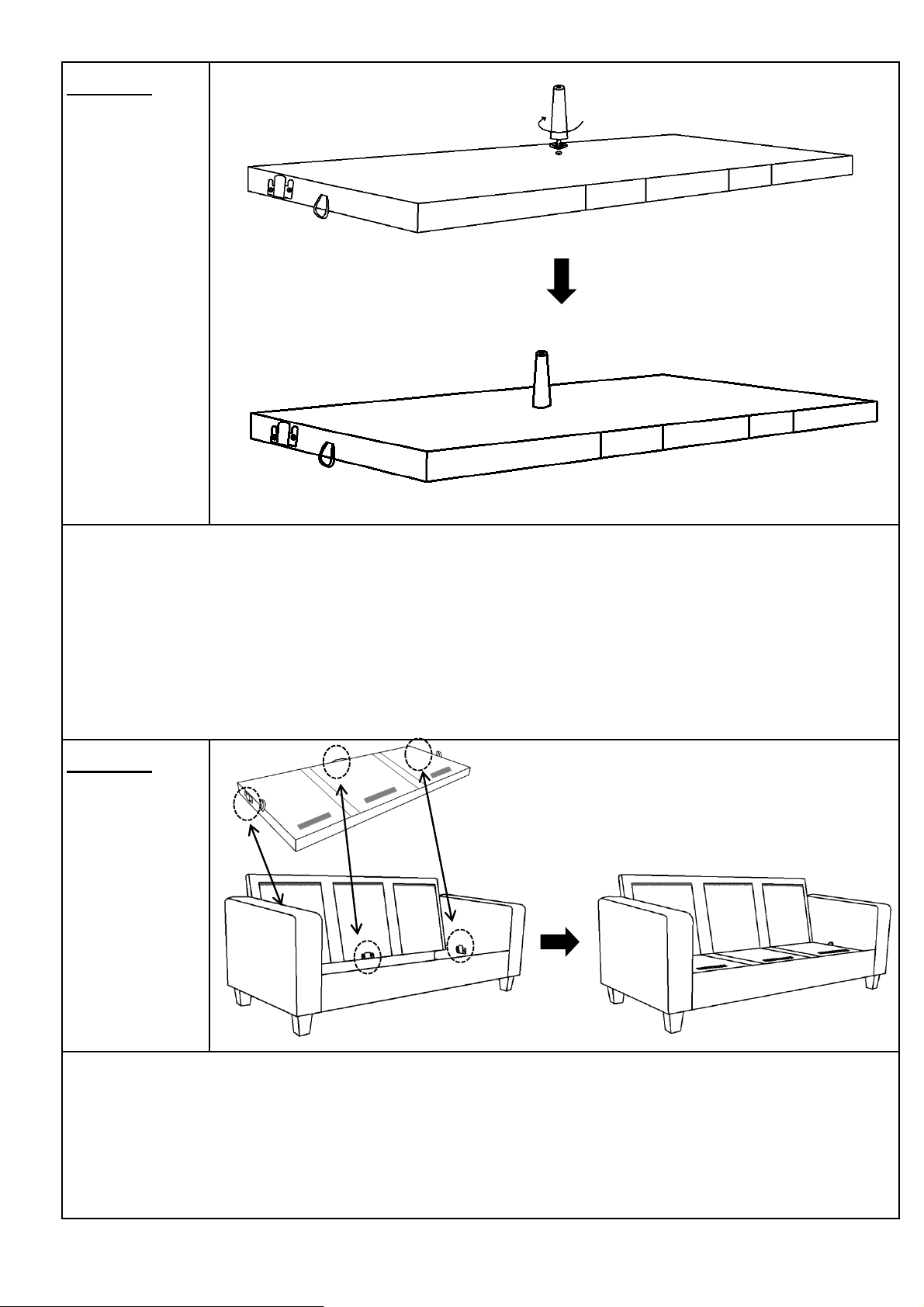

With assistance from your adult partner,hold up the Seat Base(A) on the top of the
assembled parts,put the front side of Seat Base(A) over on the rail of Front Seat Board(G)
as picture.
then slide the two downward hooks on each side of the Seat Base(A) into the upward
hooks slot on the Left Arm(E) and Right Arm(F),do it one by one and make sure into the
right position.
Step 7
Install the Middle Leg with 1 Plastic Gaskets(J) at the bottom of the Seat Base(A).
Insert threaded stem into the mounting position at the bottom of the Seat Base(A),Tighten
by turning the Leg clockwise.
Take care of the shape of the Legs and ensure they in the correct postions.
Note:The use of Gaskets are OPTIONAL and are especially useful to help alleviate slight
wobbleness. Some Legs may need more than one gasket whilst some Legs may not need
any.
J
A
E
F
G
B
A
A
Page 9 OF 11
Step 9
Step 9
Put the Seat Cushions(C) on the Seat Base(A).
Place the Back Cushions(D) on the Seat Cushions(C) against Backrest(B) and fixed with
Velcro.
Your Sofa is ready for use.
This Sofa can only be used on a flat, level surface.
C
C
C
D
D
D
E
F
G
B
E
F
G
B
Page 10 OF 11

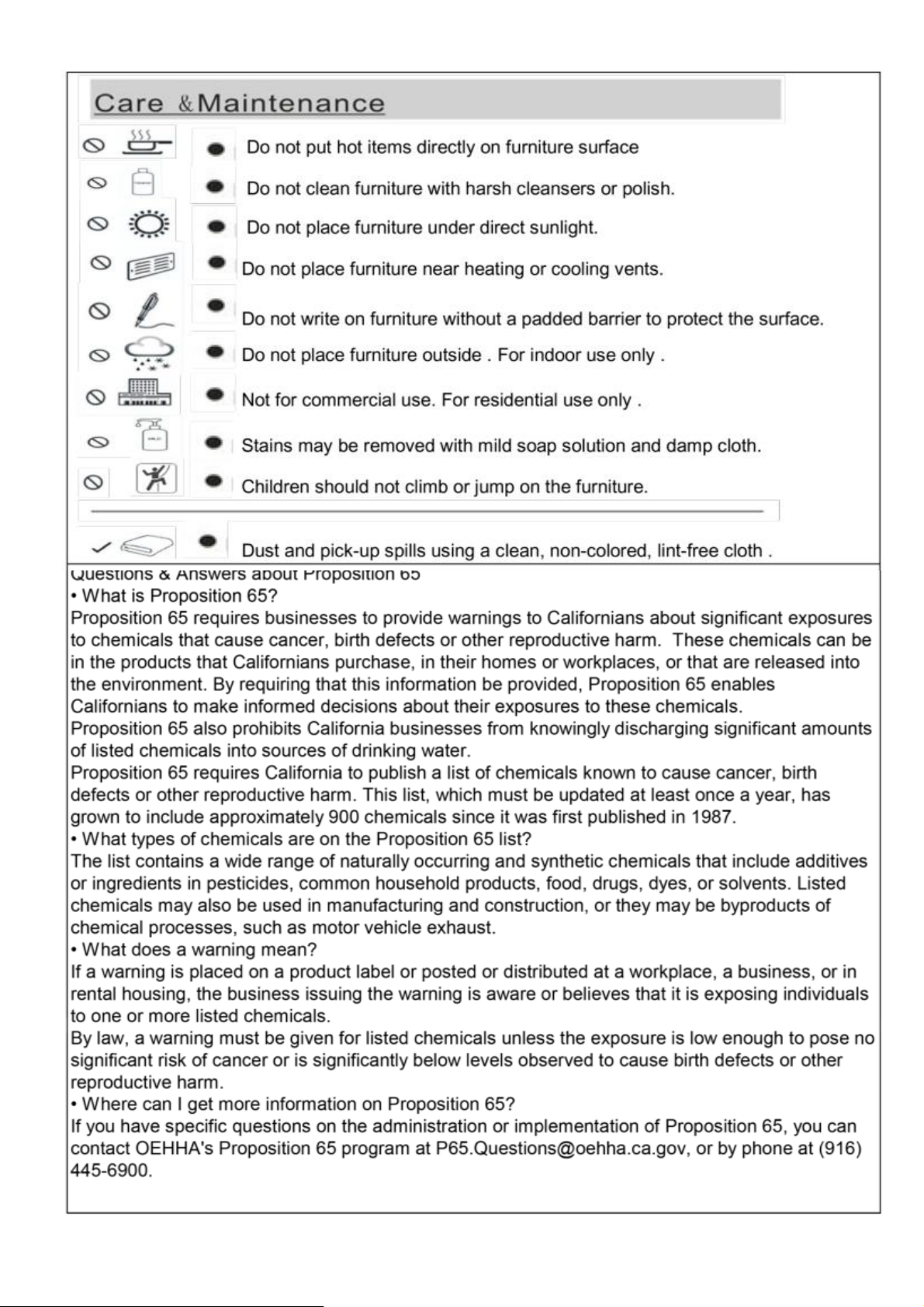

Page 11 OF 11
