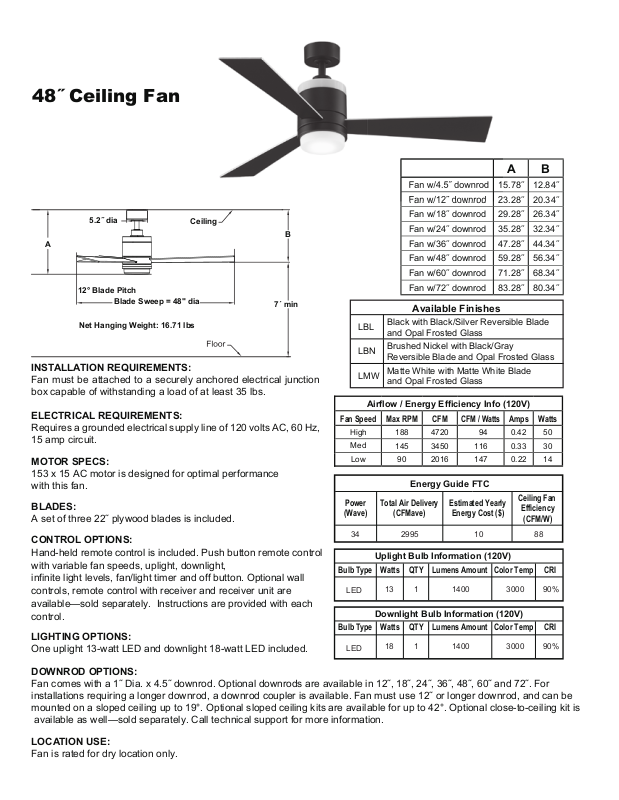

48˝ Ceiling Fan
5.2˝ dia
A
12° Blade Pitch
Blade Sweep = 48" dia
Net Hanging Weight: 16.71 lbs
Ceiling
B
7´ min
INSTALLATION REQUIREMENTS:
Fan must be attached to a securely anchored electrical junction
box capable of withstanding a load of at least 35 lbs.
ELECTRICAL REQUIREMENTS:
Requires a grounded electrical supply line of 120 volts AC, 60 Hz,
15 amp circuit.
MOTOR SPECS:
153 x 15 AC motor is designed for optimal performance
with this fan.
BLADES:
A set of three 22˝ plywood blades is included.
CONTROL OPTIONS:
Hand-held remote control is included. Push button remote control
with variable fan speeds, uplight, downlight,
infinite light levels, fan/light timer and off button. Optional wall
controls, remote control with receiver and receiver unit are
available—sold separately. Instructions are provided with each
control.
LIGHTING OPTIONS:
One uplight 13-watt LED and downlight 18-watt LED included.
A
Fan w/4.5˝ downrod 15.78˝ 12.84˝
Fan w/12˝ downrod 23.28˝ 20.34˝
Fan w/18˝ downrod 29.28˝ 26.34˝
Fan w/24˝ downrod 35.28˝ 32.34˝
Fan w/36˝ downrod 47.28˝ 44.34˝
Fan w/48˝ downrod 59.28˝ 56.34˝
Fan w/60˝ downrod 71.28˝ 68.34˝
Fan w/72˝ downrod 83.28˝ 80.34˝
B
Available Finishes
Black with Black/Silver Reversible Blade
LBL
and Opal Frosted Glass
Brushed Nickel with Black/Gray
LBN
Reversible Blade and Opal Frosted Glass
Matte White with Matte White Blade
LMW
and Opal Frosted Glass
Airflow / Energy Efficiency Info (120V)
Fan Speed Max RPM CFM
High
Med
Low
Power
(Wave)
34 2995 10 88
Bulb Type Watts Lumens Amount Color Temp CRI
LED
Bulb Type Watts Lumens Amount Color Temp CRI
LED
188 4720 94 0.42 50
145 3450 116 0.33
90 147 0.223014
Total Air Delivery
(CFMave)
Uplight Bulb Information (120V)
13 1 1400 3000 90%
Downlight Bulb Information (120V)
18 1 1400 3000 90%
2016
Energy Guide FTC
QTY
QTY
CFM / Watts
Estimated Yearly
Energy Cost ($)
Amps Watts
Ceiling Fan
Efficiency
(CFM/W)
DOWNROD OPTIONS:
Fan comes with a 1˝ Dia. x 4.5˝ downrod. Optional downrods are available in 12˝, 18˝, 24˝, 36˝, 48˝, 60˝ and 72˝. For
installations requiring a longer downrod, a downrod coupler is available. Fan must use 12˝ or longer downrod, and can be
mounted on a sloped ceiling up to 19°. Optional sloped ceiling kits are available for up to 42°. Optional close-to-ceiling kit is
available as well—sold separately. Call technical support for more information.
LOCATION USE:
Fan is rated for dry location only.
