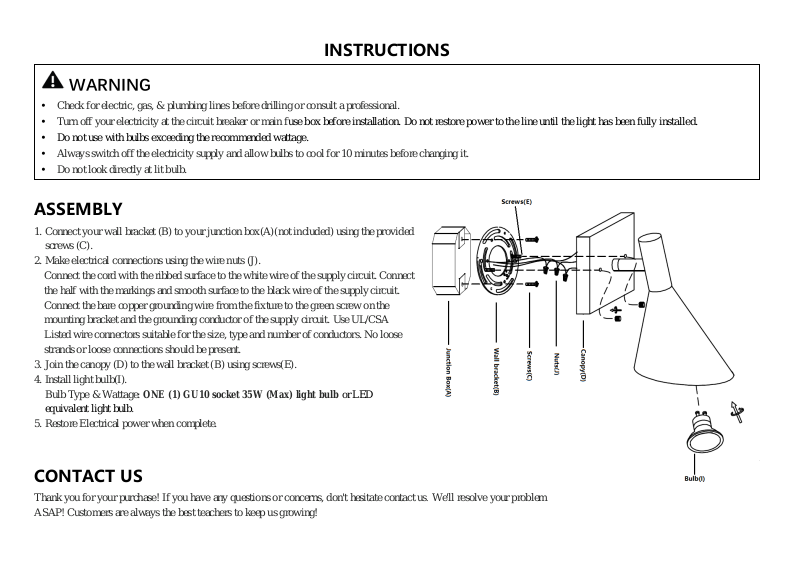

INSTRUCTIONS
Do not look directly at lit bulb.
WARNING
Check for electric, gas, & plumbing lines before drilling or consult a professional.
T
urn off your electricity at the circuit breaker or main fuse box before installation. Do not restore power to the line until the light has been fully installed.
Do not use with bulbs exceeding the recommended wattage.
A
lways switch off the electricity supply and allow bulbs to cool for 10 minutes before changing it
ASSEMBLY
1. Connect your wall bracket (B) to your junction box(A)(not included) using the provided
scr
ews (C).
. M
2
ake electrical connections using the w ire nuts (J).
Connect the cord with the ribbed surface to the white wire of the supply circuit. Connect
the half with the markings and smooth surface to the black wire of the supply circuit.
Connect the bare copper grounding wire from the fixture to the green screw on the
mounting bracket and the grounding conductor of the supply circuit. Use UL/CSA
Listed wire connectors suitable for the size, type and number of conductors. No loose
strands or loose connections should be present.
3. Join the canopy (D) to the wall bracket (B) using screws(E).
4. Install light bulb(I).
Bulb Type & Wattage: ONE (1) GU10 socket 35W (Max) light bulb
equivalent lig h t bu lb.
5. Restore Electrical power when complete.
or LED
.
