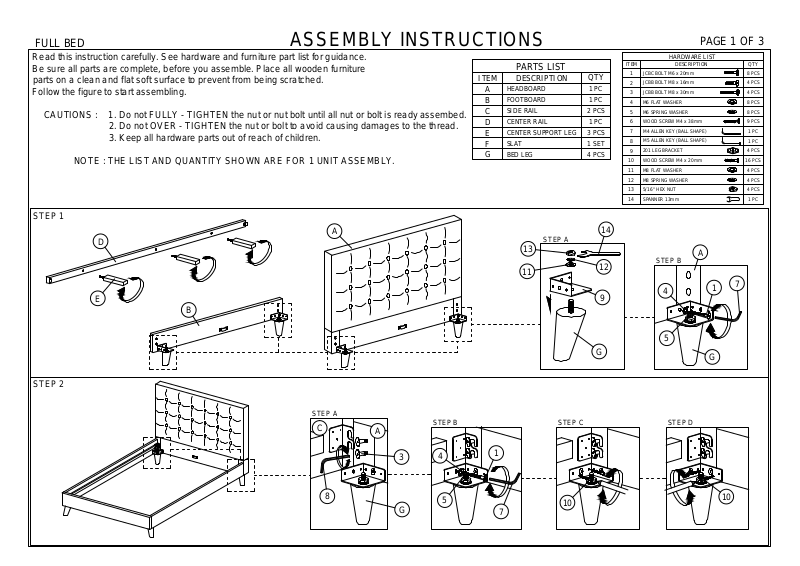

Page 1
FULL BED
ASSEMBLY INSTRUCTIONS
Read this instruction carefully. See hardware and furniture part list for guidance.
Be sure all parts are complete, before you assemble. Place all wooden furniture
parts on a clean and flat soft surface to prevent from being scratched.
Follow the figure to start assembling.
CAUTIONS : 1. Do not FULLY - TIGHTEN the nut or nut bolt until all nut or bolt is ready assembed.
2. Do not OVER - TIGHTEN the nut or bolt to avoid causing damages to the thread.
3. Keep all hardware parts out of reach of children.
NOTE : THE LIST AND QUANTITY SHOWN ARE FOR 1 UNIT ASSEMBLY.
STEP 1
A
D
E
B
PARTS LIST
ITEM DESCRIPTION
HEADBOARD 1 PC
A
FOOTBOARD 1 PC
B
SIDE RAIL 2 PCS
C
CENTER RAIL 1 PC
D
CENTER SUPPORT LEG 3 PCS
E
SLAT 1 SET
F
BED LEG 4 PCS
G
STEP A
13
11
QTY
ITEM DESCRIPTION
JCBC BOLT M6 x 20mm 8 PCS
1
JCBB BOLT M8 x 16mm 4 PCS
2
JCBB BOLT M8 x 30mm 4 PCS
3
M6 FLAT WASHER 8 PCS
4
M6 SPRING WASHER 8 PCS
5
WOOD SCREW M4 x 38mm 9 PCS
6
M4 ALLEN KEY (BALL SHAPE)
7
M5 ALLEN KEY (BALL SHAPE)
8
201 LEG BRACKET 4 PCS
9
WOOD SCREW M4 x 20mm 16 PCS
10
M8 FLAT WASHER 4 PCS
11
M8 SPRING WASHER 4 PCS
12
5/16" HEX NUT
13
SPANNER 13mm 1 PC
14
14
12
9
HARDWARE LIST
STEP B
4
PAGE 1 OF 3
QTY
1 PC
1 PC
4 PCS
A
7
1
STEP 2
STEP A
C
8
5
STEP B
G
STEP C STEP D
G
A
3
4
5
G
1
10
10
7
Page 2
STEP 3
ASSEMBLY INSTRUCTIONS
PAGE 2 OF 3
STEP 4
STEP A
C
8
A
D
B
STEP B
2
G
4
5
1
7
STEP C STEP D
10
10
Page 3
STEP 5
STEP 6
ASSEMBLY INSTRUCTIONS
6
F
PAGE 3 OF 3
* When moving the bed position, the center support legs
must be adjust to be straight to avoid any broken problem.
