Caution :You must read this before you proceed

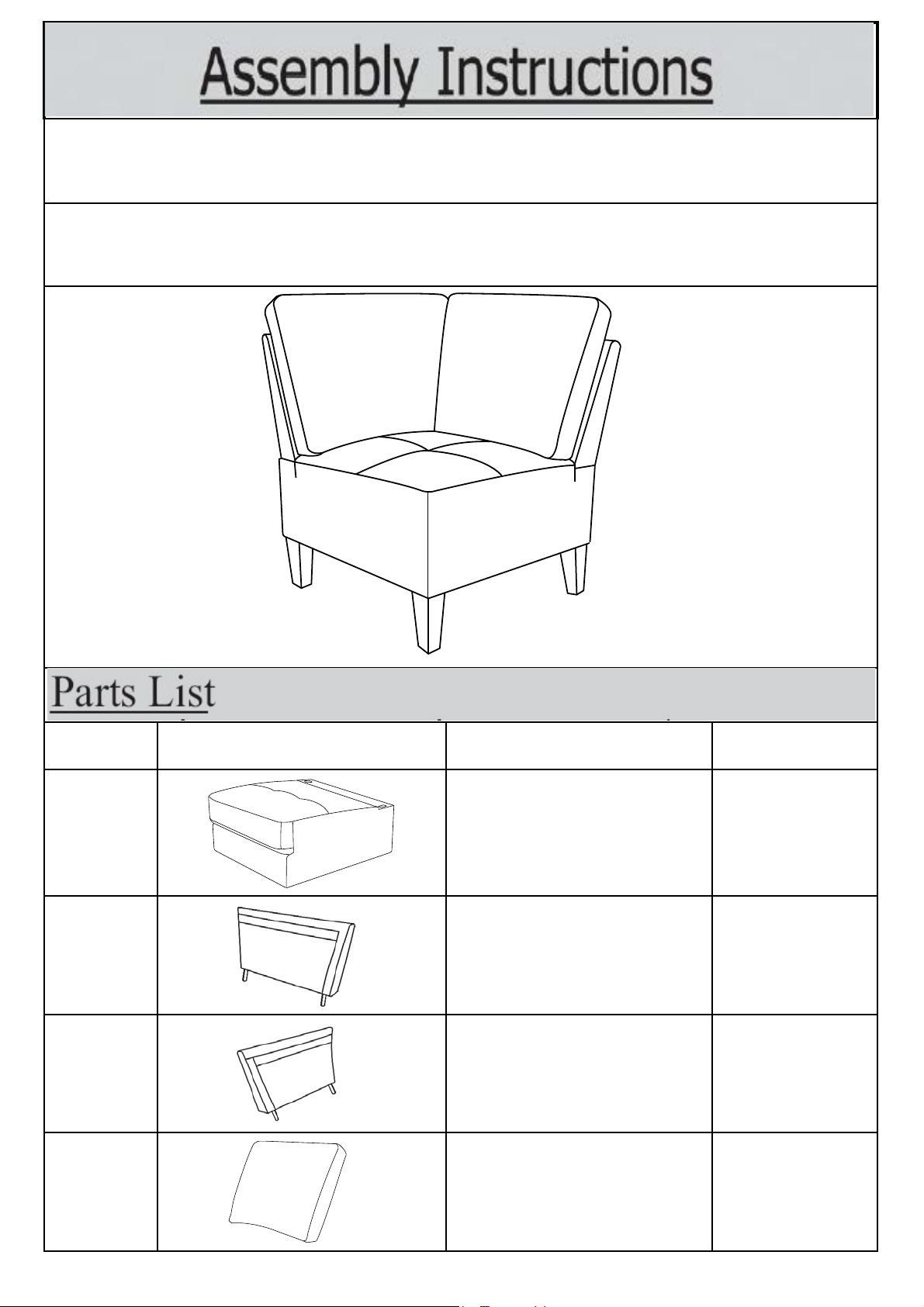

CORNER SOFA
Label Picture Description QTY
A Chair Seat 1
B Long Backrest 1
B1 Short Backrest 1
C Back Cushion 2
1 of 9
D Leg 4
Before Beginning Assembly:
Label Picture Description QTY
①
②
③
④
⑤
⑥
Washer Rings 7
Allen key 1
Bolt M8*20mm 2
Spring Washer 2
Flat Washer 2
Connecting Piece 1
2 of 9

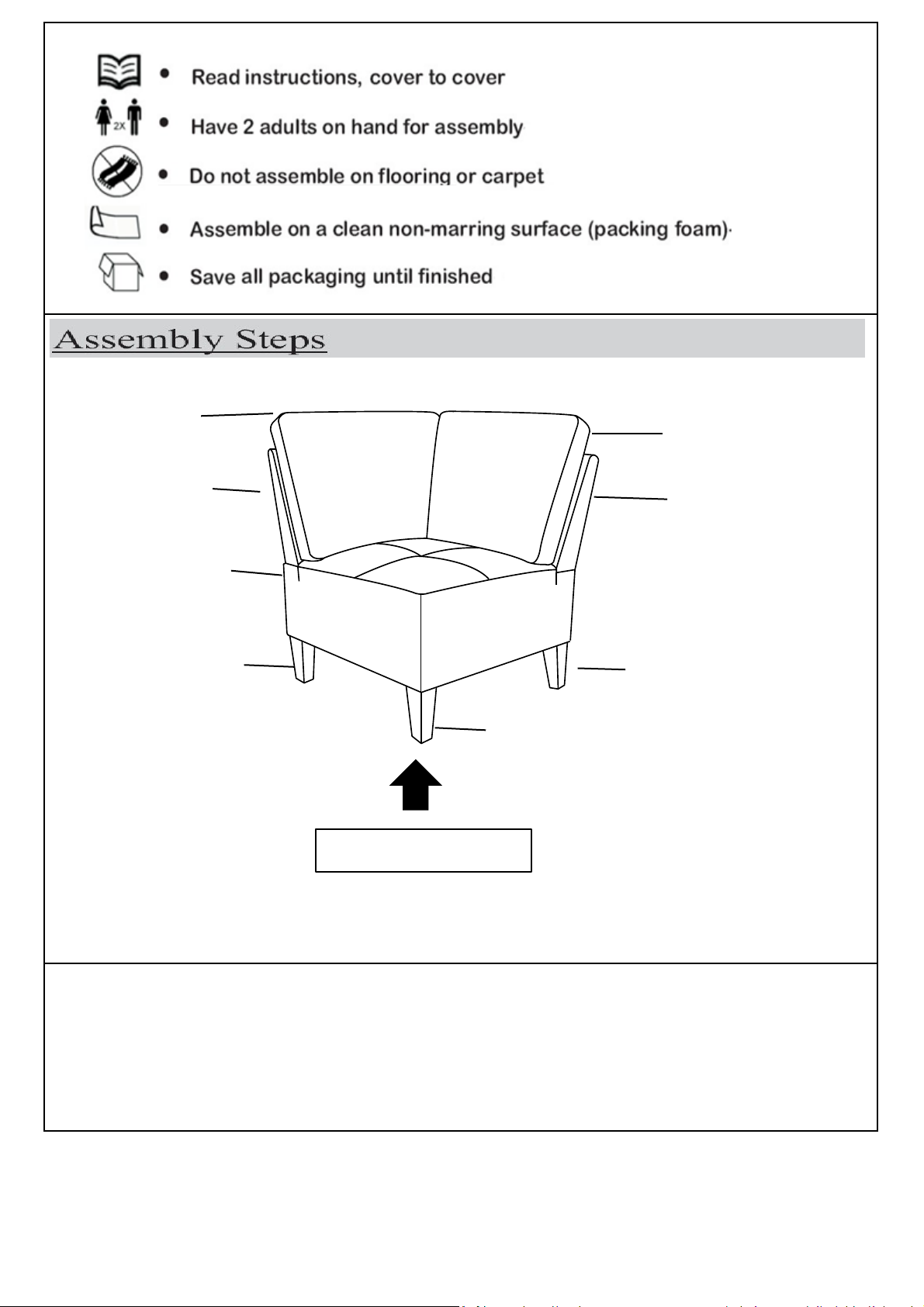

Back Cushion(C)
Back Cushion(C)
Short Backrest(B1)
Chair Seat(A)
Leg (D)
Long Backrest(B)
Leg (D)
Leg (D)
FRONT FA CING
This CORNER SOFA has multiple parts and may require up to some 30
minutes to assemble. To give you an overview of the CORNER SOFA
parts, the above picture is to help you put the various parts into
perspective. Please read through the instructions below to familiarise
yourself with the parts and steps before assembly.
3 of 9

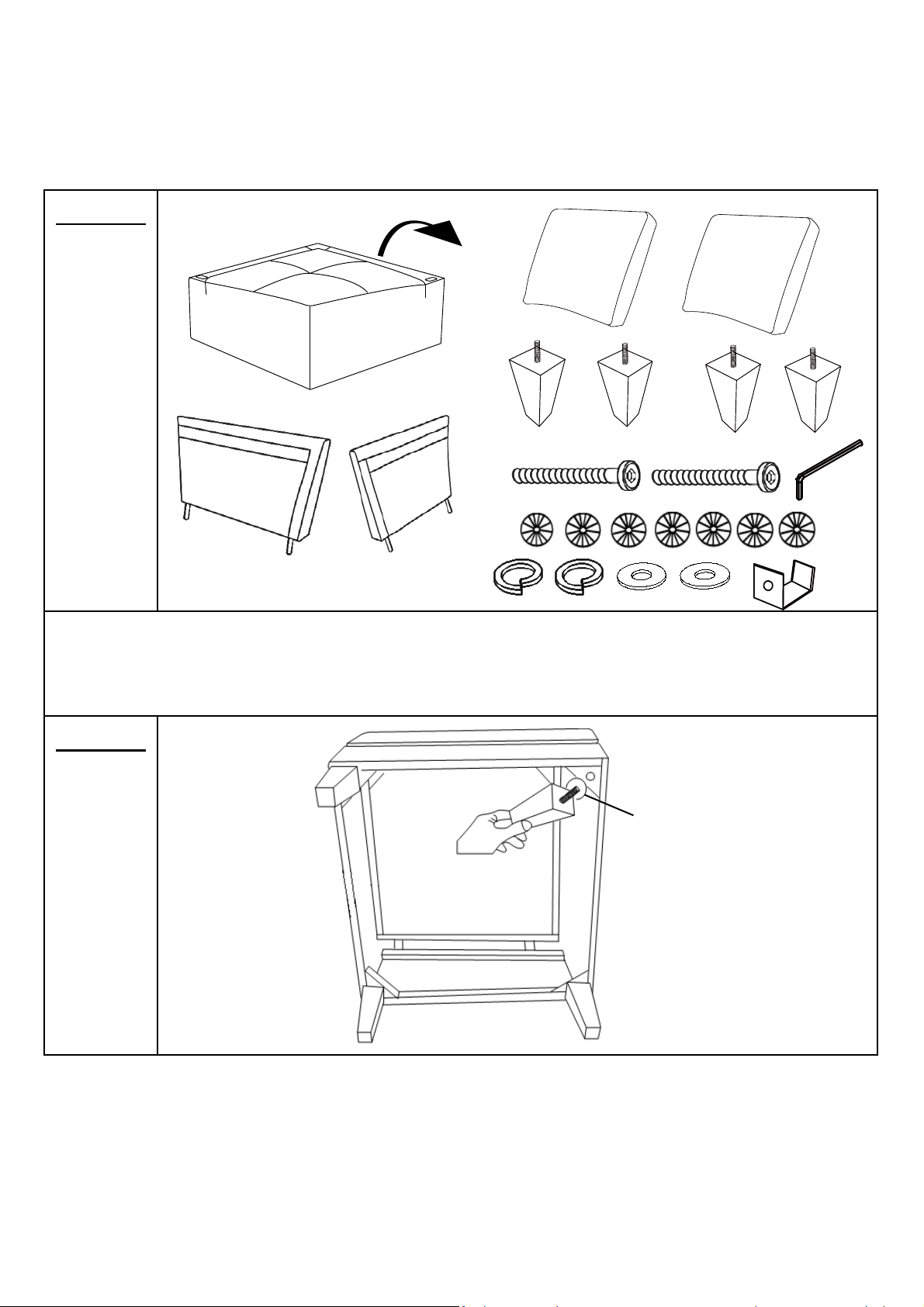

Step 2
Step 1
C
B1
A
B
C
Position the Chair Seat(A) on its back,as shown.
Unzip to open pouch and remove the 4 wooden legs and Back Cushion,
close the pouch.
D
A
D
Washer Ring(①)
D
4 of 9

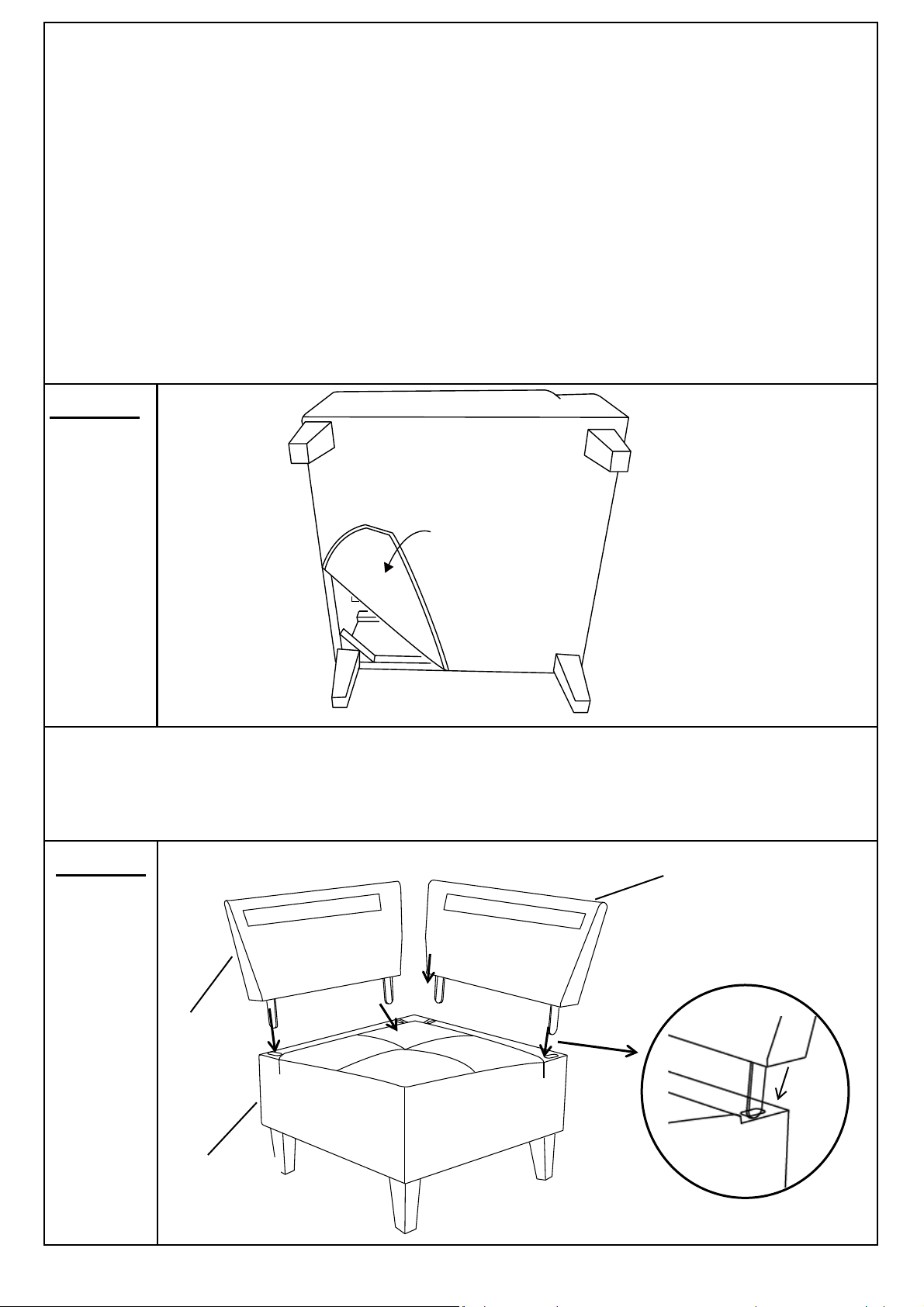

Step 3
Install the Legs(D) into the bottom of the Chair Seat(A) by placing a
Step 4
Washer Ring(①) onto the threaded stem of the Legs.
And then insert the threaded stem into the threaded mounting position at
each Corner of the Bottom of the Chair Seat(A).
Tighten by turning the Legs clockwise.
Note: The use of Washer Ring(①) are OPTIONAL and are especially
useful to help alleviate slight wobbles.
Some Legs may need more than one Gasket whilst some Legs may not
need any.
Position Sofa right side up and test for stability on a Level Surface.
Add or remove Washer Ring(①) where needed to achieve stability.
Position Corner Sofa right side up.
Cover the bottom of the Chair Seat(A) with the non-woven fabric.
Smooth down the Magic Tape on all four sides of the Seat by hand.
Long Backrest(B)
Short
Backrest(B1)
Chair Seat(A)
5 of 9
Step 5
Step 6
Align the mounting positions on the Chair Seat(A) and the Long
Backrest(B) .
Insert the Long Backrest (B) into the Chair Seat (A) as shown in above
picture.
Repeat the same step to install the Short Backrest(B1).

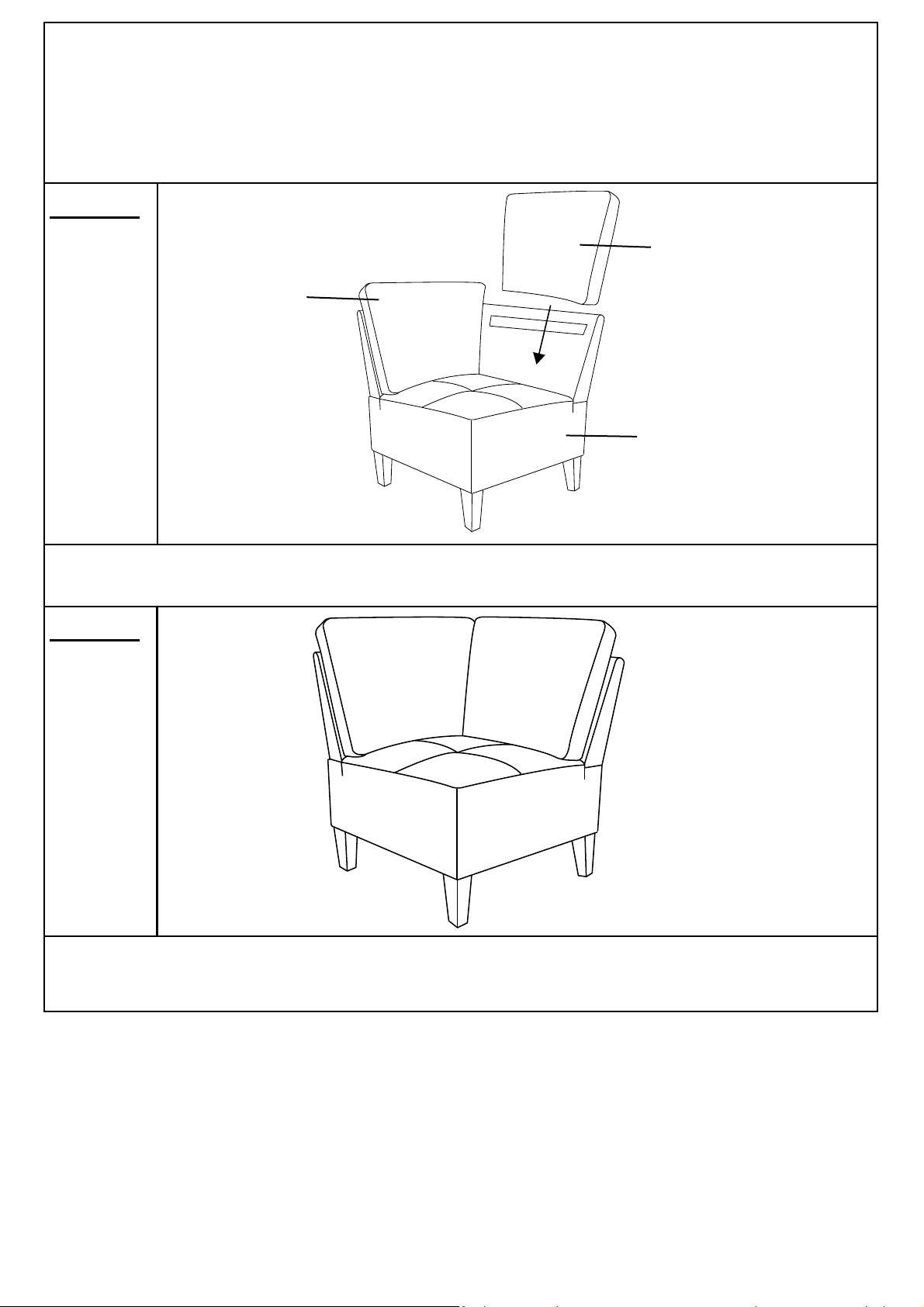

Back Cushion (C)
Back Cushion (C)
Chair Seat(A)
Put the Back Cushion (C) on the CORNER SOFA.
Your CORNER SOFA is ready for use.
Your CORNER SOFA can only be used on a flat, level surface.
6 of 9

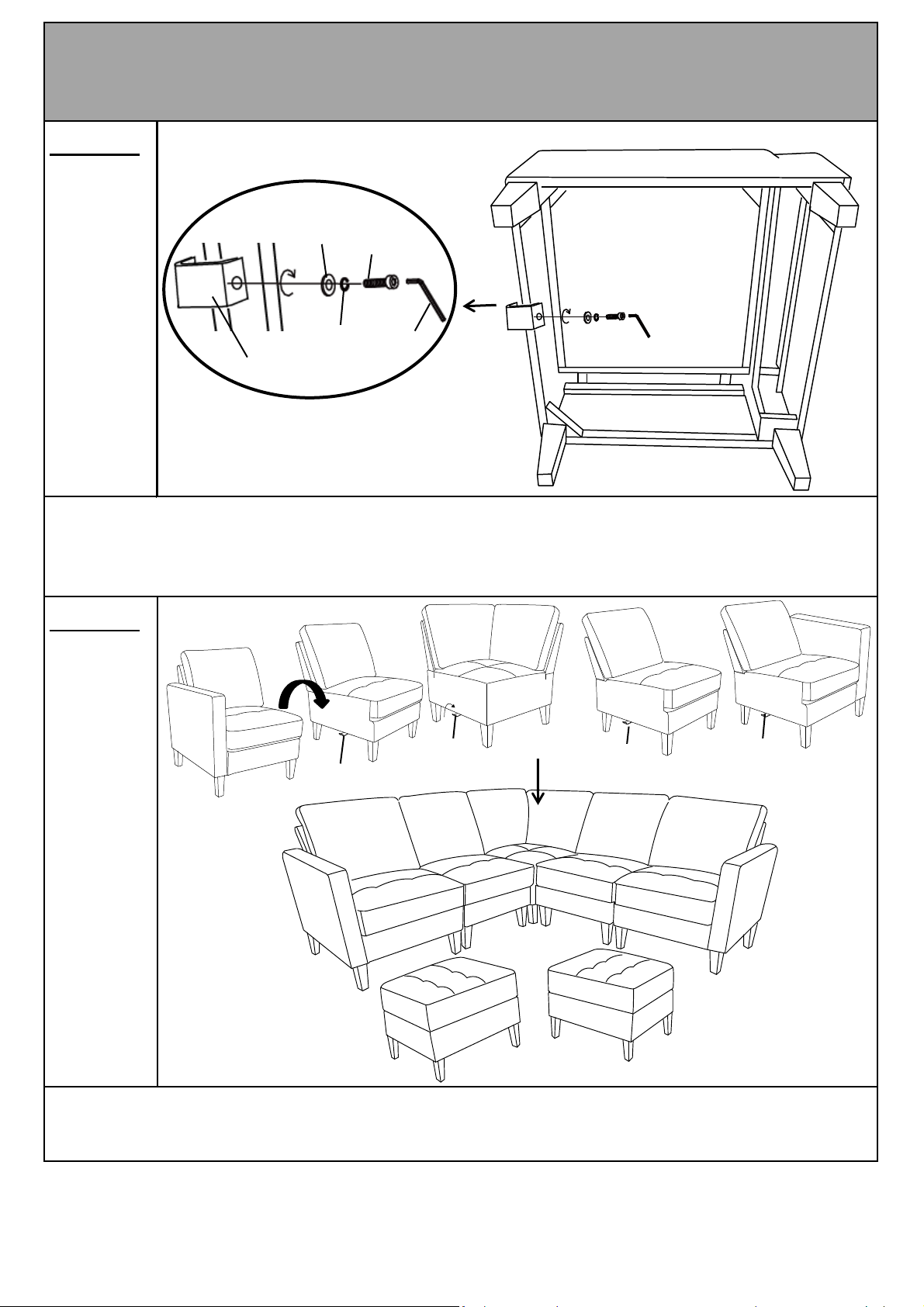

Step 1
Step 2
If you already purchased 2 or more than 2 products, Please read on
Connecting the two sofas by using the pre-fixed Connecting Piece (⑥) as
⑥
⑥
⑥
⑥
⑤
⑥
④
③
②
Attach the Connecting Piece(⑥) to Chair Seat(A) using Bolts(③), Spring
Washers(④), and Flat Washer (⑤) with Allen Key(②) as shown in the picture.
shown in the picture.
7 of 9
Step 3
Note: This is optional step in case we want to connect all sofas in a
Step
Step 3.1
Step 3.2
set together and to match the environment of your home.
Step 3.4
8 of 9
9 of 9
