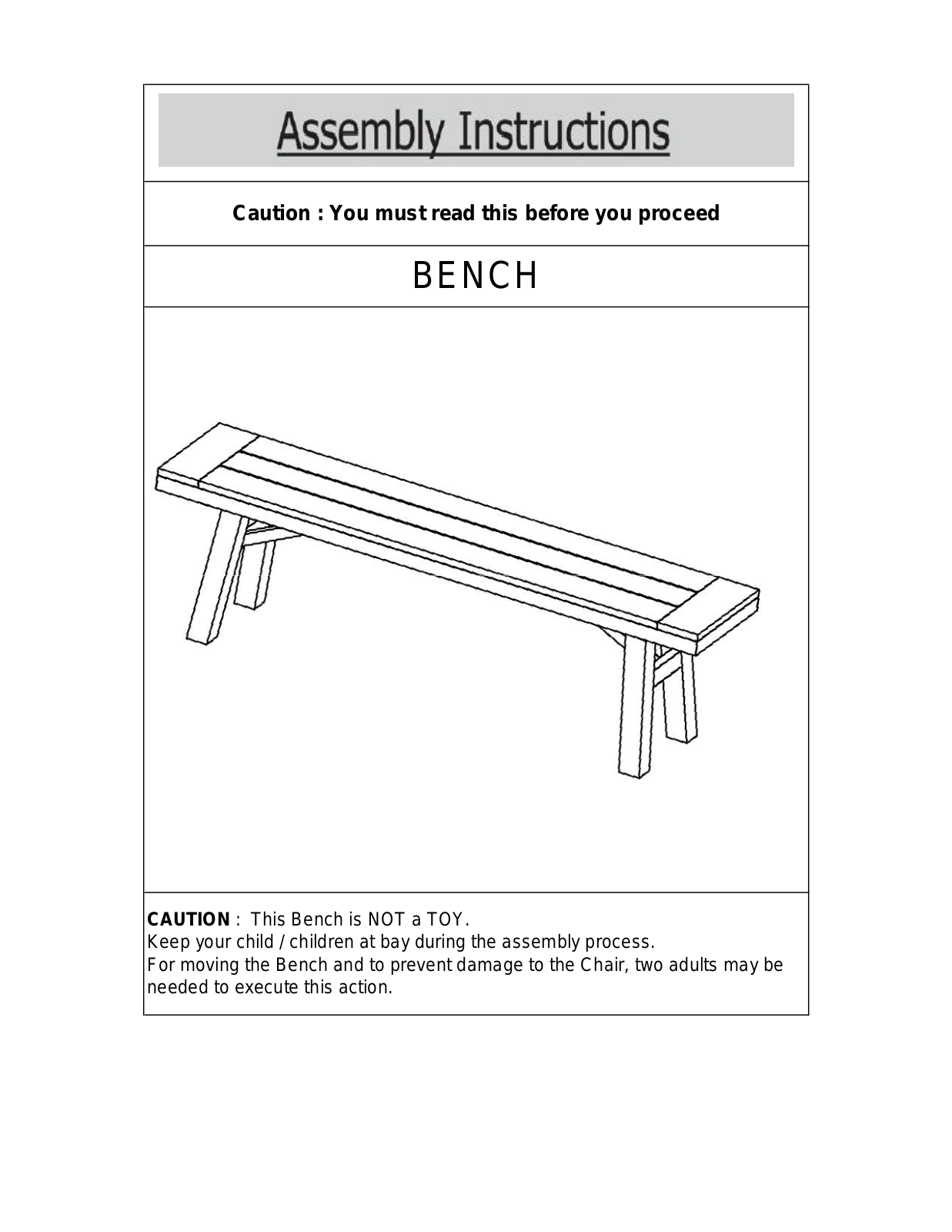

Brayden Studio W003233229 Assembly Instructions

Caution : You must read this before you proceed

BENCH

CAUTION

: This Bench is NOT a TOY.
Keep your child / children at bay during the assembly process.
For moving the Bench and to prevent damage to the Chair, two adults may be
needed to execute this action.

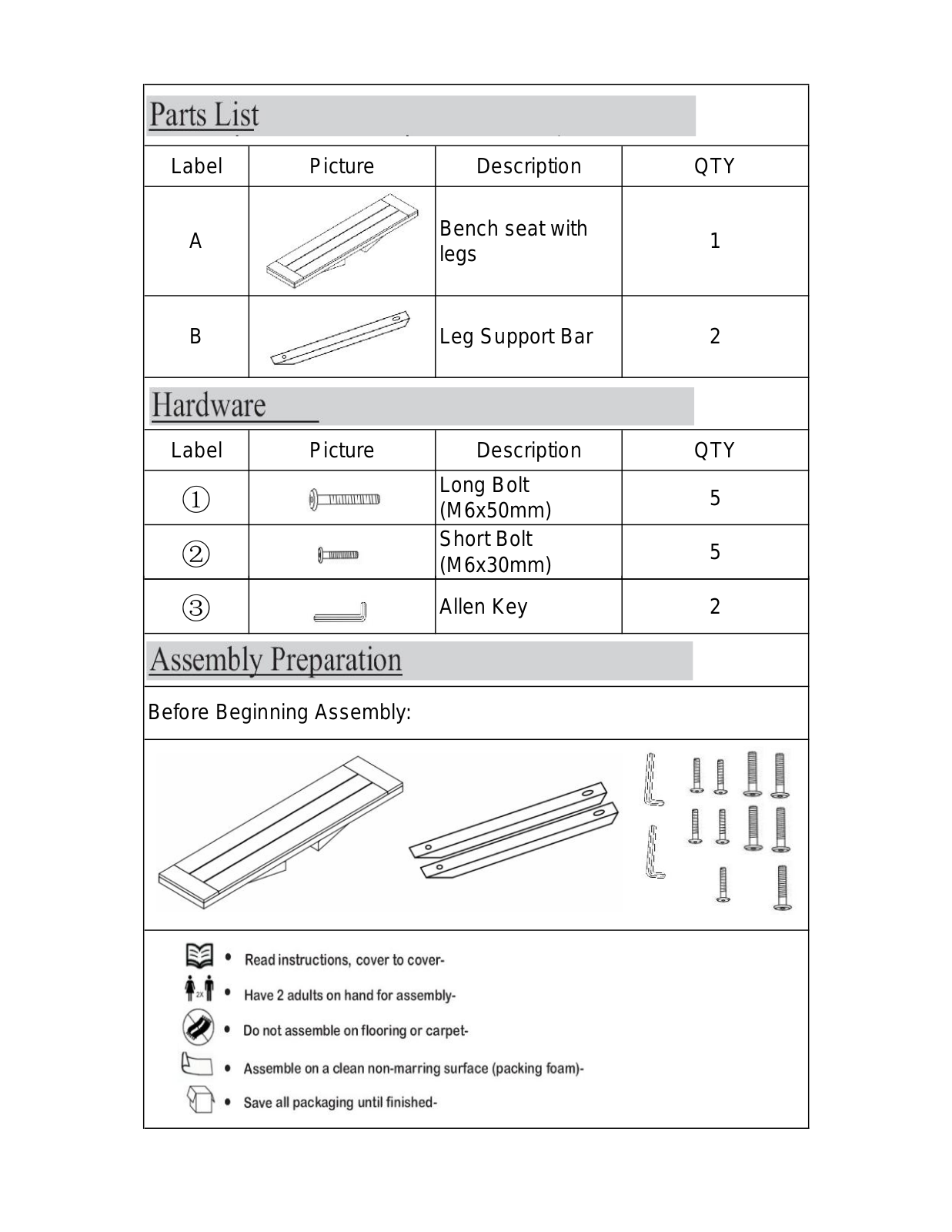

Label Picture Description QTY

A

Bench seat with
legs

1

B Leg Support Bar 2

Label Picture Description QTY

①

Long Bolt
(M6x50mm)

5

②

Short Bolt
(M6x30mm)

5

②

Short Bolt
(M6x30mm)

5

③

Allen Key 2

Before Beginning Assembly:

OVERVIEW

Bench Seat With Legs (A)

Leg Support Bar (B)

FRONT FACING

Leg

Step 1

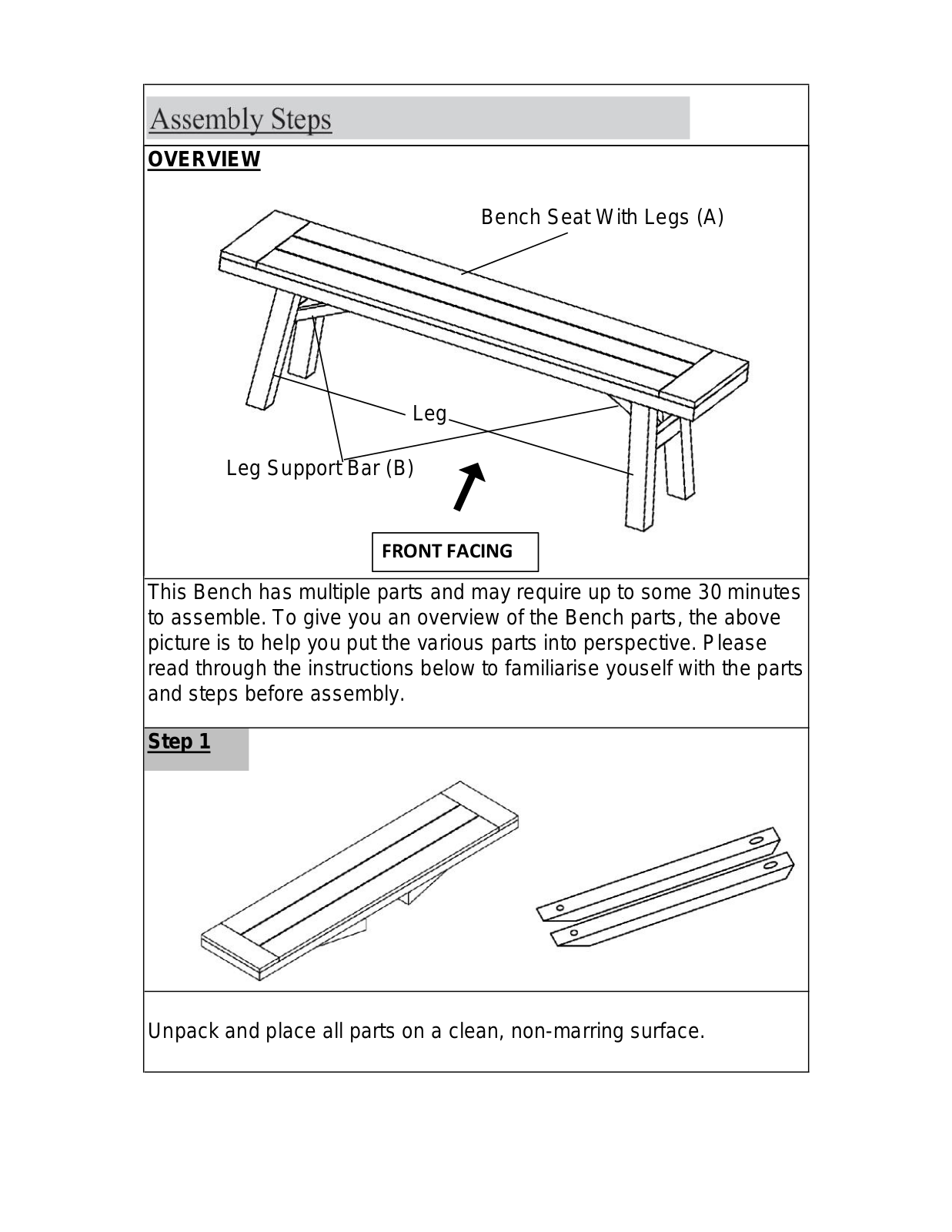

OVERVIEW

This Bench has multiple parts and may require up to some 30 minutes
to assemble. To give you an overview of the Bench parts, the above
picture is to help you put the various parts into perspective. Please
read through the instructions below to familiarise youself with the parts
and steps before assembly.

Unpack and place all parts on a clean, non-marring surface.

Step 2

③

①

③

①

A

Step 2.1

Step 2.2

Bench Seat With Legs (A)

Leg Support Bar (B)

FRONT FACING

Leg

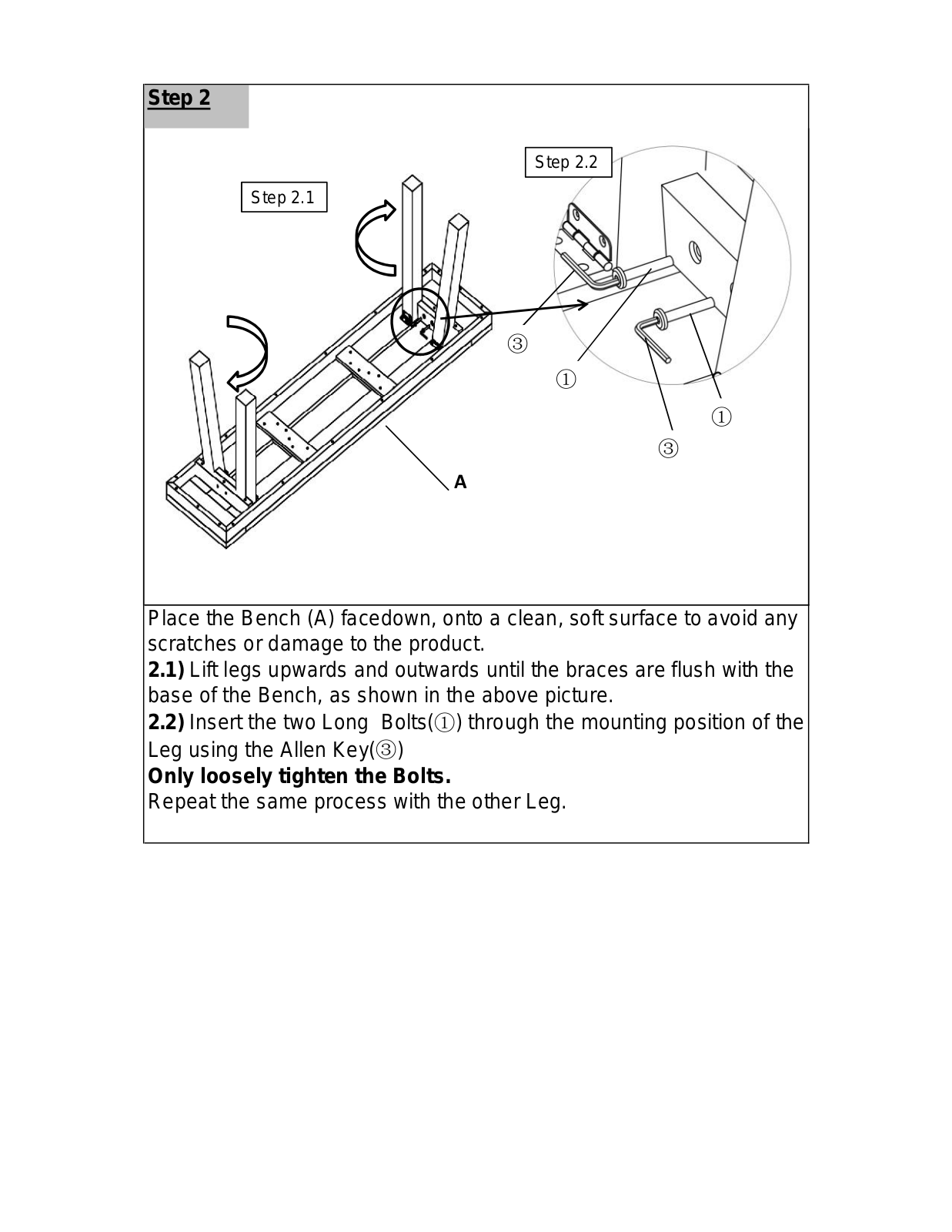

Place the Bench (A) facedown, onto a clean, soft surface to avoid any
scratches or damage to the product.

2.1)

Lift legs upwards and outwards until the braces are flush with the

base of the Bench, as shown in the above picture.

2.2)

Insert the two Long Bolts(①) through the mounting position of the

Leg using the Allen Key(③)

Only loosely tighten the Bolts.

Repeat the same process with the other Leg.

Bench Seat With Legs (A)

Leg Support Bar (B)

FRONT FACING

Leg

Step 3

③

①

③

①

②

③

Step 3.1

③

A

A

B

Step 2.1

Step 2.2

FRONT FACING

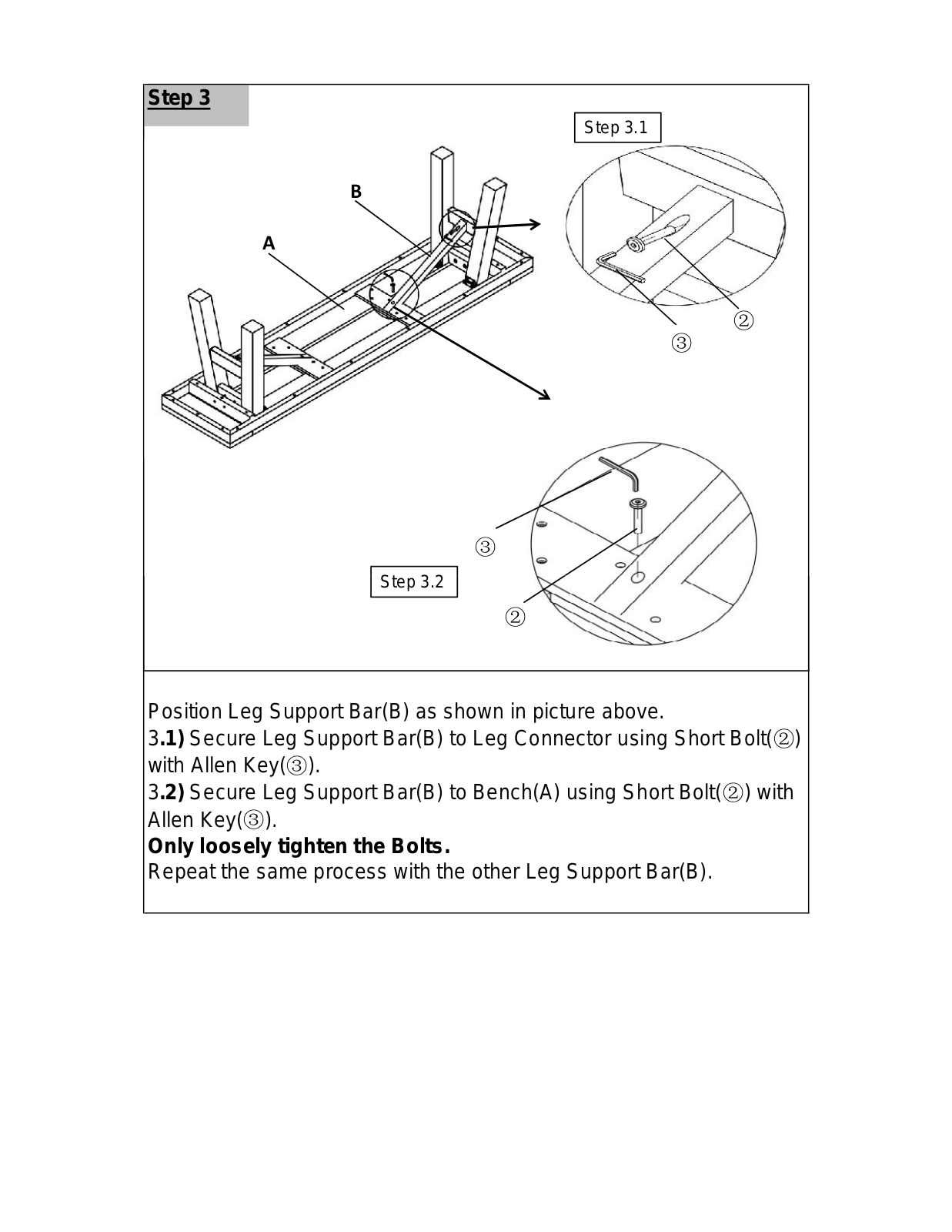

Position Leg Support Bar(B) as shown in picture above.
3

.1)

Secure Leg Support Bar(B) to Leg Connector using Short Bolt(②)
with Allen Key(③).
3

.2)

Secure Leg Support Bar(B) to Bench(A) using Short Bolt(②) with
Allen Key(③).

Only loosely tighten the Bolts.

Repeat the same process with the other Leg Support Bar(B).

③

①

③

①

②

Step 3.2

A

Step 2.1

Step 2.2

FRONT FACING

Step 4

③

①

①

②

③

Step 3.1

②

③

Step 3.2

A

A

B

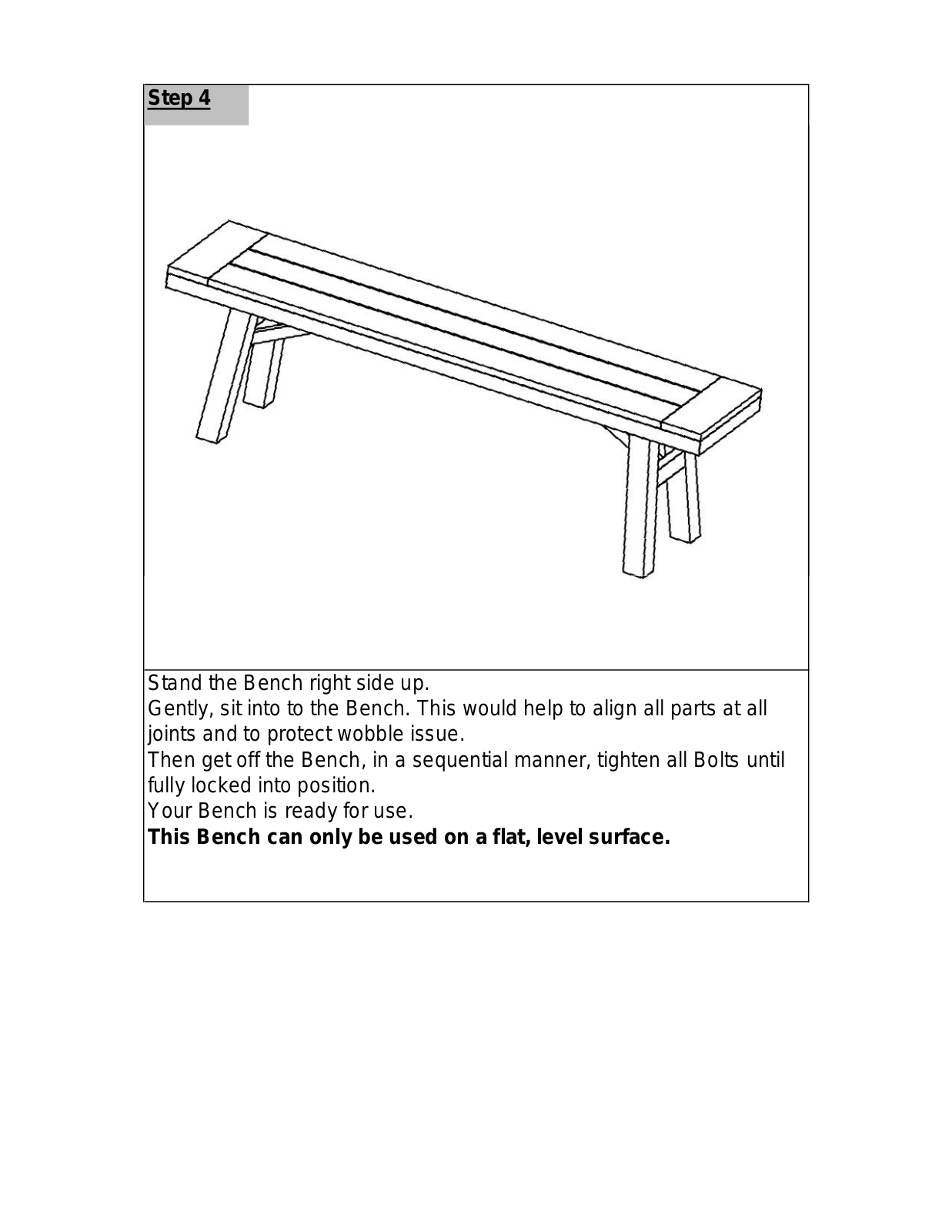

Stand the Bench right side up.
Gently, sit into to the Bench. This would help to align all parts at all
joints and to protect wobble issue.
Then get off the Bench, in a sequential manner, tighten all Bolts until
fully locked into position.
Your Bench is ready for use.

This Bench can only be used on a flat, level surface.

③

①

①

②

③

Step 3.1

②

③

Step 3.2

A

A

B
