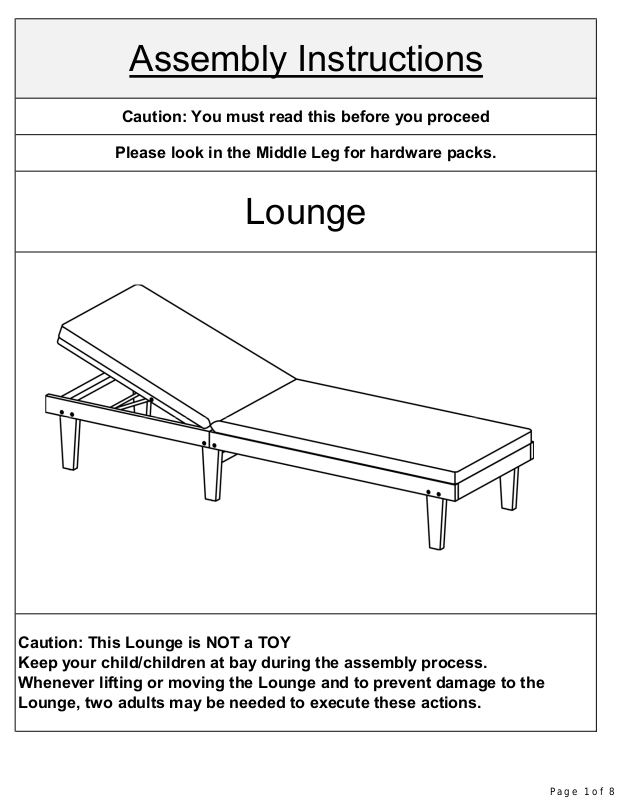

Assembly Instructions
Caution: You must read this before you proceed
Please look in the Middle Leg for hardware packs.
Lounge
Caution: This Lounge is NOT a TOY
Keep your child/children at bay during the assembly process.
Whenever lifting or moving the Lounge and to prevent damage to the
Lounge, two adults may be needed to execute these actions.
Page 1 of 8
Page 2
①
②
③
Part List
Label Picture Description QTY
Foldable
A
B Middle Leg 1
C Side Leg 4
D
Seat Panel 1
Foldable
1
Cushion
Hardware
Label Picture Description QTY
Bolt
(M6x30mm)
Sleeve Nut
(M6x15mm)
Allen Key 2
Page 2 of 8
13
13
Page 3
Assembly Preparation
Before Beginning Assembly:
Page 3 of 8
Page 4
perspective. Please read through the instructions below to familiarise yourself with the parts
Assembly Steps
Overview
Middle Leg (B)
Foldable Seat Panel (A)
Foldable Cushion
(D)
FRONT FACING
This Lounge has multiple parts and may require up to 30 minutes to assemble. To give you
an overview of the Lounge parts, the above picture is to help you put the various parts into
and steps before assembly.
Side Leg (C)
Step 1
Unpack and place all parts on a clean, non-marring surface.
Page 4 of 8
Page 5
Step 2
A
Unfold the Foldable Seat Panel(A) as indicated by the arrows.
Caution: Be careful when opening the Foldable Seat Panel(A) to avoid fingers getting
trapped or pinched
Step 3
B
A
1
3
2
3
Attach the Middle Leg(B) to the Foldable Seat Panel(A) using Bolts(①) and Sleeve
Nuts(②) with Allen Keys(③) as pictured above.
Do not fully tighten the Bolts.
Page 5 of 8
Page 6
Step 4
Step 5
With assistance from your adult partners, turn the Lounge right side up onto a flat horizontal
C
A
2
3
1
Attach Side Leg(C) to Foldable Seat Panel(A) using Bolts(①) and Sleeve Nuts(②) with
Allen Keys(③).
Repeat the same process with the remaining three Side Legs(C).
Do not fully tighten the Bolts.
Foldable
Cushion(D)
3
surface.
Place Foldable Seat Cushion (D) on to the Lounge.
Tie the velcro straps of Foldable Seat Cushion(D) to Foldable Seat Panel(A) as shown
above.
Page 6 of 8
Page 7
Step 6
Align the Backrest of the Lounge in position you want as pictured above.
This Lounge can only be used on a flat, level surface.
EXERT pressure, floorwards, onto the Seat Panel.
This pressure will help the Legs and Seat Panel reach alignment at all joints.
Check for wobbles.
In a sequential manner, gradually tighten all Bolts until evenly secured.
Inspect the Lounge and make sure all parts are adequately connected.
Your Lounge is ready for use.
Page 7 of 8

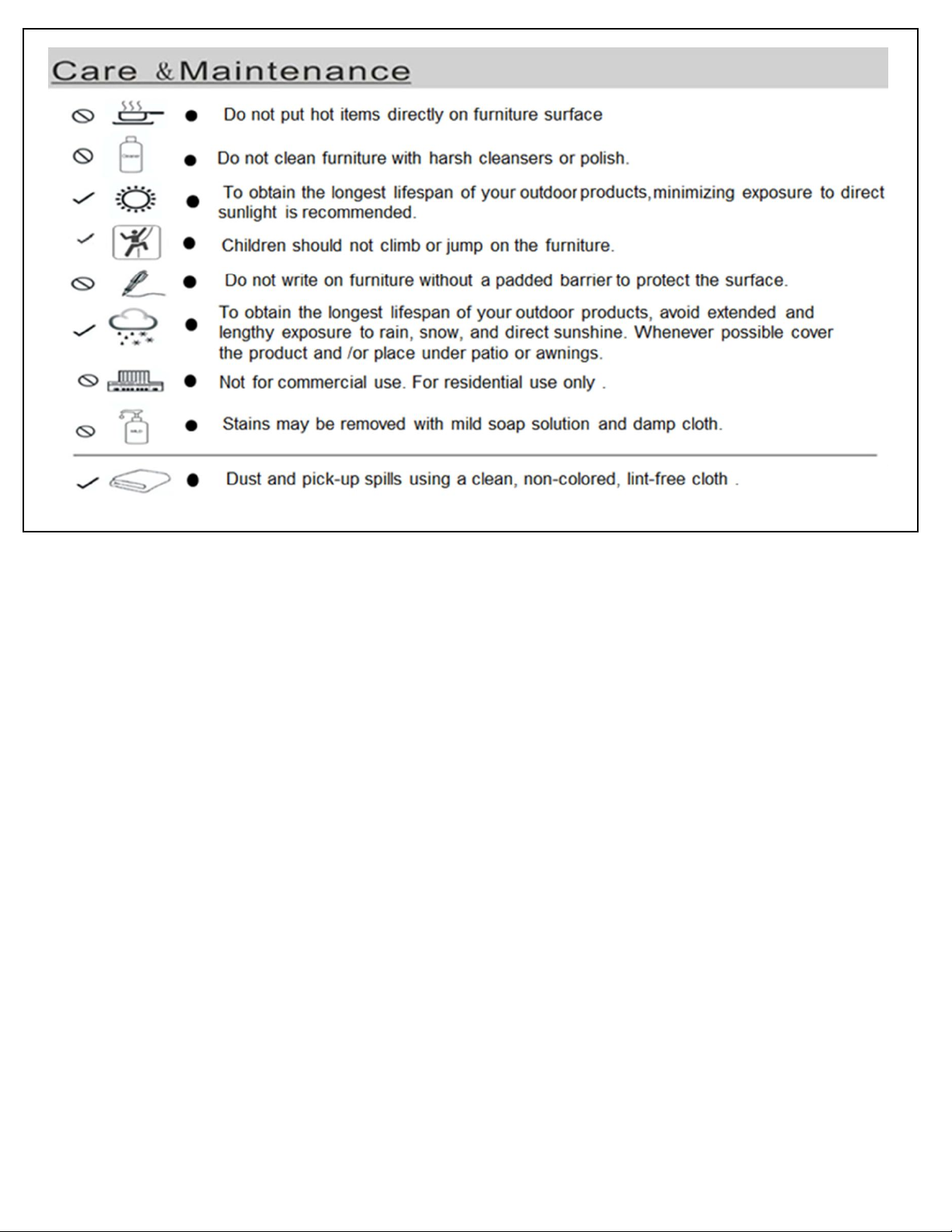

Page 8
Page 8 of 8
