Page 1
NO D ESC RI PT I O N QTY
1
HARDWARE LIST
PART LIST
A. [ 1] TOP
B. [ 1] BASE
INSTRUCTIONS
6
ALLEN BOLT
6
LOCK WASHER
6
FLAT W ASHER
1
ALLEN WRENCH
2
3
4
FIGURE 02
1
Page

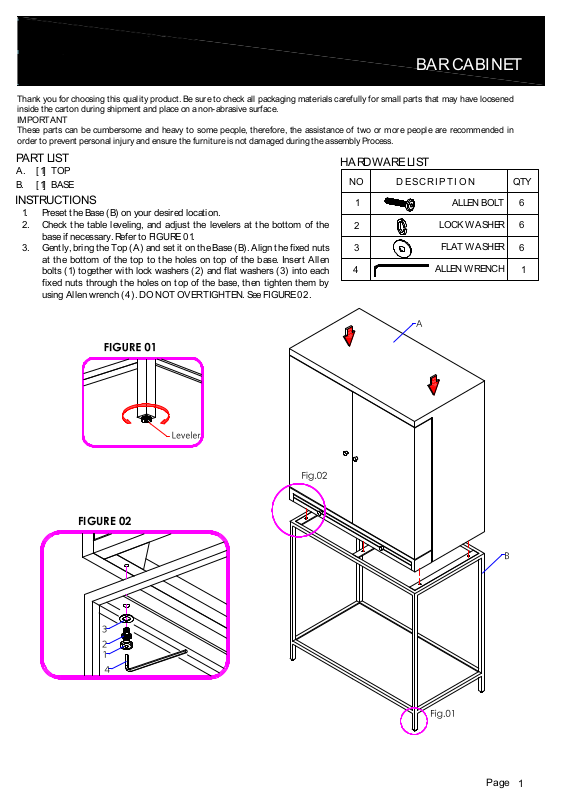

BAR CABINET
Thank you for choosing this quality product. Be sure to check all packaging materials carefully for small parts that may have loosened
inside the carton during shipment and place on a non-abrasive surface.
IMPORTANT
These parts can be cumbersome and heavy to some people, therefore, the assistance of two or more people are recommended in
order to prevent personal injury and ensure the furniture is not damaged during the assembly Process.
1. Preset the Base (B) on your desired location.
2. Check the table leveling, and adjust the levelers at the bottom of the
base if necessary. Refer to FIGURE 01.
3. Gently, bring the Top ( A) and set it on the Base (B). Align t he fixed nuts
at the bottom of the top to the holes on top of the base. Insert Allen
bolts (1) together with lock washers (2) and flat washers (3) into each
fixed nuts through the holes on top of the base, then tighten them by
using Allen wrench ( 4) . DO NOT OVER TIGHTEN. See FIGURE 02.
Page 2
CARE INSTRUCTIONS
1. Dust often using a clean, soft, dry and lint-free cloth.
2. Blot spills immediat ely and wipe with a clean, damp, cloth.
3. W e do not recommend the use of chemical cleansers,
abrasives or furniture polish on our lacquered finish.
IMPORTANT SAFETY INSTRUCTIONS
1. Please read all instructions carefully before assembling.
2. For your safety, assembly by two or more adults is strongly recommended.
3. Keep instructions for future use.
4. Use only vendor supplied hardware to assemble. Using unauthorized hardware could jeopardize the structural integrity of the item.
INSTALLATION INSTRUCTION
1. Attach two of the Plastic Brackets near the top back edge of
the furniture piece by inserting the shorter screws .
2. Determine the final position of the furniture piece. Mark
locations on the wall approximately 2" below the brackets
mounted to the back of the furniture.
3. Drill a shorter hole into the wall stud. If wall stud is not
available, drill a hole into the wall and insert Plastic Anchor.
Gently tap the Anchor until the flange is flush with the wall.
4. Attach the second set of brackets by inserting the longer
screw through the bracket and into the wall.
5. Carefully move the chest backward within 1.5" to 2" from the
wall.
6. Place the furniture so that the brackets on the back edge are
in line with the brackets in the wall.
7. Lace one end of the nylon restraint strap down through each
bracket. Bring both ends together and slide the beaded end
until it snap locks into the keyhole slot.
8. To double lock; return the beaded end back through the
keyholes as shown.
9. Check to make sure the straps are securely laced and locked
to the brackets.
FURNITURE TIPPING RESTRAINT INSTRUCTIONS
Young children may be injured by tipping furniture and
the use of a tipping restraint is highly recommended.
When properly installed, this restraint could provide
protection against the unexpected tipping of furniture
due to small tremors, bumps or climbing. We
recommend mounting this restraint to a wall stud.
WARNING: This product is only a deterrent. It is not a
substitute for proper adult supervision.
6
7
5
8
9
Wall
NO D ESC RI PT I O N QTY
5
6
7
8
9
PLASTIC BRACKET
4
RESTRAINT STRAP
2
PHILLIPS SCREWS (M4 x 30)
4
4
PLASTIC ANCHOR
4
PHILLIPS SCREWS (M4 x 20)
2
