ASSEMBLING & INSTALLATION INSTRUCTIONS
j
The drawing shown may not exactly match the product enclosed.
However, the installation instructions do apply to this product.
WARNING! SHUT POWER OFF AT FUSE OR CIRCUIT BREAKER.
ATTENTION! COUPER LE COURANT AU FUSIBLE OU UN DISJ ON CTEUR.

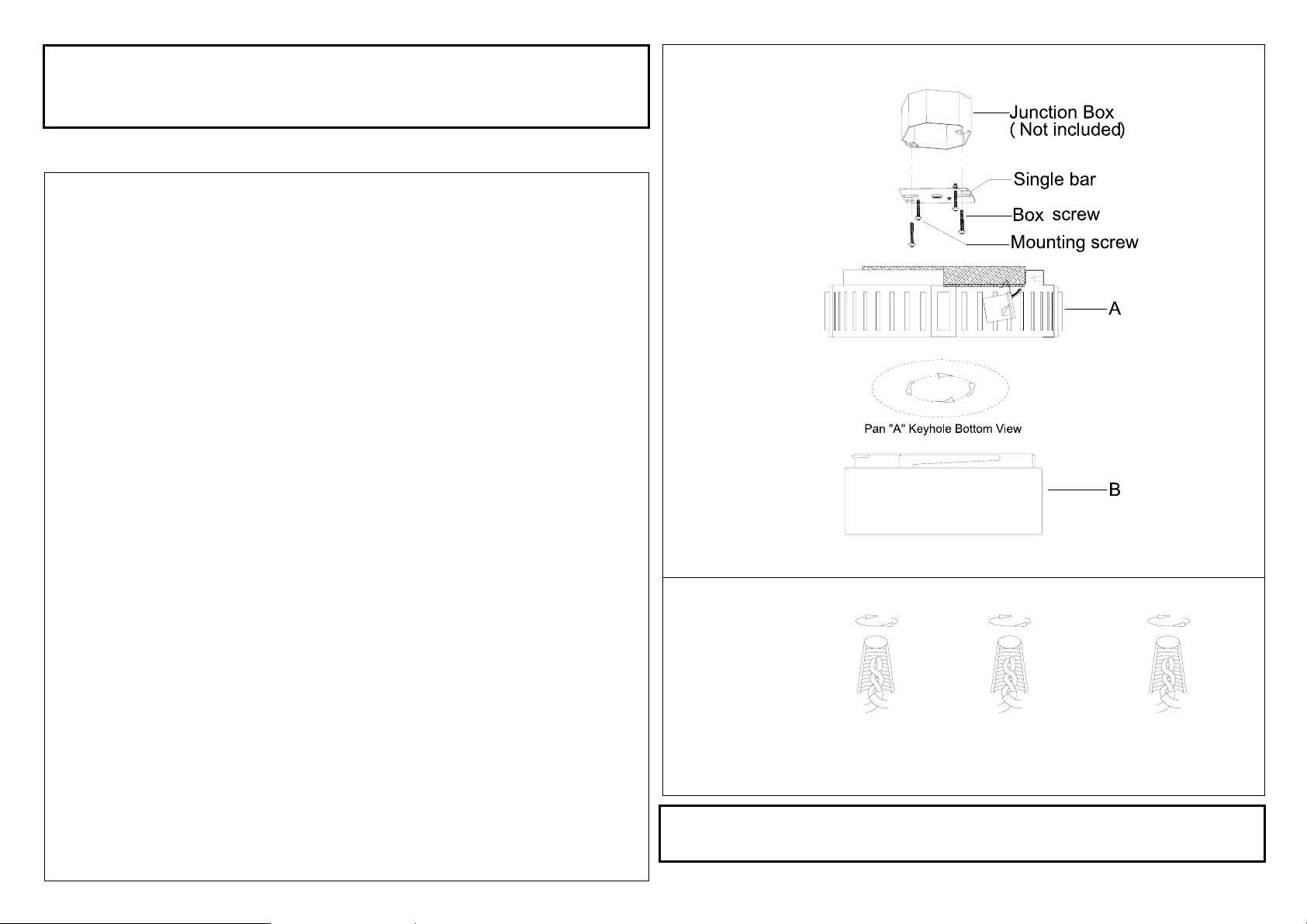

ASSEMBLING THE FIXTURE (Fig.1)
1. Shut off the power at the fuse box or circuit breaker box. Remove the old
fixture from ceiling, including the single bar.
2. Carefully unpack your new fixture and lay out all the parts on a clear area.
Take care not to lose any small parts necessary for installation.
3. Thread the two mounting screws about 1/4”into the pre-drilled holes in the
single bar spaced the same distance apart as the holes in the lamp body
(A).
4. Attach the single bar to the Junction Box using the two screws from the
Junction Box as shown. The side of the single bar marked "GND" must
face out. The junction box is not included.
5. Hold the lamp body(A) towards the single bar and connect the electrical
wires as follows (See Fig.2). Connect the black wire from the fixture to the
black house (hot) wire; connect the white wire from the fixture to the white
house (neutral) wire. Make sure all wire nuts are secured. You may wrap
the connections with electrical tape. If your Junction box has a ground wire
(green or bare copper) connects fixture’s ground wire to it. Otherwise
attach the bare copper fixture wire to the green ground screw on the single
bar. Tuck the wire connections neatly into the ceiling junction box as you
are holding the fixture assembly toward the ceiling.
6. Finish mounting the lamp body(A) by placing it over both mounting screws
so that the screws protrude from the keyholes in the bottom of the lamp
body(A). Rotate the lamp body (A) until the screw are seat in the slots of
the keyholes and tighten it with a screwdriver.
7. Install the light bulbs in accordance with the fixture’s specifications.
DO NOT EXCEED THE MAXIMUM WATT AGE RATI NG!
8. Attach the glass shade(B) to the lamp body(A), aligning the salient of pan
with glass shade's dint, rotate the glass shade until tighten.
Your installation is now complete Return power to the
unction box and test the fixture.
FIG.1
FIG.2
FIXTURE
WIRES
Black or
Smooth
HOUSE
WIRES
Black(Hot)
Thank you for purchasing a product.
Need assistance with parts or assembly? Please call customer service
ALL RIGHTS RESERVED
FIXTURE
WIRES
White or
Ribbed
HOUSE
WIRES
White
(Neutral)
FIXTURE
WIRES
Bare
Copper
(Ground)
HOUSE
WIRES
Green or Bare
Copper(Ground)
