ASSEMBLY AND INSTALLATION
INSTRUCTIONS
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
WARNING:
NOTE: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. READ AND SAVE THESE INSTRUCTIONS.
Warning: LED electronics can be damaged by electro static discharge (ESD)shock. Before
installation, discharge yourself by touching a grounded bare metal surface to remove this
hazard. To avoid damage, do not touch the LED module.

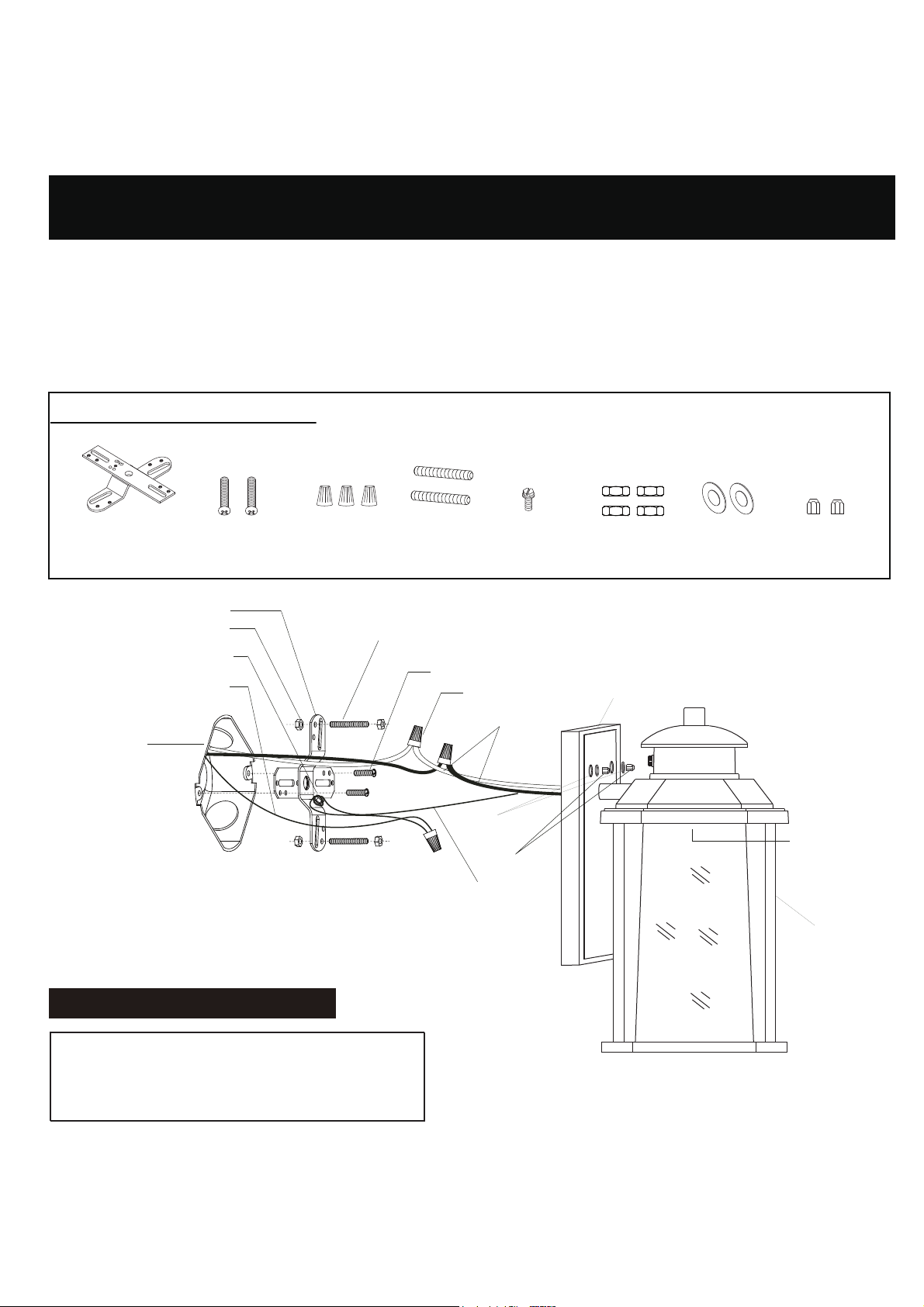

Hardware Package (included):
POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.
Cross Bar (A)
Cross Bar (A)
Green Grounding Screw (E)
House Grounding Wire
Outlet Box
Mounting Screw (B)
Lock Nut (F)
Installation steps
Turn off the power at fuse or circuit box.
Wire Nut (C)
Headless Screw (D)
Headless
screw (D)
Fixture Grounding Wire
Green Grounding
Screw (E)
Mounting Screw (B)
Wire Nut (C)
Fixture Wire
Rubber Pad (G)
Bolt Nut (H)
Lock Nut (F)
Back Plate
Rubber Pad (G)
Bolt Nut (H)
LED
Fixture
IMPORTANT:
The sensor has an excellent photocell function
to enable the light to turn on at dusk and off at
dawn automatically.
1. Attach the headless screws to the cross bar, then secure it with lock nuts.
2. Attach the cross bar to the outlet box by using two mounting screws.
3. Pull out the outlet wires and house grounding wire from the outlet box. Make wire connections using the wire
nuts:
---The black wire from the fixture to the black wire from the power source.
---The white wire from the fixture to the white wire from the power source.
---Attach the fixture grounding wire to the cross bar with the green grounding screw. Then connect it to
the house grounding wire with a wire nut.
Carefully put the wires back into the outlet box.
4. Attach the fixture to the cross bar by inserting the headless screws, then secure it with the rubber pads and
bolt nuts.
CAUTION: With silicone caulking compound, caulk completely around where the back plate meets
with the wall surface to prevent water from seeping into the outlet box.
Turn on the power at fuse or circuit box.
The following parts are available for re-order if damaged or missing.
Spare Parts List:
Mounting Hardware
Cross Bar (A)
Mounting Screw (B)
Wire Nut (C)
Headless
screw (D)
Green Grounding
Screw (E)
Lock Nut (F)
(1 SET)
Rubber Pad (G)
Bolt Nut (H)
C
A
B
A: 5-1/2”
B: 9-3/4”
C: 6-1/2”
A: 7-1/4”
B: 13-1/2”
C: 8”
