PARTS LIST& Hardware List：
1 Canopy 1pc 6 Mounting Screw(2-3/4") 2pcs
2 Universal Bar 1pc 7 Wire Connector 3pcs
3 Ball Finial 2pcs 8 hasp 1pcs
4 Outlet Box Screw(1-1/8") 2pcs 9 T10 Bulb 1pc
5 Green Ground Screw 1pcs
*Please make sure you have all the parts indicated above before you begin assembling this item.
Please read wiring instructions before you begin assembling and installing your Ceiling Lamp
WARNING:BEFORE INSTALLING,Make sure electricity supply is
shut off to avoid a possible electric shock.
ASSEMBLY INSTRUCTIONS
1.Take the parts carefully out of the carton,Place them on a flat surface, and make
sure the parts will not be damaged.

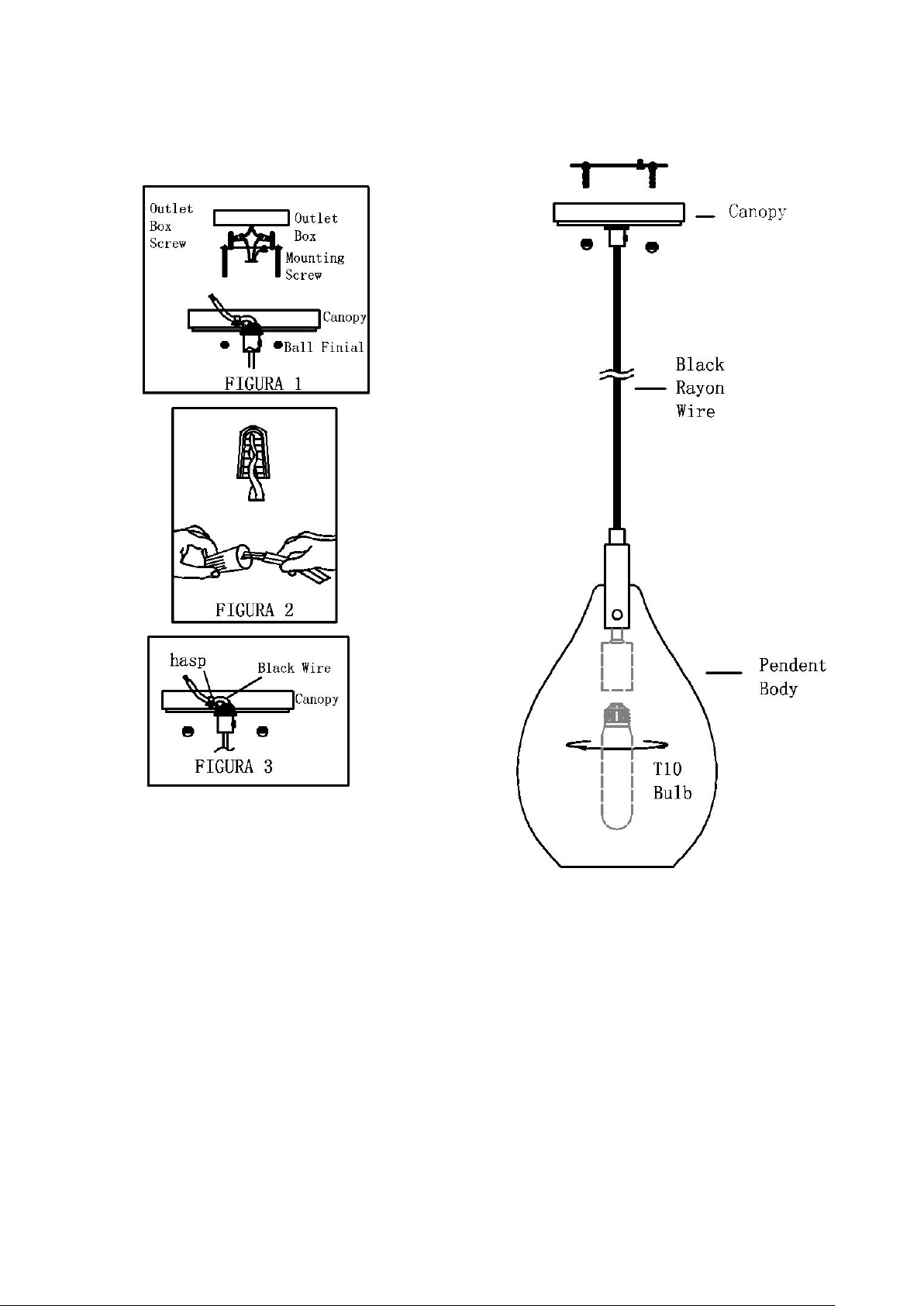

2.Remove the Ball finial under the Canopy from the Mounting Screws,and take out the
Universal Bar. Attach the Universal Bar to the Outlet Box by using two Outlet Box
Screws. (See Figure1)
3.Install the Ground Wire in the Universal Bar with the supplied Green Ground Screw.
4.Place the null wire ,white wire evenly against the null wire from the Outlet Box and
place the live wire,black wire evenly against the live wire from the Outlet Box.
(Connecting the Wire---See Figure 2)
5.After the wires are connected.Pull the black rayon wire to adjust the length as you
want,Tighten it by the hasp.tuck them carefully inside the Outlet Box.(See Figure 3)
6.Attach the Canopy to the Mounting Screws and secure with two Ball Finials(See
Figure 1)
7.Install 1*60W,T10 bulbs, into the socket of the fixture.
