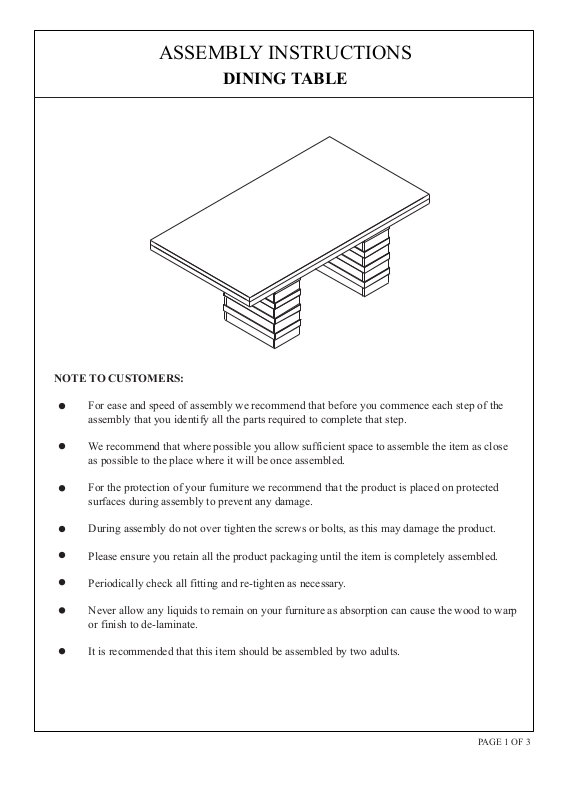

ASSEMBLY INSTRUCTIONS
DINING TABLE
NOTE TO CUSTOMERS:
For ease and speed of assembly we recommend that before you commence each step of the
assembly that you identify all the parts required to complete that step.
We recommend that where possible you allow sufficient space to assemble the item as close
as possible to the place where it will be once assembled.
For the protection of your furniture we recommend that the product is placed on protected
surfaces during assembly to prevent any damage.
During assembly do not over tighten the screws or bolts, as this may damage the product.
Please ensure you retain all the product packaging until the item is completely assembled.
Periodically check all fitting and re-tighten as necessary.
Never allow any liquids to remain on your furniture as absorption can cause the wood to warp
or finish to de-laminate.
It is recommended that this item should be assembled by two adults.
PAGE 1 OF 3
ASSEMBLY INSTRUCTIONS
PARTS IDENTIFICATION
DINING T
ABLE
A-
B- Pedestal Leg Panel (Long) 4 pcs
C - Pedestal Leg Panel (Short) 4 pcs
Table Top 1 pc
HARDWARE IDENTIFICATION
1-
2- Minifix Connector Housing 24 pcs
Minifix Connecting Bolt 24 pcs
3- Screws 24 pcs
NOTE: Quantities shown are for one table.
STEP 1
Place pedestal leg panel (C) face down
on a soft surface then insert the bolt & tighten with
screw driver(NOT INCLUDED) as per diagram shown.
Ø4mm
1 1/8”
1
C
Insert & tighten bolts into
24x
the holes in (C) panels.
1
C
PAGE 2 OF 3
ASSEMBLY INSTRUCTIONS
STEP 2 Align & fasten pedestal leg panels (B) by using minifix fittings (2)
as per diagram shown. Tighten with screw driver (NOT INCLUDED).
B
B
Lock each connector to
2
Insert connector into the pre-drilled holes in (B) panels.
STEP 3 Complete the assembly of one pedestal leg by alligning &
fastening the short pedestal leg panel (C) to pedestal leg
panels (B), using the connecting fittings.
Repeat the assembly process for the second set
of the pedestal leg.
secure the bolts tight.
C
DINING T
B
C
ABLE
C
Insert & tighten
bolts into the holes
in (C) panels.
STEP 4
1
2
B
Lock each connector to
secure the bolts tight.
Insert connector into the pre-drilled holes
in (B) panels.
Place Table top upside down. Place both the table base within
the marked lines on the table top.
Use screws (3) to attach table base to table top.
Make sure all screws and connecting bolts are
fully tightened before turning the table upright.
B
3
MARKING LINES
PAGE 3 OF 3
