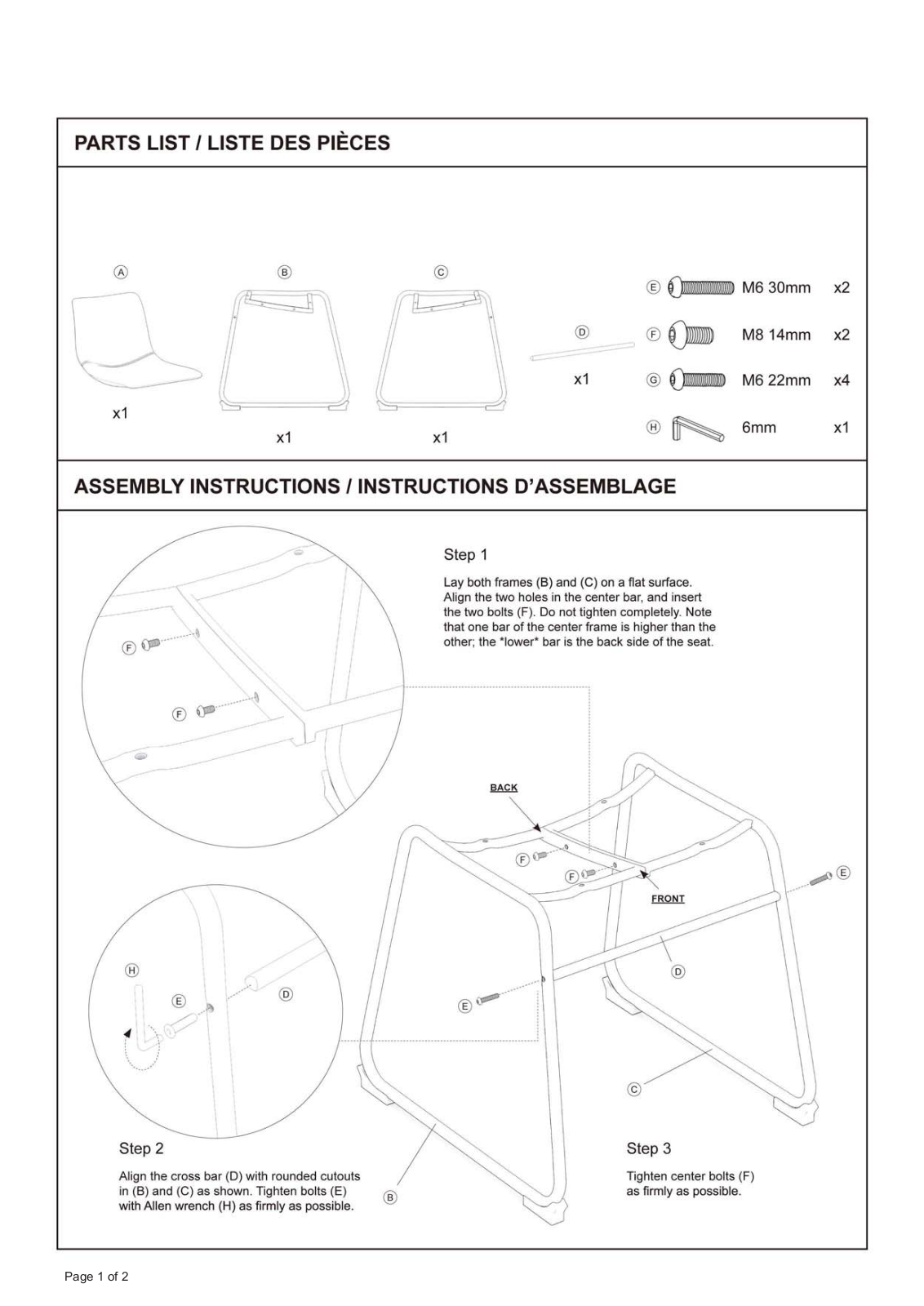

PARTS LIST / LISTE DES PIÈCES
A B C
D
x1
x1
x1 x1
E
F
G
H
ASSEMBLY INSTRUCTIONS / INSTRUCTIONS D’ASSEMBLAGE
Step 1
Lay both frames (B) and (C) on a at surface.
Align the two holes in the center bar, and insert
the two bolts (F). Do not tighten completely. Note
that one bar of the center frame is higher than the
F
F
other; the *lower* bar is the back side of the seat.
x2M6 30mm
x2M8 14mm
x4M6 22mm
x16mm
BACK
F
F
FRONT
H
E
D
E
C
Step 2 Step 3
Align the cross bar (D) with rounded cutouts
in (B) and (C) as shown. Tighten bolts (E)
with Allen wrench (H) as rmly as possible.
B
Tighten center bolts (F)
as rmly as possible.
E
D
Page 1 of 2
G
FRONT

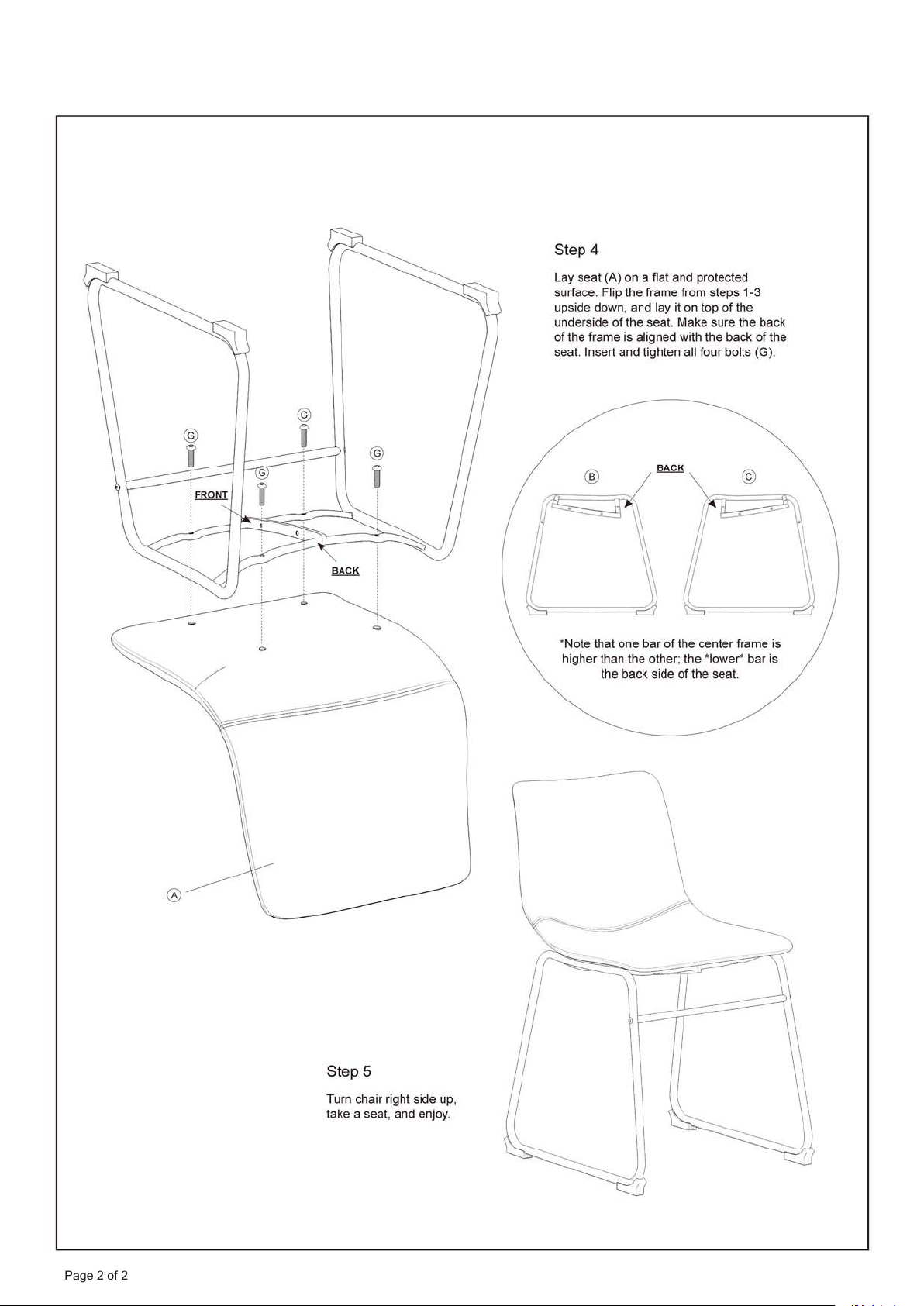

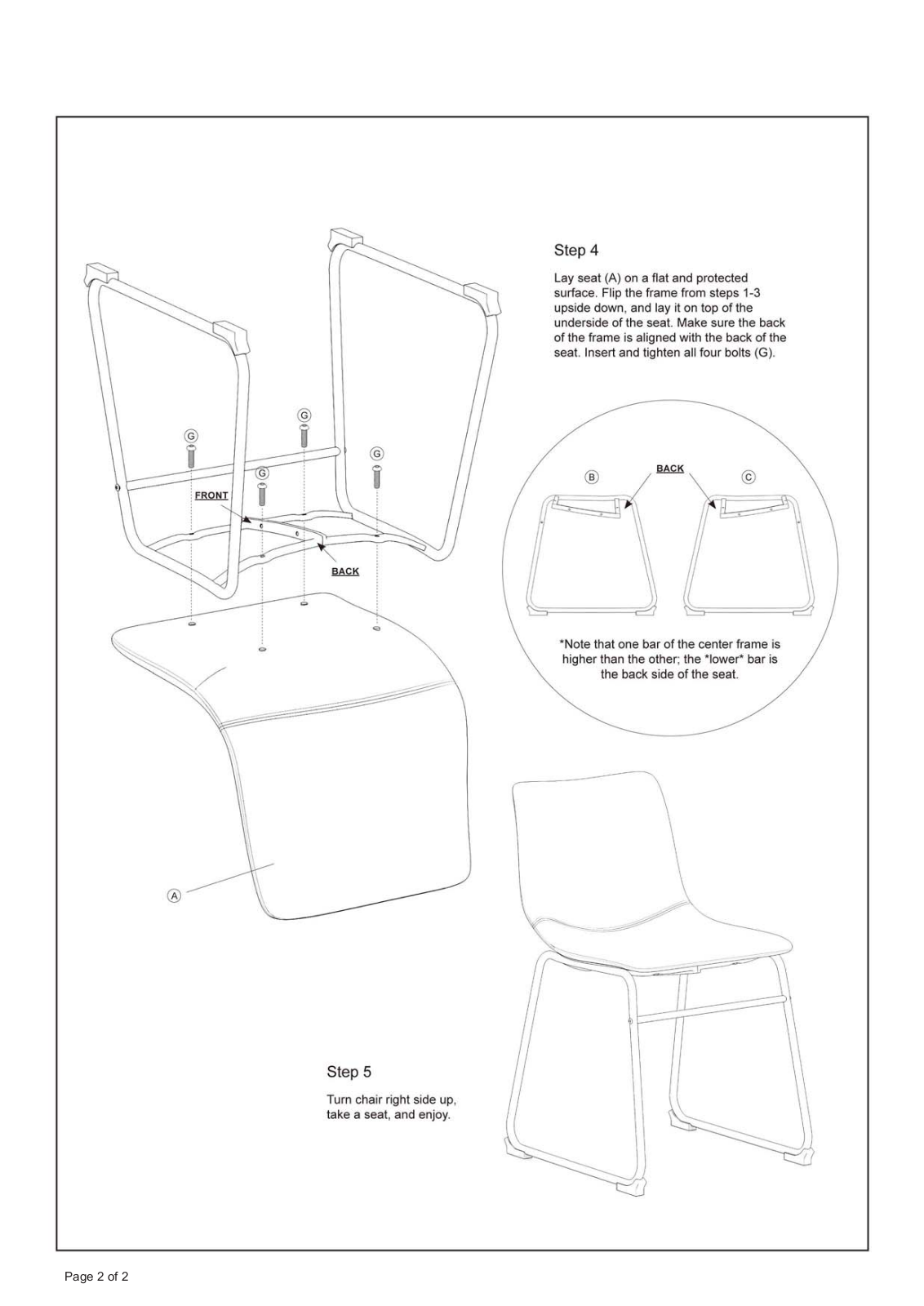

Step 4
Lay seat (A) on a at and protected
surface. Flip the frame from steps 1-3
upside down, and lay it on top of the
underside of the seat. Make sure the back
of the frame is aligned with the back of the
seat. Insert and tighten all four bolts (G).
G
G
G
BACK
B C
*Note that one bar of the center frame is
higher than the other; the *lower* bar is
the back side of the seat.
BACK
Page 2 of 2
A
Step 5
Turn chair right side up,
take a seat, and enjoy.
