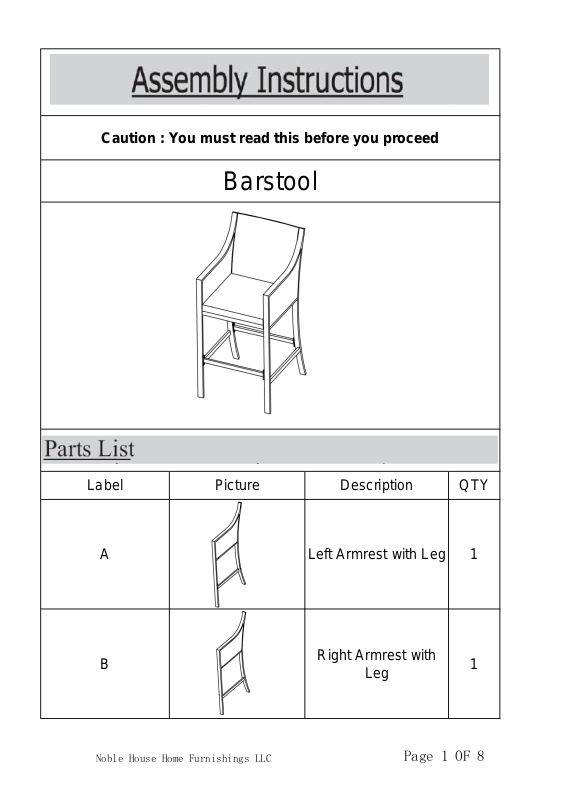

Page 1
Label Picture Description QTY
A Left Armrest with Leg 1
B
Right Armrest with
Leg
1
Caution : You must read this before you proceed
Barstool
Noble House Home Furnishings LLC
Page 1 OF 8
Page 2
C Backrest 1
D Seat 1
E Seat Cushion 1
F Footrest 2
Label Picture Description QTY
①
Bolt (M6*30mm) 7
②
Bolt (M6*15mm) 9
③
Washer 16
④
Allen Key 1
Before Beginning
Assembly:
Noble House Home Furnishings LLC
Page 2 OF 8
Page 3
This Barstool has multiple parts and may require up to 30 minutes to assemble.
To give you an overview of the Barstool parts, the above picture is to help you
put the various parts into perspective. Please read through the instructions
below to familiarise yourself with the parts and steps before assembly.
Step 1
Open the carton and place all parts on a clean, non-marring surface.
Overview
Left Armrest with Leg(A)
Right Armrest with Leg(B)
Seat Cushion(E)
Backrest(C)
Seat(D)
Footrest(F)
Front Facing
Noble House Home Furnishings LLC
Page 3 OF 8
Page 4
Step 2
Place the Backrest(C) face up.
Attach the Seat(D) to the Backrest(C) using Bolts(①) and Washers(③) with
Alley Key(④).
Do not fully tighten the Bolts.
Step 3
Place the Left Armrest with Leg(A) face down on the soft and clean surface.
Insert the Dowel on the Backrest(C) into the mounting position of the Left
Armrest with Leg(A).
Attach the Backrest(C) and Seat(D) to the Left Armrest with Leg(A) using
Bolts(①) and Washers(③) with Alley Key(④).
Do not fully tighten the Bolts.
Dowel
Noble House Home Furnishings LLC
Page 4 OF 8
Page 5
Step 4
Place the Right Armrest with Leg(B) face down on the soft and clean surface.
Insert the Dowel on the Backrest(C) into the mounting position of the Right
Armrest with Leg(B).
Attach the Backrest(C) and Seat(D) to the Right Armrest with Leg(B) using
Bolts(①) and Washers(③) with Alley Key(④).
Do not fully tighten the Bolts.
Step 5
Dowel
Noble House Home Furnishings LLC
Page 5 OF 8
Page 6
Place the Footrests(F) beween the Legs as shown.
Attach the bottom side of Footrest(F) to the Legs using Bolts(②) and
Washers(③) with Alley Key(④).
Then turn the Barstool over and attach another side of the Footrest(F) using
Bolts(②) and Washers(③) with Alley Key(④).
Do not fully tighten bolts.
Step 4
Place the Barstool on a LEVEL SURFACE to see if it wobbles.
If it wobbles, lift the Barstool some 30cm to 50cm high from the ground.
Keep your feet and toes well away from the drop zone.
Drop the Barstool freely and vertically with the four legs, hitting the ground, at
the same time.
This Drop Test will help to ensure that all the Bolts and gaps all reach full
alignment status.
Test again for evenness on a LEVEL SURFACE.
If no wobbles are found, proceed to tighten all the Bolts.
When tightening the Bolts, tighten sequentially.
DO NOT tighten any Bolt fully and then move on to the next one.
This may cause the frame to warp.
If there are still wobbles, loosen the Bolts and execute the same drop test.
If the Barstool is not stable it could lead to damage to the product.
Noble House Home Furnishings LLC
Page 6 OF 8
Page 7
Place the Seat Cushion(E) on the Barstool.
Your Barstool is ready for use.
This Barstool can only be used on a flat, level surface.
Step 5
Noble House Home Furnishings LLC
Page 7 OF 8
Page 8
Questions & Answers about Proposition 65
• What is Proposition 65?
Proposition 65 requires businesses to provide warnings to Californians about significant
exposures to chemicals that cause cancer, birth defects or other reproductive harm. These
chemicals can be in the products that Californians purchase, in their homes or workplaces, or
that are released into the environment. By requiring that this information be provided,
Proposition 65 enables Californians to make informed decisions about their exposures to
these chemicals.
Proposition 65 also prohibits California businesses from knowingly discharging significant
amounts of listed chemicals into sources of drinking water.
Proposition 65 requires California to publish a list of chemicals known to cause cancer, birth
defects or other reproductive harm. This list, which must be updated at least once a year, has
grown to include approximately 900 chemicals since it was first published in 1987.
• What types of chemicals are on the Proposition 65 list?
The list contains a wide range of naturally occurring and synthetic chemicals that include
additives or ingredients in pesticides, common household products, food, drugs, dyes, or
solvents. Listed chemicals may also be used in manufacturing and construction, or they may
be byproducts of chemical processes, such as motor vehicle exhaust.
• What does a warning mean?
If a warning is placed on a product label or posted or distributed at a workplace, a business, or
in rental housing, the business issuing the warning is aware or believes that it is exposing
individuals to one or more listed chemicals.
By law, a warning must be given for listed chemicals unless the exposure is low enough to
pose no significant risk of cancer or is significantly below levels observed to cause birth
defects or other reproductive harm.
• Where can I get more information on Proposition 65?
If you have specific questions on the administration or implementation of Proposition 65, you
can contact OEHHA's Proposition 65 program at P65.Questions@oehha.ca.gov, or by phone
at (916) 445-6900.
Noble House Home Furnishings LLC
Page 8 OF 8
