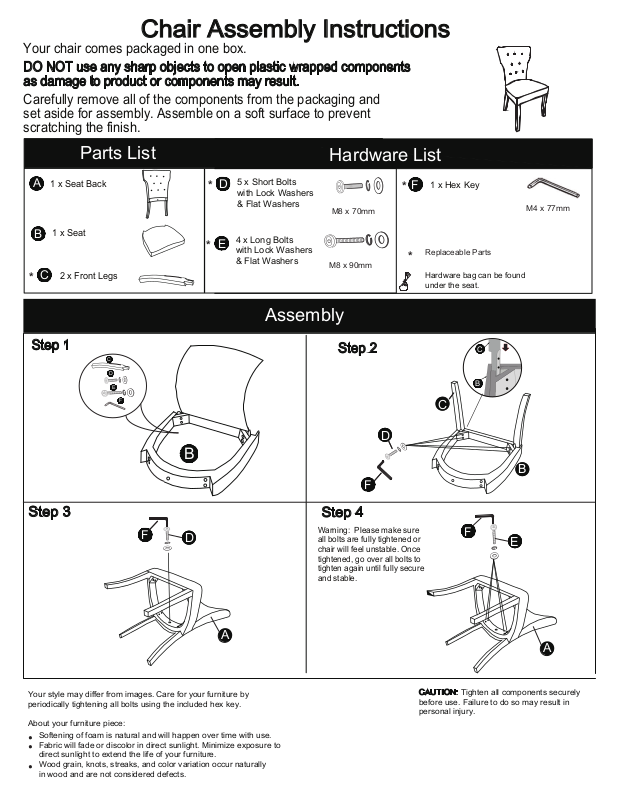

Chair Assembly Instructions
Your chair comes packaged in one box.
DO NOT use any sharp objects to open plastic wrapped components
as damage to product or components may result.
Carefully remove all of the components from the packaging and
set aside for assembly. Assemble on a soft surface to prevent
scratching the finish.
1 x Seat Back
A
1 x Seat
B
2 x Front Legs
C
*
Step 1
Parts List
C
D
E
F
Hardware List
5 x Short Bolts
D
*
with Lock Washers
& Flat Washers
4 x Long Bolts
E
*
with Lock Washers
& Flat Washers
Assembly
Hardware List
1 x Hex Key
F
*
M8 x 70mm
Replaceable Parts
M8 x 90mm
Step 2
*
Hardware bag can be found
under the seat.
DDD
M4 x 77mm
C
B
C
B
Step 3
F
Your style may differ from images. Care for your furniture by
periodically tightening all bolts using the included hex key.
About your furniture piece:
Softening of foam is natural and will happen over time with use.
.
Fabric will fade or discolor in direct sunlight. Minimize exposure to
.
direct sunlight to extend the life of your furniture.
Wood grain, knots, streaks, and color variation occur naturally
.
in wood and are not considered defects.
DDD
A
F
Step 4
Warning: Please make sure
all bolts are fully tightened or
chair will feel unstable. Once
tightened, go over all bolts to
tighten again until fully secure
and stable.
CAUTION:
before use. Failure to do so may result in
personal injury.
B
F
DD
E
A
Tighten all components securely
