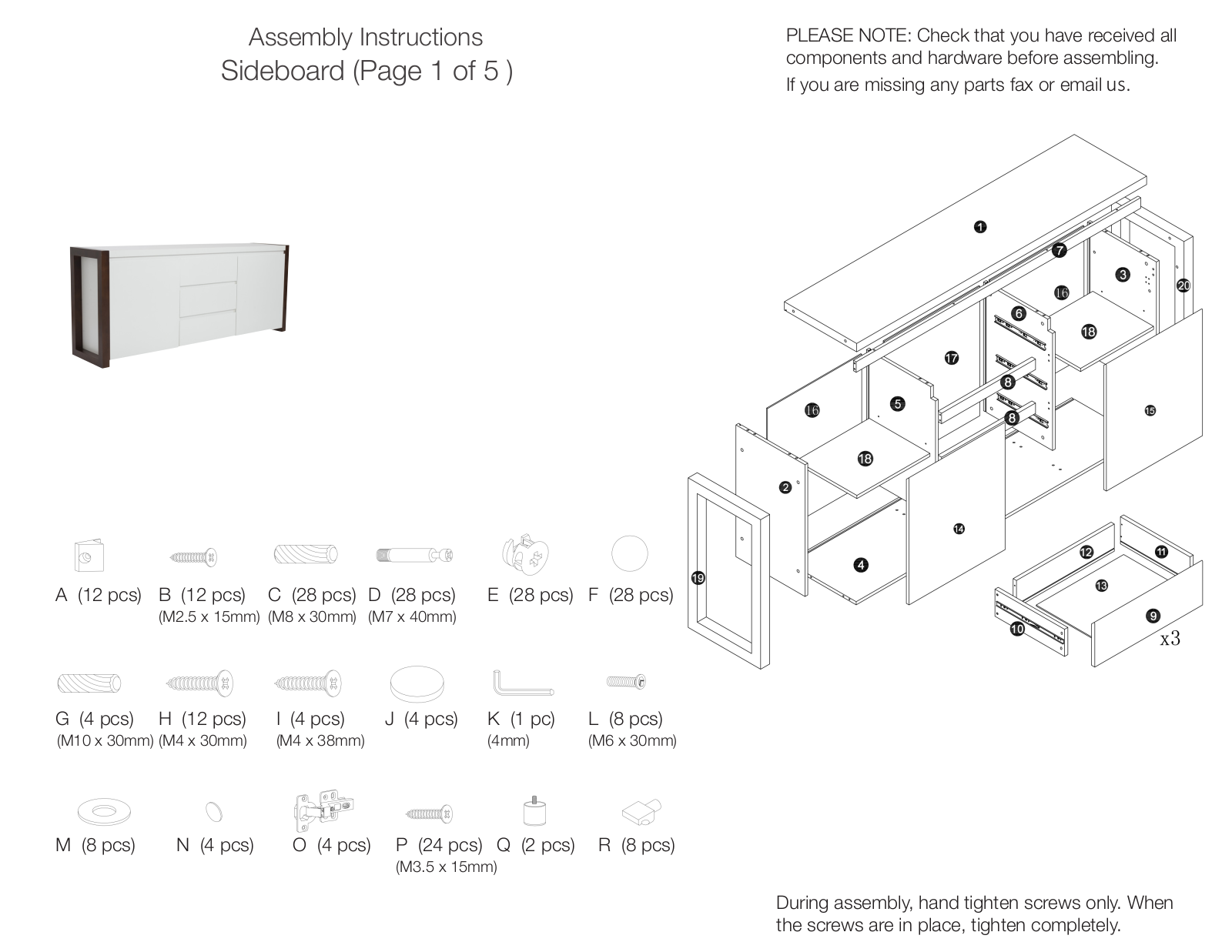

Page 1
Assembly Instructions
Sideboard (Page 1 of 5 )
PLEASE NOTE: Check that you have received all
components and hardware before assembling.
If you are missing any parts fax or email us.
A (12 pcs)
G (4 pcs)
(M10 x 30mm) (M4 x 30mm) (M4 x 38mm) (M6 x 30mm)
M (8 pcs)
B (12 pcs)
(M2.5 x 15mm)
H (12 pcs)
N (4 pcs)
C (28 pcs) D (28 pcs) E (28 pcs) F (28 pcs)
(M8 x 30mm)
I (4 pcs)
O (4 pcs)
(M7 x 40mm)
J (4 pcs)
P (24 pcs)
(M3.5 x 15mm)
K (1 pc)
(4mm)
Q (2 pcs)
L (8 pcs)
R (8 pcs)
During assembly, hand tighten screws only. When
the screws are in place, tighten completely.

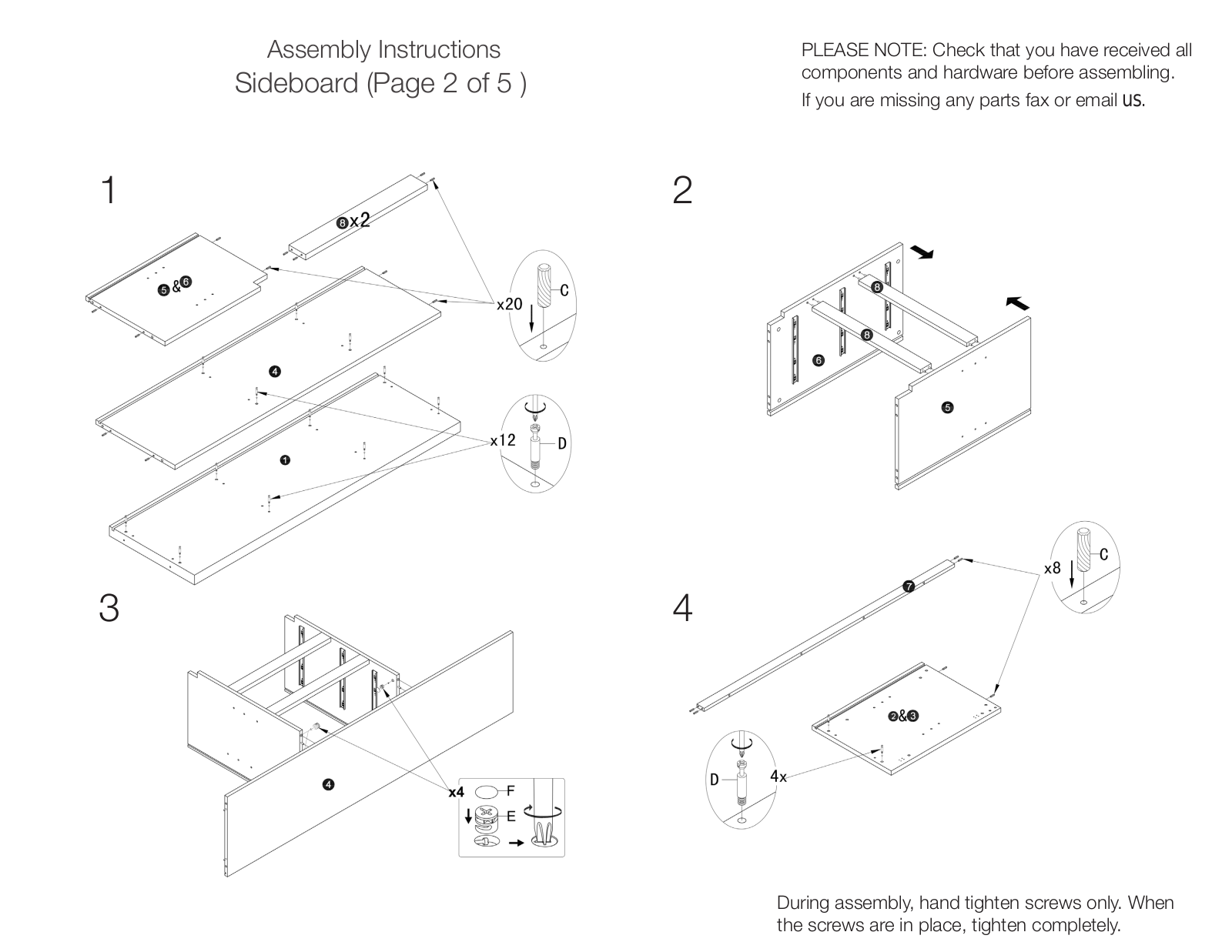

Page 2
Assembly Instructions
Sideboard (Page 2 of 5 )
PLEASE NOTE: Check that you have received all
components and hardware before assembling.
If you are missing any parts fax or email us.
1
3
2
4
During assembly, hand tighten screws only. When
the screws are in place, tighten completely.

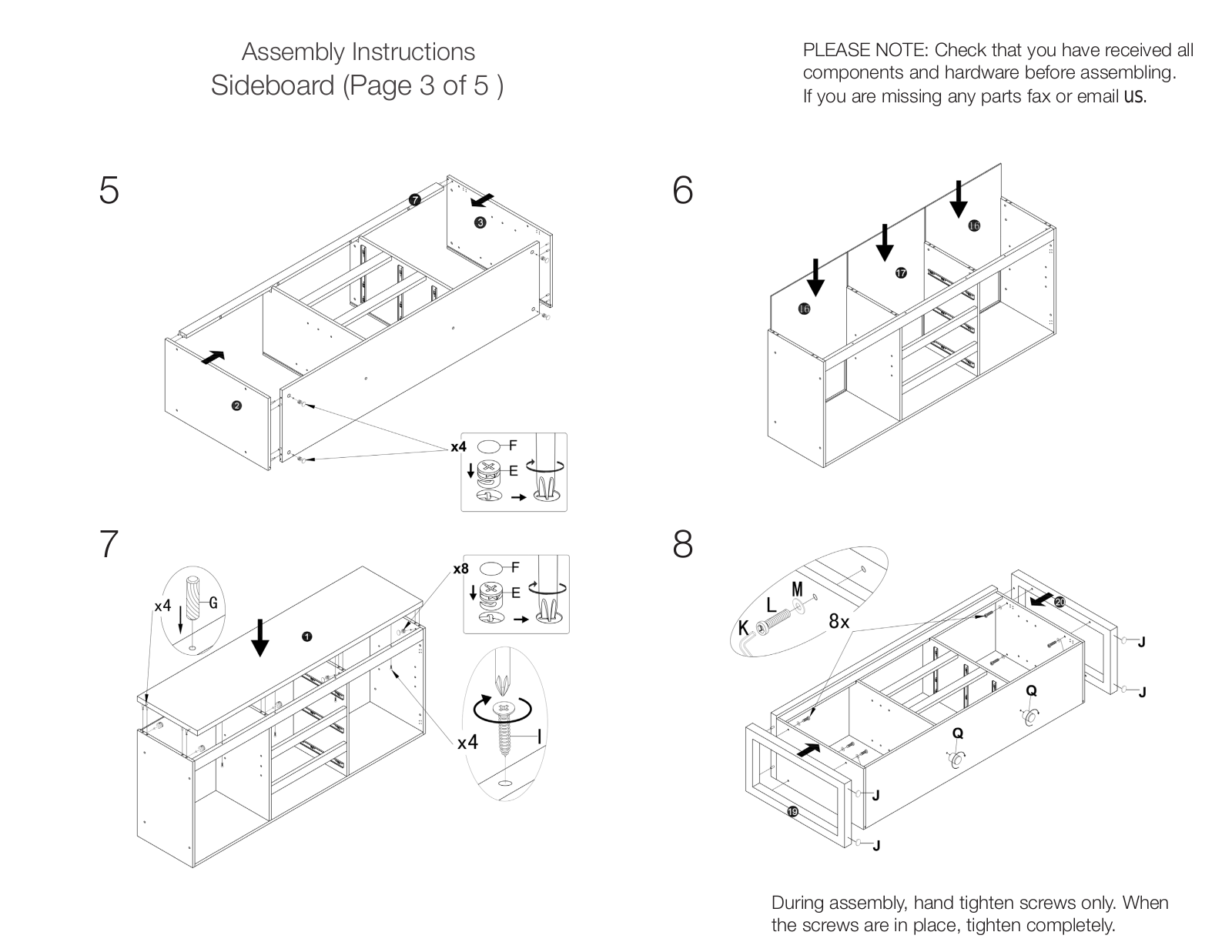

Page 3
Assembly Instructions
Sideboard (Page 3 of 5 )
PLEASE NOTE: Check that you have received all
components and hardware before assembling.
If you are missing any parts fax or email us.
5
7
6
8
During assembly, hand tighten screws only. When
the screws are in place, tighten completely.

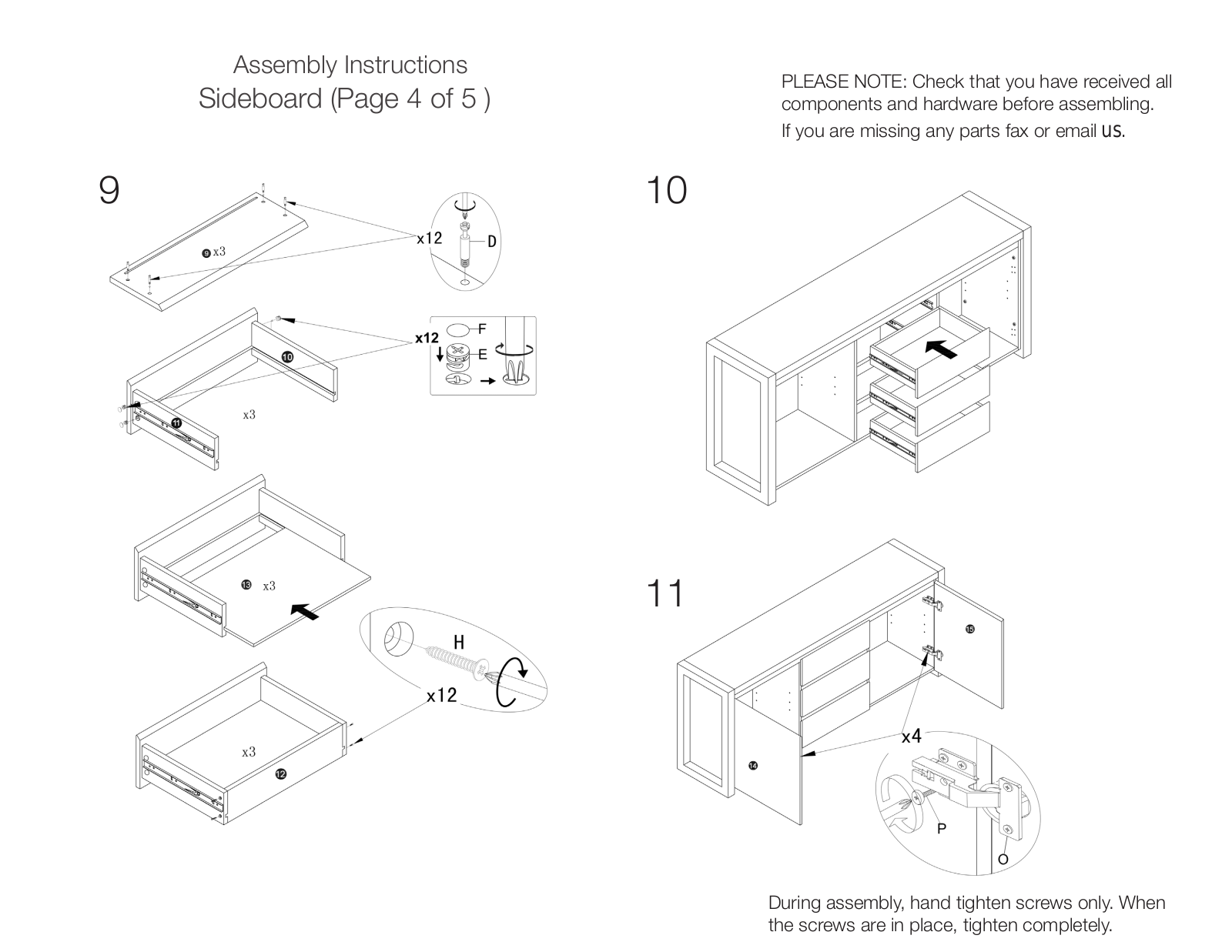

Page 4
Assembly Instructions
Sideboard (Page 4 of 5 )
PLEASE NOTE: Check that you have received all
components and hardware before assembling.
If you are missing any parts fax or email us.
9
10
11
During assembly, hand tighten screws only. When
the screws are in place, tighten completely.

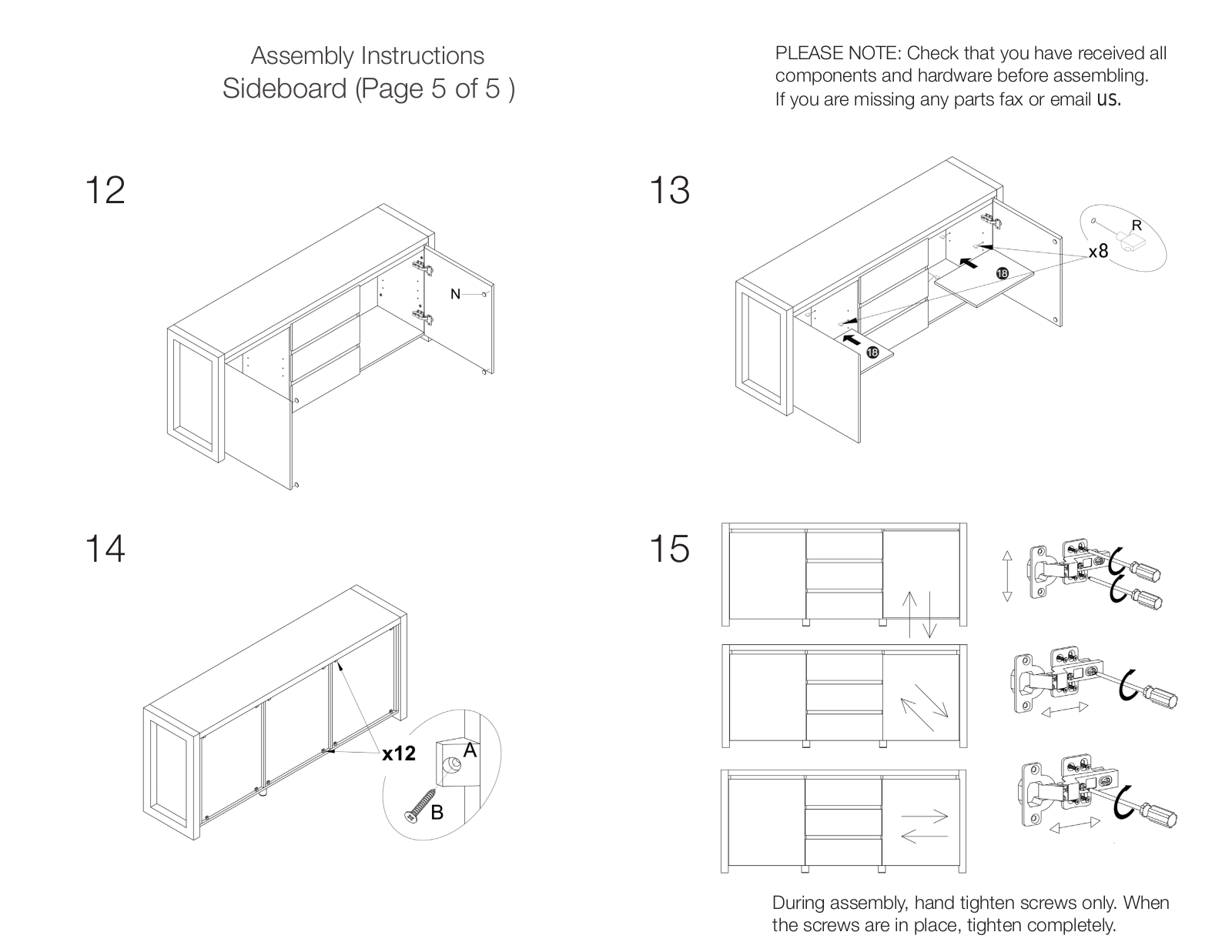

Page 5
Assembly Instructions
Sideboard (Page 5 of 5 )
PLEASE NOTE: Check that you have received all
components and hardware before assembling.
If you are missing any parts fax or email us.
12
14
13
15
During assembly, hand tighten screws only. When
the screws are in place, tighten completely.
