Brayden Studio AHST4182 Installation & Assembly

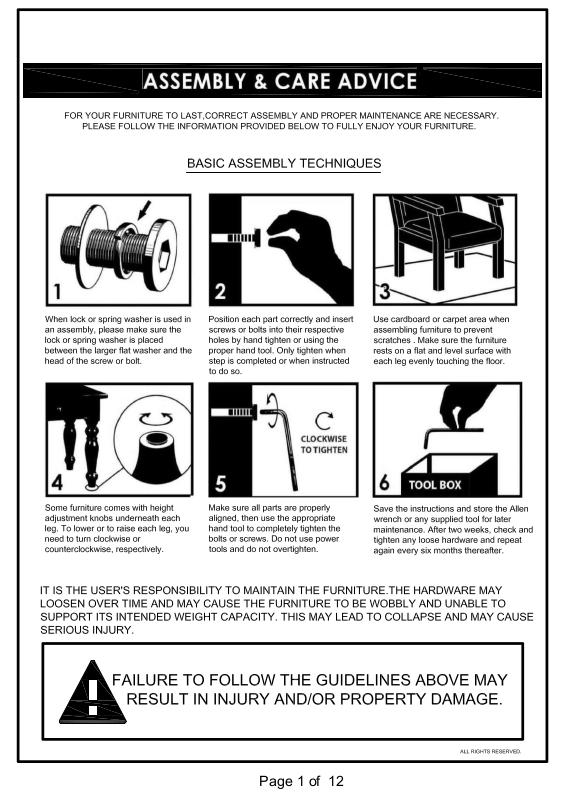

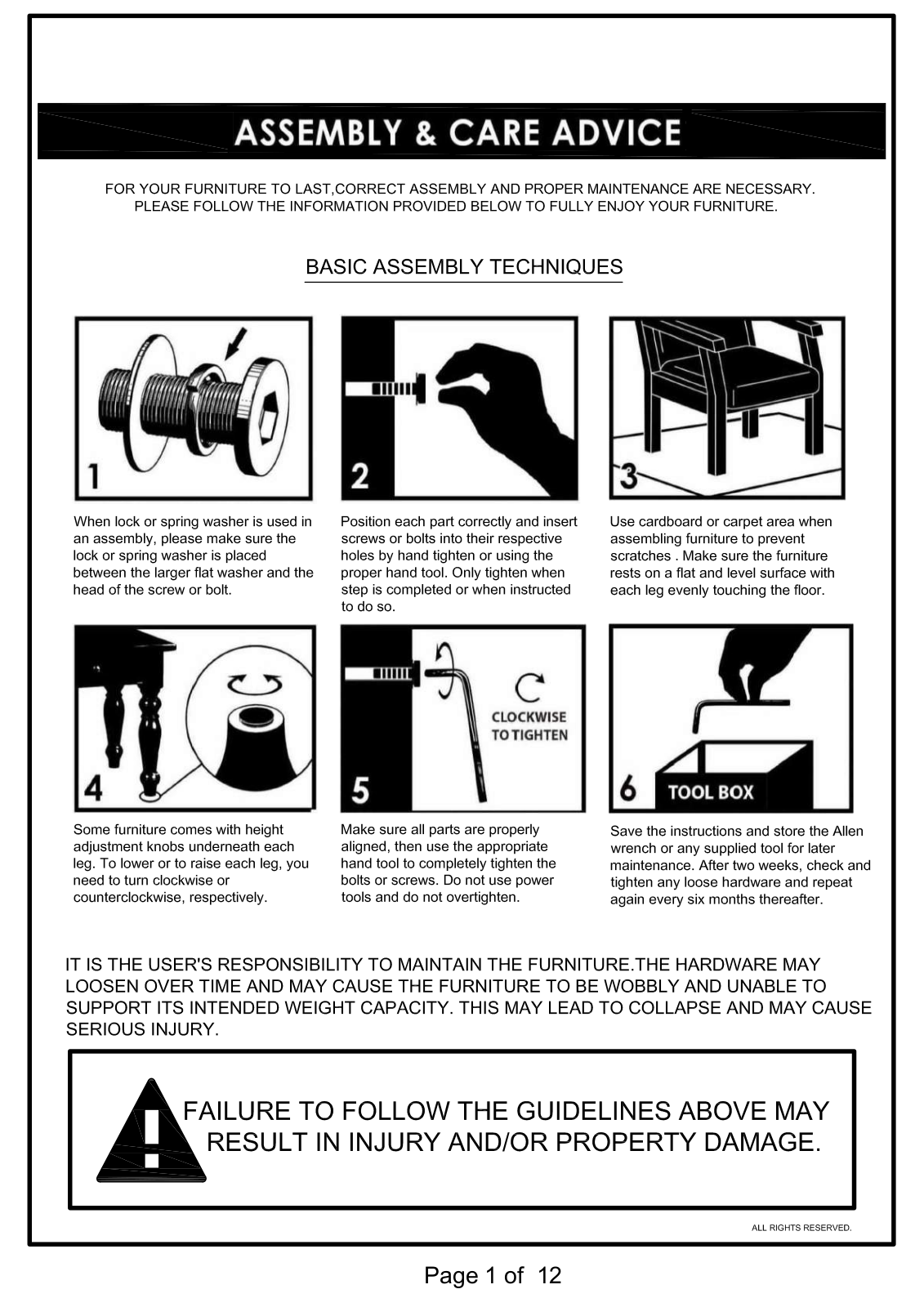

Page 1 of 12

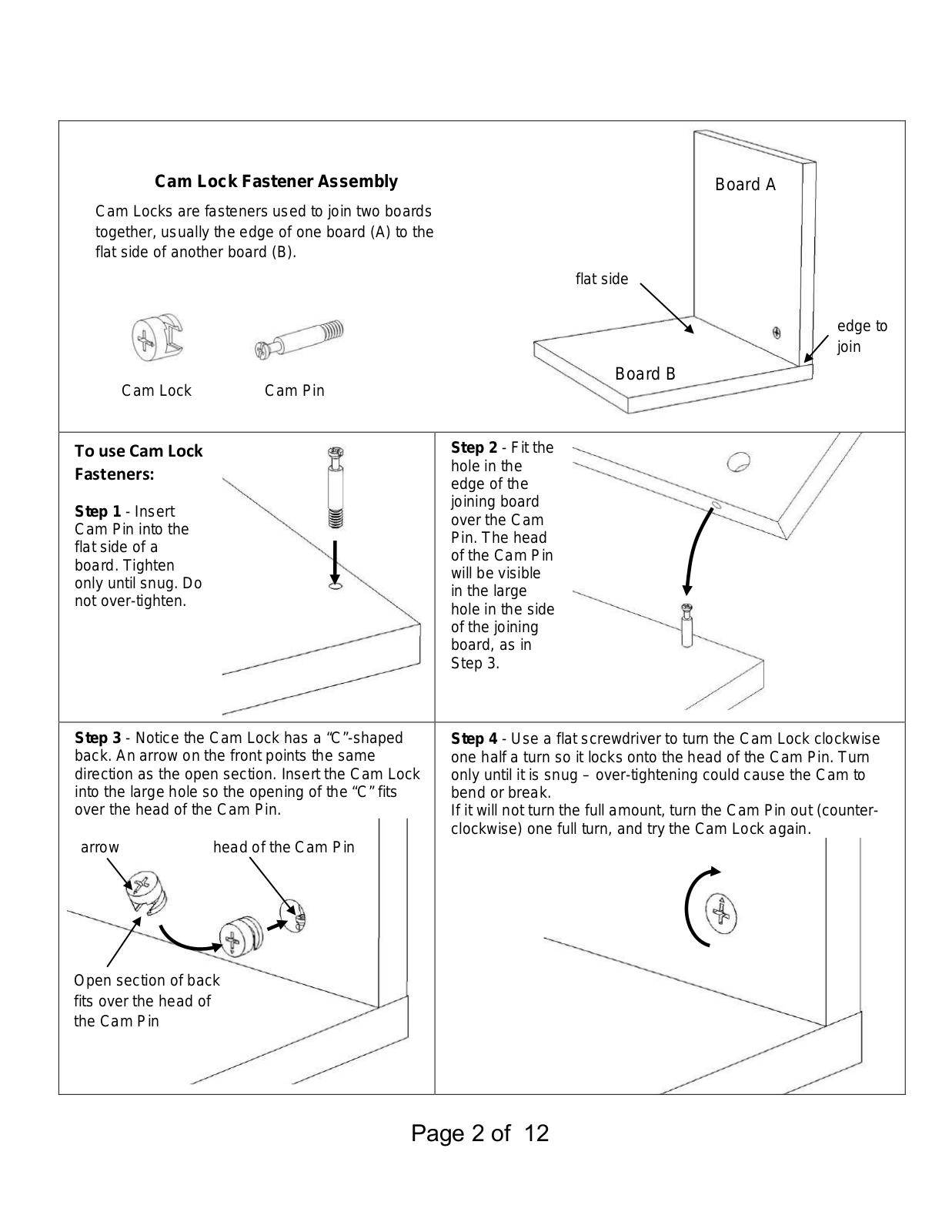

Cam Lock Fastener Assembly

Cam Locks are fasteners used to join two boards
together, usually the edge of one board (A) to the
flat side of another board (B).

Cam Lock Cam Pin

To use Cam Lock
Fasteners:

Step 1 - Insert
Cam Pin into the
flat side of a
board. Tighten
only until snug. Do
not over-tighten.

Board A

flat side

edge to
join

Board B

Step 2 - Fit the
hole in the
edge of the
joining board
over the Cam
Pin. The head
of the Cam Pin
will be visible
in the large
hole in the side
of the joining
board, as in
Step 3.

Step 3 - Notice the Cam Lock has a “C”-shaped
back. An arrow on the front points the same
direction as the open section. Insert the Cam Lock
into the large hole so the opening of the “C” fits
over the head of the Cam Pin.

arrow

Open section of back
fits over the head of
the Cam Pin

head of the Cam Pin

Step 4 - Use a flat screwdriver to turn the Cam Lock clockwise
one half a turn so it locks onto the head of the Cam Pin. Turn
only until it is snug – over-tightening could cause the Cam to
bend or break.
If it will not turn the full amount, turn the Cam Pin out (counter­clockwise) one full turn, and try the Cam Lock again.

Page 2 of 12

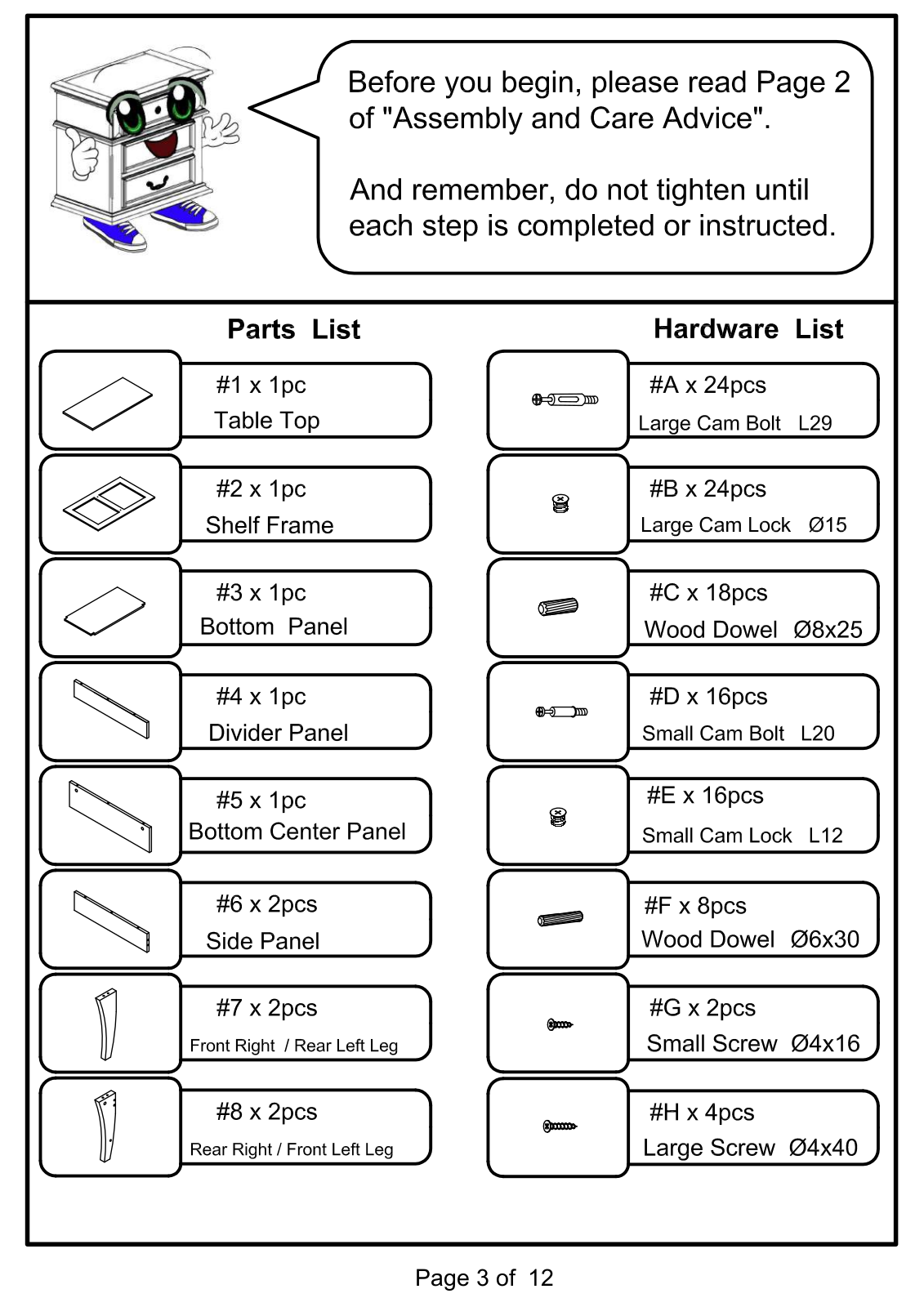

Page 3 of 12

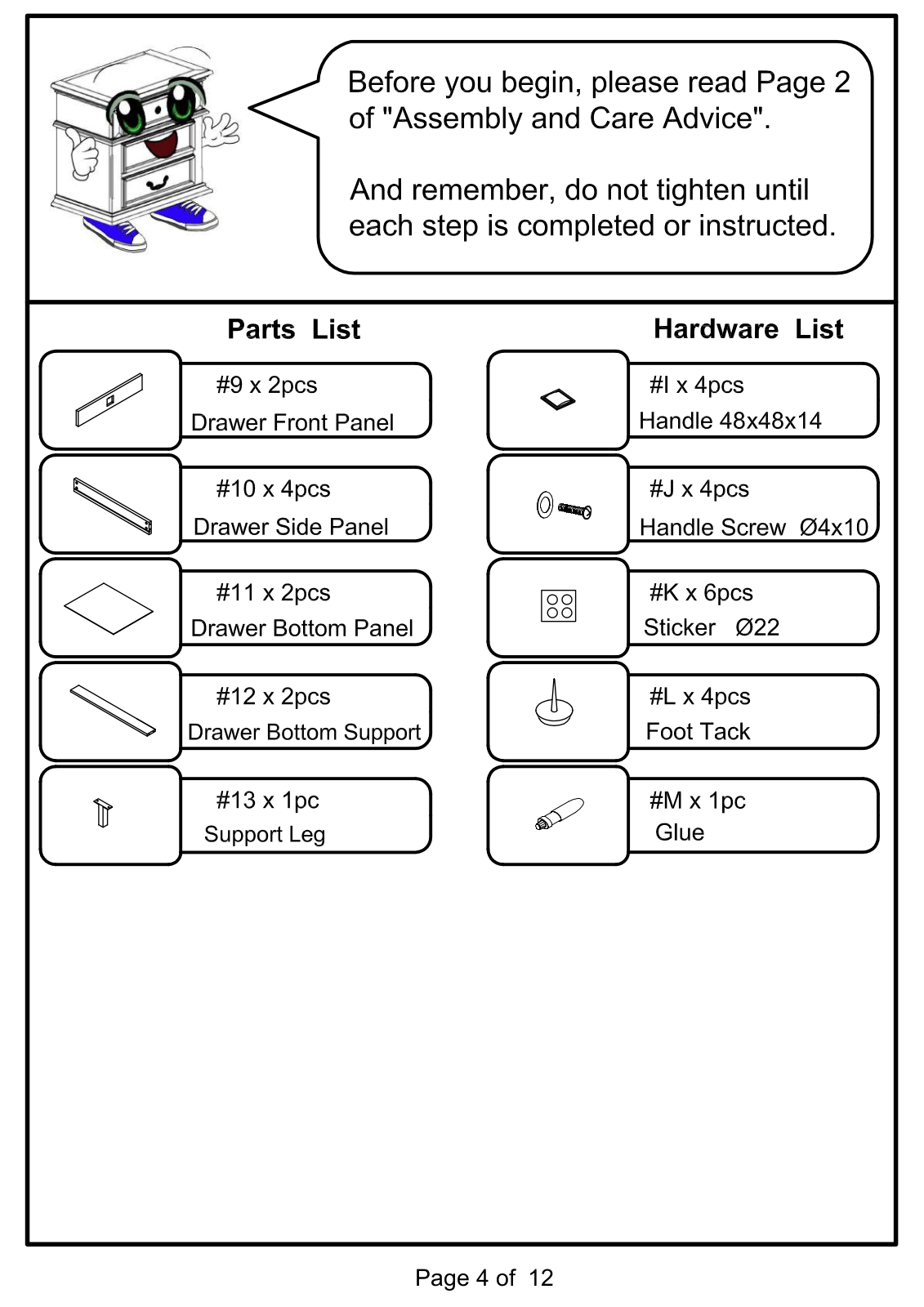

Page 4 of 12

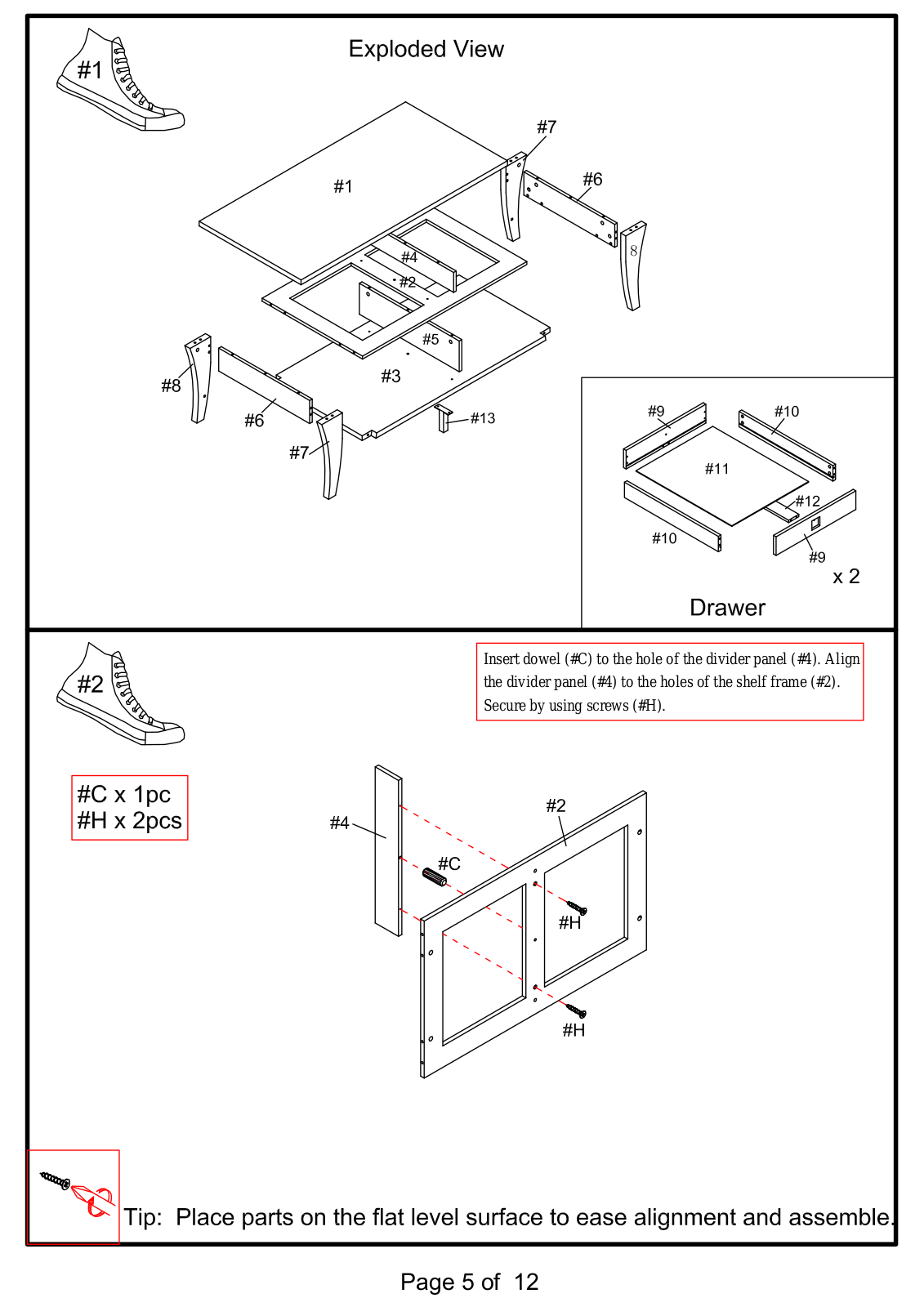

Insert dowel (#C) to the hole of the divider panel (#4). Align
the divider panel (#4) to the holes of the shelf frame (#2).
Secure by using screws (#H).

Page 5 of 12

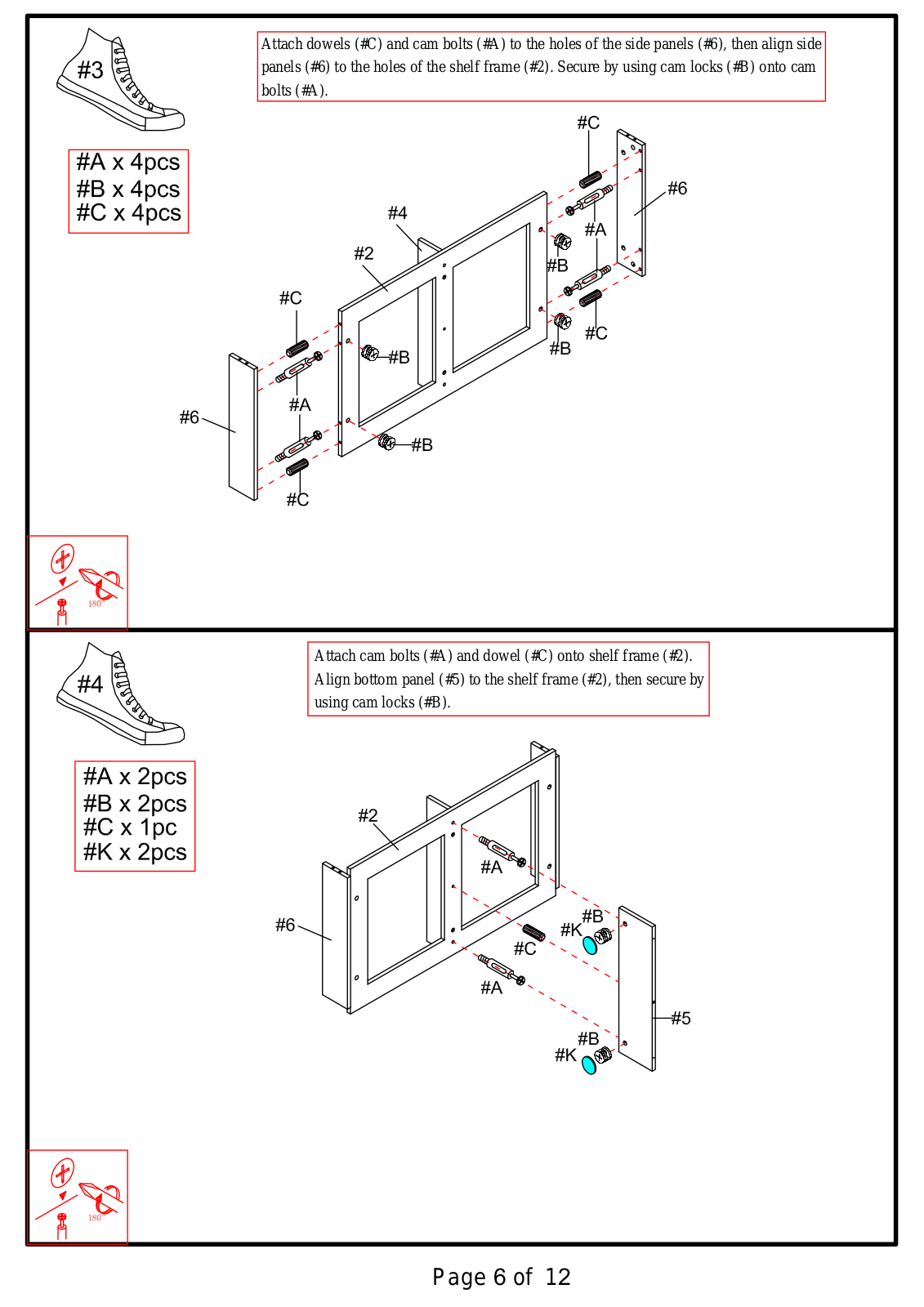

Attach dowels (#C) and cam bolts (#A) to the holes of the side panels (#6), then align side
panels (#6) to the holes of the shelf frame (#2). Secure by using cam locks (#B) onto cam
bolts (#A).

Attach cam bolts (#A) and dowel (#C) onto shelf frame (#2).
Align bottom panel (#5) to the shelf frame (#2), then secure by
using cam locks (#B).

Page 6 of 12

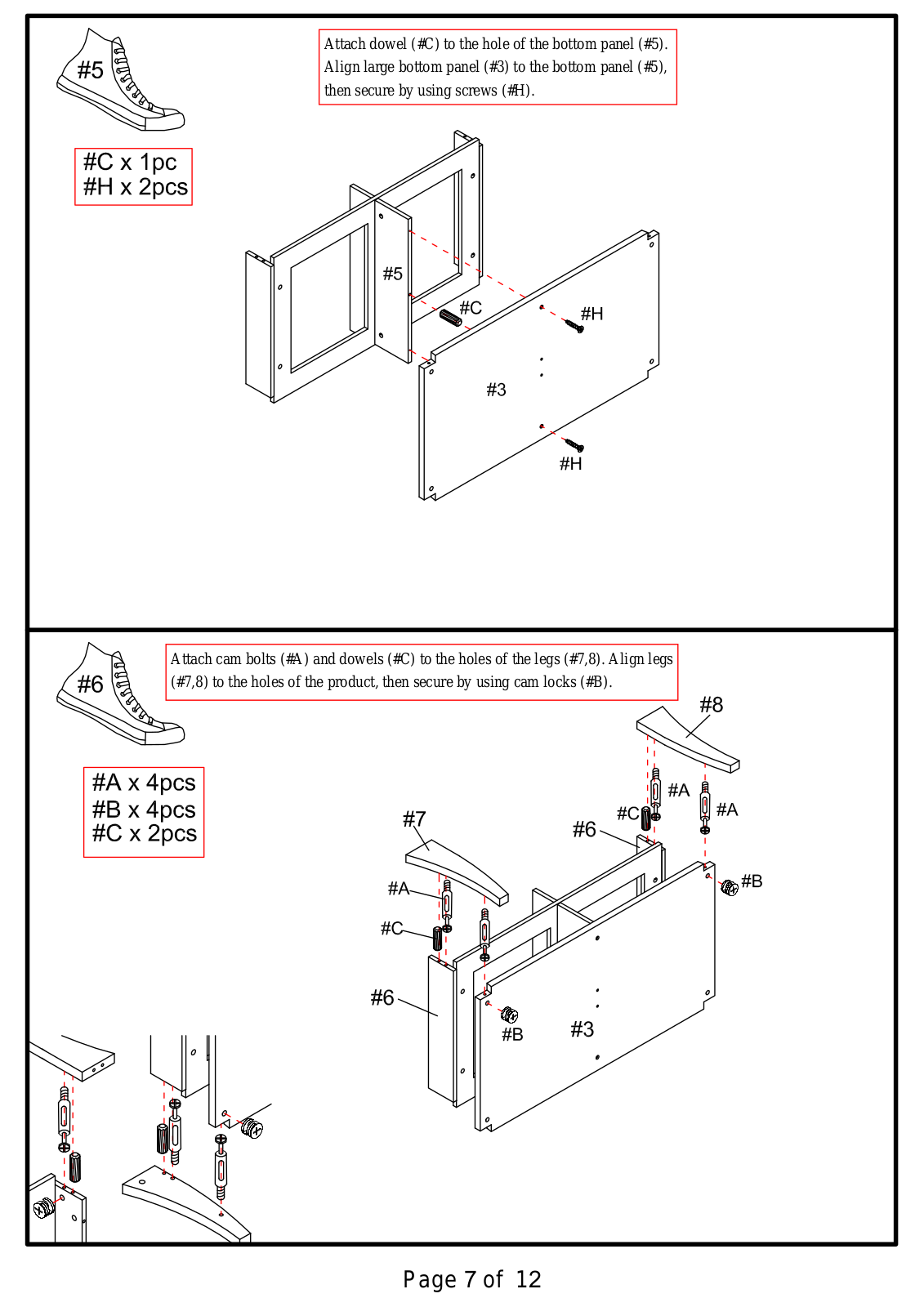

Attach dowel (#C) to the hole of the bottom panel (#5).
Align large bottom panel (#3) to the bottom panel (#5),
then secure by using screws (#H).

Attach cam bolts (#A) and dowels (#C) to the holes of the legs (#7,8). Align legs
(#7,8) to the holes of the product, then secure by using cam locks (#B).

Page 7 of 12

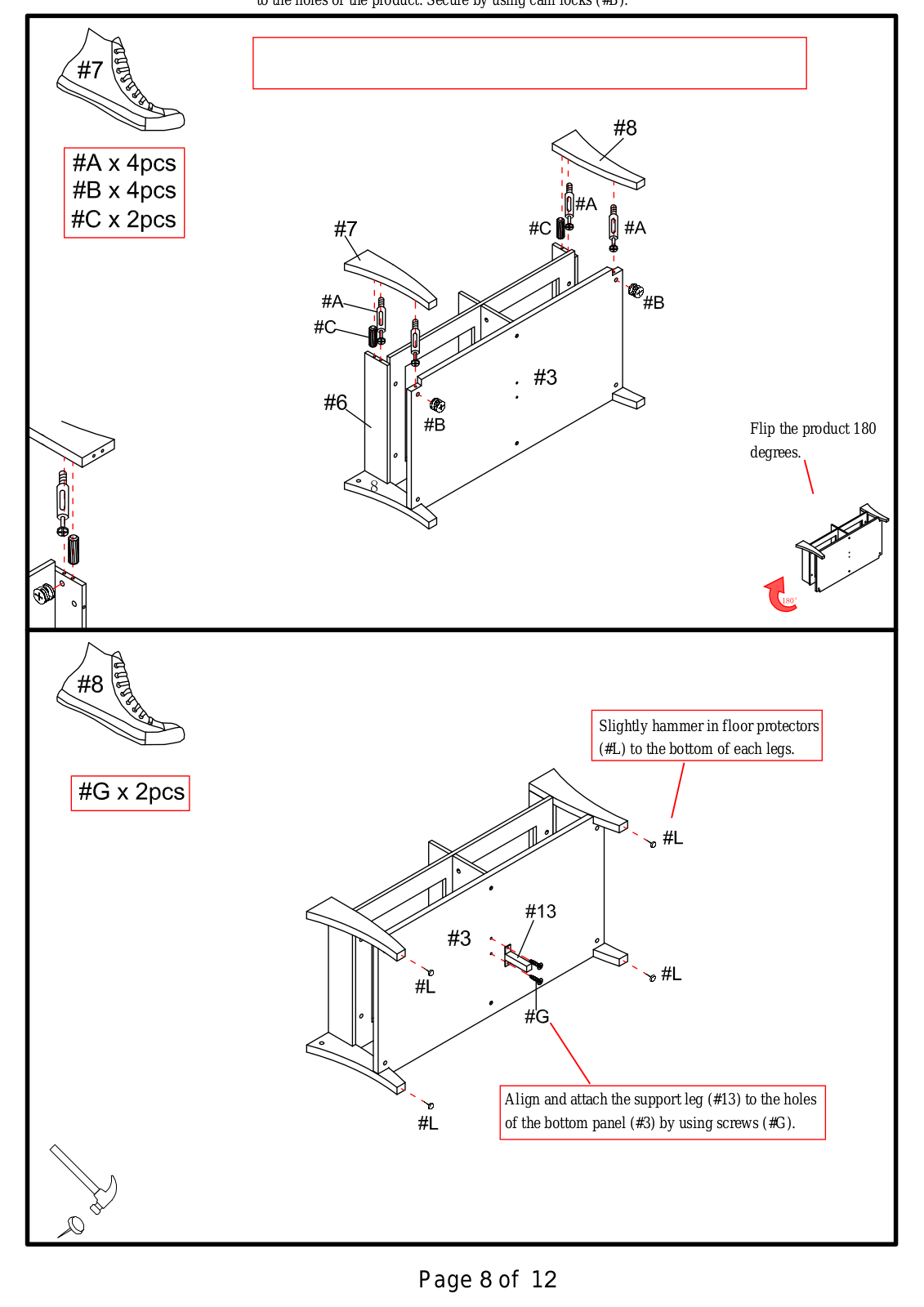

Align and attach the support leg (#13) to the holes
of the bottom panel (#3) by using screws (#G).

Slightly hammer in floor protectors
(#L) to the bottom of each legs.

Flip the product 180
degrees.

Attach cam bolts (#A) and dowels (#C) to the holes of the legs (#7,8). Align legs (#7,8)
to the holes of the product. Secure by using cam locks (#B).

Page 8 of 12

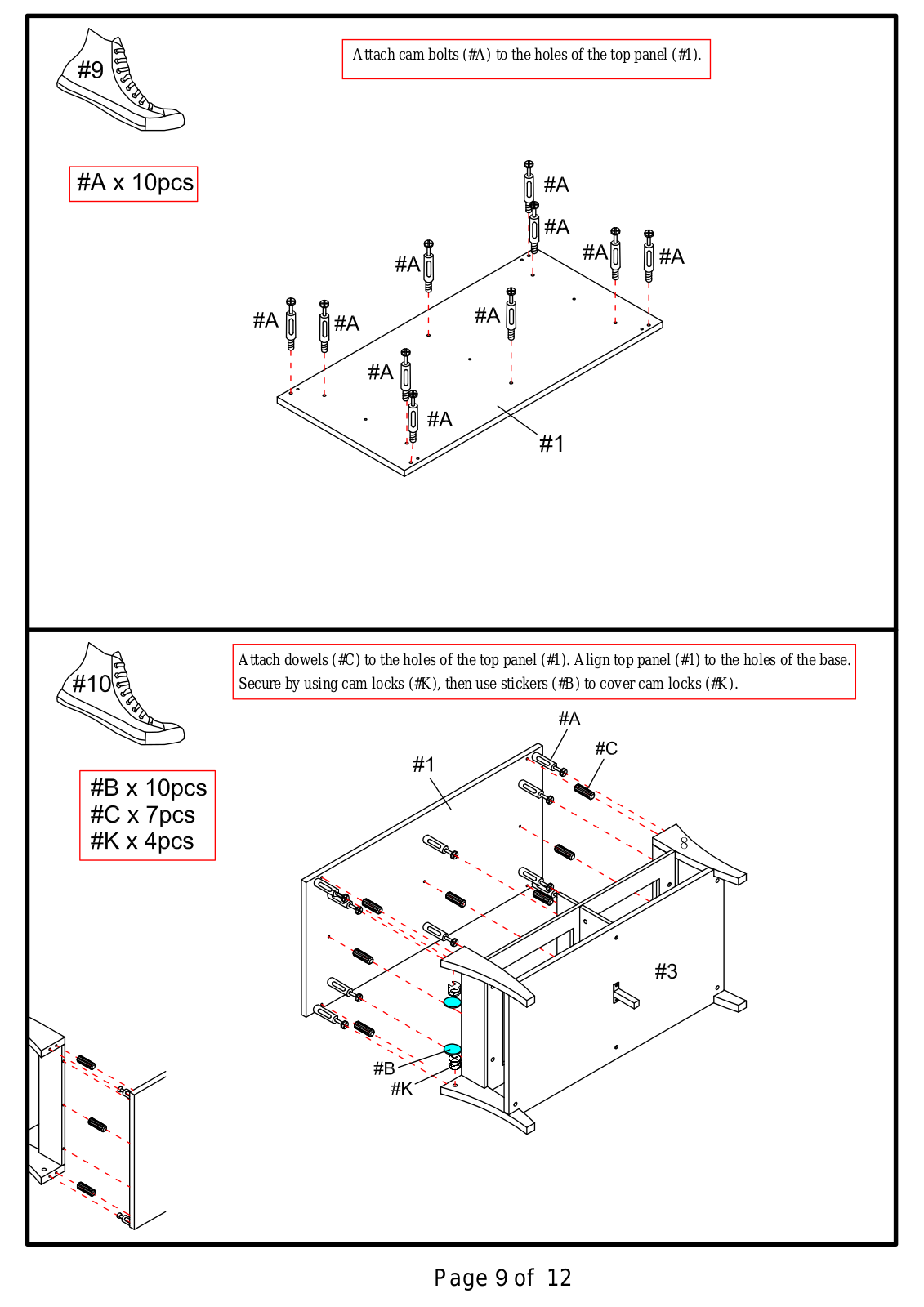

Attach dowels (#C) to the holes of the top panel (#1). Align top panel (#1) to the holes of the base.
Secure by using cam locks (#K), then use stickers (#B) to cover cam locks (#K).

Attach cam bolts (#A) to the holes of the top panel (#1).

Page 9 of 12

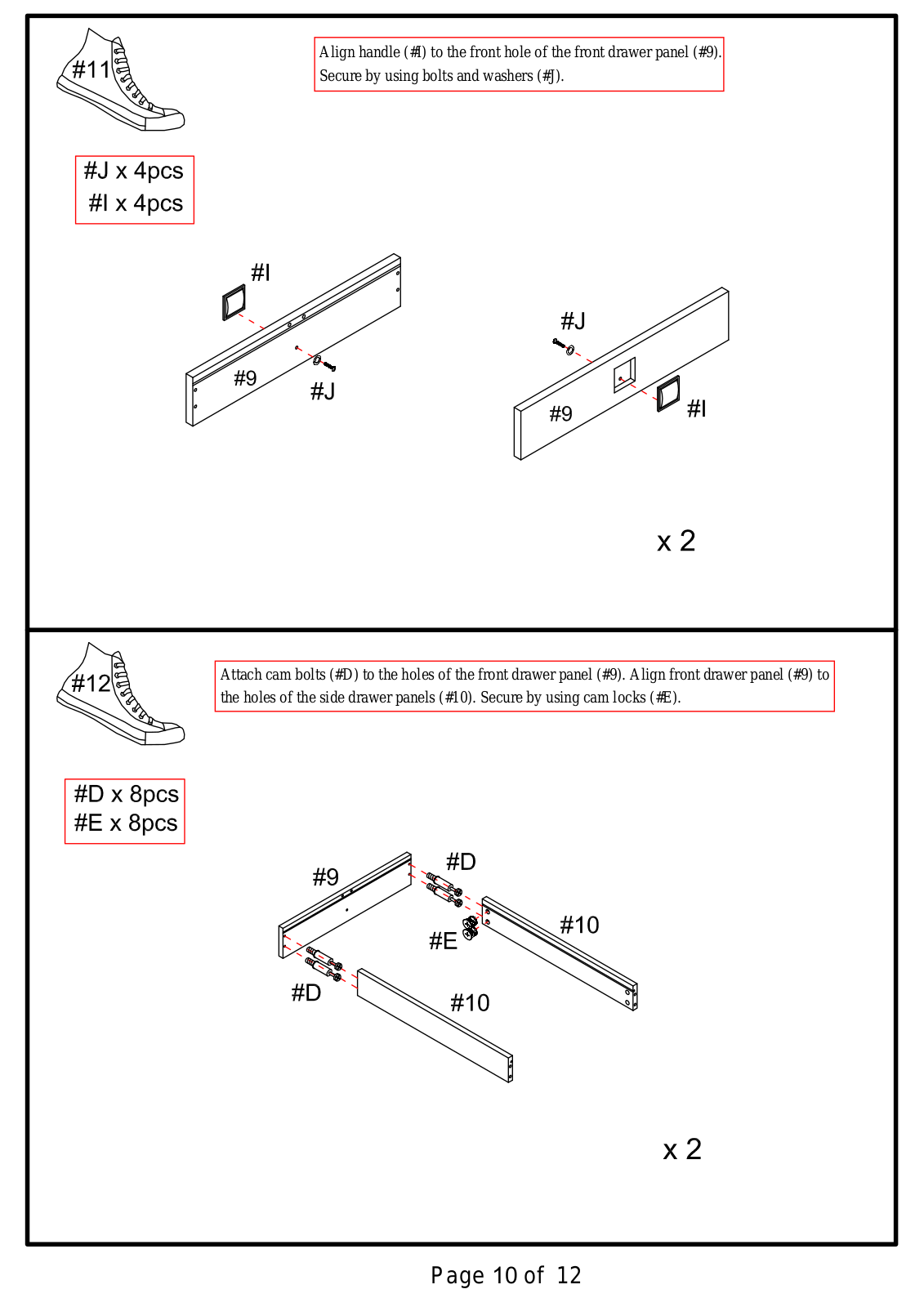

Attach cam bolts (#D) to the holes of the front drawer panel (#9). Align front drawer panel (#9) to
the holes of the side drawer panels (#10). Secure by using cam locks (#E).

Align handle (#I) to the front hole of the front drawer panel (#9).
Secure by using bolts and washers (#J).

Page 10 of 12

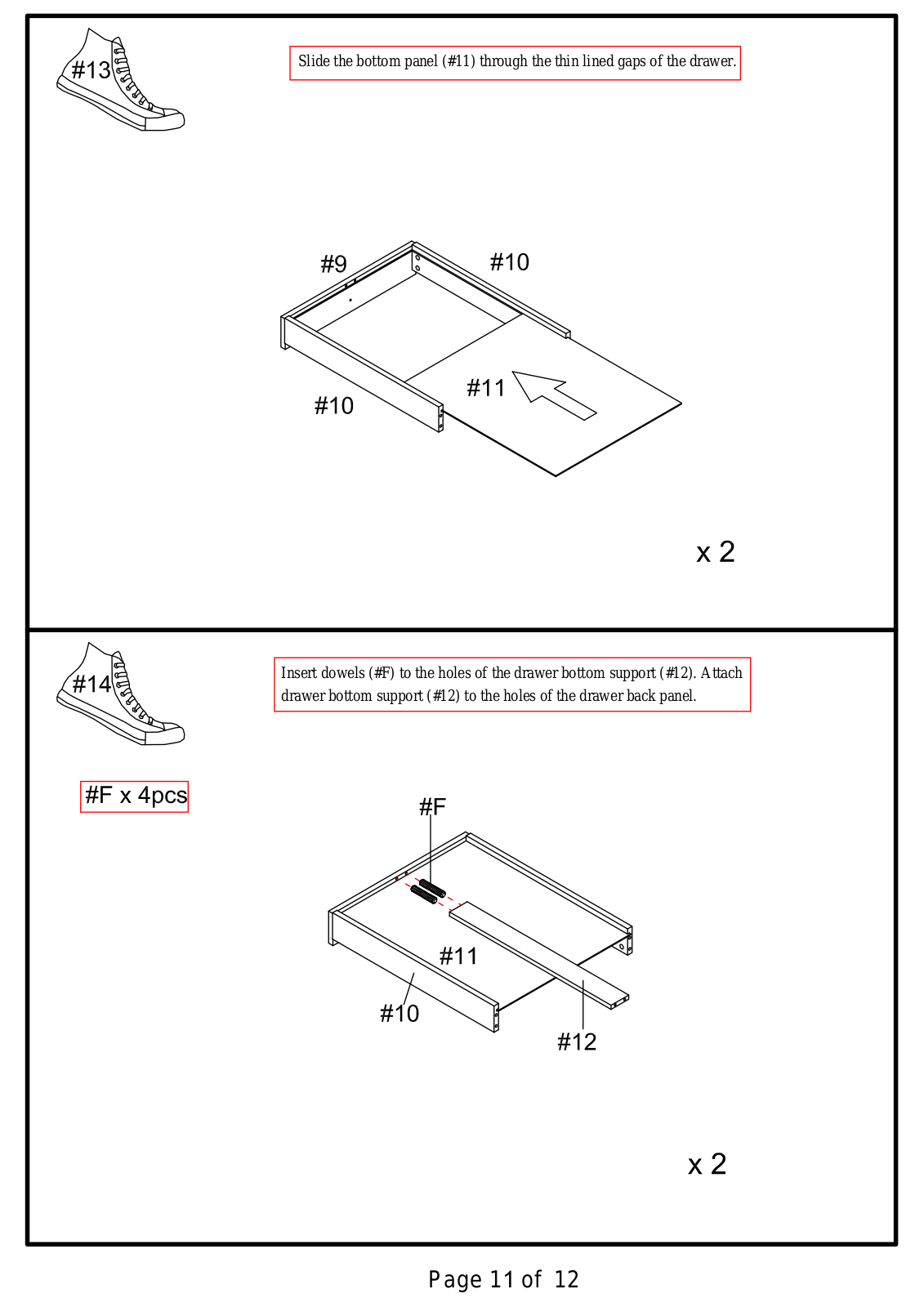

Insert dowels (#F) to the holes of the drawer bottom support (#12). Attach
drawer bottom support (#12) to the holes of the drawer back panel.

Slide the bottom panel (#11) through the thin lined gaps of the drawer.

Page 11 of 12

ASSEMBLY COMPLETED

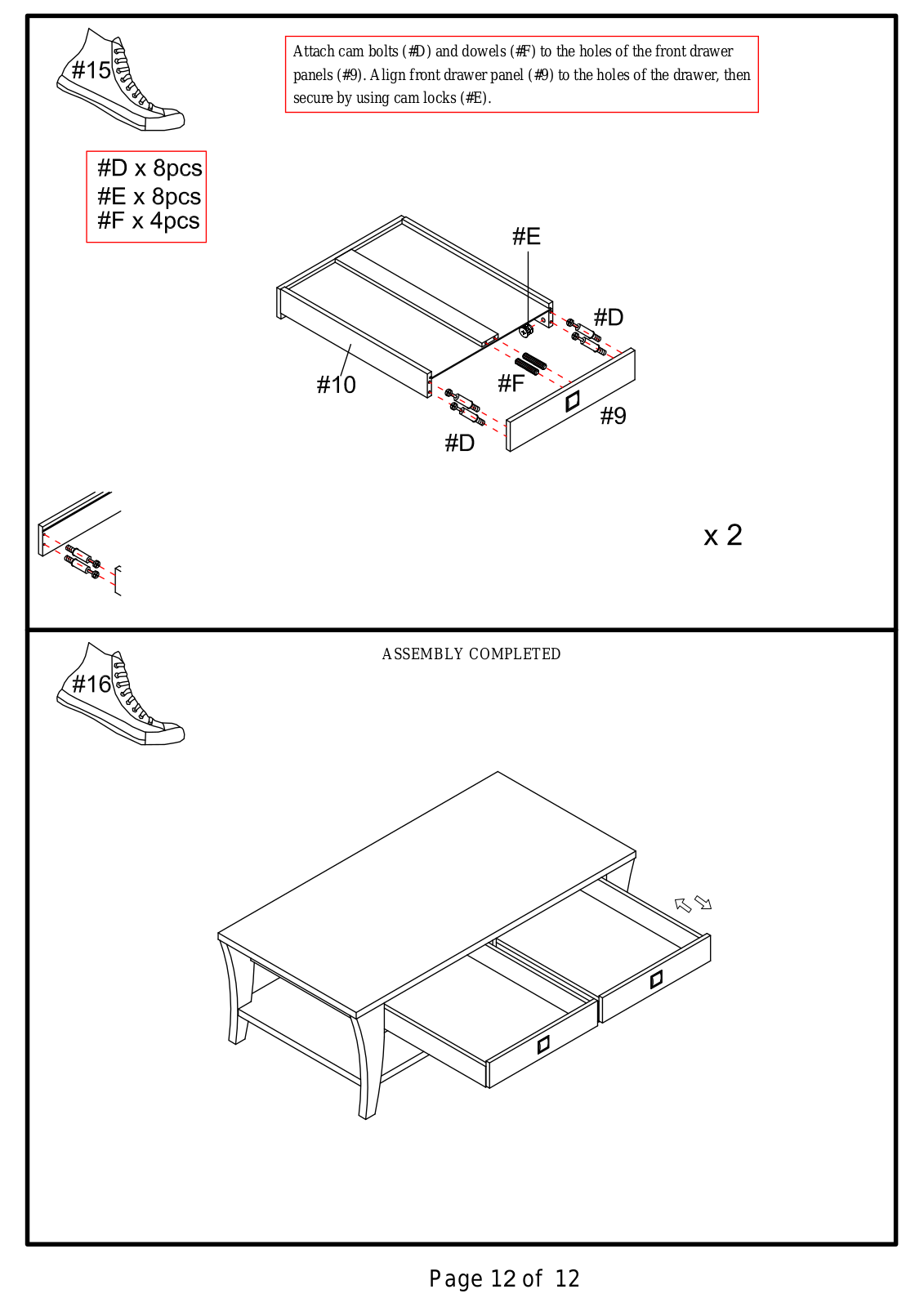

Attach cam bolts (#D) and dowels (#F) to the holes of the front drawer
panels (#9). Align front drawer panel (#9) to the holes of the drawer, then
secure by using cam locks (#E).

Page 12 of 12
