CoLinkEx JTAG/SWD adapter USER MANUAL
rev. A
Website: www.bravekit.com
CoLinkEx JTAG/SWD adapter www.bravekit.com
2
Contents
Introduction .................................................................................................................................................. 3
1. Features of CoLinkEX adapter: .............................................................................................................. 3
2. Elements of CoLinkEx programmer ....................................................................................................... 3
2.1. LEDs description. ........................................................................................................................... 4
3. JTAG interface ....................................................................................................................................... 4
4. SW interface .......................................................................................................................................... 5
5. JTAG connector pins numbers .............................................................................................................. 5
6. CoLinkEX schematic ............................................................................................................................... 6
7. How to supply target board from CoLinkEx .......................................................................................... 7
8. Installation of CoLinkEx ......................................................................................................................... 8
8.1. Install the Driver of CoLinkEx ........................................................................................................ 8
8.2. Connect CoLinkEx to PC ............................................................................................................... 10
9. Update the firmware ........................................................................................................................... 10
10. Use CoLinkEX ................................................................................................................................... 11
10.1. How to use CoLinkEx in CoIDE ................................................................................................. 11
10.2. How to use CoLinkEx in CoFlash .............................................................................................. 14
10.3. How to use CoLinkEx in MDK .................................................................................................. 15
CoLinkEx JTAG/SWD adapter www.bravekit.com
3
Introduction
CoLinkEx is a hardware-debugging adapter, which supports SW debugging and supports ARM Cortex M
devices, it supports debugging in CooCox software and Keil RealView MDK. Main features of LPC1343-HB
module. In addition, ColinkEx can supply target board with 3.3V or 5V via JTAG connector
1. Features of CoLinkEX adapter:
Support JTAG and SW interfaces for Cortex-M microcontrollers
Supported in Coocox IDE (COIDE) and Keil RealView MDK (with plugin)
USB-B connector
Support firmware upgrade via USB
Standard 20-pin JTAG connector
Can supply target board with 3.3V or 5V via JTAG connector
4 LEDs for status of programmer
Compact size 55х55х18mm
2. Elements of CoLinkEx programmer
3V3 voltage regulator
“PWR” LED
“ERROR” LED
“Connect” LED
USB connector
“BUSY” LED
USB bootloader
jumper, JP1
3V3 jumper for
supply target board
3V3 jumper for
supply target board
CoLinkEx JTAG/SWD adapter www.bravekit.com
4
2.1. LEDs description.
CoLinkEx programmer have four LEDs for status indication
PWR – show status of programmer power supply
Connect – status of connection to USB
BUSY – this LED is ON if programmer in debug mode
ERROR – this LED is ON if any error is occur
3. JTAG interface
CoLinkEx have a standard JTAG connector. The JTAG connector is a 20 way Insulation
Displacement Connector (IDC) keyed box header (2.54mm male) that mates with IDC
sockets mounted on a ribbon cable
The following table lists the CoLinkEx JTAG pinout.
Pin
Signal
TYPE
Description
1
3V3 OUT
Power
3V3 output for supply target board from voltage
regulator of CoLinkEx. Voltage on this pin available,
if “3V3” jumper is closed
2,3,11,17
NC
-
This pin is not connected in CoLinkEx
5
TDI
output
JTAG data input of target CPU. It is
recommended that this pin is pulled to a
defined state on the target board. Typically
connected to TDI of the target CPU.
7
TMS
output
JTAG mode set input of target CPU. This pin
should be pulled up on the target. Typically
connected to TMS of the target CPU
9
TCK
output
JTAG clock signal to target CPU. It is
recommended that this pin is pulled to a
defined state of the target board. Typically
connected to TCK of the target CPU
13
TDO
Input
JTAG data output from target CPU. Typically
connected to TDO of the target CPU.
15
RESET
output
Target CPU reset signal. Typically connected
to the RESET pin of the target CPU, which is
typically called "nRST", "nRESET" or "RESET".
19
5V OUT
Power
This pin can be used to supply power to the
target hardware. Voltage on this pin available, if
“3V3” jumper is closed
4,6,8,10,12,14,16
GND
Ground
These pins connected to GND in CoLinkEx.
They should also be connected to GND in the
target system
CoLinkEx JTAG/SWD adapter www.bravekit.com
5
4. SW interface
CoLinkEx JTAG connector is also compatible to ARM.s Serial Wire Debug (SWD).
Pin
Signal
TYPE
Description
1
3V3 OUT
Power
3V3 output for supply target board from voltage
regulator of CoLinkEx. Voltage on this pin available,
if “3V3” jumper is closed
7
SWDIO
Input/Output
Single bi-directional data pin. A pull-up
resistor is required. ARM recommends 100
kOhms
9
SWCLK
Output
Clock signal to target CPU.
It is recommended that this pin is pulled to a
defined state on the target board. Typically
connected to TCK of target CPU.
13
SWO
Output
Serial Wire Output trace port. (Optional, not
required for SWD communication.)
4,6,8,10,12,1
4,16
GND
Ground
These pins connected to GND in CoLinkEx.
They should also be connected to GND in the
target system
5. JTAG connector pins numbers
Numbers of JTAG connector pins showed on photo below
2
20
19
4
CoLinkEx JTAG/SWD adapter www.bravekit.com
6
6. CoLinkEX schematic
CoLinkEx JTAG/SWD adapter www.bravekit.com
7
7. How to supply target board from CoLinkEx
With CoLinkEx adapter, you can supply target board with 3.3V/400mA or 5V/400mA via JTAG connector.
7.1. Power supply with 3.3V
For using this function, you must close “3V3” jumper. In this case, 3.3V from on-board voltage
regulator will be connected to pin 1 of JTAG connector. On target board 3.3V power supply bus
must be connected to pin 1 of JTAG connector.
7.2. Power supply with 5V
For using this function, you must close “5V” jumper. In this case, 5V from USB will be connected
to pin 19 of JTAG connector. On target board, 5V power supply bus must be connected to pin 19
of JTAG connector.
“3V3” jumper
“5V” jumper
CoLinkEx JTAG/SWD adapter www.bravekit.com
8
8. Installation of CoLinkEx
8.1. Install the Driver of CoLinkEx
You can download driver from http://www.coocox.org/Colinkex.htm
Do the operations shown in the following picture
CoLinkEx JTAG/SWD adapter www.bravekit.com
9
CoLinkEx JTAG/SWD adapter www.bravekit.com
10

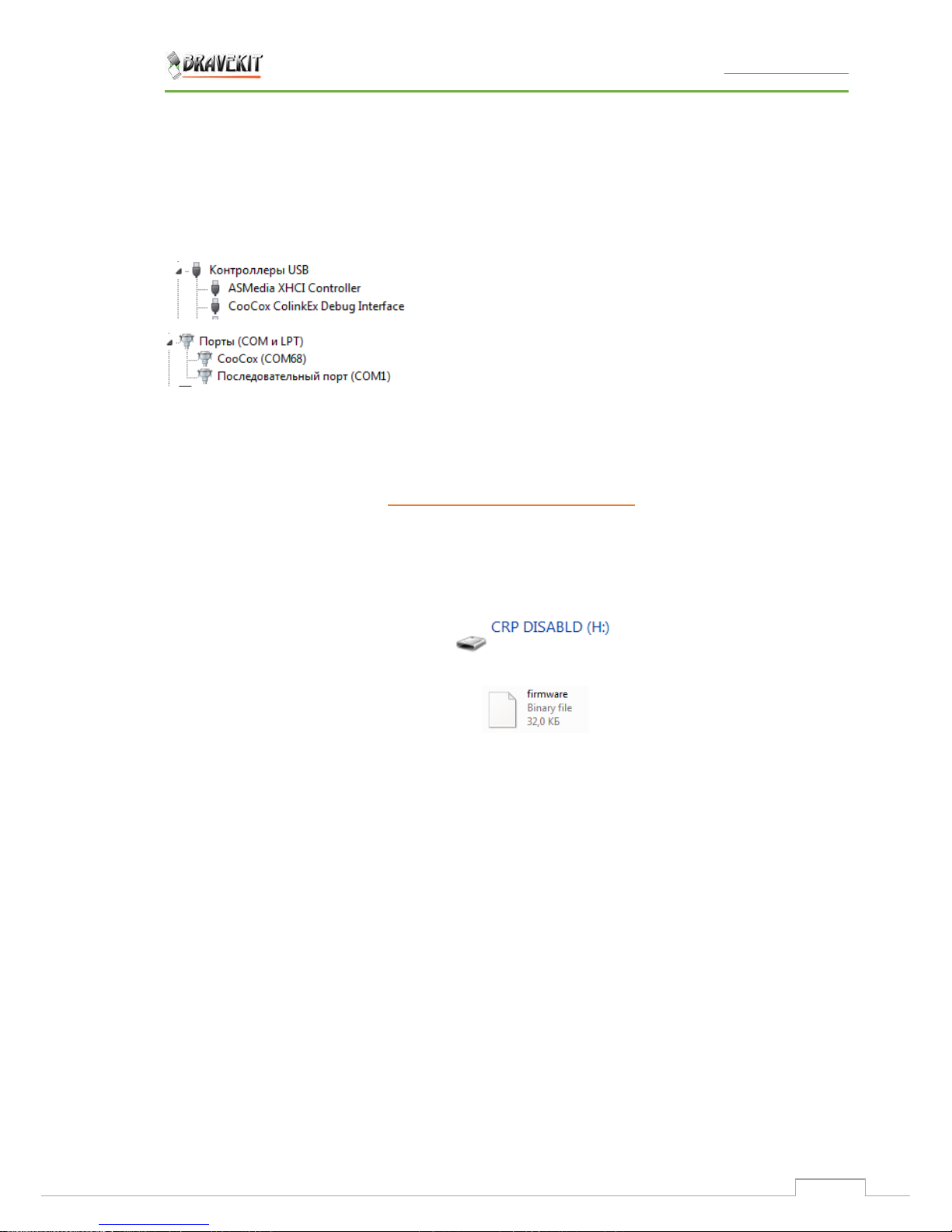

8.2. Connect CoLinkEx to PC
When you connect CoLinkEx to PC, it will ask you to install the driver to system for the new detected
devices. Then you may need to specify the path for CoLinkEx Driver. After you installed the driver, in the
device manager, you will found CooCox（COM x）under Port and CooCox CoLinkEx Debug Interface
under USB Controller. If there is a “?” in front of the two devices, it means that the driver have not been
installed to the system or install failed; if there isn’t CooCox Port, it means that your CoLinkEx firmware
and driver is old version.
9. Update the firmware
You can download firmware from http://www.coocox.org/Colinkex.htm
How to update the firmware:
9.1. Short-circuit JP1 (activation of USB bootloader)
9.2. Connect CoLinkEx to the PC. Wait for the PC enumerates the removable disk whose label is
"CRP2 ENABLD" or "CRP DISABLD". If it does not, you could press the reset button (BP1) for
several times or power on again.
9.3. Delete the firmware.bin file in removable disk
9.4. Copy the downloaded firmware: ColinkEx_firmware_v0.4.bin into the removable disk
9.5. Disconnect JP1, power on again, then CoLinkEx will work normally
CoLinkEx JTAG/SWD adapter www.bravekit.com
11
10. Use CoLinkEX
Now CoLinkEx support CoIDE, CoFlash and CoMDKPlugin. The following is the configuration to use
CoLinkEx in this software
10.1. How to use CoLinkEx in CoIDE
After create CoIDE Project, click Debug Configuration button
CoLinkEx JTAG/SWD adapter www.bravekit.com
12
In “debug configuration” page, select CoLinkEx, and set other parameters
In Download page, configure the flash algorithm
CoLinkEx JTAG/SWD adapter www.bravekit.com
13

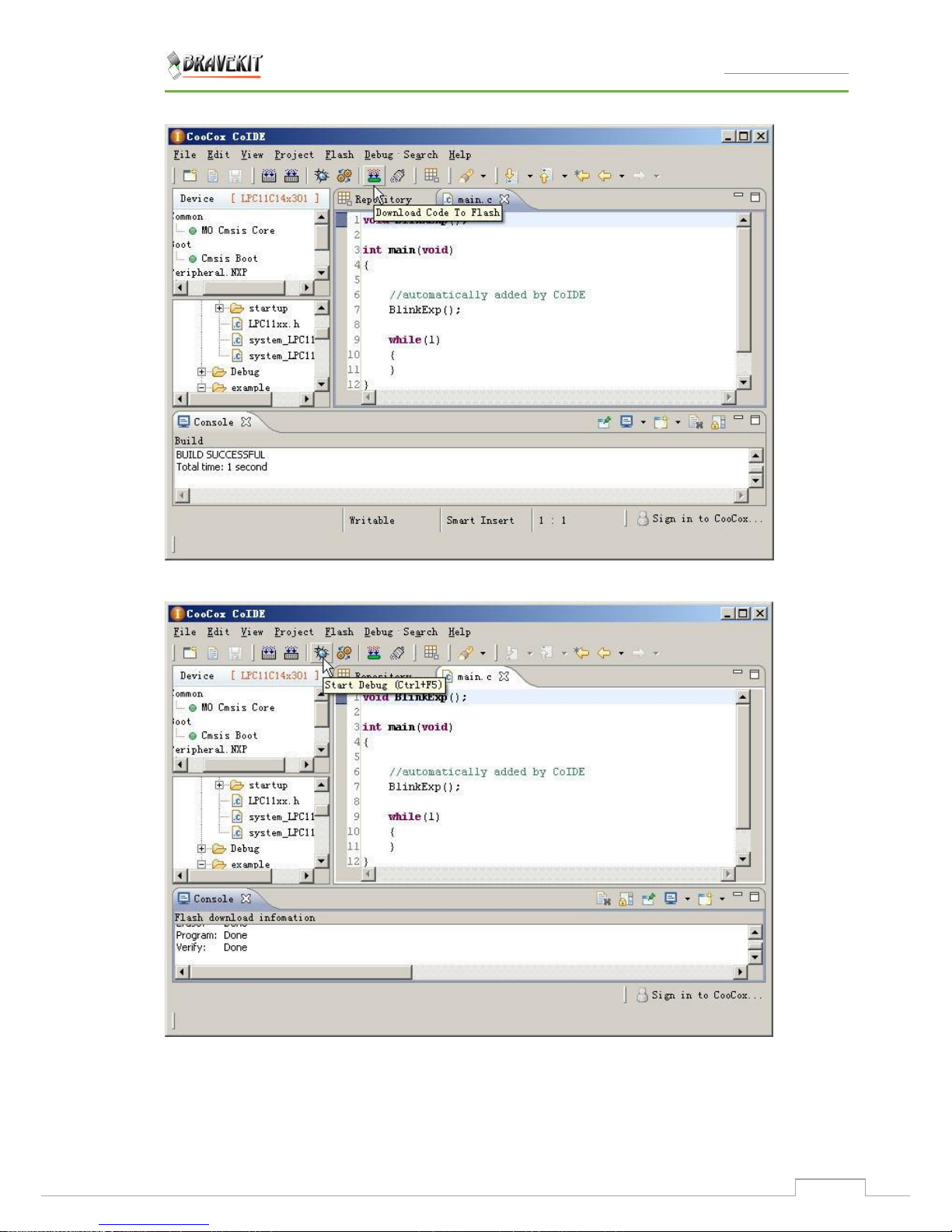

After compile the project, click the download button to Download code to Flash
Click Debug button to debug the program.
CoLinkEx JTAG/SWD adapter www.bravekit.com
14
10.2. How to use CoLinkEx in CoFlash
Open CoFlash, select a chip, e.g. (LPC11C14x301 from NXP), then select CoLinkEx in the adapter; modify
the Port, Max Clock for the adapter if you need. You can refer to the following picture
Switch to Download page to execute Download, Erase, Verify, Blank Check, etc
CoLinkEx JTAG/SWD adapter www.bravekit.com
15
10.3. How to use CoLinkEx in MDK
Before using CoLinkEx in Keil MDK you must install «CoLinkEx plugin for MDK» from
http://www.coocox.org/Colinkex.htm
Open MDK Project, Click Target options to configure the project
“Debug -> Use”, open the configuration dialog and selects "CooCox Debugger".
CoLinkEx JTAG/SWD adapter www.bravekit.com
16
Click "Settings", and then select the “CoLinkEx” as the adapter. You can also modify the Port, Max Clock
for the adapter, Reset, Cache, Trace or Semihosting Options, etc.
Switch to Flash Download to set the flash options and the flash algorithm.
CoLinkEx JTAG/SWD adapter www.bravekit.com
17
Then, if you debug your program in flash, you also have to configure "Utilities" by selecting "CooCox
Debugger" for Flash Programming
Now you can use CoLinkEx to download and debug in MDK
