Braun Master II User Manual

BRAUN PHOTO TECHNIK GmbH  Klingenhofstr. 72  90411 Nürnberg / Germany

Telefon: [phone]  Fax: [phone]

Internet: www.braun-phototechnik.de  E-Mail: [e-mail]

BRAUN

Master

MasterMaster

Master

II

IIII

II

Ambarella A7L Chipset (2xfaster and 2x longer battery life), WIFI Function, 16.0MP High Sensivity

Panasonic CMOS Sensor, 60m Waterproof, High Definition Slow Motion 120fps,

Time-Lapse Movie, Stereo Microphone, Image Stabilizer, Ultra Sharp Glass Lens F=2.8, up to 64 GB

memory, 2” Screen LCD, strong battery 1050 mAh, remote by Smartphone App (iOS + Android)

• Colour: Black

• Video Resolution / FPS:

• NTSC 1080p 1920x1080 @60fps

• NTSC 720p 1280x720 @120fps

• NTSC 480p 848x480 @240fps

• PAL 1080p 1920x1080 @50fps

• PAL 720p 1280x720 @100fps

• PAL 480p 848x480 @200fps

• Lens: Ultra sharp fixed-focus glass lens F = 2.8, 1080p mode 170° | Wide angle in 720p mode 150°

• Waterproof: Waterproof case 60 meters

• Image Sensor: 16.0 Megapixel Panasonic CMOS sensor

• Video Image Stabilization

• 2” TFT Display

• Remote Control: by Smartphone via WIFI (iOS + Android), by Remote Control (included)

• Play Back: Smartphone via WIFI (iOS + Android)

• HDMI: Yes

• Video Coding / Format: H.264 / MP4

BRAUN PHOTO TECHNIK GmbH  Klingenhofstr. 72  90411 Nürnberg / Germany

Telefon: [phone]  Fax: [phone]

Internet: www.braun-phototechnik.de  E-Mail: [e-mail]

• MicroSD max. 64GB (Recommend CLASS 6 or above)

• Image Format: JPG

• Stereo Audio Recording with Built-in Mic

• Photo Capture modes:

• Burst Rate

• SINGLE > SINGLE

• 3 photos in 1 second

• 5 photos in 1 second

• 10 photos in 1 second

• 30 photos in 2 seconds

• Continuous Shot / Time Lapse /Self Timer

• 3 SEC

• 5 SEC

• 10 SEC

• 30 SEC

• 60 SEC

• Battery Type: Rechargeable Lithium-Polymer-Battery 1050mAh

• Dimension / Weight 58mm x 46mm x 38mm / 82g

• Art/EAN 57510 / 4000567 57510 8

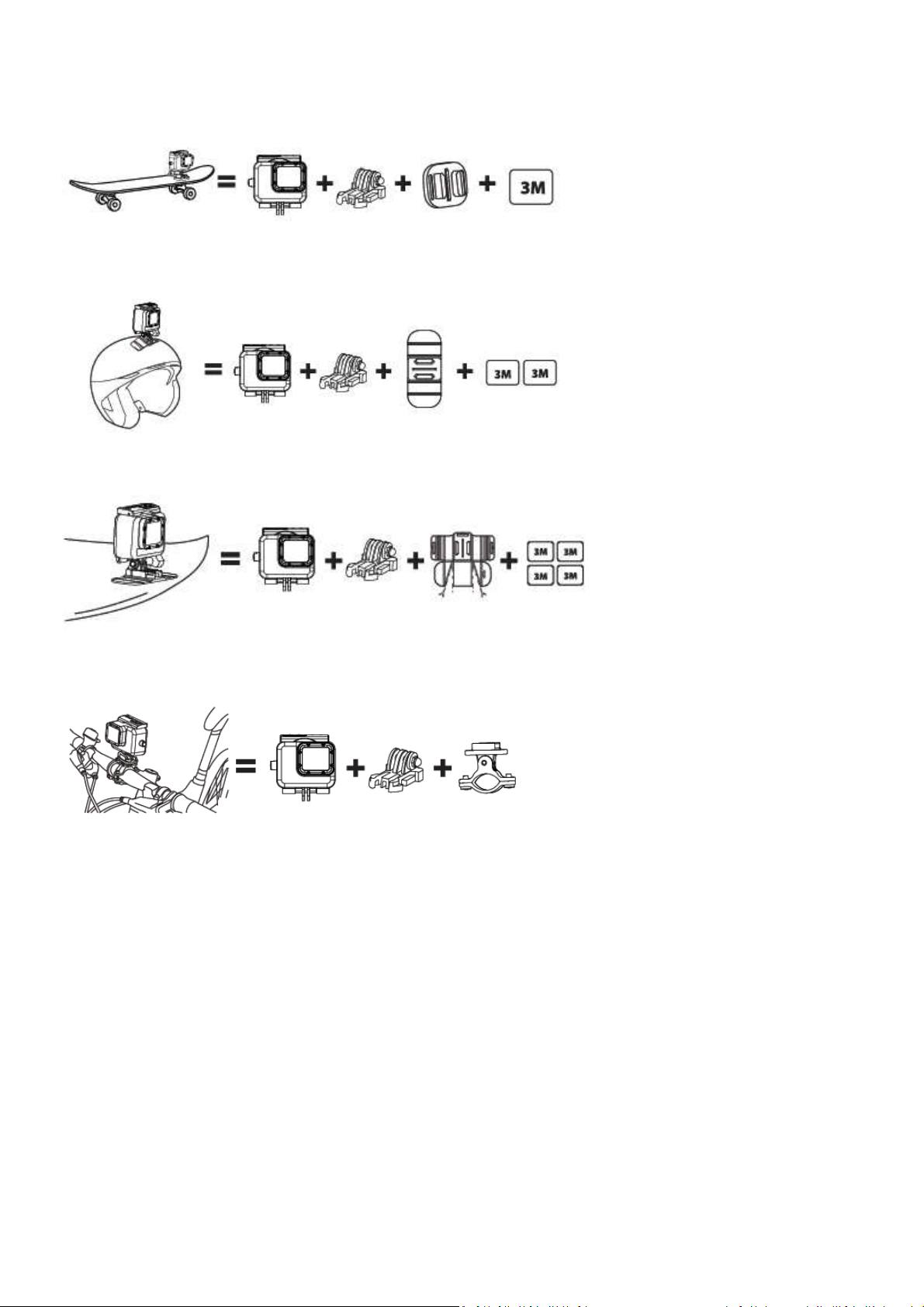

What's in the box?

1. Waterproof Housing

2. Remote Control

3. Buckle

4. Universal Mount

5. Curved Mount

6. Pad Mount

7. Roll Bar Mount

8. Battery

9. USB Cable

10. Charger for Remote

11. Adhesive stickers 8pcs

12. Magic Tape

13. Pivot Arm

14. User Manual
