Page 1
reset
trimmer
trimmer
trimmer
on
offonoff
Prosonic
TM
Type 5674
Prosonic
TM
720
Page 2
Braun GmbH
Frankfurter Straße 145
61476 Kronberg/Germany
5-674-362/00/IV-07/M
China/GB
Page 3
reset
trimmer
trimmer
trimmer
on
offonoff
res
et
trimmer
trimmer
trimmer
1
2
3
4
5
6
7
8
10
9
Page 4
4
STOP
Page 5
5
t
r
lock
1
2
trimmer
lock
lock
lock
on
on
off
off
release
5
Page 6
6
oil
washable
trimm
er
on
washable
er
re
le
a
s
e
washable
trimmer
re
le
a
s
e
re
le
a
s
e
click!
washable
re
le
a
s
e
washable
re
le
a
s
e
washable
re
le
a
s
e
washable
er
re
le
a
s
e
Page 7
7
Page 8
8
Page 9
9
Our products are designed to meet the highest
standards of quality, functionality and design.
We hope you enjoy your new Gillette shaver
powered by Braun.
Warning
Your shaver is provided with a special cord
set, which has an integrated Safety Extra Low
Voltage power supply. Do not exchange or
tamper with any part of it, otherwise there is risk
of electric shock.
Description
1 Foil & Cutter cassette
2 Cassette release button
3 Shaver head «lock» switch
4 Pop-out long hair trimmer
5 On/off switch
6 Reset button
7 Shaver display
8 Shaver power socket
9 Special cord set
0 Travel case
Charging
The best environmental temperature for charging
is between 5 °C and 35 °C.
• Using the special cord set 9, connect the
shaver to an electrical outlet with the motor
switched off and charge it for at least one hour.
• A full charge provides up to 50 minutes
of cordless shaving time. This may vary
according to your beard growth.
• If the rechargeable battery has run out of
power (discharged), you may also shave by
connecting the shaver to an electrical outlet via
the special cord set.
STOPSTOP
English
9
Page 10
10

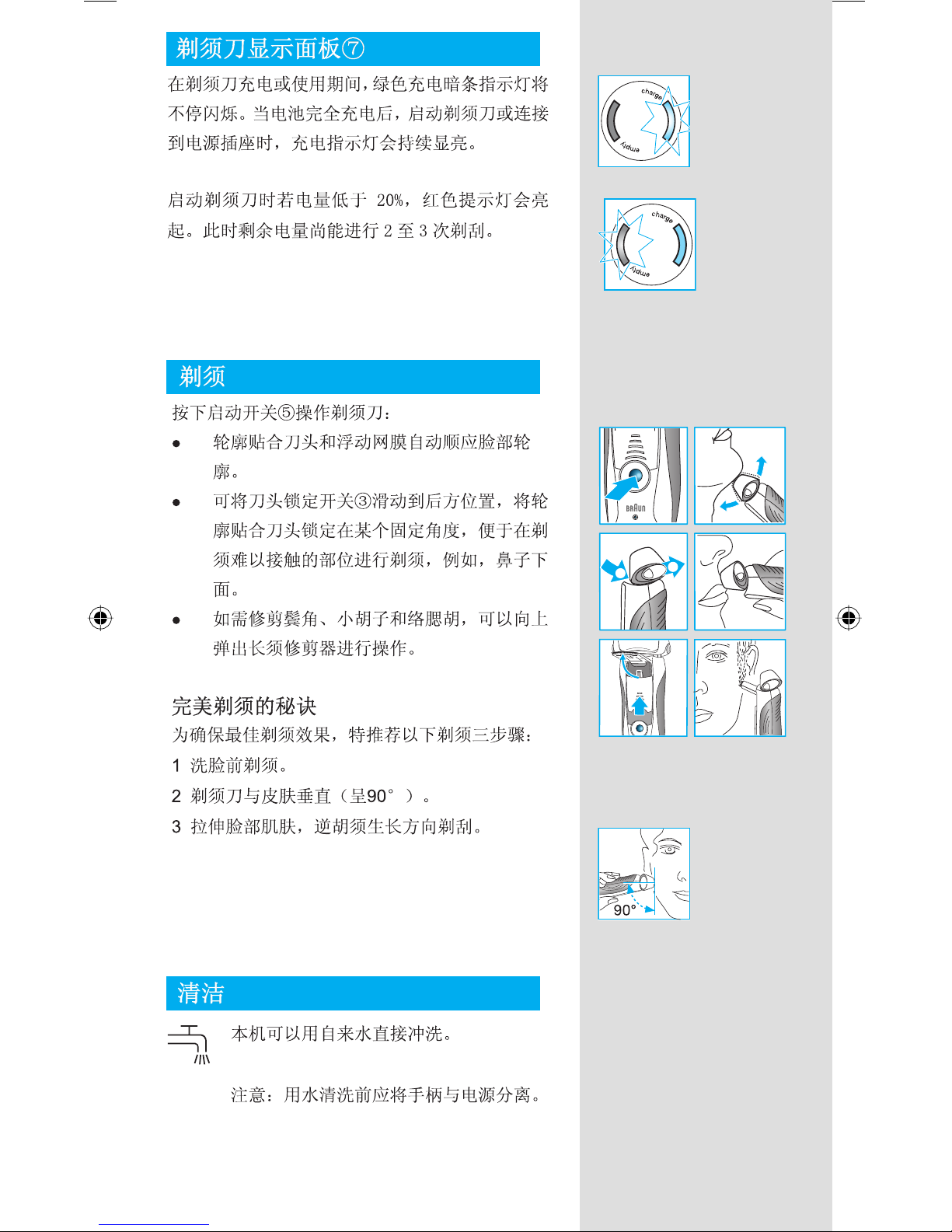

Shaver display 7
The green charge segment fl ashes when the
shaver is being charged or when in use. When
the battery is fully charged, the charge segment
will light up continuously provided that the
shaver is switched on or connected to an
electrical outlet.
The red empty segment fl ashes when the battery
capacity has dropped below 20%, provided the
shaver is switched on. The remaining capacity
will then be suffi cient for 2 to 3 shaves.
Shaving
Press the on/off switch 5 to operate the shaver:
• The pivoting shaver head and fl oating foils
automatically adjust to every contour of your
face.
• To shave hard to reach areas (e.g. under the
nose) slide the shaver head «lock» switch 3 to
the back position to lock the pivoting head at
an angle.
• To trim sideburns, moustache or beard, slide
the pop-out long hair trimmer 4 upwards.
Tips for the perfect shave
For best shaving results, we recommends you
to follow 3 simple steps:
1. Always shave before washing your face.
2. At all times, hold the shaver at right angles
(90°) to your skin.
3. Stretch your skin and shave against the
direction of your beard growth.
Cleaning
The shaver head is suitable for cleaning
under running tap water.
Warning: Detach the shaver from the
power supply before cleaning the shaver
head in water.
t
r
lock
1
2
trimmer
lock
lock
lock
on
on
off
off
t
r
lock
1
2
trimmer
lock
lock
lock
on
on
off
off
releaserelease
Page 11
11

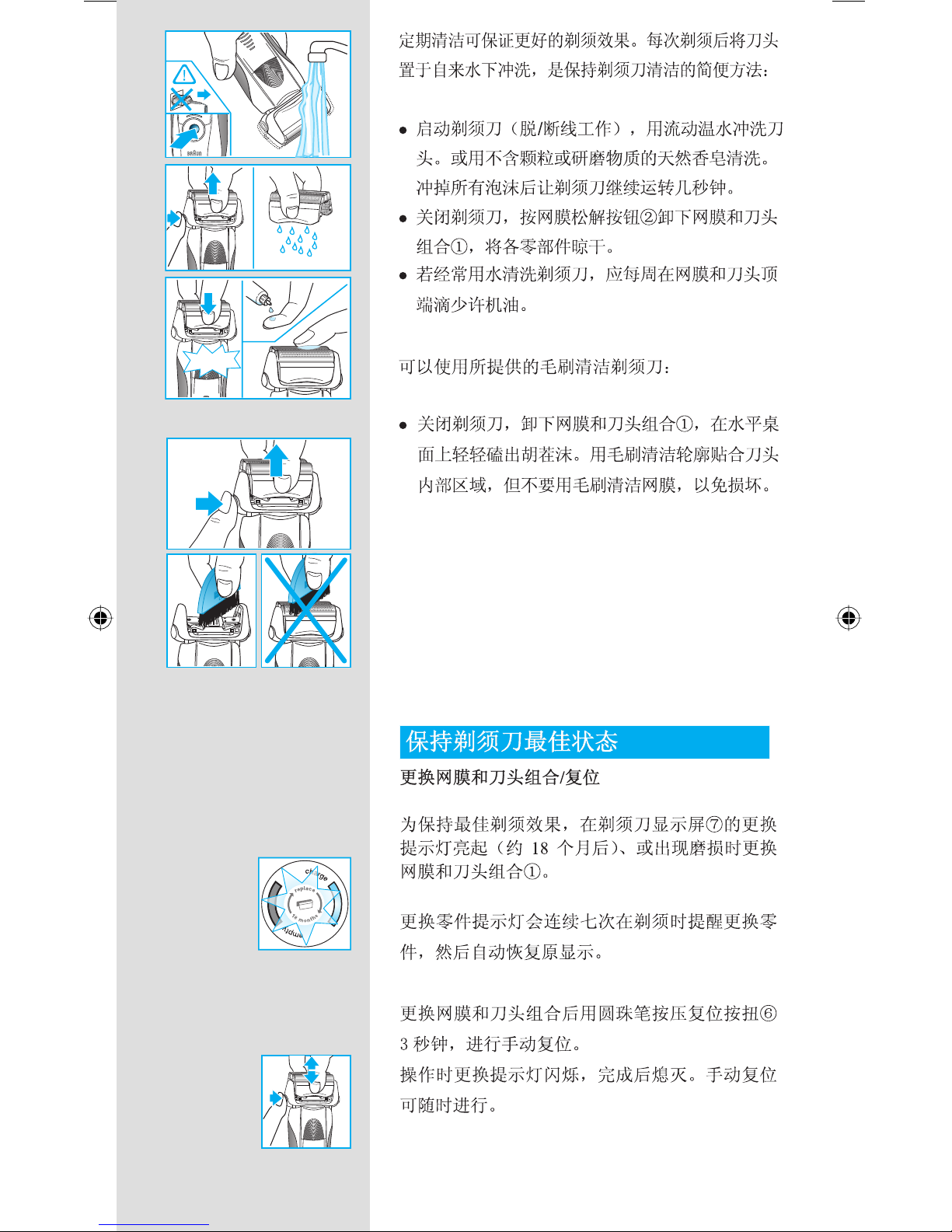

Regular cleaning ensures better shaving
performance. Rinsing the shaving head under
running water after each shave is an easy and
fast way to keep it clean:
• Switch the shaver on (cordless) and rinse
the shaving head under hot running water.
You may use liquid soap without abrasive
substances. Rinse off all foam and let the
shaver run for a few more seconds.
• Next, switch off the shaver, press the release
button 2 to remove the foil and cutter cassette
1 and let it dry.
• If you regularly clean the shaver under
water, then once a week apply a drop of
light machine oil on top of the foil and cutter
cassette.
Alternatively, you may clean the shaver using the
brush provided:
• Switch off the shaver. Remove the foil and
cutter cassette 1 and tap it out on a fl at
surface. Using the brush, clean the inner area
of the pivoting head. However, do not clean
the foil and cutter cassette with the brush as
this may damage it.
Keeping your shaver in top shape
Replacing the Foil & Cutter cassette/reset
To maintain 100% shaving performance,
replace the foil and cutter cassette 1, when
the replacement symbol lights up on the shaver
display 7 (after about 18 months) or when
cassette is worn
The replacement symbol will remind you during
the next 7 shaves to replace the foil and cutter
cassette. Then the shaver will automatically reset
the display.
After you have replaced the foil and cutter
cassette, use a ball-pen to push the reset button
6 for at least 3 seconds to reset the counter.
While doing so, the replacement light blinks and
goes off when the reset is complete. The manual
reset can be done at any time.
oil
w
ashable
trim
mer
on
washable
er
re
le
a
s
e
washable
trimmer
re
le
a
s
e
re
le
a
s
e
click!
oil
w
ashable
trim
mer
on
washable
er
re
le
a
s
e
washable
trimmer
re
le
a
s
e
re
le
a
s
e
click!
washable
re
le
a
s
e
washable
re
le
a
s
e
washable
re
le
a
s
e
washable
re
le
a
s
e
washable
re
le
a
s
e
washable
re
le
a
s
e
washable
er
re
le
a
s
e
washable
er
re
le
a
s
e
Page 12
12

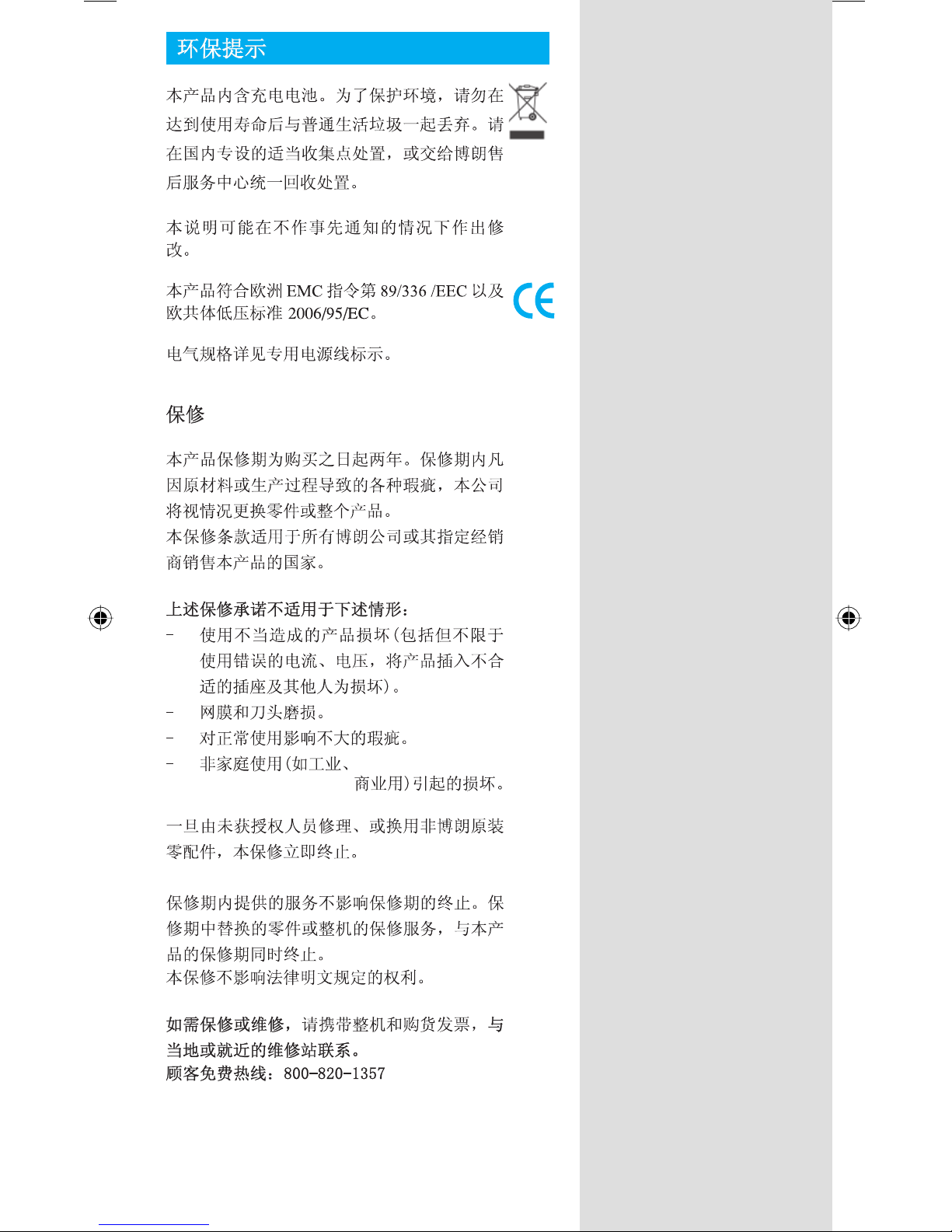

Environmental notice
This appliance contains rechargeable
batteries. In the interest of protecting the
environment, please do not dispose of the
product in household waste at the end of
its useful life. Disposal can take place at a
Braun Service Centre or at appropriate
collection points provided in your country.
Subject to change without notice.
This product conforms to the European
Directives EMC 89/336/EEC and Low
Voltage 2006/95/EC.
For electric specifi cations, see printing on the
special cord set.
