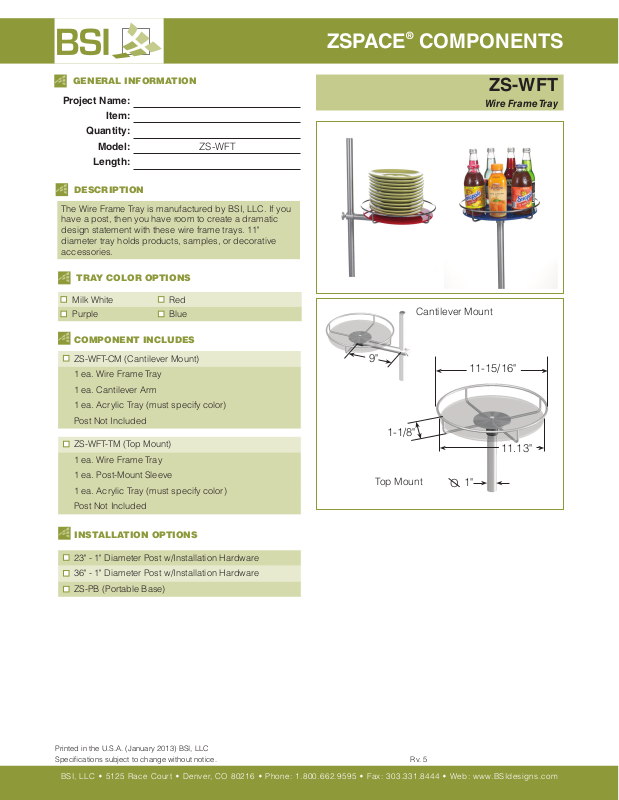

Brass Smith ZS-WFT User Manual

ZSPACE® COMPONENTS

GENERAL INFORMATION

Project Name:

Item:

Quantity:

Model: ZS-WFT

Length:

DESCRIPTION

The Wire Frame Tray is manufactured by BSI, LLC. If you
have a post, then you have room to create a dramatic
design statement with these wire frame trays. 11"
diameter tray holds products, samples, or decorative
accessories.

TRAY COLOR OPTIONS

Milk White Red

Purple Blue

COMPONENT INCLUDES

ZS-WFT-CM (Cantilever Mount)

1 ea. Wire Frame Tray

1 ea. Cantilever Arm

1 ea. Acrylic Tray (must specify color)

Post Not Included

ZS-WFT-TM (Top Mount)

1 ea. Wire Frame Tray

1 ea. Post-Mount Sleeve

1 ea. Acrylic Tray (must specify color)

Post Not Included

9"

1-1/8"

Top Mount

Cantilever Mount

11-15/16"

1"

O

ZS-WFT

Wire Frame Tray

11.13"

INSTALLATION OPTIONS

23" - 1" Diameter Post w/Installation Hardware

36" - 1" Diameter Post w/Installation Hardware

ZS-PB (Portable Base)

Printed in the U.S.A. (January 2013) BSI, LLC
Specifications subject to change without notice.

BSI, LLC w 5125 Race Court w Denver, CO 80216 w Phone: [phone] w Fax: [phone] w Web: www.BSIdesigns.com

Rv. 5
