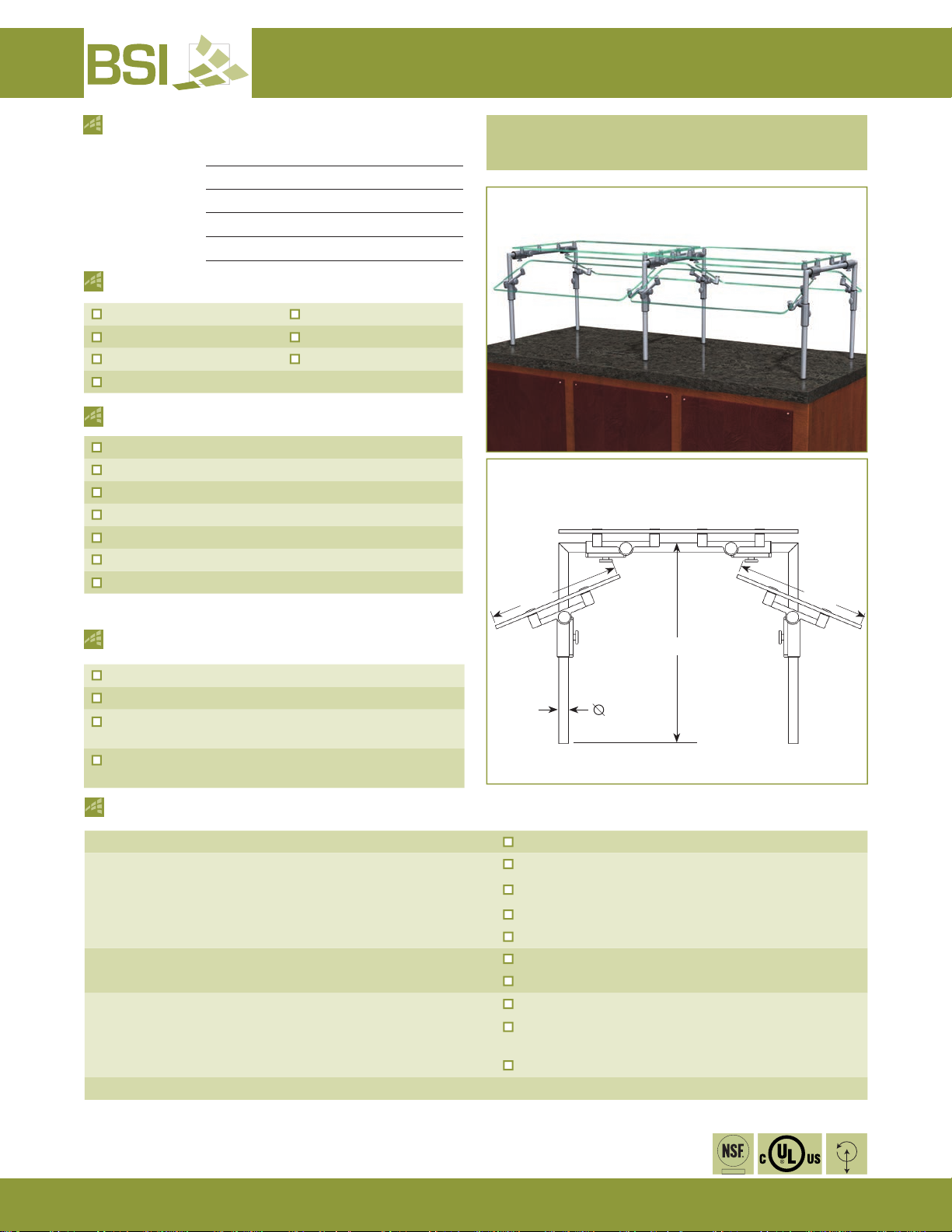

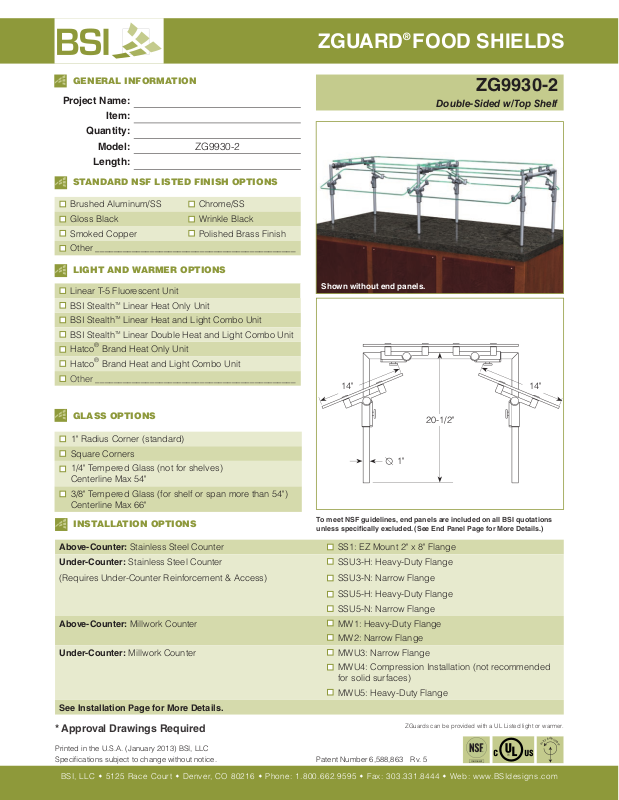

Brass Smith ZG9930-2 User Manual

ZGUARD

®

FOOD SHIELDS

GENERAL INFORMATION

Project Name:

Item:

Quantity:

Model: ZG9930-2

Length:

STANDARD NSF LISTED FINISH OPTIONS

Brushed Aluminum/SS Chrome/SS

Gloss Black Wrinkle Black

Smoked Copper Polished Brass Finish

Other ____________________________________________

LIGHT AND WARMER OPTIONS

Linear T-5 Fluorescent Unit

TM

BSI Stealth

BSI Stealth

BSI Stealth

Hatco

Hatco

Other ____________________________________________

Linear Heat Only Unit

TM

Linear Heat and Light Combo Unit

TM

Linear Double Heat and Light Combo Unit

®

Brand Heat Only Unit

®

Brand Heat and Light Combo Unit

ZG9930-2

Double-Sided w/Top Shelf

Shown without end panels.

14"14"

GLASS OPTIONS

20-1/2"

1" Radius Corner (standard)

Square Corners

1/4" Tempered Glass (not for shelves)

1"

Centerline Max 54"

3/8" Tempered Glass (for shelf or span more than 54")
Centerline Max 66"

INSTALLATION OPTIONS

To meet NSF guidelines, end panels are included on all BSI quotations
unless specically excluded. (See End Panel Page for More Details.)

Above-Counter: Stainless Steel Counter SS1: EZ Mount 2" x 8" Flange

Under-Counter: Stainless Steel Counter SSU3-H: Heavy-Duty Flange

(Requires Under-Counter Reinforcement & Access) SSU3-N: Narrow Flange

SSU5-H: Heavy-Duty Flange

SSU5-N: Narrow Flange

Above-Counter: Millwork Counter MW1: Heavy-Duty Flange

MW2: Narrow Flange

Under-Counter: Millwork Counter MWU3: Narrow Flange

MWU4: Compression Installation (not recommended
for solid surfaces)

MWU5: Heavy-Duty Flange

See Installation Page for More Details.

* Approval Drawings Required

Printed in the U.S.A. (January 2013) BSI, LLC
Specifications subject to change without notice.

Patent Number 6,588,863

ZGuards can be provided with a UL Listed light or warmer.

Rv. 5
