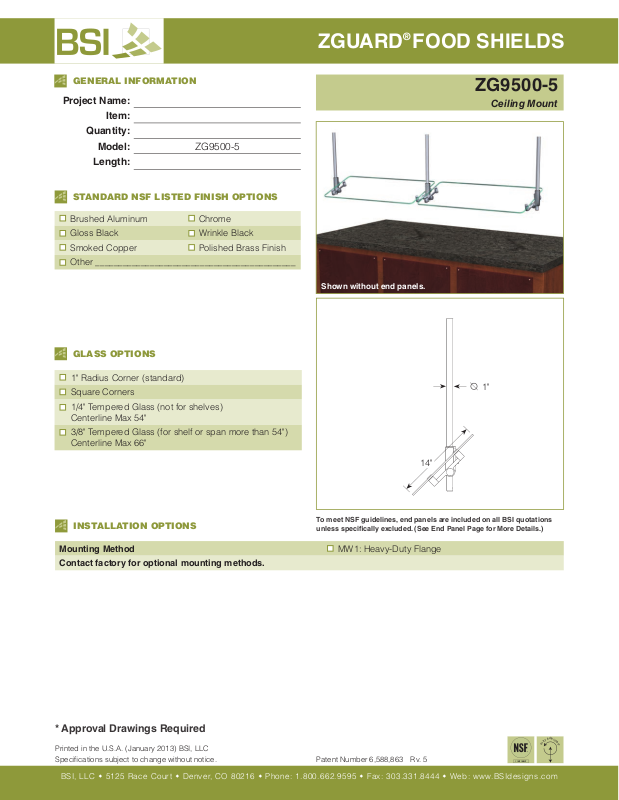

Brass Smith ZG9500-5 User Manual

ZGUARD

®

FOOD SHIELDS

GENERAL INFORMATION

Project Name:

Item:

Quantity:

Model: ZG9500-5

Length:

STANDARD NSF LISTED FINISH OPTIONS

Brushed Aluminum Chrome

Gloss Black Wrinkle Black

Smoked Copper Polished Brass Finish

Other ____________________________________________

GLASS OPTIONS

ZG9500-5

Ceiling Mount

Shown without end panels.

1" Radius Corner (standard)

Square Corners

1/4" Tempered Glass (not for shelves)
Centerline Max 54"

3/8" Tempered Glass (for shelf or span more than 54")
Centerline Max 66"

14"

INSTALLATION OPTIONS

To meet NSF guidelines, end panels are included on all BSI quotations
unless specically excluded. (See End Panel Page for More Details.)

Mounting Method MW1: Heavy-Duty Flange

Contact factory for optional mounting methods.

1"

* Approval Drawings Required

Printed in the U.S.A. (January 2013) BSI, LLC
Specifications subject to change without notice.

BSI, LLC w 5125 Race Court w Denver, CO 80216 w Phone: [phone] w Fax: [phone] w Web: www.BSIdesigns.com

Patent Number 6,588,863

Rv. 5
