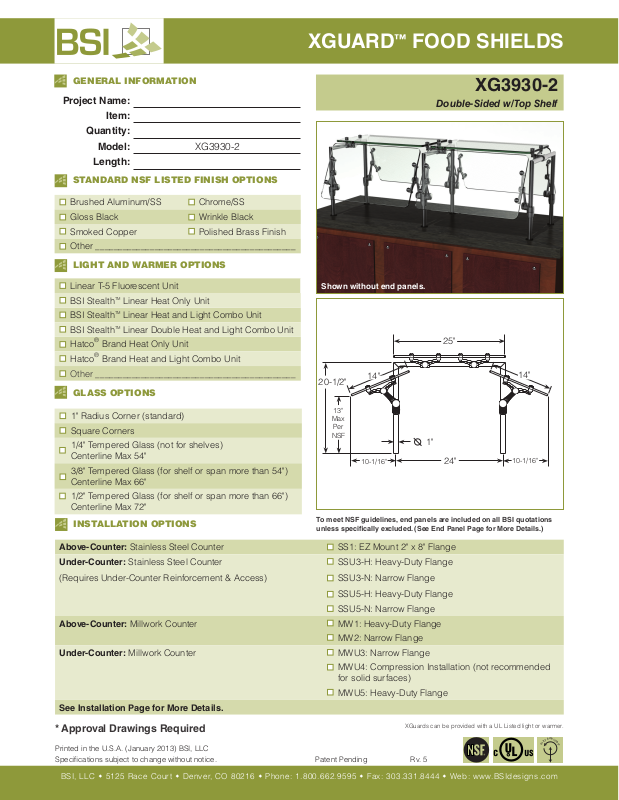

XGUARD™ FOOD SHIELDS
GENERAL INFORMATION
Project Name:
Item:
Quantity:
Model: XG3930-2
Length:
STANDARD NSF LISTED FINISH OPTIONS
Brushed Aluminum/SS Chrome/SS
Gloss Black Wrinkle Black
Smoked Copper Polished Brass Finish
Other ____________________________________________
LIGHT AND WARMER OPTIONS
Linear T-5 Fluorescent Unit
BSI StealthTM Linear Heat Only Unit
BSI StealthTM Linear Heat and Light Combo Unit
BSI StealthTM Linear Double Heat and Light Combo Unit
Hatco® Brand Heat Only Unit
Hatco® Brand Heat and Light Combo Unit
Other ____________________________________________
GLASS OPTIONS
Shown without end panels.
20-1/2"
14"
XG3930-2
Double-Sided w/Top Shelf
25"
14"
1" Radius Corner (standard)
Square Corners
1/4" Tempered Glass (not for shelves)
Centerline Max 54"
13"
Max
Per
NSF
10-1/16"
1"
24"
3/8" Tempered Glass (for shelf or span more than 54")
Centerline Max 66"
1/2" Tempered Glass (for shelf or span more than 66")
Centerline Max 72"
INSTALLATION OPTIONS
To meet NSF guidelines, end panels are included on all BSI quotations
unless specically excluded. (See End Panel Page for More Details.)
Above-Counter: Stainless Steel Counter SS1: EZ Mount 2" x 8" Flange
Under-Counter: Stainless Steel Counter SSU3-H: Heavy-Duty Flange
(Requires Under-Counter Reinforcement & Access) SSU3-N: Narrow Flange
SSU5-H: Heavy-Duty Flange
SSU5-N: Narrow Flange
Above-Counter: Millwork Counter MW1: Heavy-Duty Flange
MW2: Narrow Flange
Under-Counter: Millwork Counter MWU3: Narrow Flange
MWU4: Compression Installation (not recommended
for solid surfaces)
MWU5: Heavy-Duty Flange
See Installation Page for More Details.
10-1/16"
* Approval Drawings Required
Printed in the U.S.A. (January 2013) BSI, LLC
Specifications subject to change without notice.
Patent Pending Rv. 5
XGuards can be provided with a UL Listed light or warmer.
BSI, LLC w 5125 Race Court w Denver, CO 80216 w Phone: 1.800.662.9595 w Fax: 303.331.8444 w Web: www.BSIdesigns.com
