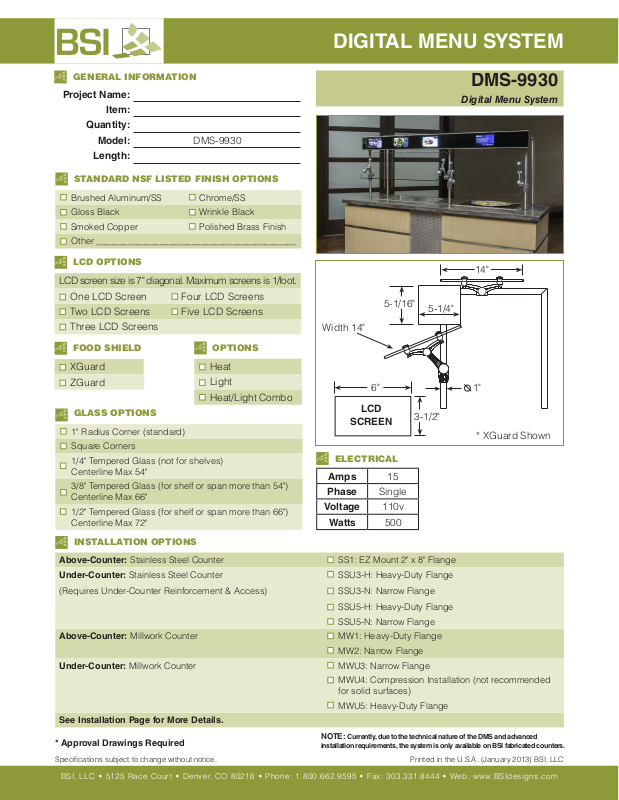

DIGITAL MENU SYSTEM
GENERAL INFORMATION
Project Name:
Item:
Quantity:
Model: DMS-9930
Length:
STANDARD NSF LISTED FINISH OPTIONS
Brushed Aluminum/SS Chrome/SS
Gloss Black Wrinkle Black
Smoked Copper Polished Brass Finish
Other ____________________________________________
LCD OPTIONS
LCD screen size is 7" diagonal. Maximum screens is 1/foot.
One LCD Screen Four LCD Screens
Two LCD Screens Five LCD Screens
Three LCD Screens
FOOD SHIELD
XGuard
ZGuard
OPTIONS
Heat
Light
Heat/Light Combo
GLASS OPTIONS
1" Radius Corner (standard)
Square Corners
1/4" Tempered Glass (not for shelves)
Centerline Max 54"
3/8" Tempered Glass (for shelf or span more than 54")
Centerline Max 66"
1/2" Tempered Glass (for shelf or span more than 66")
Centerline Max 72"
5-1/16"
Width 14"
6"
LCD
SCREEN
ELECTRICAL
Amps 15
Phase Single
Voltage 110v
Watts 500
DMS-9930
Digital Menu System
14"
5-1/4"
1"
3-1/2"
* XGuard Shown
INSTALLATION OPTIONS
Above-Counter: Stainless Steel Counter SS1: EZ Mount 2" x 8" Flange
Under-Counter: Stainless Steel Counter SSU3-H: Heavy-Duty Flange
(Requires Under-Counter Reinforcement & Access) SSU3-N: Narrow Flange
SSU5-H: Heavy-Duty Flange
SSU5-N: Narrow Flange
Above-Counter: Millwork Counter MW1: Heavy-Duty Flange
MW2: Narrow Flange
Under-Counter: Millwork Counter MWU3: Narrow Flange
MWU4: Compression Installation (not recommended
for solid surfaces)
MWU5: Heavy-Duty Flange
See Installation Page for More Details.
* Approval Drawings Required
Speciļ¬cations subject to change without notice. Printed in the U.S.A. (January 2013) BSI, LLC
BSI, LLC w 5125 Race Court w Denver, CO 80216 w Phone: 1.800.662.9595 w Fax: 303.331.8444 w Web: www.BSIdesigns.com
NOTE: Currently, due to the technical nature of the DMS and advanced
installation requirements, the system is only available on BSI fabricated counters.
