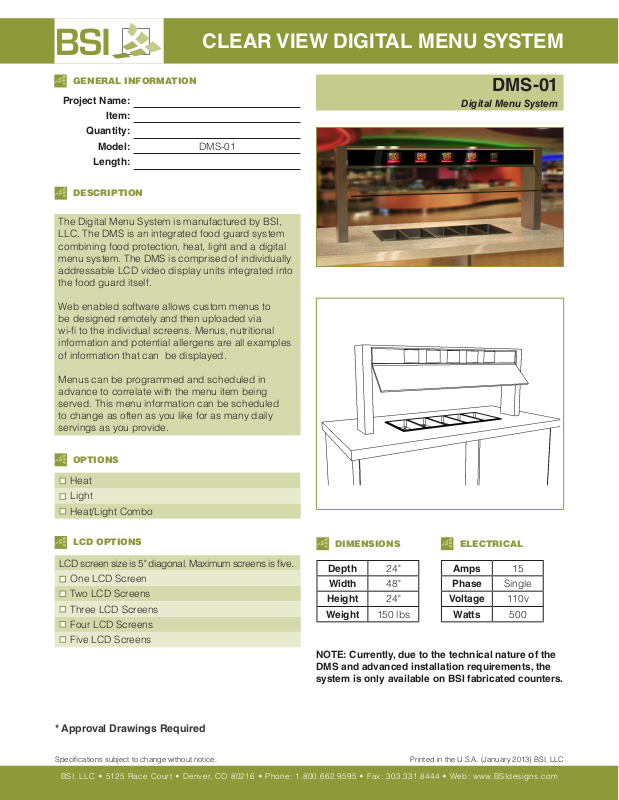

Brass Smith DMS-01 User Manual

CLEAR VIEW DIGITAL MENU SYSTEM

GENERAL INFORMATION

Project Name:

Item:

Quantity:

Model: DMS-01

Length:

DESCRIPTION

The Digital Menu System is manufactured by BSI,
LLC. The DMS is an integrated food guard system
combining food protection, heat, light and a digital
menu system. The DMS is comprised of individually
addressable LCD video display units integrated into
the food guard itself.

Web enabled software allows custom menus to
be designed remotely and then uploaded via
wi-fi to the individual screens. Menus, nutritional
information and potential allergens are all examples
of information that can be displayed.

DMS-01

Digital Menu System

Menus can be programmed and scheduled in
advance to correlate with the menu item being
served. This menu information can be scheduled
to change as often as you like for as many daily
servings as you provide.

OPTIONS

Heat

Light

Heat/Light Combo

LCD OPTIONS

LCD screen size is 5" diagonal. Maximum screens is five.

One LCD Screen

Two LCD Screens

Three LCD Screens

Four LCD Screens

Five LCD Screens

DIMENSIONS

Depth 24"

Width 48"

Height 24"

Weight 150 lbs

NOTE: Currently, due to the technical nature of the
DMS and advanced installation requirements, the
system is only available on BSI fabricated counters.

ELECTRICAL

Amps 15

Phase Single

Voltage 110v

Watts 500

* Approval Drawings Required

Specifications subject to change without notice. Printed in the U.S.A. (January 2013) BSI, LLC

BSI, LLC w 5125 Race Court w Denver, CO 80216 w Phone: [phone] w Fax: [phone] w Web: www.BSIdesigns.com
