Page 1
TM
TM
Page 2
Front Indicator Light
前额指示灯
Micro USB Port
USB充电口
Replaceable Hydrogel
Ear Electrode
可替换耳后水凝胶电极
Replaceable Hydrogel
Forehead Electrode
可替换耳后水凝胶电极
Power Button
电源键
Side Indicator Light
侧边指示灯
Page 3
LIST
Focus 1 Headband*1
赋思头环*1 可替换电极*6
USB Cable* 1
USB 充电线*1
Replacement Electrodes*6
Product Pouch*1
产品保护包*1
Sterile Saline Wipes*20
生理盐水试纸*20
User Manual
用户手册
7
8
Unti-Slip belt*1
7
防下滑束带*1
Sheatline* 1 Magic Tape* 1
8
头绳*1
发贴*1
Page 4

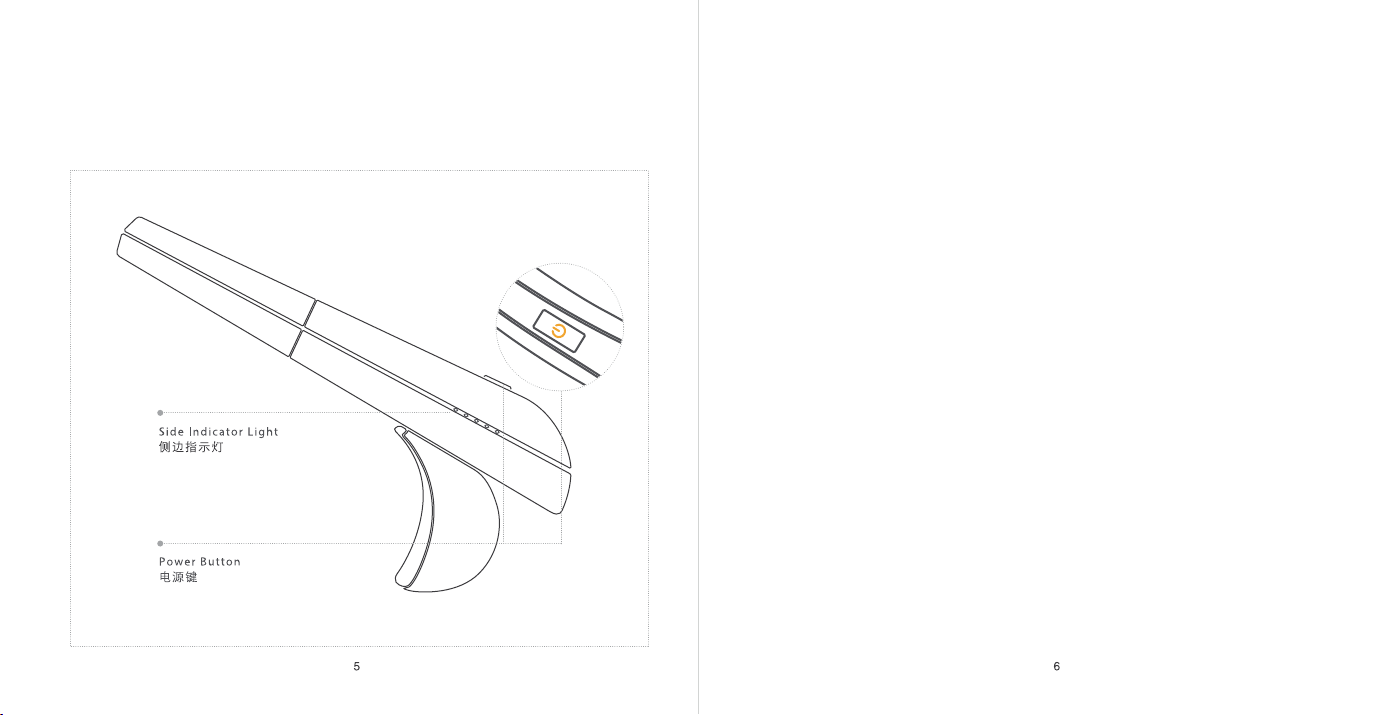

Power Button
电源键
Power On
Remove the charging cable, press and hold the power button until all of the 5
white indicator lights turn on; Note: Headband cannot be used if the battery
is depleted;
开机
在非充电状态下，长按电源键，直到所有5个白色侧边指示灯全部逐一亮起后，松开按键；
注：如果电量不足，可能会导致无法开机；
Power O
When in use, press and hold the power button until all of the 5 white indicator
lights turn o;
关机
开机状态下，长按电源键， 直到所有5个白色侧边指示灯熄灭，松开按键；
Battery Checking
While not charging, quickly press the power button and release, the side indicators
glow according to thecurrent battery level;
查看电量
非充电状态下，短按电源键，白色侧边指示灯显示电量百分比；
WiFi Reset (for Retail version only)
When in use, press and hold the power button until all of the 5 white indicator
lights turn OFF and turn ON AGAIN;
WiFi重置 （仅限零售版本）
开机状态下，长按电源键，直到所有5个白色侧边指示灯熄灭后重新亮起，松开按键；
Notice: If the Headband does not work properly, remove the charging
cable, press and hold the power button for 20 seconds, then release
the power button and the Headband will go into Power OFF status;
注：头环工作异常时，移除充电线缆，长按电源键20秒，松开按键，头环进入关机状态
Page 5
power on
开机
turn on one by one
from left to right
从左到右逐一亮起
distracted
/very relaxed
涣散
calm
平静
focus
专注
Front Indicator Light
glows solid green
亮绿光
glows solid yellow
亮黄光
glows solid red
亮红光
前额指示灯
Waiting for wi
connection
等待wifi连接
Waiting for APP/
Software
connection
等待软件连接
heartbeats white
快速闪烁白光
glows solid white
稳定亮白光
Side Indicator Light
侧边指示灯
power o
关机
pairing
配对
working
正常工作
charge
充电
reset
重置
turn o one by one
from right to left
从左到右逐一亮起
cycle back and forth
repeatedly
往复循环
ash from left to right
individually
从左到右逐个闪烁
Each fully lit
indicator represents
20% of the total
power. A blinking
light shows the
current charging
status.
每个稳定亮起的灯
表示20%，闪烁的
灯显示正在充电的进程
Flash from middle
to side
从中间至两边逐个亮起
Page 6

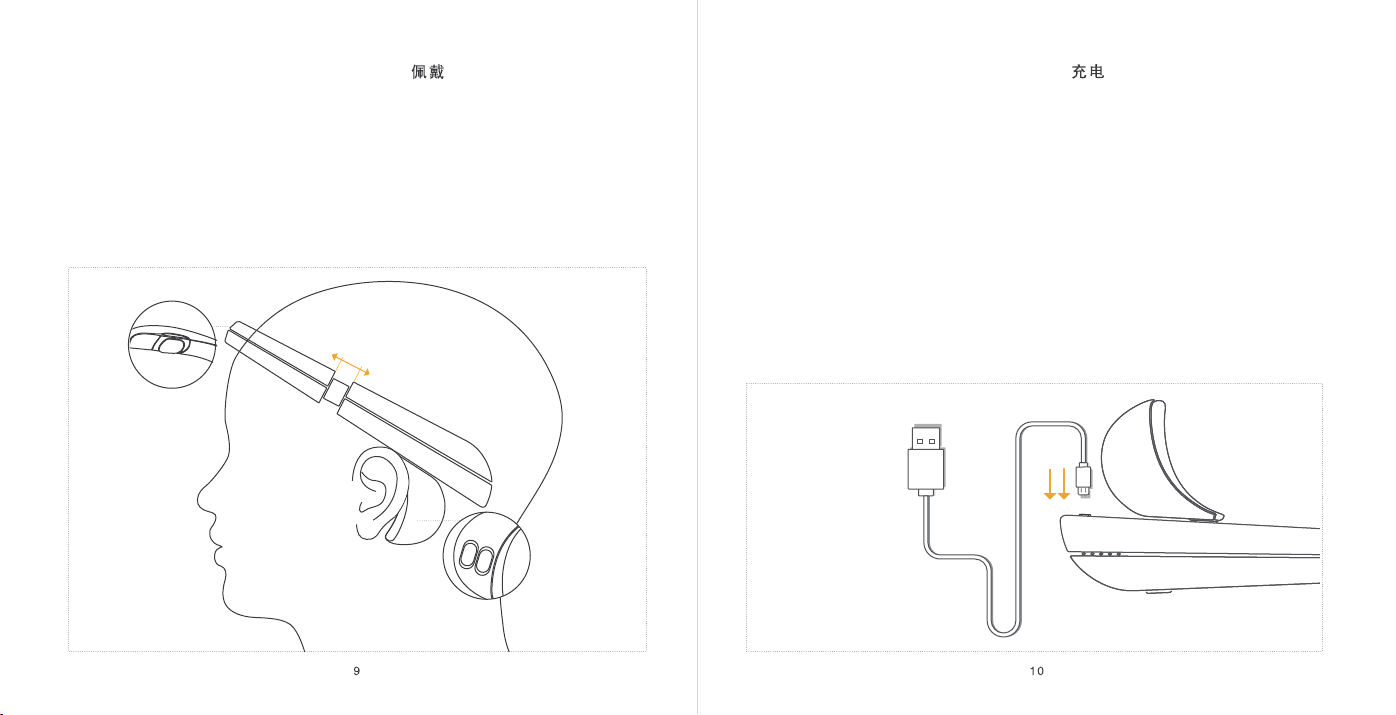

PUTTING ON
Put the Focus 1 on your head and adjust the
Headband to ensure the correct orientation
for proper t and correct electrode
placement.
Notice: Make sure that both electrodes and
your skin are clean and have direct contact with
each other.
将头环戴到头上，调整头环的长度和角度来
保证配戴舒服和电极位置准确。
注：请确认皮肤清洁，并保证电极与皮肤的
直接接触。
CHARGING
To charge the Headband, plug the charging
cable into the USB port on your computer or
other power source. The LED indicator lights
will progressively illuminate on your Focus1
as it charges. Each steady light represents
20% of the maximus charge. Once all ve
lights glow solid white light, the Headband will
be fully charged.
Notice: Please use the USB cable included in
the package to avoid any charging problems.
用USB线将头环和电脑或其他USB充电器连
接，进行充电。LED灯将会按照充电进程逐
一亮起，每一个灯显示总电量的20%。当5
个白灯全部亮起时说明头环已经充电完成。
注：请使用随机附带USB线缆充电，否则可
能引起产品工作异常。
Page 7
Please wipe your electrodes weekly with the
sterile saline wipe included to keep the
electrodes clean and extend their lifetime.
1. Store at room temperature (25°C, 50%), and
do not put the electrodes into water or re.
2. Avoid contact acidic, basic,toxic, nad
erosive materials and chemicals.
3. Please follow the instruction in the picture
below, and wipe the electrode gently; please
contact the agency to purchase more wipes.
开始使用后，请每周用附带的生理盐水试纸
对电极进行擦拭，以保持清洁并且延长电极
使用寿命。如果暴露长时间没有擦水，可以
持续擦水使其恢复正常形状。
1. 室温保存（25℃，50%），
切勿将电极投入水中或者火中
2.避免接触酸性，碱性以及腐蚀性物质
3. 请按照图示方法轻轻擦拭
如有需要，请联系分销商购买
Replace the hydrogel electrodes when necessary
to ensure signal quality. The recommended time
is 6 months.
1. While replacing the electrodes, please pay
attention to the groove on the bottom of the
electrode that shows the proper placement
direction. Please contact the agency to purchase
more.
2. Do not put the used electrodes into water
or re.
电极需要适时更换以保证良好的信号，
我们建议的更换时间为6个月
注：
1. 替换电极时，请注意电极底部的防反设计
如有需要，请联系分销商购买
2. 废弃电极，切勿将电极投入水中或者火中
Page 8
Weight
Head Circumference
Operating Temperature
Battery Capacity
Battery Life
Battery Charge Time
Wireless Connection
Electrode Material
95g
55-75cm
0 -40°C(32-104℉)
400 mAh
Up to 4 hours
1-1.5 hour
Wi-Fi IEEE 802.11 b/g/n 2.4GHz
Hydrogel
重量
头围大小
工作温度
电池容量
续航时间
充电时长
无线连接方式
电极材料
95克
55-75厘米
0-40摄氏度（32-104华氏度）
400毫安时
最长4小时
1-1.5小时
Wi-Fi I EEE 802.11b/g/n 2.4G赫兹
固态级水凝胶
Page 9
SAFETY INSTRUCTION
Before using your Focus 1 headband, please read the following safety instructions. This will
ensure correct usage. After reading this manual, store it in a safe place for future reference.
请阅读并保留所有安全和使用说明。
IMPORTANT:
Please use the accessories included in your purchase. Due to voltage and current
requirements (5V,200mA), please use the USB cable that was included in your Product
Pouch.
WARNING：
1. Focus 1 headband contains hydrogel electrodes. Please see a doctor if swallowed.
2. Please store your Focus 1 headband in the Product Pouch when it is not in use. Keep
children and pets away from the product.
3.Please follow the instructions below before using your Focus 1 headband:
- Before using, please read the User Manual carefully.
- Watch your child when she/he is using this product.
- Do not expose this product to water, rain, or any liquid.
- Use of a power supply or charger not recommended or sold by an authorized manufacturer may result in a risk of re or injury.
- Do not attempt to use a damaged or modied Focus 1 headband. A damaged or modied
Focus 1 headband may cause a re or unknown danger.
- Do not dispose of your Focus 1 headband in a re or heat. The product could explode in
a re or high temperatures over 100℃.
- Servicing can only be performed by a qualied repair person using identical replacement parts.
4. This product contains small parts which may be a choking hazard. Not suitable for
children under age 6.
5. Do not tamper with your Focus 1 headband without authorization.
6. Use this product only with an agency approved power supply which meets local
regulatory requirements (e.g., UL, CSA, VDE, CCC).
7. Do not expose this product, which contains batteries, to excessive heat (e.g. storage in
direct sunlight, re or any similar environment).
8. If you are under 18 years old, please read this document with your guardians and pay
attention to all warnings.
重要安全说明：
只能使用制造商指定的附件/配件。请使用我们配置的USB线，由于电压电流限制
（5V,200mA）,不建议使用其他USB线。
警告/小心：
1.本产品中含有电极，如果吞食，需立即就医。
2.不使用时，应将头环存储在产品保护包中，并放在远离儿童和宠物的地方。
3. 使用本产品时，应遵守基本的预防措施，具体内容如下：
-使用头环之前，请阅读使用说明。
-如果在儿童附近使用头环，必须严密监督以防其受伤。
-头环不得接触水、雨、液体或雪等物质。
-使用未经电池组制造商推荐或出售的电源或充电器会导致火灾或人员受伤的风险。
-不得使用已经损坏或改装过的头环。损坏或改装过的头环会导致火灾、爆炸或人员受伤等不
可预测的危险。
-不得拆卸、挤压头环或将头环抛入火中或置于高温中。置于火中或温度超过100℃的环境中会
导致爆炸。
-仅限合格的维修人员使用相同的备件执行维修操作。
4. 包含小部件，可能会导致窒息。不适合6岁以下儿童使用。
5. 未经授权切勿改装本产品。
6. 仅在经过相关部门批准且符合本地监管要求的电源（如UL、CSA、VDE、CCC）条件下使
用本产品。
7. 请勿使产品过热（例如请避免阳光直射并远离火源等）。
8. 如果您未满18岁，请在法定监护人的陪同下阅读本协议，并特别注意未成年人使用条款。
Page 10
DISCLAIMER
Since this manual lists safety instructions in
detail, please read it carefully before using
your Focus 1 headband.
Important warning:
1. Do not allow children under 6 to use this
product.
2. Children above 6 are allowed to use this
product with a parent’s or teacher’s
supervision to prevent injuries.
3. The product and its accessories including
the hydrogel electrodes are all inedible.
The responsibility for any risks and
consequences arising from the violation of
this Safety Manual are borne by the users
and their guardians. The manufacturer,
developer, and seller assume no responsibil-
ity for any of those risks and consequences.
免责声明
鉴于本产品已经尽可能详尽的列出了《安全
使用说明》，请使用者在认真阅读本产品的
《安全使用说明》后使用。
需要特别提醒说明的是：
1、6周岁以下儿童请勿使用本产品；
2、6周岁以上儿童在使用本产品时需有监
护人或老师监督以防其受伤；
3、所有使用者不得食用本产品及包括固态
极凝水胶的电极等在内的任何附件/配件。
如因违反《安全使用说明》而产生的任何风
险和后果，其责任均由使用人或其监护人承
担，与本产品生产方和销售方无关。
REGULATORY COMPLIANCE
UNITED STATES:
FCC Regulator Statemengts
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1) this device may not cause harmful interference, and(2) this device must accept any
interference received, including interference that may cause undesired operation.
Changes or modications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation.
If this equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment o and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit dierent from that to which the
receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. End user must follow the specic operating instructions for satisfying RF
exposure compliance. This transmitter must not be co-located or operating in conjunction
with any other antenna or transmitter.
17
18
Page 11
he por table device is designed to meet the requirements for exposure to radio waves
T
established by the Federal Communications Commission (USA). These requirements set a SAR
limit of 1.6 W/kg averaged over one gram of tissue. The highest SAR value repor ted under this
standard during produc t cer tification for use when properly worn on the body with the
munimum distance 0mm.
CANADA:
IC Regulator Statemengts
This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation,
Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject
to the following two conditions:
1. This device may not cause interference.
2. This device must accept any interference, including interference that may cause
undesired operation of the device.
L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux
CNR d’Innovation, Sciences et Développement économique Canada applicables aux
appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions
suivantes :
1. L’appareil ne doit pas produire de brouillage;
2. L’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est
susceptible d’en compromettre le fonctionnement.
This equipment complies with ISED radiation exposure limits set forth for an uncontrolled
environment. End user must follow the specic operating instructions for satisfying RF
exposure compliance. This transmitter must not be co-located or operating in conjunction
with any other antenna or transmitter.
Th
e por table device is designed to meet the requirements for exposure to radio waves
established by the ISED. These requirements set a SAR limit of 1.6 W/kg averaged over one
gram of tissue. The highest SAR value repor ted under this standard during product
cer tification for use when properly worn on the body with the munimum distance 0mm.
Cet équipement est conforme aux limites d’exposition aux rayonnements ISED établies
pour un environnement non contrôlé. L’utilisateur nal doit suivre les instructions
spéciques pour satisfaire les normes. Cet émetteur ne doit pas être co-implanté ou
fonctionner en conjonction avec toute autre antenne ou transmetteur.
Le
dispositif por tatif est conçu pour répondre aux exigences d’exposition aux ondes radio
établie par le développement énergétique DURABLE. Ces exigences un SAR limite de 1,6
W/kg en moyenne pour un gramme de tissu. La valeur SAR la plus élevée signalée en ver tu
de cette norme lors de la cer tification de produit à utiliser lorsqu’il est correc tement por
té sur le corps avec la distance minimale 0mm.
EUROPE:
BrainCo Inc. hereby declares that this product is in compliance with the essential
requirements and other relevant provisions of Directive 2014/53/EU and all other EU
directive requirements.
This symbol means the product must not be discarded as household waste, and should be
delivered to an appropriate collection facility for recycling. Proper disposal and recycling
helps protect natural resources, human health and the environment. For more information
on disposal and recycling of this product, contact your local municipality, disposal service.
2019
Loading...
