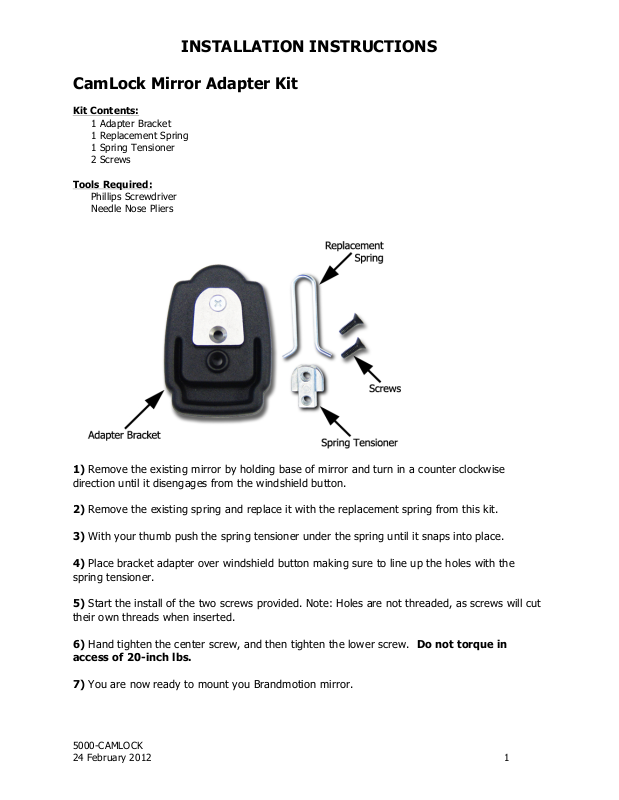

INSTALLATION INSTRUCTIONS
5000-CAMLOCK
24 February 2012 1
CamLock Mirror Adapter Kit
Kit Contents:
1 Adapter Bracket
1 Replacement Spring
1 Spring Tensioner
2 Screws
Tools Required:
Phillips Screwdriver
Needle Nose Pliers
1) Remove the existing mirror by holding base of mirror and turn in a counter clockwise
direction until it disengages from the windshield button.
2) Remove the existing spring and replace it with the replacement spring from this kit.
3) With your thumb push the spring tensioner under the spring until it snaps into place.
4) Place bracket adapter over windshield button making sure to line up the holes with the
spring tensioner.
5) Start the install of the two screws provided. Note: Holes are not threaded, as screws will cut
their own threads when inserted.
6) Hand tighten the center screw, and then tighten the lower screw. Do not torque in
access of 20-inch lbs.
7) You are now ready to mount you Brandmotion mirror.
