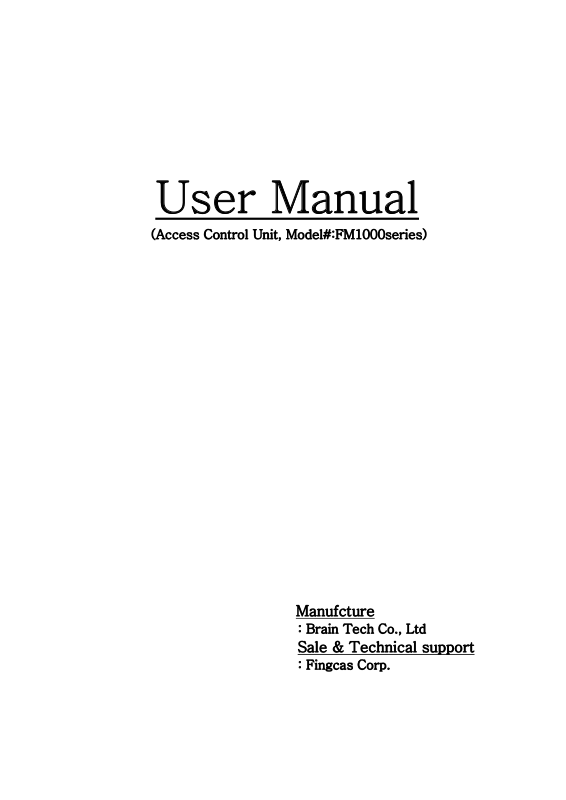

User Manual
(Access Control Unit, Model#:FM1000series)
: Brain Tech Co., Ltd
Manufcture
Sale & Technical support
: Fingcas Corp.
Table of Contents
1. Precautions before Use
1.1 Direction for safety usage
1.2 Product packing and contents
1.3 Parts name and function
1.4 Voice comment and Explanation of Key
1.4.1 Voice Comment
1.4.2 Explanation of Key function
1.5 Fingerprint identification process
2. Manager Registration
3. Manager Menu Calling
4. Controller Setup
4.1 Date and Time Setup
4.2 ACU Number Setup
4.3 Network Mode Setup
4.3.1 LAN Setup
4.3.2 UART Speed Setup
4.4 Manager Mode Setup
4.4.1 Stand-alone/Network Setup
4.4.2 Beep Setup
4.4.3 Voice Setup
4.4.4 LED Setup
4.4.5 Comm Security
4.4.6 Door Setup
4.5 Other Setup Control
4.6 Door Operation Setup
5. User Management
5.1 User Addition
5.2 User Deletion
5.3 All Users Deletion
5.4 User Confirmation
5.5 Entrance/Exit Setup
6. DB Management
6.1 Setup Initialization
6.2 Event Initialization
7. Revision on Manager Password
8. Door Operation (Open/Close) Setup
9. Usage by Entrance/Exit Method
9.1 In case of fingerprint use
9.2 In case of card use
9.3 In case of password use
9.4 In case of card + password use
9.5 In case of card + fingerprint use
9.6 In case of fingerprint + password use
9.7 In case of card + password + fingerprint use
10. Selection and Use of Entrance/Exit
Control Mode
10.1 Attendance Mode
10.2 Leaving Office Mode
10.3 Go Out Mode
10.4 Return Office Mode
11. Installation and Connection
11.1 Jumping Option Setup
11.2 Installation Method
11.2.1 Connection to External Interface
11.2.2 Connection to 422/485 multi-drop
11.2.3 Power Cable Connection
11.2.4 LAN Cable Connection
11.2.5 Rebooting
11.2.6 Product Initalization
12. Others
12.1 Product Specification
12.2 Checking Matters before Request for A/S
12.3 Terminology Explanation
2
1. Direction before Using
1.1 Direction for safety usage
◆ Do not move or reinstall the system arbitrarily.
: In case of arbitrarily moving or installing the system, the system may not work or be broken down
due to an electrical shock or inadequate connection. In this case, call the operator.
◆ Do not place the equipment around places where high voltage flows.
: The system may receive electrical effect due to high voltage.
◆ Do not open/close or repair the system arbitrarily.
: This system is a high-precision electronic product. So, it can be damaged if you arbitrarily
open/close or repair it. Make sure to call the sales company or operator if needed.
1.2 Product pacing and contents
a. Fingerprint In/Out Control device 1 ea.
b. Connector (11p, 9p, 4p) 3 ea.
c. Screw 2 type 5 ea.
d. Basic software of In/Out Control System and User Manual CD 1 ea.
e. RF Card 3 ea
* Optional Item (Sales product by order) : AC Power Adapter( DC 12V, 2.5A)
1.3 Parts name and function
LCD : Display current operation status.
Fingerprint identification device : Put the registered finger on this device.
Contact point of RF-CARD : Point of contact RF-CARD (Maximum under 10cm).
Keypad : 0-9 numbering key button, *button, #button
Function key : Different function by key.
Speaker : Beep sound and voice comment by step.
3
1.4 Voice comment and Explanation of Key
1.4.1 Voice comment
Ok, you can pass The screen approves entrance and exit
Please contact security manage The screen doesn’t approve entrance and exit
Have a nice meal The screen displays the normally selected menu.
Please enter your fingerprint The screen requests for fingerprint recognition.
Selected “menu” The screen displays the selected menu.
Attendance The screen is in attendance mode.
Leaving Office The screen is in leaving office mode.
Go Out The screen is in go out mode.
Return Office The screen is in return office mode.
1.4.2 Explanation of Key function
Number(0-9) button The button is used when keying in a number
and selecting a menu.
* BAK button The button is used when canceling a number.
# ENT button The button is used when completing the input of
a number and entering a fingerprint.
F1 button The button is used when returning to the
4
previous screen and selecting the attendance
mode.
F2 button The button is used when selecting
the leaving office mode.
F3 button The button is used when selecting the go
out mode.
F4 button The button is used when selecting the
return office, manager mode and menu.
1.5 Fingerprint identification process
Picture 1 Picture 2
☺ Finger should be kept clean, so that a correct recognition is possible.
☺ If the finger is wet, recognition may be impossible.
☺ Make sure that there is no alien substance on the fingerprint recognizer.
☺ Place the finger correctly at the center of the fingerprint recognizer as shown in <Picture 1>.
☺ All fingerprint should be touching the fingerprint recognizer as shown in <Picture 2>.
2. Manager Registration
☺ The manager password is not registered when you open the package box
and operate the product for the first time.
No Register
Master Password
Please type Password
[ ]
[ ]
* Back # NEXT
F1 Cancel F4 Ok
No Register
Master Password
Please type Password
[***** ]
[ ]
* Back # NEXT
F1 Cancel F4 Ok
No Register
Master Password
Please type Password
[***** ]
[***** ]
1. When the power is on for the first time, a
window for setting the manager password will
pop up as shown in the left screen.
2. Use the number buttons to enter the manager
password (above 5 figures) and press the #
button.
◆ If you entered the wrong number!
* Press the button and reenter the
number.
3. Enter the same password (above 5 figures) in
the below blank and save it by pressing F4.
◆ Precautions!
If you fail to enter the password with the
given time, the screen goes back to its
5
* Back # NEXT
F1 Cancel F4 Ok
OK !!!
Master Password
Registered
Password Length
Less than 5
Please try again
original state.
4. After successfully registering the manager
password, the left-sided screen appears.
5. If you enter a password (below 5 figures), the
left-sided screen appears.
In this case, please reenter your password
(above 5 figures).
3. Manager Menu Calling
☺ Press F4 to enter into the manager menu.
1. Controller Setup: Control the equipment setup.
2. User Management: Add/delete the user or manage the entrance/exit.
3. DB Management: Manage the equipment data base.
4. Password change: Change the manager password.
5. Door Operation: Setup the door operation method.
* Manager Menu Calling
MAIN Menu
1. Controller Setup
2. User Management
3. DB Management
4. Passwd change
5. Door Operation
F1 Cancel F4 OK
Controller Setup
1. Date/Time
2. Network Setup
3. Manage Mode
4. ETC Setup
5. Door Setup
F1 Cancel F4 OK
Date/Time Setting
Year Month Day
[_ ] [ ] [ ]
Hour Minute Second
[ ] [ ] [ ]
* Back # Next
F1 Cancel F4 OK
Date/Time Setting
Year Month Day
[2006] [_ ] [ ]
Hour Minute Second
[ ] [ ] [ ]
* Back # Next
F1 Cancel F4 OK
Date/Time Setting
Year Month Day
[2006] [_ ] [ ]
1. Enter into the Controller Setup menu by pressing
2. Select the date and time setup items by pressing
3. You can see a window for setting up the year, date,
4. Enter the year by using a number button. After the
5. Enter the month by using a number key.
button to move the cursor to the date blank.
the number key, ‘1’ from the manager menu
window on the left.
the number key, ‘1’ from the Controller Setup
menu.
hour, minute and second as shown in the left-side
picture.
4 figures are entered, the cursor automatically
moves to the month blank.
After entering the month (1 figure), press the #
6
Hour Minute Second
[ ] [ ] [ ]
* Back # Next
F1 Cancel F4 OK
Date/Time Setting
Year Month Day
[2006] [10] [20]
Hour Minute Second
[12] [10] [35]
* Back # Next
F1 Cancel F4 OK
4. Controller setup
4.1 Date and Time Setup
◆ Example of Date and Time Setup(Enter 9 o‘clock 37 min. 52 sec. on October 8th 2006)
1. Press F4 for a few seconds from the initial window and enter the manager password
to call the manager menu.
2. Press the number key, ‘1’ two times from the manager menu screen to enter into
the date and time setup menu.
3. If you press the number keys, ‘2, 0, 0, 6’, the year will be entered. Then, the cursor
will automatically move to the month blank.
4. If you press the number keys, ‘1, 0’, the month will be entered. Then, the cursor will
automatically move to the date blank.
5. If you press the number key, ‘8’ to enter the date and press the # button, the cursor
will move to the time blank.
6. If you press the number key, ‘9’ to enter the time and press the # button, the cursor
will move to the minute blank.
7. After pressing the number keys, ‘3, 7’ to enter the minute, the cursor will
automatically move to the second blank.
8. After pressing the number keys, ‘5, 2’ to enter the seconds, the date and time setup
will be finished and the screen will return to the Controller Setup Screen.
9. If the second is one figure, press the number and # or F4 button to complete the
input.
4.2 ACU Number Setup
MAIN Menu
1. Controller Setup
2. User Management
3. DB Management
4. Passwd change
5. Door Operation
F1 Cancel F4 OK
Controller Setup
1. Date/Time
2. Network Setup
3. Manage Mode
4. ETC Setup
5. Door Setup
◆ If you entered the wrong number!
* Press the button and reenter the number.
6. After entering both the date and time, press the
F4 button to save the registered date and time.
1. Press the number key, ‘1’ from the manager menu
screen on the left to enter into the Controller Setup
menu.
2. Press the number key, ‘2’ from the Controller
Setup menu to select the Network Setup item.
7
F1 Cancel F4 OK
Network Setup
1. ACU Number
2. Network Mode
3. LAN Setup
4. WL-LAN Setup
5. UART Speed
F1 Cancel F4 OK
ACU Number
Curr [001]
New [_ ]
* Back # OK
F1 Cancel F4 OK
ACU Number
Curr [001]
New [255]
* Back # OK
F1 Cancel F4 OK
Invalid
ACU Number
Please try again
OK ACU Number
Successfully
Changed
Network Setup
1. ACU Number
2. Network Mode
3. LAN Setup
4. WL-LAN Setup
5. UART Speed
F1 Cancel F4 OK
Network Setup
Changed!!
Restarting ~~
Wait a moment!!!
4.3 Network Mode 설정
MAIN Menu
1. Controller Setup
2. User Management
3. DB Management
4. Passwd change
5. Door Operation
F1 Cancel F4 OK
Controller Setup 2. Press the number key, ‘2’ from the Controller
3. Press the number key, ‘1’ from the Network
Setup menu to select the ACU Number item.
4. You can see the ACU Number setup screen.
Curr indicates the ACU Number that is currently
setup.
5. Use the number keys to enter the ACU Number (3
figures) in the New blank.
You can enter a number within the range from 001
to 255.
6. If you enter a number out of the range from 001 to
255,
The left-side error screen will appear and go back
to the ACU Number setup screen.
7. If you entered a number within the range of 001 to
255, you can confirm the successfully revised
ACU Number from the left-side screen.
8. After the ACU Number is entered, the screen goes
back to the Network Setup Screen.
If you press F4 from the left-side screen, the ACU
Number will be revised.
9. If you press the F4 button, the left-side screen will
appear and the equipment will restart to revise the
Network setup.
1. Press the number key, ‘1’ from the left-side
manager menu screen to enter into the Controller
Setup menu.
8
1. Date/Time
2. Network Setup
3. Manage Mode
4. ETC Setup
5. Door Setup
F1 Cancel F4 OK
Network Setup
1. ACU Number
2. Network Mode
3. LAN Setup
4. WL-LAN Setup
5. UART Speed
F1 Cancel F4 OK
NET MODE
1. No LAN
2. Wire LAN MODE
3. WL-LAN infrastruct
4. WL-LAN Ad-hoc
[No LAN]
F1 Cancel F4 OK
NET MODE
1. No LAN
2. Wire LAN MODE
3. WL-LAN infrastruct
4. WL-LAN Ad-hoc
[Wire LAN]
F1 Cancel F4 OK
Network Setup
Changed!!
Restarting ~~
Wait a moment!!!
4.3.1 LAN Setup
MAIN Menu
1. Controller Setup
2. User Management
3. DB Management
4. Passwd change
5. Door Operation
F1 Cancel F4 OK
Controller Setup
1. Date/Time
2. Network Setup
3. Manage Mode
4. ETC Setup
5. Door Setup
F1 Cancel F4 OK
Network Setup
1. ACU Number
2. Network Mode
Setup menu to select the Network Setup item.
3. Press the number key, ‘2’ from the Network Setup
menu to select the Network Mode item.
4. The screen for setting up the network mode
appears.
You can select the mode you want by using the
number key. The selected mode is indicated below.
5. After pressing the number keys to select the
Network Mode you want and pressing F4 button,
the Network Mode will be saved and the screen will
go back to the Network Setup screen.
Refer to the terminology guideline to be informed
of the Network Mode.
6. If you press F4 button from the Network Setup
screen, the left-side screen appears and the
equipment will restart.
1. Press the number key, ‘1’ from the left-side
manager menu screen to enter into the Controller
Setup menu.
2. Press the number key, ‘2’ from the Controller
Setup menu to select the Network Setup item.
3. Press the number key, ‘3’ from the Network
Setup menu to select the LAN Setup item.
◆Precautions!
9
3. LAN Setup
4. WL-LAN Setup
5. UART Speed
F1 Cancel F4 OK
Curr Network
1. I P 192.168.000.100
2. GW 192.168.000.001
3. SM 255.255.255.000
4. DNS000.000.000.000
1-4 EDIT address
F1 Cancel F4 OK #:.
Curr Network
1. I P _
2.GW 192.168.000.001
3.SM 255.255.255.000
4.DNS000.000.000.000
1-4 EDIT address
F1 Cancel F4 OK #:.
Curr Network
1. I P _
2.GW 192.168.000.001
3.SM 255.255.255.000
4.DNS000.000.000.000
1-4 EDIT address
F1 Cancel F4 OK #:.
Curr Network
1. I P 199.000.000.000
2.GW 192.168.000.001
3.SM 255.255.255.000
4.DNS000.000.000.000
1-4 EDIT address
F1 Cancel F4 OK #:.
Network Setup
Changed!!
Restarting ~~
Wait a moment!!!
4.3.2 UART Speed Setup
MAIN Menu
1. Controller Setup
2. User Management
3. DB Management
4. Passwd change
5. Door Operation
F1 Cancel F4 OK
Controller Setup
1. Date/Time
2. Network Setup
3. Manage Mode
4. ETC Setup
5. Door Setup
Only if the Network mode is set up as Wire LAN
Mode, selection is possible.
4. If you select the LAN Setup menu, the left-side
screen appears.
Use the number keys from 1 to 4 to select the item
that will change the address.
◆ Refer to the terminology guideline to be
informed of IP, GW, SM, DNS address.
5. If you want to change the IP address, press the
number, ‘1’.
The existing IP address will completely be deleted
and the cursor will appear at the first blank of IP
address.
6. Use the number keys to enter the new IP address.
Use the # button to enter (.) in the middle of the
numbers.
7. After finishing the input and pressing F4 button,
the input will be completed and the screen will go
back to the Network Setup screen.
◆If you don’t enter the new address for more than
10 seconds, the existing address will be indicated
again.
8. If you press the F4 button from the Network
Setup screen, the revised address will be saved and
the equipment will be restarted.
1. Press the number key, ‘1’ from the left-side
manager menu screen to enter into the
Controller Setup menu.
2. Press the number key, ‘2’ from the Controller
Setup menu to select the Network Setup item.
10
F1 Cancel F4 OK
Network Setup
1. ACU Number
2. Network Mode
3. LAN Setup
4. WL-LAN Setup
5. UART Speed
F1 Cancel F4 OK
UART Speed Change
CUR : 57600
1.1200 6.28800
2.2400 7.38400
3.4800 8.57600
4.9600 9.115200
5.19200 0.230400
Network Setup
1. ACU Number
2. Network Mode
3. LAN Setup
4. WL-LAN Setup
5. UART Speed
F1 Cancel F4 OK
Network Setup
Changed!!
Restarting ~~
Wait a moment!!!
4.4 Manager Mode Setup
4.4.1 Network/Stand-alone setup
MAIN Menu
1. Controller Setup
2. User Management
3. DB Management
4. Passwd change
5. Door Operation
F1 Cancel F4 OK
Controller Setup
1. Date/Time
2. Network Setup
3. Manage Mode
4. ETC Setup
5. Door Setup
F1 Cancel F4 OK
Manage Mode
1. Stand-alone
2. Network Only
[Stand-alone ]
F1 Cancel F4 OK
3. Press ‘5’ from the Network Setup menu to
select the UART Speed item.
◆ Refer to the terminology guideline to be
informed of UART in detail.
4. A screen for setting up UART Speed appears.
The number next to CUR indicates the currently
registered UART Speed. You can select the
speed you want by using the number key.
5. If you select the UART Speed, you will go back
to the previous screen as shown on the left.
If you press F4 to save UART Speed, the setup
of UART Speed will be completed.
6. If you press F4 to save the revised UART
Speed, the equipment will restart to apply the
revised setup.
1. Press the number key, ‘1’ from the left-side
manager menu screen to enter into Controller
Setup menu.
2. Press the number key, ‘3’ from Controller
Setup menu to select the Manage Mode item.
3. Press the number key to set up the Manage
Mode.
The selected Manage Mode is indicated below.
Press F4 to save the Manage Mode.
◆ Reference
Stand-alone: Setting with a stand-alone menu
Network Only: Setting into a manage
11
computer.
4.4.2 BEEP Setup ☺ Set up the beep sound.
ETC Setup
1. Beep Setup
2. Voice Setup
3. LED Setup
4. Comm Security
F1 Cancel F4 OK
Beep Mode
1. Beep ON
2. Beep OFF
CUR BEEP OFF
F1 Cancel F4 OK
4.4.3 Voice Setup ☺ Set up the voice guidance sound.
ETC Setup
1. Beep Setup
2. Voice Setup
3. LED Setup
4. Comm Security
F1 Cancel F4 OK
Voice Mode
1. Voice MAX
2. Voice MID
3. Voice LOW
4. Voice OFF
CUR Voice MAX
F1 Cancel F4 OK
4.4.4 LED Setup
ETC Setup
1. Beep Setup
2. Voice Setup
3. LED Setup
4. Comm Security
F1 Cancel F4 OK
☺ Set up the LED movements of the button.
1. Press ‘1’ from ETC Setup screen to select the Beep
Setup menu.
2. Press the number key from 1~2 to select the Beep
mode.
The selected mode is indicated below. If you press
F4 button to save the mode, you will go back to the
previous screen.
◆ Reference
Beep ON: When you press the button, the beep
sound will ring.
Beep OFF: When you press the button, the beep
1. Press ‘2’ from ETC Setup screen to select the Voice
Setup menu.
2. Press the number key from 1~4 to select the Voice mode.
The selected mode is indicated below. If you press F4
button to save the mode, you will go back to the previous
screen.
◆ Reference
Voice MAX: Set the voice guidance sound at maximum.
Voice MID: Set the voice guidance sound at medium.
Voice LOW: Set the voice guidance sound at minimum.
Voice OFF: Set the voice guidance sound at mute.
1. Press ‘3’ from ETC Setup screen to select the LED
Setup menu.
sound will not ring.
12
LED Mode
1. Always OFF
2. ON at KEY
3. Always ON
CUR ON at KEY
F1 Cancel F4 OK
4.4.5 Comm Security
ETC Setup
1. Beep Setup
2. Voice Setup
3. LED Setup
4. Comm Security
F1 Cancel F4 OK
COMM Security
1. FTP/TELNET ON/OFF
2. Packet Encryption
3. Encryption ON/OFF
F1 Cancel F4 OK
FTP/TELNET ON/OFF
1. FTP/TELNET ON
2. FTP/TELNET OFF
CUR FTP/TELNET ON
F1 Cancel F4 OK
ENC KEY Setup
1. KEY1 [ 0]
2. KEY2 [ 0]
3. KEY3 [ 0]
F1 Cancel F4 OK
ENC KEY Setup
1. KEY1 [_ ]
2. KEY2 [ 0]
3. KEY3 [ 0]
F1 Cancel F4 OK
Encryption ON/OFF
1. Encryption ON
2. Encryption OFF
CUR Encrytion OFF
2. Press the number key from 1~3 to select the LED
mode.
The selected mode is indicated below. If you
press F4 button to save the mode, you will go back
to the previous screen.
◆ Reference
Always OFF: The button LED will always be
turned on.
ON at KEY: LED will be turned on whenever you
press the button.
Always ON: LED is always turned on.
☺ Set up the computer security.
1. Press ‘4’ from ETC Setup screen to select the Comm
Security menu.
1) FTP/TELNET ON/OFF: Set up FTP/TELNET.
2) Packet Encryption: Set up the packet password.
3) Encryption ON/OFF: Turn on/off the packet
password.
2. Press the number key from 1~3 to select the menu
you want to control.
3. If you select FTP/TELNET item, you can see the
left-side screen.
After pressing the number key to set up
FTP/TELNET and pressing F4, the set up will be
saved and you will go back to the previous screen.
4. If you press ‘2’ from the COMM Security screen, you
can see the left-side screen.
You can set up the packet password or press the
number key from 1~3 to select the password key you
want to enter.
5. If you press ‘1’, you can enter KEY1.
Use the number key to enter the 5 figure password.
Then, press F4 button to save the password. You will
go back to the previous screen.
6. If you press ‘3’ from the COMM Security screen, you
can see the left-side screen.
After pressing the number key to set up the packet
password and pressing F4 button, the set up will be
saved and you will go back to the previous screen.
13
F1 Cancel F4 OK
4.4.6 Door Setup
MAIN Menu
1. Controller Setup
2. User Management
3. DB Management
4. Passwd change
5. Door Operation
F1 Cancel F4 OK
Controller Setup
1. Date/Time
2. Network Setup
3. Manage Mode
4. ETC Setup
5. Door Setup
F1 Cancel F4 OK
Door Setup
Hold Time [003]
Alarm Time [005]
* Back # NEXT
F1 Cancel F4 OK
1. Press the number key, ‘1’ from the left-side
manager menu screen to enter into the Controller
Setup menu.
2. Press the number key, ‘5’ from the Controller Setup
menu to select the Door Setup item.
3. You can set up the door operation. After entering the
item you want and pressing F4 to save the time, you
will go back to the previous screen.
Time will be set up in seconds.
◆ Reference
Hold Time: Meaning that the door is opened.
Alarm Time: Setting up the alarm ringing time.
5. User Management
5.1 User Addition
MAIN Menu
1. Controller Setup
2. User Management
3. DB Management
4. Passwd change
5. Door Operation
F1 Cancel F4 OK
User Manager
1. Add User
2. Delete One User
3. Delete All User
4. Check User
5. Pass Method
F1 Cancel F4 OK
1. Press number key 2 in administrator menu screen
as like left and enter to User Management menu.
2. Press number key 1 in User Manager menu and
select Add User article
14
1. ID [00000] 0. [USR]
2. Passwd1 [********]
3. Passwd2 [********]
4. StartDate [061013]
5. End Date [321231]
FP[N] RF[00000000]
1-5, # Finger, F4 OK
1. Passwd1 [********]
2. Passwd2 [********]
3. StartDate [061013]
4. ID [_ ] 0. [USR]
5. End Date [321231]
FP[N] RF[00000000]
1-5, # Finger, F4 OK
1. ID [01234] 0. [USR]
2. Passwd1 [_ ]
3. Passwd2 [********]
4. StartDate [061013]
5. End Date [321231]
FP[N] RF[00000000]
1-5, # Finger, F4 OK
1. Passwd1 [********]
2. ID [01234] 0. [USR]
3. Passwd2 [_ ]
4. StartDate [061013]
5. End Date [321231]
FP[N] RF[00000000]
1-5, # Finger, F4 OK
1. ID [01234] 0. [USR]
2. Passwd1 [********]
3. Passwd2 [********]
4. StartDate [_ ]
5. End Date [321231]
FP[N] RF[00000000]
1-5, # Finger, F4 OK
1. ID [01234] 0. [USR]
2. Passwd1 [********]
3. Passwd2 [********]
4. StartDate [061020]
5. End Date [_ ]
FP[N] RF[00000000]
1-5, # Finger, F4 OK
1. ID [01234] 0. [USR]
2. Passwd1 [********]
3. Passwd2 [********]
4. StartDate [061013]
5. End Date [301201]
FP[1] RF[00000000]
ID : User ID
USR/MST/SPR : User type
Passwd1 : User password
Passwd2 : Password re-input
Start Date : Application point of user information
End Date : User information expiration point
FP[3] : Whether or not fingerprint
registration (present, 3 registered)
RF[7486F23S] : Registered RF card number
3. Can input user ID if press number key 1.
Input five seat numbers using number key
4. Can input user password if press number key 2.
If press F4, input is ended after input number fewer
than 8 seats.
5. Presses number key 3 and re-input user password.
In case of input other number different with number
inputting at Passwd1, error message should be
registered and input again.
6. Can input ready time to apply user information if
press number key 4.
Year, end two seats – month – in order of work input
Ex ) Input October 20, 2006 by 061020
7. If press number key 5, can input point that User
information is expired.
Input by method such as ready time
8. Can input fingerprint if press # button.
Refer to fingerprint realization method of previous
page, put fingerprint on fingerprint reader.
If fingerprint was realized, character N of FP side
changes by number.
15
1-5, # Finger, F4 OK
1. ID [01234] 0. [USR]
2. Passwd1 [********]
3. Passwd2 [********]
4. StartDate [061013]
5. End Date [321231]
FP[2] RF[00000000]
1-5, # Finger, F4 OK
1. ID [01234] 0. [USR]
2. Passwd1 [********]
3. Passwd2 [********]
4. StartDate [061013]
5. End Date [321231]
FP[2] RF[7479F60E]
1-5, # Finger, F4 OK
Register User
Successfully
Finished
5.2 User Deletion
MAIN Menu
1. Controller Setup
2. User Management
3. DB Management
4. Passwd change
5. Door Operation
F1 Cancel F4 OK
User Manager
1. Add User
2. Delete One User
3. Delete All User
4. Check User
5. Pass Method
F1 Cancel F4 OK
USER-ID [. . . . .]
Date . . . . . . - . . . . . .
FP[ . ] RF [. . . . . . . .]
0-9 search by ID
F1 Cancel
F3 Delete F4 OK
5.3 All Users Deletion
MAIN Menu
1. Controller Setup
2. User Management
3. DB Management
9. In case of input fingerprint additionally, press #
button and put finger to fingerprint reader.
When it is realized normally, number of FP side
increases.
Fingerprint can register to 10 per user.
10. In case of wishing to register RF card, if put close
to RF card contact part of device external, RF card
value is registered and registration is ended.
11. If press F4 button after input all user
information, screen appears such as left and user
information is saved. After save, screen returns by
user management menu
1. In administrator menu screen such as left,
press number key 2 and enter to User
Management menu
2. Press 2 in User Manager menu and select
Delete One User article
3. If input user ID to delete by using number key,
user information appears and if press F3,
relevant user information is deleted.
Can return to previous screen if press F1 or
F4
1. press number key 2 in administrator menu
screen such as left and enter to User
Management menu.
16
4. Passwd change
5. Door Operation
F1 Cancel F4 OK
User Manager
1. Add User
2. Delete One User
3. Delete All User
4. Check User
5. Pass Method
F1 Cancel F4 OK
Delete All User
1. Yes
2. No
5.4 User confirmation
MAIN Menu
1. Controller Setup
2. User Management
3. DB Management
4. Passwd change
5. Door Operation
F1 Cancel F4 OK
User Manager
1. Add User
2. Delete One User
3. Delete All User
4. Check User
5. Pass Method
F1 Cancel F4 OK
USER-ID [. . . . .]
Date . . . . . . - . . . . . .
FP[ . ] RF [. . . . . . . .]
0-9 : search by ID
# search by Finger
RF search by Card
F1 Cancel F4 OK
5.5 Entrance/Exit Setup
MAIN Menu
1. Controller Setup
2. User Management
3. DB Management
4. Passwd change
5. Door Operation
F1 Cancel F4 OK
2. press 3 in User Manager menu and select
Delete All User article.
3. All user information are deleted if press 1 and
message "All User Deleted" is registered and
return by previous screen.
If press 2 "Delete" is cancelled and returns to
previous screen.
1. press number key 2 in administrator menu
screen such as left and enter to User
Management menu
2. Press 4 in User Manager menu and select
Check User article
3. If input user ID using number key, relevant
user's information is registered.
If press # button, can confirm user with
fingerprint, and if contact RF card, it is possible
also to confirm by card.
Can return to previous screen if press F1 or F4.
1. Press number key 2 in administrator menu screen
such as left and enter to User Management menu
17
User Manager
1. Add User
2. Delete One User
3. Delete All User
4. Check User
5. Pass Method
F1 Cancel F4 OK
1. Method for USER
2. Group [ 1 ] Single
3. PIN Only [ * ]
4. Card Only [ * ]
5. Finger Only [ * ]
Press 1-5 for toggle
F1 Cancel F4 OK
1. Method for USER
2. Group [ 1 ] Single
3. PIN Only [ * ]
4. Card Only [ * ]
5. Finger Only [ * ]
Press 1-5 for toggle
F1 Cancel F4 OK
1. Method for USER
2. Group [ 1 ] Single
3. PIN Only [ * ]
4. Card Only [ * ]
5. Finger Only [ * ]
Press 1-5 for toggle
F1 Cancel F4 OK
1. Method for USER
2. Group [ 1 ] Single
3. PIN Only [ * ]
4. Card Only [ * ]
5. Finger Only [ * ]
Press 1-5 for toggle
F1 Cancel F4 OK
2. Press 5 in User Manager menu and select Pass
Method article
3. Can make toggle each article by pressing 1~5.
If press 1, can change group to setup exit and
entrance method.
It will be changed in order of User – Master – Super
4. If press 2, can set exit and entrance method of
selected group.
It will be changed in order of Single – Dual – Triple.
Can set up to 1~3 the element needed in exit and
entrance approval.
5. Can set available exit and entrance method by
pressing 3~5.
* is registered to available method.
◆ PIN : Exit and entrance by ID and password
Card : Exit and entrance by RF card
Finger : Exit and entrance with registered
fingerprint
6. After completion of setting, press F4 button to save
setting and to return to previous screen.
◆◆(Illustration of exit and entrance method setting )
User group can set to exit and enter by using fingerprint and password, RF card and fingerprint.
1. Method for USER
2. Group [ 1 ] Single
3. PIN Only [ * ]
4. Card Only [ * ]
5. Finger Only [ * ]
Press 1-5 for toggle
F1 Cancel F4 OK
1. Method for USER
2. Group [ 2 ] Dual
3. CARD + PIN [ * ]
4. CARD + Finger [ * ]
5. Finger + PIN [ * ]
Press 1-5 for toggle
1. Press 1 in exit and entrance method setting screen
after select group by user, and change exit and
entrance method from Single to Dual by pressing 2.
2. Cancel selection of CARD + PIN item by pressing 3.
User group is set to take in and out only using RF card
and fingerprint or fingerprint and password.
18
F1 Cancel F4 OK
1. Method for USER
2. Group [ 2 ] Dual
3. CARD + PIN [ ]
4. CARD + Finger [ * ]
5. Finger + PIN [ * ]
Press 1-5 for toggle
F1 Cancel F4 OK
Please
Touch Finger
14 Oct 2006 21:37:44
Thank You
14 Oct 2006 21:37:44
No Trespassing
Please
Touch Finger
Need
Password check
[_ ]
* Back # Next
F1 Cancel F4 OK
3. Can return to previous screen if save pressing F4
button after completion set.
User group can take in and out by Card and fingerprint,
fingerprint and password.
4. After changing method taking in and out, it is
available to take in and out only by chamged method.
Can see screen that requires fingerprint input as like
left if contact RF card in initial screen
5. When input right fingerprint, screens such as left is
registered and "Ok You can pass" opens door with
guidance sound
6. Screen such as left is registered in case of input
wrong fingerprint or do not input fingerprint within 5
seconds saying guidance sound of "Please Contact your
security Manager"
7. Taking in and out is possible by fingerprint and
password.
Screen such as left is registered if # press button
and input fingerprint to fingerprint reader that has
registered beforehand.
8. Can input password after input fingerprint. If input
correctly set password and press F4, then the door
opens
◆Caution !!!
Registered exit and entrance method should be
enforced sequentially . !!!
Ex) In case of selection Card + PIN to Dual menu,
must input password after RF card contact, and can not
take in or out in case of input first password. In case
set Triple menu, according to order input of RF card
contact password input fingerprint
6. DB Management
6.1 Setup Initialization
MAIN Menu
1. Controller Setup
2. User Management
3. DB Management
4. Passwd change
5. Door Operation
F1 Cancel F4 OK
DB Management
1. Init config
1. In administrator menu screen such as left press
number key 3 and enter to DB Management menu.
2. Database management screen appears as like left.
Press 1 for setting initialization and select Init Config
19
2. Init Event
F1 Cancel F4 OK
Init Config
1. Yes
2. No
article
3. Device setting is initialized if press 1 in left screen
and returns to previous screen.
Can return to previous screen without initializing
setting if press 2.
6.2 Event Initialization
MAIN Menu
1. Controller Setup
2. User Management
3. DB Management
4. Passwd change
1. In administrator menu screen such as left, press
number key 3 and enter to DB Management
menu.
5. Door Operation
F1 Cancel F4 OK
DB Management
1. Init config
2. Init Event
2. Database management screen appears as like
left.
Press 2 and select Init Event article
F1 Cancel F4 OK
Init Event
1. Yes
2. No
3. if press 1 in left screen, event is initialized and
returns to previous screen.
Can return to previous screen without initializing
setting if press 2.
7. Revision of Manager Password
MAIN Menu
1. Controller Setup
2. User Management
3. DB Management
4. Passwd change
5. Door Operation
F1 Cancel F4 OK
Change
Master Password
Please type Password
[ ]
[ ]
* Back # NEXT
F1 Cancel F4 OK
Change
Master Password
Please type Password
[******* ]
1. Press number key 4 in administrator menu
screen such as left and enter to Passwd change
menu
2. If press # button after input administrator
password more than five seat using number key,
cursor moves to space below
3. If press F4 button after input correctly inputting
administrator password once again, changing
administrator's password is completed.
20
[_ ]
* Back # NEXT
F1 Cancel F4 OK
O K !!!
Master Password
Successfully
Changed
Password Length
Less than 5
Please try again
Not Match
Two Password
Please Try Again
4. If administrator password is changed normally,
screen such as left appears and returns to
previous screen
5. When input password less than five seats, error
message such as left is registered and returns to
password input screen
6. In case of input password is not
correspondent each other, error message such
as left is registered, and returns to password
input screen.
8. Door Operation
MAIN Menu
1. Controller Setup
2. User Management
3. DB Management
4. Passwd change
5. Door Operation
F1 Cancel F4 OK
Door Mode Setup
1. Normal Mode
2. Close 3. Open
4. Schedule Close
5. Schedule Open
[Normal ]
F1 Cancel F4 OK
Schedule Open
S: Y[1970] M[01] D[01]
S: H[06] M[57] S[04]
E: Y[1970] M[01] D[31]
E: H[00] M[00] S[53]
* Back #
NEXT
F1 Cancel F4 OK
Schedule Open
S: Y[1970] M[01] D[01]
S: H[06] M[57] S[04]
E: Y[1970] M[01] D[31]
E: H[00] M[00] S[53]
(open/close) Setup
1. In administrator menu screen such as left, press
number key 5 and returnss to Door Operation
menu
2. Select wanted mode using number key 1~5
- Normal Mode : Normalcy mode
- Close : Always closed
- Open : Always opened
- Schedule Close: Closed at specifying time
- Schedule Open : Opened at specifying time
3. In case of select Schedule Open or Schedule
Close mode, can set date on screen such as left.
4. S displays point of ready time that Schedule
mode is applied and E displays point that
application is ended. Input sequential year,
month, day, time, minute, second using number
key. If press # key, go over to next shell, If
21
* Back #
press * key, Can correct already input number
NEXT
F1 Cancel F4 OK
5. Door opens compulsorily from 12 o'clock,
October 22, 2006 by 12 : 15 : 30 same day. If
Schedule Open
S: Y[2006] M[10] D[22]
S: H[12] M[00] S[00]
E: Y[2006] M[10] D[22]
E: H[12] M[15] S[30]
* Back #
NEXT
F1 Cancel F4 OK
press F4, setting is saved and returns to previous
screen.
◆Caution!!
Forced Close mode or in point that Schedule
Close mode is applied,
please take care of impossibility for taking in
and out by all methods with registered RF card
and fingerprint !!
Must open entrance by setting entrance action
with Normal mode or Forced Open mode
9. Usage by Entrance/Exit Method
9.1 In case of fingerprint use
☺ It is available to use that Finger Only article in exit and entrance method setting was selected !!
Please
Touch Finger
14 Oct 2006 21:37:44
Thank You
14 Oct 2006 21:37:44
No Trespassing
9.2 In case of card use
☺ It is available to use Card Only article in exit and entrance method setting was selected !!
RF CARD
Recognition
14 Oct 2006 21:37:44
Thank You
14 Oct 2006 21:37:44
No Trespassing
9.3 In case of password use
☺ It is available to use Pin Only article in exit and entrance method setting was selected !!
1. Can input fingerprint if press # button.
Input registered fingerprint to fingerprint reader.
2. when input right fingerprint, screen such as left is
registered and the door is opened with guidance sound
of "Ok You can pass"
3. In case of input wrong fingerprint or do not input
fingerprint within 5 seconds, screens such as left is
registered and comes out guidance sound of "Please
Contact your security Manager".
1. if put close registered RF card on RF card contact
part of device, card is realized.
2. When input right card, screen such as left is
registered and comes out guidance sound of "Ok You
can pass".
3. Occasion recognized wrong card, error message
such as left is registered and comes out guidance
sound of "Please Contact your Security Manager".
22
Enter ID & Password
User ID [0 ]
Password [ ]
* Back # NEXT
F1 Cancel F4 OK
Enter ID & Password
User ID [012 ]
Password [_ ]
* Back # NEXT
F1 Cancel F4 OK
Enter ID & Password
User ID [012 ]
Password [******* ]
* Back # NEXT
F1 Cancel F4 OK
1. if press number button in initial screen, there
appears screen to be input user ID and password as
like left.
2. If press # button after input registered user ID
using number key, can input password
3. If press F4 after input user password, the door
opens.
In case of input wrong, can correct registered
number by pressing * button
9.4 In case of card + password use
☺ It is available to use Card + PIN article in exit and entrance method setting was selected !!
RF CARD
Need
Password check
[ _ ]
* Back # NEXT
F1 Cancel F4 OK
14 Oct 2006 21:37:44
No Trespassing
1. If put close Registered RF card on RF card contact
part of device, card is realized.
2. When input right card, screen as like left that can
input password is registered.
After input password, the door opens if press # or F4
button.
3. Occasion that input wrong password or do not
input password more than 3 seconds, error message
such as left is registered.
9.5 In case of card + fingerprint use
☺ It is available to use Card + Finger article in exit and entrance method setting was selected !!
Please
Touch Finger
Need
Password check
[ _ ]
* Back # NEXT
F1 Cancel F4 OK
RF CARD
1. if put close registered RF card on RF card contact
of device, card is realized.
2. When input right card, screen that can input
fingerprint as like left is registered.
When input correct fingerprint, the door opens.
3. Taking in or out method setting, in case of the Card
+ PIN item and Card + Finger item are selected all,
password input screen is registered after card input.
In this case, can input fingerprint if press # button
without password input.
23
9.6 In case of fingerprint + password use
☺ It is available to Finger + PIN article in exit and entrance method setting was selected !!
Please
Touch Finger
Need
Password check
[ _ ]
* Back # NEXT
F1 Cancel F4 OK
14 Oct 2006 21:37:44
No Trespassing
1. Can input fingerprint if press # button.
Input fingerprint registered in fingerprint reader.
2. Can input password as like left when input correct
fingerprint.
If press # or F4 button after input password, the door
opens
3. When input wrong fingerprint or password or do not
input password more than 3 seconds, error message
is registered as like left.
9.7 In case of card + password + fingerprint use
☺ It is available to Card + PIN + Finger article in exit and entrance method setting was selected !!
RF CARD
Please
Touch Finger
Need
Password check
[ _ ]
* Back # NEXT
F1 Cancel F4 OK
1. if put close registered RF card on RF card contact
part of device, card is realized.
2. When input right card, screen that can input
fingerprint as like left is registered.
When input correct fingerprint, password input screen
is registered.
3. if press # or F4 button after input exactly password,
the door opens.
If password does not conform, error message is
registered and the door does not open.
10. Selection and Use of Entrance/Exit Control Mode
10.1 Attendance Mode
☺: select Attendance mode pressing F1 key
22 Oct 2006 12 : 11 : 11
Attendance
14 Oct 2006 21:37:44
Thank You
14 Oct 2006 21:37:44
1. Select Attendance Mode pressing F1 key.
After selection input card + fingerprint + password.
◆ card, fingerprint, password input refer to previous
page
2. When Attendance mode operates normal, screen
such as left is registered.
◆ When registered only fingerprint !!
Input fingerprint pressing # key after press F1 key
3. Card, fingerprint, password input were wrong,
error message such as left is registered.
24
No Trespassing
10.2 Leaving Office Mode
☺:Select Leaving Office mode pressing F2 key
22 Oct 2006 12 : 11 : 11
Attendance
14 Oct 2006 21:37:44
Thank You
14 Oct 2006 21:37:44
No Trespassing
10.3 Go Out Mode
☺: Select Go Out mode pressing F3 key
22 Oct 2006 12 : 11 : 11
Go Out
14 Oct 2006 21:37:44
Thank You
14 Oct 2006 21:37:44
No Trespassing
10.4 Return Office Mode
☺: Select Return Office mode pressing F4 key
22 Oct 2006 12 : 11 : 11
Return Office
14 Oct 2006 21:37:44
Thank You
14 Oct 2006 21:37:44
No Trespassing
1. Select Leaving Office mode pressing F2
Input card + fingerprint + password after selection
◆ Card, fingerprint, password input refer to previous
page
2. When Leaving Office mode operates normal , screen
such as left is registered
◆ Occasion that only fingerprint is registered !!
Input only fingerprint pressing # key after press F2 key
3. If input of card, fingerprint, password are wrong,
error message such as left is registered.
1. Select Go Out mode pressing F3
Input card + fingerprint + password after selection.
◆ Card, fingerprint, password input refer to previous
page
2. When Go Out mode operates normal , screen such as
left is registered
◆ Occasion that only fingerprint is registered !!
Input fingerprint pressing # key after press F3 key
3. Input of Card, fingerprint, password are wrong,
error message such as left is registered
1. Select Return Office mode pressing F4.
After selection input card + fingerprint + password
◆ card, fingerprint, password input refer to previous
page
2. When Return Office mode operates normal, screen
such as left is registered
◆ Registered only fingerprint!! pressing # key register
only fingerprint after press F4 key
3. In case of card, fingerprint, password input are
wrong as like left, there comes out error message.
25
11. Installation and Connection
11.1 Jumping Option Setup
Jumper Action Result 비고
Jp10,
Jp11
Jp123 Open Alarm_COM Open Decide COM of Alarm whether will open
Jp124 Open Lock_COM Open Decide COM of Lock whether will open
Jp125 1번2번 Alarm_Nc Decide Nc or Nc connection according
Jp126 1번2번 Jumping -Lock_Nc Decide Nc or Nc connection according
Jp3 ON Pass under Voltage Lock Counter electromotive force interception
Jp2 ON Pass under Voltage Alarm Counter electromotive force interception
Open 422TX Termination Off
Close 422TX Termination On
Close Alarm_COM GND
Close Lock_COM GND
2번3번 Alarm_No
2번3번 Jumping -Lock_No
or connect on GND
or connect on GND
to Lock type
to Lock type
that was produced at Lock On/Off
that was produced at Alarm On/Off
26
11.2 Installation Method
11.2.1 Connection to External Interface
◆ Sensor kinds - #2(Input1), #3(Input2), #1(GND) connection of Conx1 connector
◆ Exit button - Connect with #4(Exit) and GND(#1 or #6) of Conx1 connector
◆ Door Lock - Connect with (Dr _ no/nc) #8 and (Fuse _ 12V) #11 of Conx1 connector and do
jumping JP125 according to LOCK type
◆ Door open sensor - Connect with (Dr-Open) #5 and (GND) #6 of Conx1 connector.
There is occasion that Lock and Door open sensor are together according to Door.
◆ Alram – Connect with (
Do jumping JP126 according to
CONX3
1 2 3 4 5 6 7 8 9 10 11
GND INPUT1 INPUT2 EXIT
alarm -no/nc)#10 and (Fuse-12 V) #11 of Conx1.
alarm type.
DOOR
OPEN
GND
DOOR
COM
DOOR
NO/NC
ALARM
COM
ALARM
NO/NC
EXIT
Button
11.2.2 422/485 Multi-drop Connection power and LAN conjunction, re-booting
Door
Sensor
GND
외부
전원
12V
Door
Lock
FUSED
12V
27
When it connect to 422/485 port, termination (JP10/JP11) needs to be connected to both
ending points depend on the methods of connection. If the case of administrator’s PC is
one end point and F-ACU is another end point like above figure, administrator’s PC is to
be terminated and do the termination only at F-ACU(3). Just in case to connect to 485,
it needs to be terminated one of JP10/JP11.
11.2.3 Power Cable Connection
☺ Connect DC power supply 12~15 V to Conx4 regardless of direction
11.2.4 LAN Cable Connection
☺ Connect to RJ-45 connector under J2 port
28
11.2.5 Rebooting Method ☺ Press RESET switch inside device
11.2.6 Product Initalization
If it does not work normally in various reasons, pull out power connector from main PCB.
Then insert power connector in the status of pressing reset switch.
Once you take off reset button after 3 seconds later, it will be reset as newly receiving
status (factory exit mode) by initializing various configurations on the product.
11.3 Product Specification
Power Consumption DC 12 ± 3 V 700 mA
Communication Interface RS232, RS485/RS422, USB, 10/100 base ethernet
Sensor Type Optical Sensor
1:1 Verification Time 800 ms
1: 1,000 Identification Time 970 ms
Template Size 256 ~ 384 Bytes (configurable, 384 Bytes default)
Template Capacity 1,900 at 1 MB flash (option: 9,500 at 4 MB flash)
RF Card Interface Max. 65,356 User Register
Event Log Max. 100,000 Event can Log to Flash Memory
LCD Display 128 X 64 pixels graphic LCD
Keypad 16 Numeric key and 4 function key : back lighting
Memory 16MB RAM, 16Mb flash Memory, 2MB boot ROM
CPU 32 Bit RISC CPU
Signal Interface 2 Output (lock, alarm, etc) 4 Input (door/lock status)
System Software Access Control and Time Attendance
Operating Environment -20 ~ 50°C / Lower than 90% RH(Non-Condensing)
RF Reader Bulit in 125 KHz RF reader or 13.56 MHz RF reader
Dimensions(Unit: mm) 125(W) x 163(H) x 48(D)
Weight 430g
(Power Fail Safe)
Wiegand Output
11.4 Checking Matters before request for A/S
◆ input does not act well or response speed is slow
- Check whether there is moisture in finger
- Check whether Alien substance is on the surface of fingerprint reader
- Check whether fingerprint was input exactly
◆ Fingerprint registration does not act
- Confirm fingerprint registration availability
- Confirm fingerprint registration method
- Confirm state of fingerprint reader
11.5 Terminology explanation
◆ LAN (Local Area Network)
LAN is linked with communication line fewer than 300m, and it means linkage of PC, main frame,
workstation. LAN is distance that electric current or radio signal can be passed correctly between
computer and LAN is linked high speed communication network established in building of a certain
29
organization so that employees can use computer equipments most effectively
◆ IP address
It is Internet Protocol Address of 32 bits that provided as the concept agreeing with physical
network address, on the Internet, to make Routing efficiently
◆ Gateway(GW)
It is a network point that act as entrance which enter other network
◆ Subnet Mask(SM)
Subnet is abbreviated word of "sub-network", it is network that is belonged to certain organization
but it means network that can be realized to a part detached apart.
Note
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to Part 15 of the FCC rules.
These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and if not installed
and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception which can be determined by
turning the equipment off and on the user is encouraged to try to correct the interference by one or more
of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1)This device may not cause harmful interference, and
(2)This device must accept any interference received,
including interference that may cause undesired operation
** CAUTION **
Changes or modifications no expressly approved by the party
responsible for compliance could void the user’s authority to
operate the equipment.
30
Loading...
