high
full
low
full
high
full
medi um
low
high
full
medi um
low

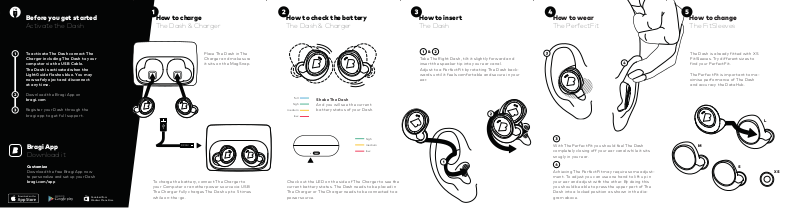

Before you get started
Activate the Dash
How to charge
The Dash & Charger
How to check the battery
The Dash & Charger
How to insert
The Dash
How to wear
The PerfectFit
How to change
The FitSleeves
To activate The Dash connect The
Charger including The Dash to your
computer via the USB Cable.
The Dash is activated when the
LightGuide flashes blue. You may
now safely eject and disconnect
at any time.
Download the Bragi App on
bragi.com
Register your Dash through the
bragi app to get full support.
Bragi App
Download it
Customize
Download the free Bragi App now
to personalize and set up your Dash
bragi.com/app
Download from
Windows Phone Store
Place The Dash in The
Charger and make sure
it sits on the MagSnap.
BRAGI
To charge the battery, connect The Charger to
your Computer or another power source via USB
The Charger fully charges The Dash up to 5 times
while on-the-go.
full
high
medi um
low
Check out the LED on the side of The Charger to see the
current batter y status. The Dash needs to be placed in
The Charger or The Charger needs to be connected to a
power source.
Shake The Dash
And you will see the current
battery status of your Dash.
high
medi um
low
Take The Right Dash, tilt it slightly forward and
insert the speaker tip into your ear canal.
Adjust to a PerfectFit by rotating The Dash backwards until it feels comfortable and secure in your
ea r.
With The PerfectFit you should feel The Dash
completely closing off your ear canal while it sit s
snugly in your ear.
Achieving The Per fectFit may require some adjustment. To adjust you can use one hand to lif t up in
your ear and adjust with the other. By doing this
you should be able to press the upper par t of The
Dash into a locked position as shown in the diagram above.
The Dash is already fitted with XS
FitSleeves. Try different sizes to
find your PerfectFit.
The PerfectFit is impor tant to maximise performance of The Dash
and accuracy the DataHub.
L
M
S
XS
v 1.0, 201603, V2B QSM English
Model B1000, B1000H, B1000C, B1000L, B1000R
Bragi GmbH, Munich, Germany, Earth
Copyright ©2015 Bragi GmbH. All rights reserved. BRAGI, The Dash, and the B logo are
trademarks of Bragi GmbH in the U.S. or one or more other countries. The absence of a
product or service name or logo from this list does not constitute a waiver of Bragi GmbH
trademark or other intellectual property rights concerning that name or logo.
Patents pending.
How to interact
Basic gestures
Touch Control
Left Dash
Track
-
Activity feedback
Audio Trans parenc y On/Off Volume Up / Down
Pairing mode Activity Data Pairing mode Audio
Activity Me nu Start / Exit Playlist Menu Start / Exit
Start / End activity
Next activit y
Right Dash
Listen & Communicate
Play / Pause music
Tap
Next song
2x Tap
Swipe
5 sec
Hold
Select playlist
Tap
Next playlis t
Answer a call
Tap
End a call
Hold
Only R Dash inserted
Activate standalone mode
2x Tap
How to connect
Bluetooth & The Dash
Touch and hold The Right Dash for
5 seconds to enter pairing mode.
Selec t The Dash in your Bluetooth
settings and connect.
connection visible for max. 2 minutes
5 sec.
What’s inside the box?
The Dash
Manual & Registration
Reveal all features
bragi.com/support
Experience the full capabilities of
The Dash & reveal all of it‘s exciting
features.
Quick Start Guide
The Dash
The Dash
The Charger &
The Slide
FitSleeves
XS / S / M / L
USB to
Micro USB Cable
CE statement：
Do not use the product in the environment at too high or too low temperature,
never expose the product under strong sunshine or too wet environment.
The suitable temperature for the product and accessories is 0℃-50℃.
CAUTION RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE.
DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS
Excessive sound pressure from earphones and headphones can cause hearing loss.
The device has been evaluated to meet general RF exposure requirement, The device
can be used in portable exposure condition without restriction.
EU Regulatory Conformance
Hereby, Bragi GMBH declares that this device is in compliance with the essential
requirements and other relevant provisions of Directive 1999/5/EC.
FCC statements:
This device complies with part 15 of the FCC rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
NOTE: The manufacturer is not responsible for any radio or TV interference caused
by unauthorized modifications or changes to this equipment. Such modifications or
changes could void the user’s authority to operate the equipment.
FCC RF exposure:
The device has been evaluated to meet general RF exposure requirement, The device
can be used in portable exposure condition without restriction
IC statement:
This device complies with Industry Canada license-exempt RSS standard(s).
Operation is subject to the following two conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may
cause undesired operation of the device.
Should be translated to:
Cet appareil est conforme avec Industrie Canada RSS exemptes de licence standard(s).
Son fonctionnement est soumis aux deux conditions suivantes:
(1) cet appareil ne peut pas provoquer d'interférences, et
(2) cet appareil doit accepter toute interférence, y compris celles pouvant causer un
mauvais fonctionnement de l'appareil.
IC RF exposure:
The SAR limit of Canada is 1.6 W/kg averaged over one gram of tissue. Device
types B1000L has also been tested against this SAR limit.
The highest SAR value reported under this standard during product certification for
use when properly worn on the body is 0.074W/kg and for head is 0.016W/kg.
