Page 1
BRAGI
high
full
medium
low
high
medium
low
With The Perfec tFit you should feel The Da sh
completely closing of f your ear canal while it sit s
snugly in your ear.
Achieving The PerfectFit may require some adjustment. To adjust you can use one h and to lift up in
your ear and adjust wi th the other. By doing this
you should be able to pre ss the upper part of The
Dash into a locked posi tion as shown in the diagram above.
To activate The Dash conn ect The
Charger including The Dash to your
computer via the US B Cable.
The Dash is activa ted when the
LightGuide flashes blue. You may
now safely eject and disconnect
at any time.
Download the Bragi App on
bragi.com
Register your Dash thro ugh the
bragi app to get full sup port.

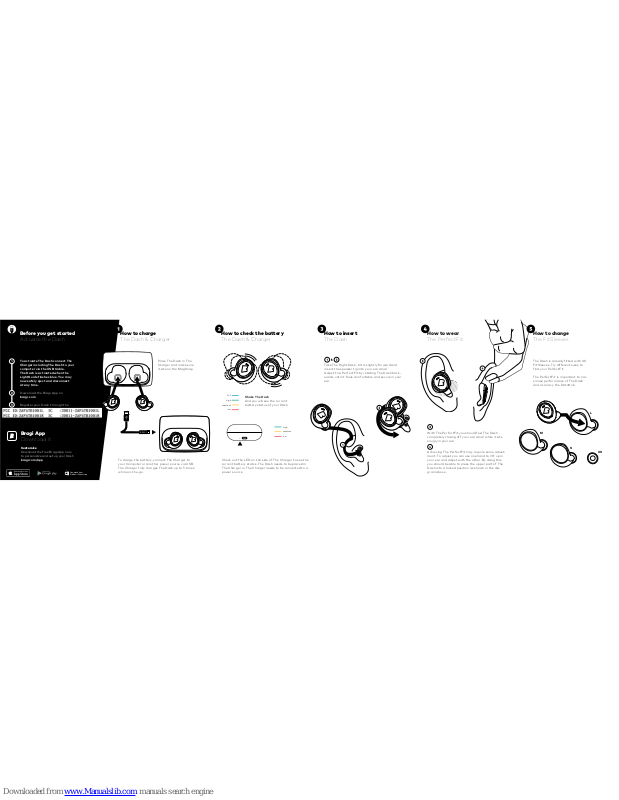

Before you get started
Activate the Dash
To charge the battery, conne ct The Charger to
your Computer or anoth er power source via USB
The Charger fully ch arges The Dash up to 5 time s
while on-the-go.
Place The Dash in Th e
Charger and make sure
it sits on the MagSnap.
Shake The Dash
And you will see the cur rent
battery statu s of your Dash.
Check out the LED on th e side of The Charger to see th e
current batter y status. The Dash nee ds to be placed in
The Charger or The Ch arger needs to be connec ted to a
power source.
Take The Right Dash, tilt it sl ightly forward and
insert the spe aker tip into your ear canal.
Adjust to a Perfect Fit by rotating The Dash backwards until it feels comfor table and secure in your
ear.
Bragi App
Download it
Customize
Download the free Bragi App now
to personalize and set u p your Dash
bragi.com/app
The Dash is alread y fitted with XS
FitSleeves. Try dif ferent sizes to
find your PerfectFit.
The PerfectFit i s important to maximise performance of The Dash
and accuracy the Da taHub.
How to check the battery
The Dash & Charger
How to insert
The Dash
How to wear
The PerfectFit
How to change
The FitSleeves
Download from
Windows Phone Store
L
M
S
XS
How to charge
The Dash & Charger
Page 2
5 sec
Tap
2x Tap
Right Dash
Listen & Communicate
Left Dash
Trac k
Activity feedback-Next song
Play / Pause music
Audio Transparency On/Off Volume Up / Down
Tap
Hold
Start / End act ivity
Next activity
Select playlist
Next playlist
Pairing mode Activity Data Pairing mode Audio
Activity Menu Start / Exit Playlist Menu Start / Exit
Tap
Answer a call
End a call
Hold
Swipe
2x Tap
Activate standalone mode
Only R Dash inserted
5 sec.
Touch Control
Experience the full capabilities of
The Dash & reveal all of it ‘s exciting
features.
Touch and hold The Right Das h for
5 seconds to enter pair ing mode.
Select The Dash in your Bluetooth
settings and connect.
connection vi sible for max. 2 minut es
Bragi GmbH, Munich, Germany, Earth
Copyright ©2015 Bragi GmbH. All rights reserved. BRAGI, The Dash, and the B logo are
trademarks of Bragi GmbH in the U.S. or one or more other countries. The absence of a
product or service name or logo from this list does not constitute a waiver of Bragi GmbH
trademark or other intellectual property rights concerning that name or logo.
Patents pending.
Quick Start Guide
The Dash
bragi.com/support
The Dash
The Charger &
The Slide
FitSleeves
XS / S / M / L
USB to
Micro USB Cable
How to connect
Bluetooth & The Dash
Manual & Registration
Reveal all features
How to interact
Basic gestures
What’s inside the box?
The Dash
v 1.0, 201603, V2B QSM English
Model B1000, B1000H, B1000C, B1000L, B1000R
Page 3
CE statement˖
Do not use the product in the environment at too high or too low temperature,
never expose the product under strong sunshine or too wet environment.
The suitable temperature for the product and accessories is 0ć-50ć.
CAUTION RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE.
DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS
Excessive sound pressure from earphones and headphones can cause hearing loss.
The device has been evaluated to meet general RF exposure requirement, The device
can be used in portable exposure condition without restriction
FCC statements:
This device complies with part 15 of the FCC rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
NOTE: The manufacturer is not responsible for any radio or TV interference caused
by unauthorized modifications or changes to this equipment. Such modifications or
changes could void the user’s authority to operate the equipment.
RF exposure:
The device has been evaluated to meet general RF exposure requirement, The device
can be used in portable exposure condition without restriction
IC statement:
This device complies with Industry Canada license-exempt RSS standard(s).
Operation is subject to the following two conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may
cause undesired operation of the device.
Should be translated to:
Cet appareil est conforme avec Industrie Canada RSS exemptes de licence standard(s).
Son fonctionnement est soumis aux deux conditions suivantes:
(1) cet appareil ne peut pas provoquer d'interférences, et
(2) cet appareil doit accepter toute interférence, y compris celles pouvant causer un
mauvais fonctionnement de l'appareil.
Page 4
NOTE: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits aredesigned
to provide reasonable protection against harmful interference in aresidential
installation. This equipment generates uses and can radiate radiofrequency energy
and, if not installed and used in accordance with the instructions,may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If thisequipment does cause
harmful interference to radio or television reception, whichcan be determined by
turning the equipment off and on, the user is encouraged totry to correct the
interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
