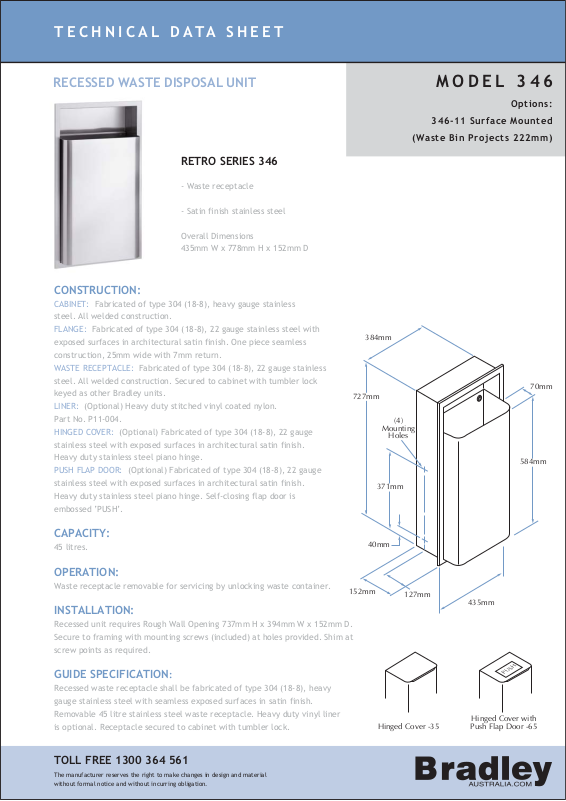

TECHNICAL DATA SHEET

RECESSED WASTE DISPOSAL UNIT

RETRO SERIES 346

- Waste receptacle

- Satin finish stainless steel

Overall Dimensions
435mm W x 778mm H x 152mm D

CONSTRUCTION:

CABINET: Fabricated of type 304 (18-8), heavy gauge stainless

steel. All welded construction.

FLANGE: Fabricated of type 304 (18-8), 22 gauge stainless steel with

exposed surfaces in architectural satin finish. One piece seamless

construction, 25mm wide with 7mm return.

WASTE RECEPTACLE: Fabricated of type 304 (18-8), 22 gauge stainless

steel. All welded construction. Secured to cabinet with tumbler lock

keyed as other Bradley units.

LINER: (Optional) Heavy duty stitched vinyl coated nylon.

Part No. P11-004.

HINGED COVER: (Optional) Fabricated of type 304 (18-8), 22 gauge

stainless steel with exposed surfaces in architectural satin finish.

Heavy duty stainless steel piano hinge.

PUSH FLAP DOOR: (Optional) Fabricated of type 304 (18-8), 22 gauge

stainless steel with exposed surfaces in architectural satin finish.

Heavy duty stainless steel piano hinge. Self-closing flap door is

embossed ‘PUSH’.

384mm

727mm

(4)

Mounting

Holes

371mm

MODEL 346

Options:

346-11 Surface Mounted

(Waste Bin Projects 222mm)

70mm

584mm

CAPACITY:

45 litres.

OPERATION:

Waste receptacle removable for servicing by unlocking waste container.

INSTALLATION:

Recessed unit requires Rough Wall Opening 737mm H x 394mm W x 152mm D.

Secure to framing with mounting screws (included) at holes provided. Shim at

screw points as required.

GUIDE SPECIFICATION:

Recessed waste receptacle shall be fabricated of type 304 (18-8), heavy

gauge stainless steel with seamless exposed surfaces in satin finish.

Removable 45 litre stainless steel waste receptacle. Heavy duty vinyl liner

is optional. Receptacle secured to cabinet with tumbler lock.

TOLL FREE 1300 364 561

The manufacturer reserves the right to make changes in design and material

without formal notice and without incurring obligation.

40mm

152mm

127mm

Hinged Cover -35

435mm

PUSH

Hinged Cover with

Push Flap Door -65
