Bradley 9562-40 Datasheet

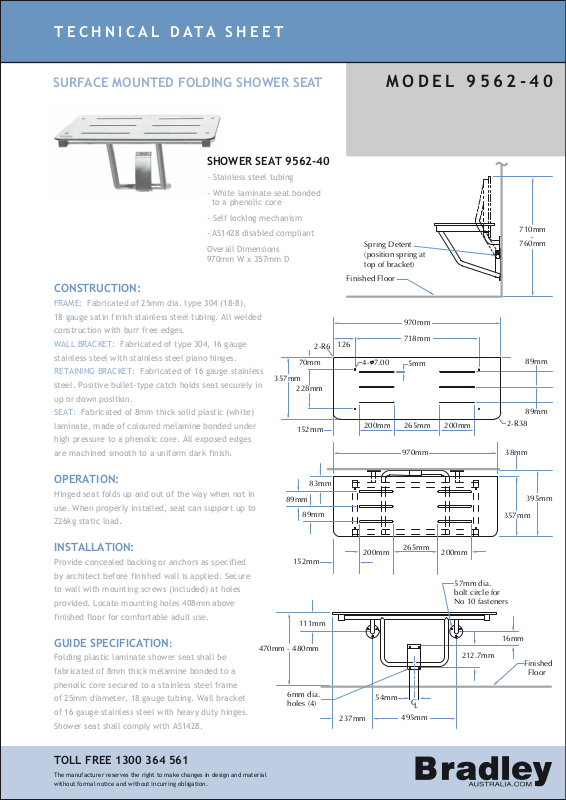

TECHNICAL DATA SHEET

SURFACE MOUNTED FOLDING SHOWER SEAT

SHOWER SEAT 9562-40

- Stainless steel tubing

- White laminate seat bonded
to a phenolic core

- Self locking mechanism

- AS1428 disabled compliant

Overall Dimensions
970mm W x 357mm D

CONSTRUCTION:

FRAME: Fabricated of 25mm dia. type 304 (18-8),

18 gauge satin finish stainless steel tubing. All welded

construction with burr free edges.

WALL BRACKET: Fabricated of type 304, 16 gauge

stainless steel with stainless steel piano hinges.

RETAINING BRACKET: Fabricated of 16 gauge stainless

steel. Positive bullet-type catch holds seat securely in

up or down position.

SEAT: Fabricated of 8mm thick solid plastic (white)

laminate, made of coloured melamine bonded under

high pressure to a phenolic core. All exposed edges

are machined smooth to a uniform dark finish.

357mm

2-R6

70mm

228mm

152mm

Spring Detent
(position spring at
top of bracket)

Finished Floor

126

4- 7.00

MODEL 9562-40

710mm

-

760mm

970mm

718mm

5mm

265mm200mm

970mm

200mm

89mm

89mm

2-R38

38mm

OPERATION:

Hinged seat folds up and out of the way when not in

use. When properly installed, seat can support up to

226kg static load.

INSTALLATION:

Provide concealed backing or anchors as specified

by architect before finished wall is applied. Secure

to wall with mounting screws (included) at holes

provided. Locate mounting holes 408mm above

finished floor for comfortable adult use.

GUIDE SPECIFICATION:

Folding plastic laminate shower seat shall be

fabricated of 8mm thick melamine bonded to a

phenolic core secured to a stainless steel frame

of 25mm diameter, 18 gauge tubing. Wall bracket

of 16 gauge stainless steel with heavy duty hinges.

Shower seat shall comply with AS1428.

470mm - 480mm

TOLL FREE 1300 364 561

The manufacturer reserves the right to make changes in design and material

without formal notice and without incurring obligation.

89mm

89mm

152mm

111mm

6mm dia.
holes (4)

83mm

54mm

265mm

C

L

495mm

200mm 200mm

237mm

57mm dia.
bolt circle for
No 10 fasteners

212.7mm

357mm

16mm

395mm

Finished

Floor
