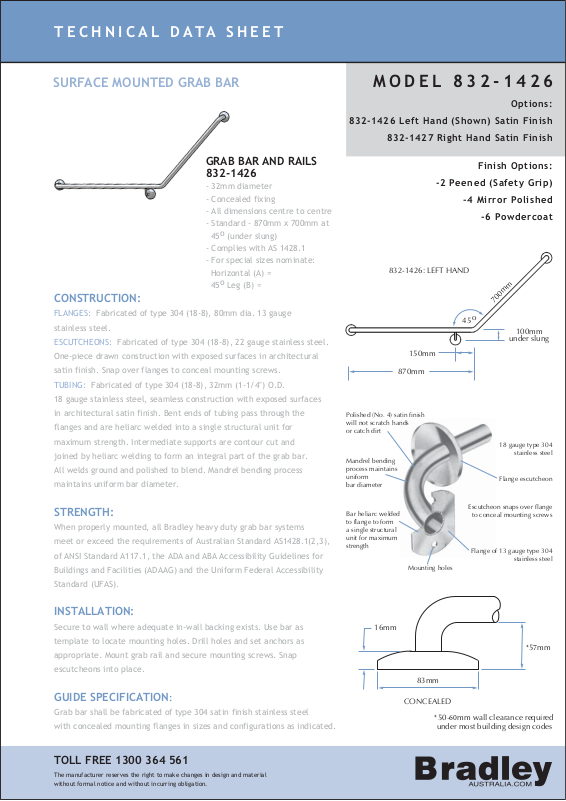

TECHNICAL DATA SHEET

SURFACE MOUNTED GRAB BAR

GRAB BAR AND RAILS
832-1426

- 32mm diameter

- Concealed fixing

- All dimensions centre to centre

- Standard - 870mm x 700mm at
o

(under slung)

45

- Complies with AS 1428.1

- For special sizes nominate:

Horizontal (A) =

o

45

Leg (B) =

CONSTRUCTION:

FLANGES: Fabricated of type 304 (18-8), 80mm dia. 13 gauge

stainless steel.

ESCUTCHEONS: Fabricated of type 304 (18-8), 22 gauge stainless steel.

One-piece drawn construction with exposed surfaces in architectural

satin finish. Snap over flanges to conceal mounting screws.

TUBING: Fabricated of type 304 (18-8), 32mm (1-1/4") O.D.

18 gauge stainless steel, seamless construction with exposed surfaces

in architectural satin finish. Bent ends of tubing pass through the

flanges and are heliarc welded into a single structural unit for

maximum strength. Intermediate supports are contour cut and

joined by heliarc welding to form an integral part of the grab bar.

All welds ground and polished to blend. Mandrel bending process

maintains uniform bar diameter.

MODEL 832-1426

Options:

832-1426 Left Hand (Shown) Satin Finish

832-1427 Right Hand Satin Finish

Finish Options:

-2 Peened (Safety Grip)

-4 Mirror Polished

-6 Powdercoat

832-1426: LEFT HAND

700mm

o

45

100mm

under slung

150mm

870mm

Polished (No. 4) satin finish
will not scratch hands
or catch dirt

18 gauge type 304

Mandrel bending
process maintains
uniform
bar diameter

stainless steel

Flange escutcheon

STRENGTH:

When properly mounted, all Bradley heavy duty grab bar systems

meet or exceed the requirements of Australian Standard AS1428.1(2,3),

of ANSI Standard A117.1, the ADA and ABA Accessibility Guidelines for

Buildings and Facilities (ADAAG) and the Uniform Federal Accessibility

Standard (UFAS).

INSTALLATION:

Secure to wall where adequate in-wall backing exists. Use bar as

template to locate mounting holes. Drill holes and set anchors as

appropriate. Mount grab rail and secure mounting screws. Snap

escutcheons into place.

GUIDE SPECIFICATION:

Grab bar shall be fabricated of type 304 satin finish stainless steel

with concealed mounting flanges in sizes and configurations as indicated.

TOLL FREE 1300 364 561

The manufacturer reserves the right to make changes in design and material

without formal notice and without incurring obligation.

Bar heliarc welded
to flange to form
a single structural
unit for maximum
strength

16mm

Escutcheon snaps over flange

to conceal mounting screws

Flange of 13 gauge type 304

Mounting holes

83mm

CONCEALED

*50-60mm wall clearance required

under most building design codes

stainless steel

*57mm
