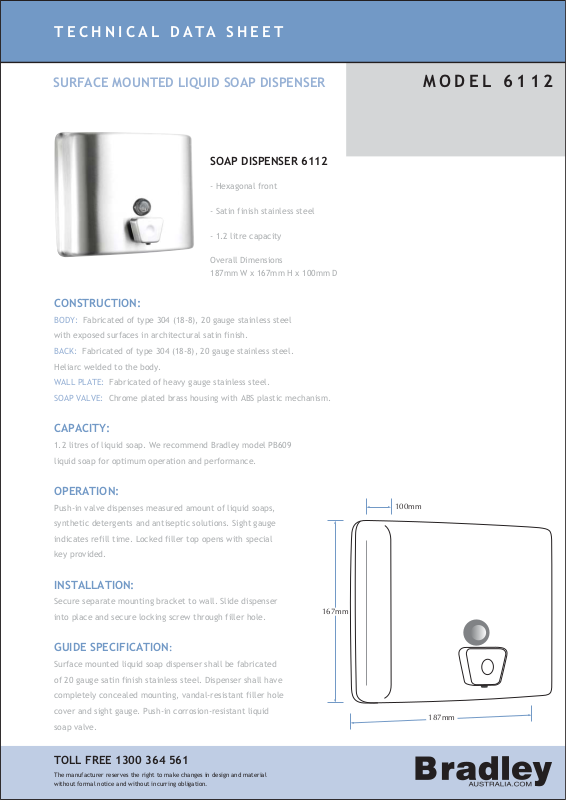

TECHNICAL DATA SHEET

SURFACE MOUNTED LIQUID SOAP DISPENSER

SOAP DISPENSER 6112

- Hexagonal front

- Satin finish stainless steel

- 1.2 litre capacity

Overall Dimensions
187mm W x 167mm H x 100mm D

CONSTRUCTION:

BODY: Fabricated of type 304 (18-8), 20 gauge stainless steel

with exposed surfaces in architectural satin finish.

BACK: Fabricated of type 304 (18-8), 20 gauge stainless steel.

Heliarc welded to the body.

WALL PLATE: Fabricated of heavy gauge stainless steel.

SOAP VALVE: Chrome plated brass housing with ABS plastic mechanism.

MODEL 6112

CAPACITY:

1.2 litres of liquid soap. We recommend Bradley model PB609

liquid soap for optimum operation and performance.

OPERATION:

Push-in valve dispenses measured amount of liquid soaps,

synthetic detergents and antiseptic solutions. Sight gauge

indicates refill time. Locked filler top opens with special

key provided.

INSTALLATION:

Secure separate mounting bracket to wall. Slide dispenser

into place and secure locking screw through filler hole.

GUIDE SPECIFICATION:

Surface mounted liquid soap dispenser shall be fabricated

of 20 gauge satin finish stainless steel. Dispenser shall have

completely concealed mounting, vandal-resistant filler hole

cover and sight gauge. Push-in corrosion-resistant liquid

soap valve.

100mm

167mm

187mm

TOLL FREE 1300 364 561

The manufacturer reserves the right to make changes in design and material

without formal notice and without incurring obligation.
