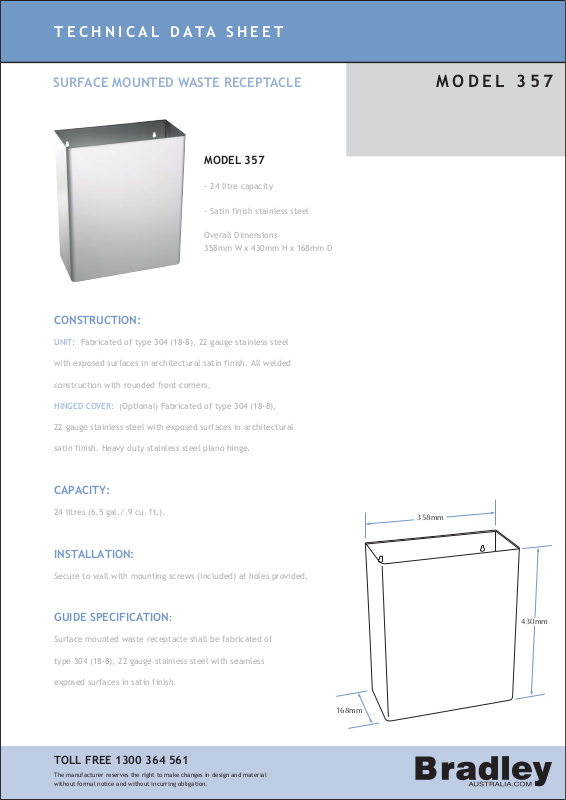

Bradley 357 Datasheet

TECHNICAL DATA SHEET

SURFACE MOUNTED WASTE RECEPTACLE

MODEL 357

- 24 litre capacity

- Satin finish stainless steel

Overall Dimensions
358mm W x 430mm H x 168mm D

CONSTRUCTION:

UNIT: Fabricated of type 304 (18-8), 22 gauge stainless steel

with exposed surfaces in architectural satin finish. All welded

construction with rounded front corners.

HINGED COVER: (Optional) Fabricated of type 304 (18-8),

MODEL 357

22 gauge stainless steel with exposed surfaces in architectural

satin finish. Heavy duty stainless steel piano hinge.

CAPACITY:

24 litres (6.5 gal./.9 cu. ft.).

INSTALLATION:

Secure to wall with mounting screws (included) at holes provided.

GUIDE SPECIFICATION:

Surface mounted waste receptacle shall be fabricated of

type 304 (18-8), 22 gauge stainless steel with seamless

exposed surfaces in satin finish.

358mm

430mm

168mm

TOLL FREE 1300 364 561

The manufacturer reserves the right to make changes in design and material

without formal notice and without incurring obligation.
